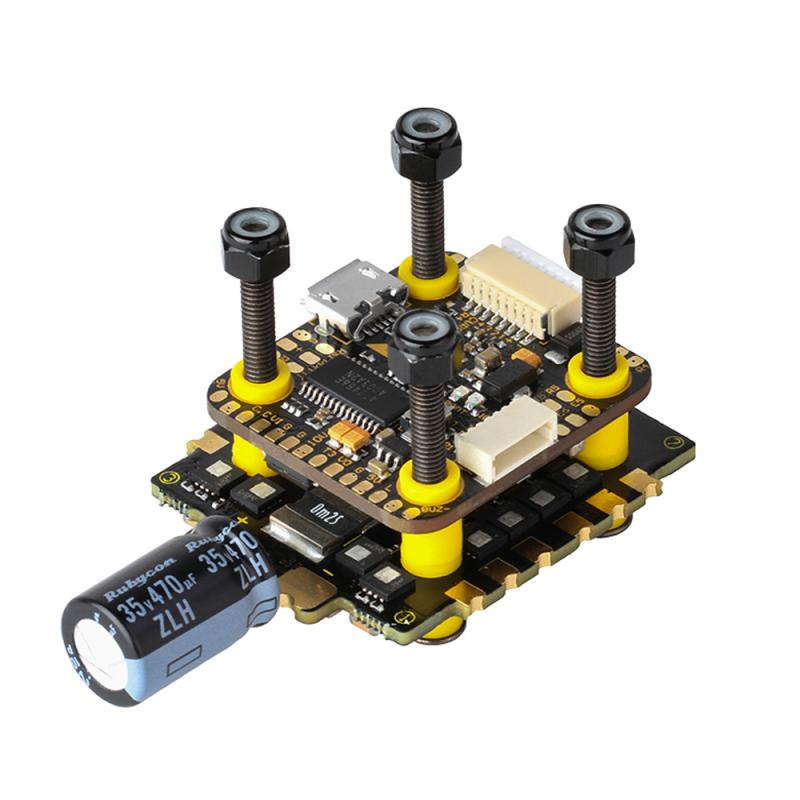

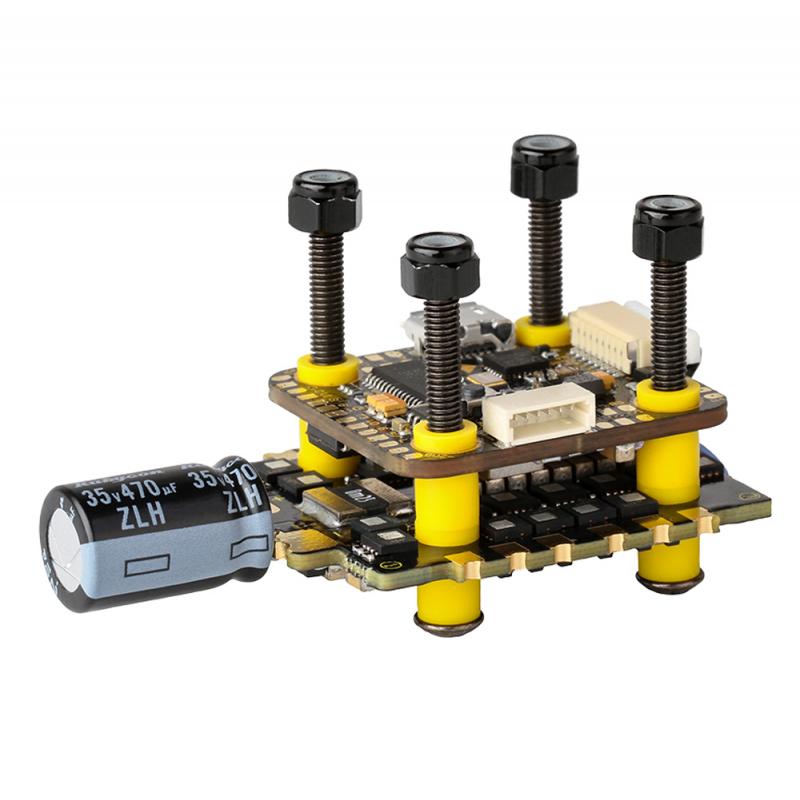

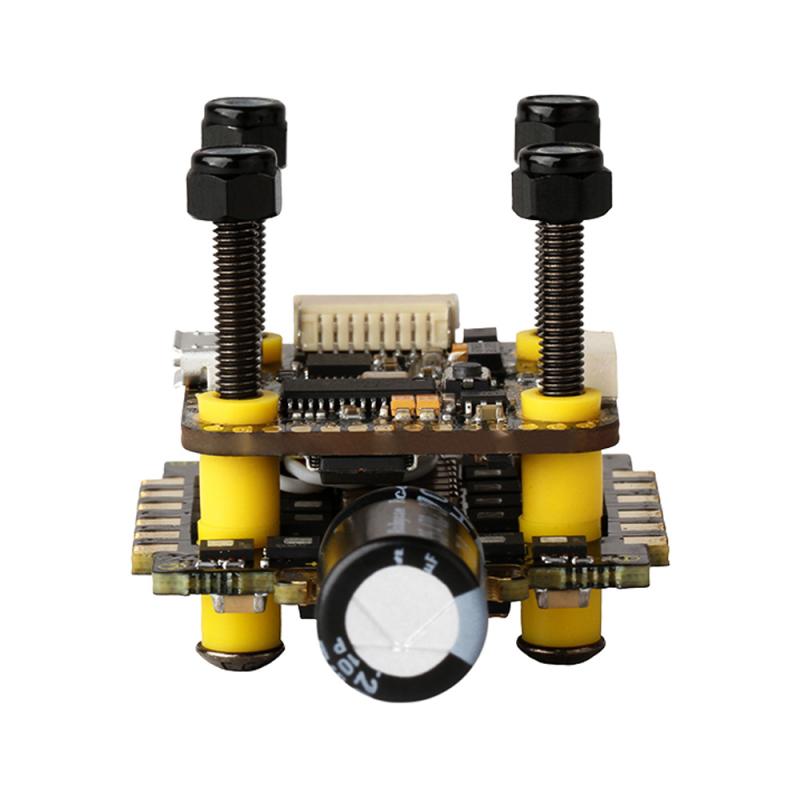

T-MOTOR MINI F7 STACK AND MINI F45A 3-6S BLHELI_32 4IN1 ESC

Get a better flying experience with the T-Motor Mini F45 + Mini F7 Stack! This stack brings lots of power all in a small package! The T-Motor Mini F7 20×20 Flight Controller can be connected to the DJI Digital HD FPV System, and combined with the Mini 45A 4-in-1 high-performance 32-BIT ESC you will have a fantastic flying experience!

SPECIFICATIONS

MINI F7 FLIGHT CONTROLLER

• Input Voltage: 3~6s
• BEC: 5v/2A, 10V/2A (For DJI HD VTX)
• Main Control：STM32F722
• Gyroscope: MPU6000
• RAM: Onboard 16M
• OSD: Support
• Barometer: No
• Mounting pitch: 20*20mm
• Weight: 5.1g
• Firmware: TMOTORF7 (STM32F7X2)

MINI F45A 4IN1 ESC

• Input Voltage: 3~6S
• ESC Firmware: BLHeli32
• Telemetry: Support
• Mounting pitch: 20*20mm
• Weight: 9.2g
• Betaflight galvanometer ratio: 200

INCLUDES

• 1 x  Mini F7 Flight Controller
• 1 x Mini F45A 4IN1 ESC
• 1 x Parts
