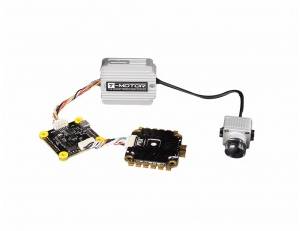

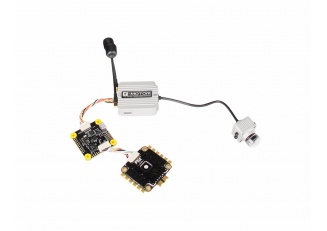

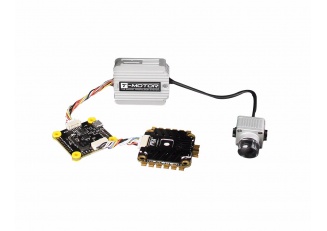

T-Motor F7 HD + F55A Pro II Stack 30×30 BMI270 3-6s
Introducing the T-Motor F7 & F55A Stack designed specifically for the DJI Digital FPV System! This version includes a convenient plug for your Air Unit and a 10V 2A BEC to provide power. Don’t miss out on exploring our wide range of Stacks and other T-Motor Products!
Specifications:
Flight Controller:
- Input Voltage: 3-6S
- Gyro: BMI270
- Master chip: STM32F722RET6
- Flash: 16MB
- BEC: 5V 2A, 10V 2A
- Mounting hole: 30.5×30.5mm
- Weight: 8.4g
- Size: 37x37mm
- Firmware: TMOTOR F7 (Betaflight)
Electronic Speed Controller (ESC):
- Continuous current: 4*55A
- BLHeli_32 32bit
- Burst current: 4*75A
- BEC Output: 10V @2.0A
- Size: 45x41x7.3mm
- Weight: 17.3g (Including Heatsink)
- Support DSHOT150/300/600/1200
Package Includes:
- 1 x T-Motor F7 HD 30×30 Flight Controller for DJI
- 1 x F55A Pro II 4 in 1 Brushless ESC
