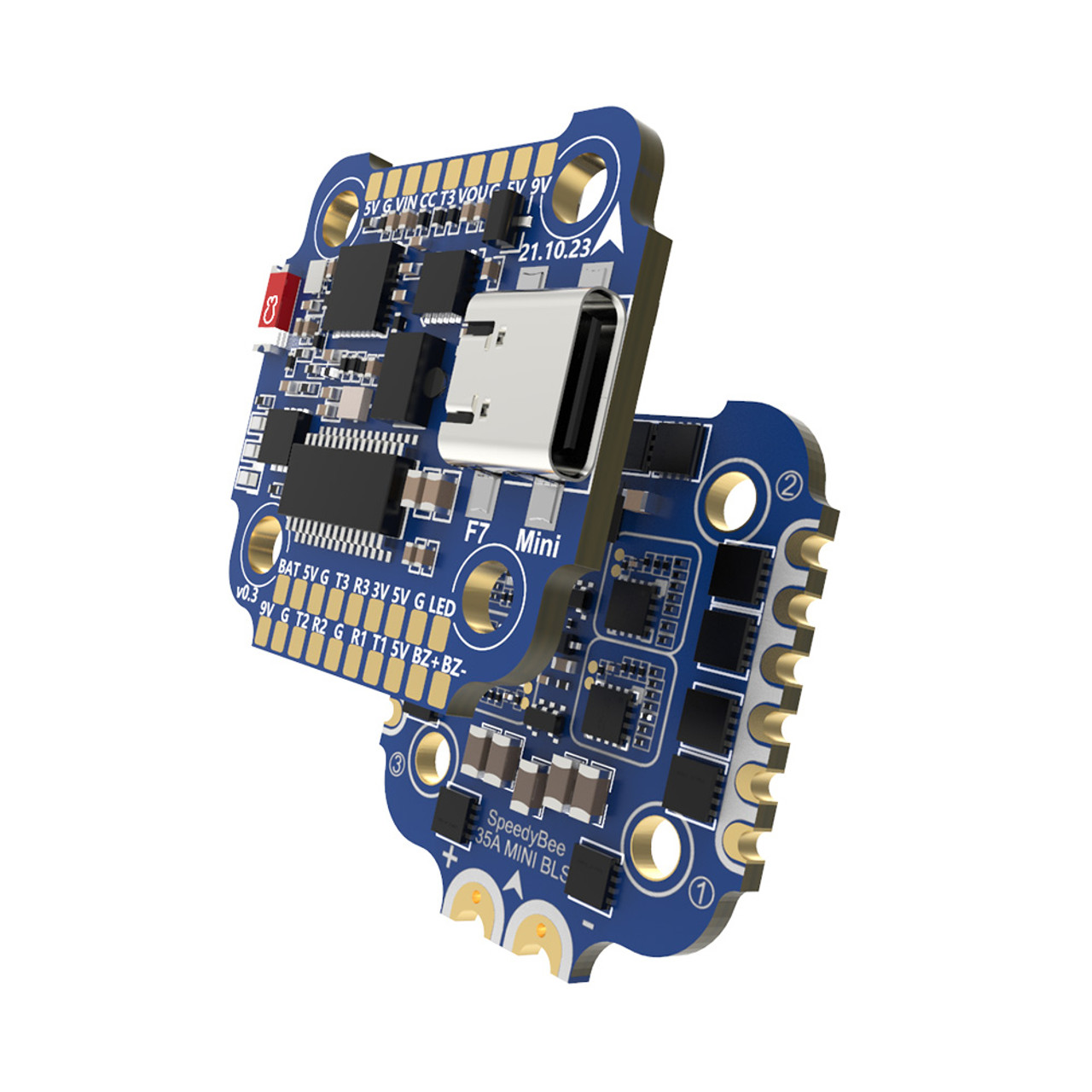

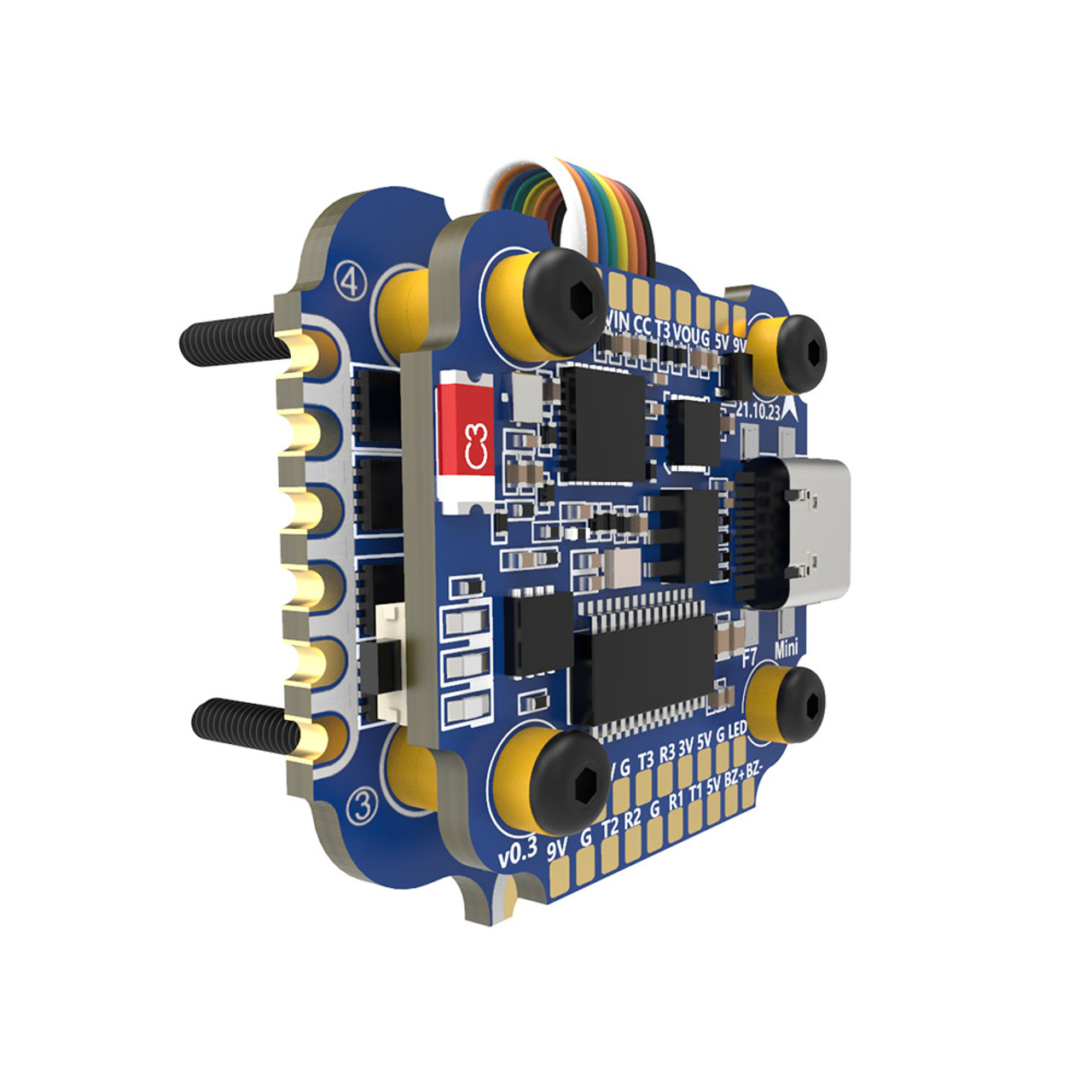

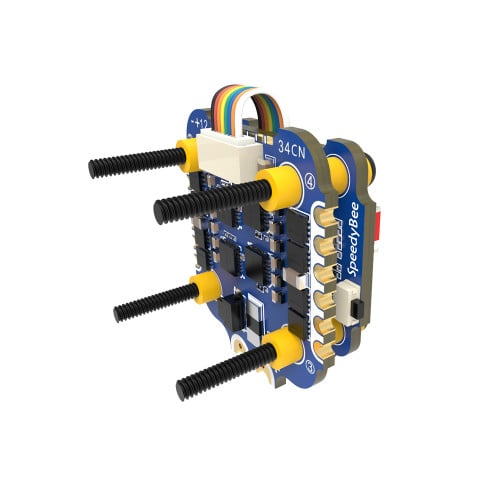

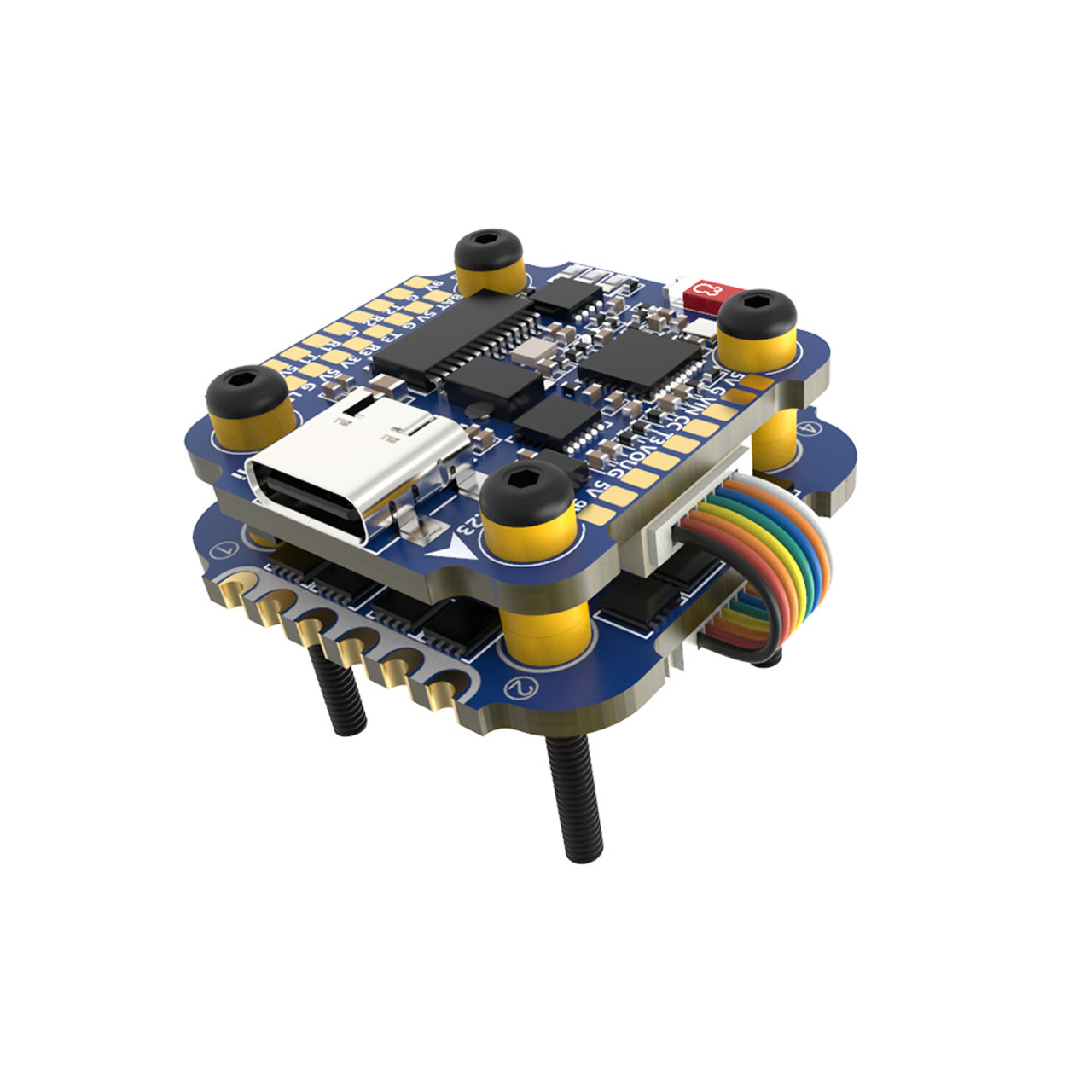

SpeedyBee F7 Mini 35A 3-6S 8-bit Flight Controller Stack
Check out all of our Speedybee products!
Features

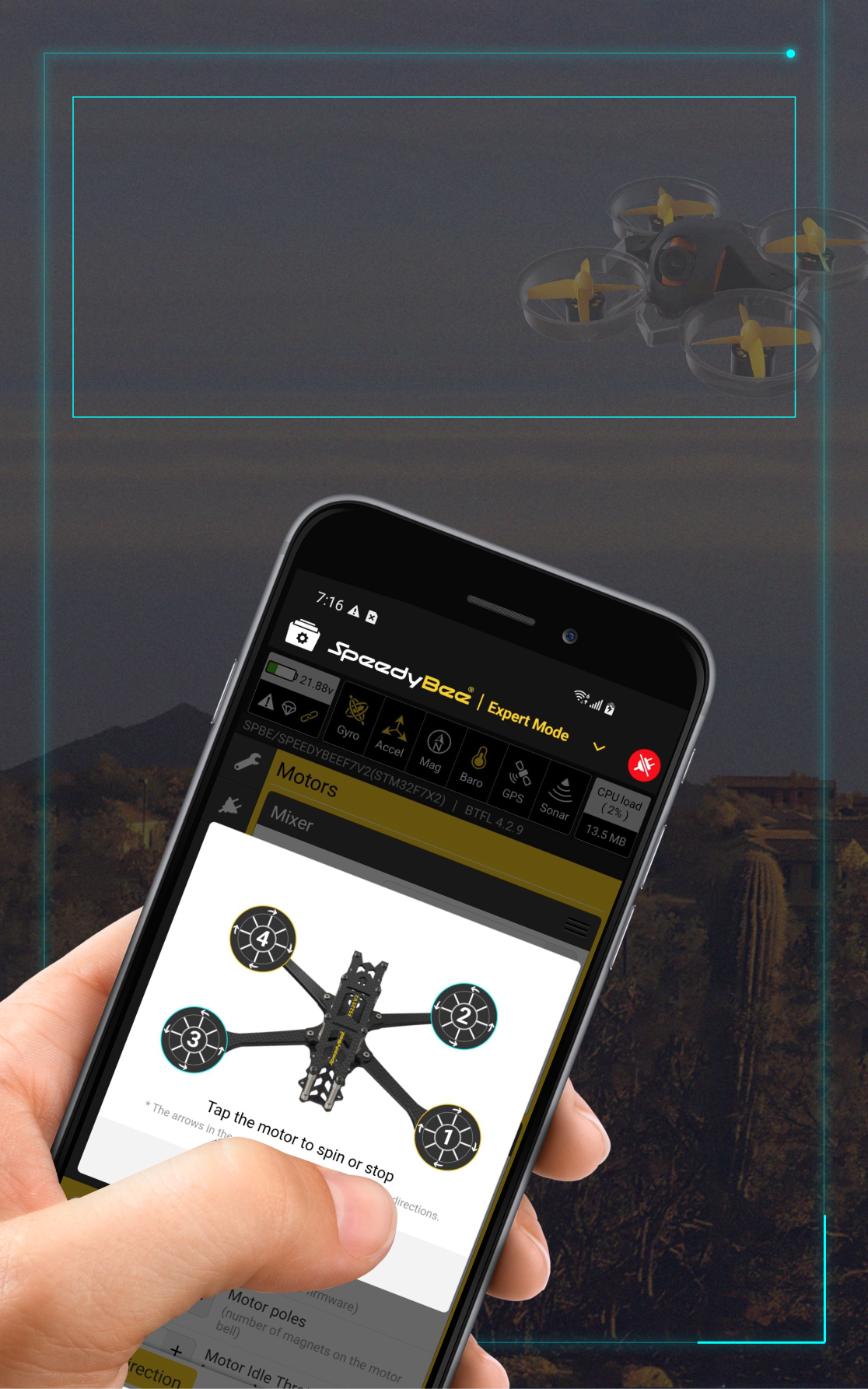

- Wireless full-featured flight controller tuning
- Wireless full-featured BLHeli_S ESC tuning
- High-performance F7 flight controller CPU<
- Real 35A BLHeli_S DSHOT600 ESC
- Built-in Bluetooth 4.0 BLE chip
The flight controller has two independent 9V 2A BEC and 5V 2A BEC, supports various analog image transmissions above 5V, and also supports DJI Air Unit / RunCam Link / Vista.

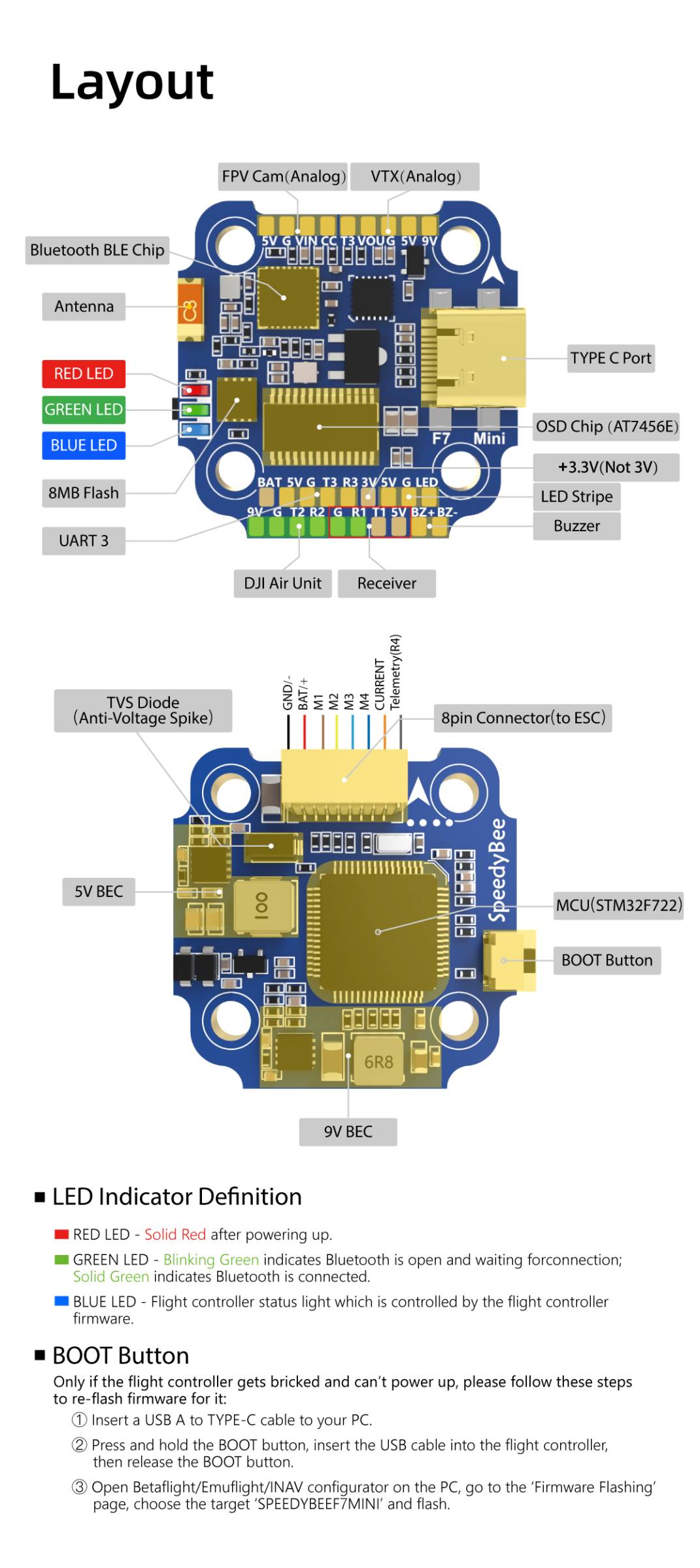

| Product Name | SpeedyBee F7 Mini Specs |
| MCU | STM32F722 |
| IMU(Gyro) | BMI270 for current batches; MPU6000 for old batches before May 2022. |
| USB Port Type | Type-C |
| Barometer | N/A |
| OSD Chip | AT7456E chip |
| BLE Bluetooth | Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART 6) |
| WIFI | Not supported |
| Flash FC Firmware Wirelessly | Not supported. Please update firmware for this FC on the PC |
| Download/Analyze Blackbox | Not supported. Please download and analyze Blackbox data on the PC |

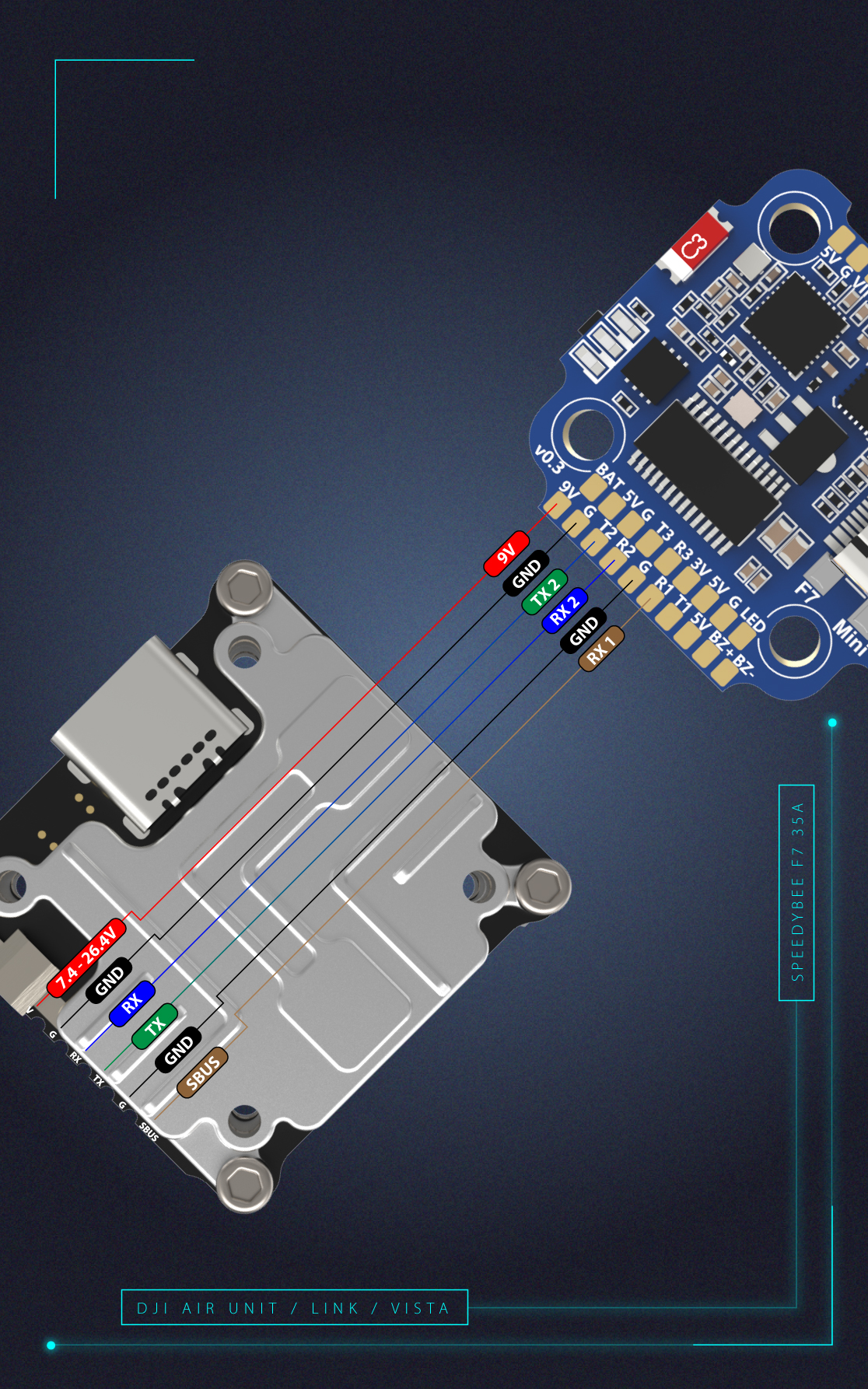

| DJI Air Unit Soldering Pads | Supported |
| Flash(for BlackBox) | 8MB |
| Current Sensor | Supported, Scale=250 Offset=-500 |
| BetaFlight Camera Control Pad | Yes(CC pad) |
| Power Input | 3S – 6S Lipo |
| 5V Output | 6 groups of 5V output, five +5V pads and 1 BZ+ pad( used for Buzzer). The total current load is 2.5A. |
| 9V Output | 2 groups of 9V output, the total current load is 2A. |
| 3.3V Output | Supported. Up to 500mA current load. |
| ESC Signal Pads | M1 – M4 |
| UART | Full UART * 3(UART1, UART2, UART3) |
| ESC Telemetry UART | R4(UART4) |
| I2C | Not supported |
| LED Pad | Used for WS2812 LED |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Used to enter DFU mode |
| RSSI Input | Not supported |
| SmartPort | Use any TX pad of UART for the SmartPort feature. |
| Supported Flight Controller Firmware | BetaFlight(Default) |
| Firmware Target Name | SPEEDYBEEF7MINIV2 for current batches(Gyro: BMI270); SPEEDYBEEF7MINI for old batches(Gyro: MPU6000) before May 2022. |

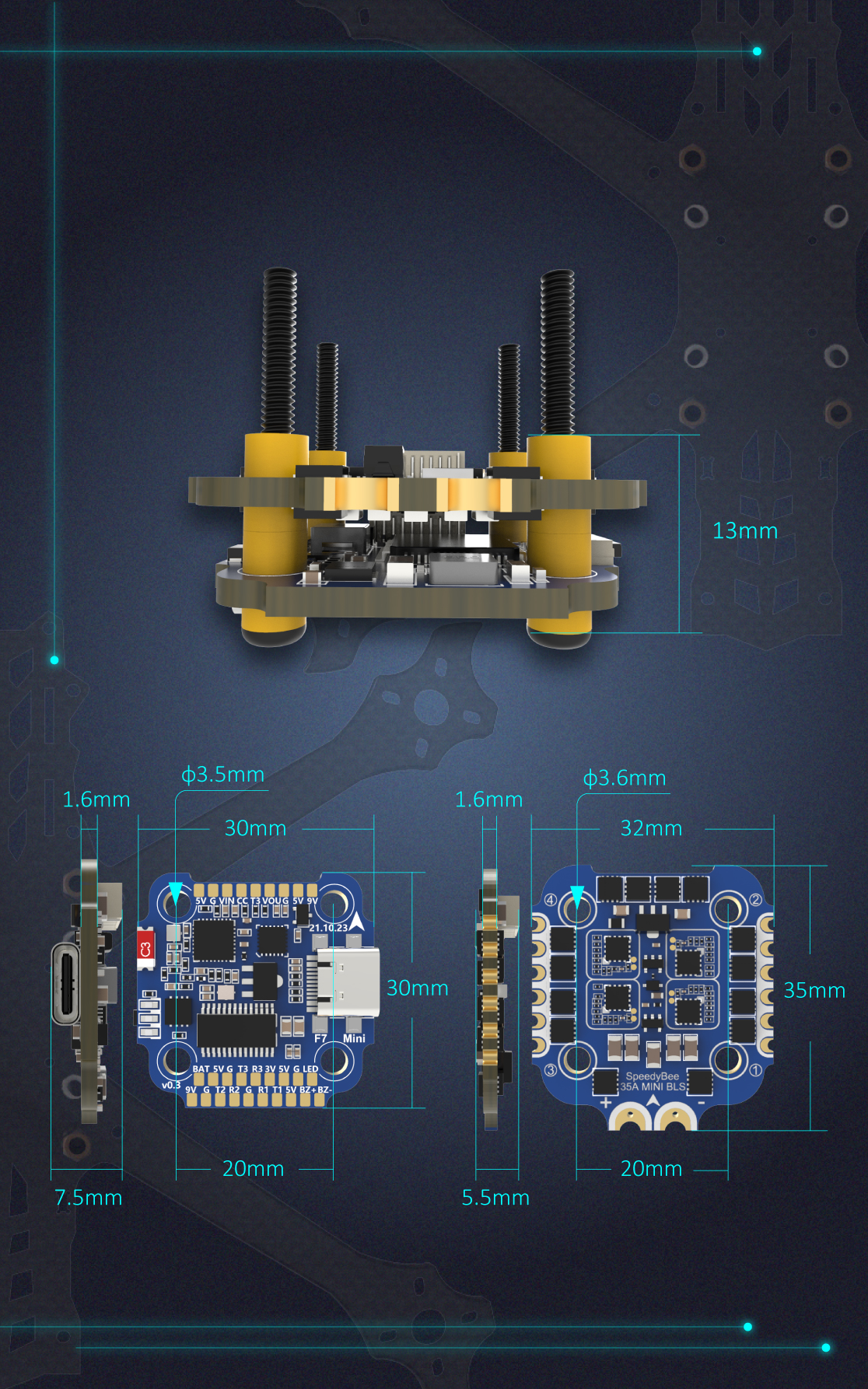

| Mounting | 20 x 20mm, 3.5mm hole diameter |
| Dimension | 30 x 30 x 7.5mm |
| Weight | 5.7g |

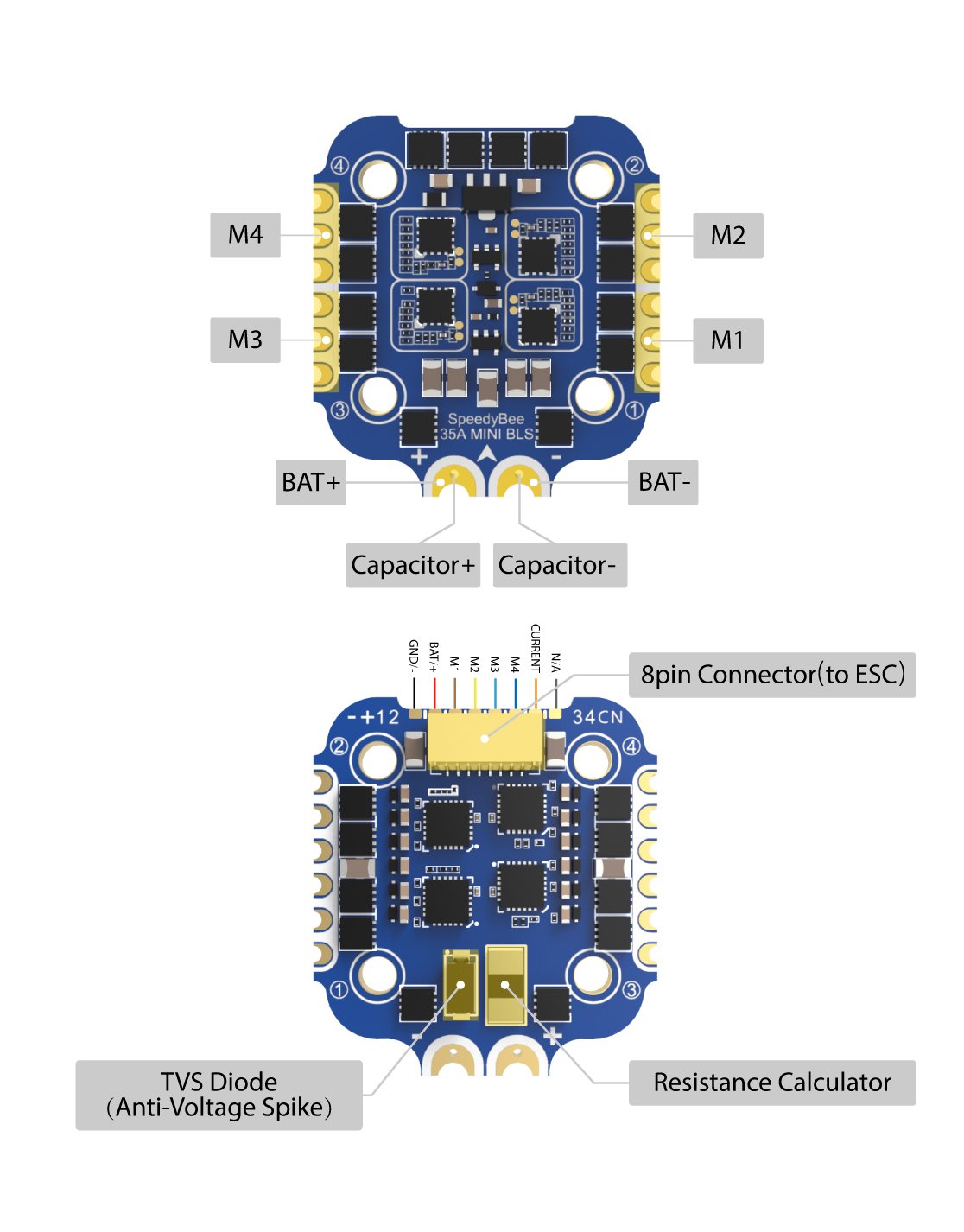

| Product Name | SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC Specs |
| Firmware | BLHeli_S JH40 |
| Continuous Current | 35A * 4 |
| Burst Current | 45A(5seconds) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=250 Offset=-500) |
| Mounting | 20 x 20mm, 3.6mm hole diameter |
| Dimension | 35 * 35 * 5.5mm |
| Weight | 7g |
