GEPRC SPAN-F722-BT Stack AIO
GEPRC SPAN-F722-BT Stack AIO
GEPRC SPAN-F722-BT Stack AIO 1
GEPRC SPAN-F722-BT Stack AIO 2
GEPRC SPAN-F722-BT Stack AIO 3
GEPRC SPAN-F722-BT Stack AIO 4
GEPRC SPAN-F722-BT Stack AIO
GEPRC SPAN-F722-BT Stack AIO
GEPRC SPAN-F722-BT Stack AIO
GEPRC SPAN-F722-BT Stack AIO 5
GEPRC SPAN-F722-BT Stack AIO 6
GEPRC SPAN-F722-BT Stack AIO 7
GEPRC SPAN-F722-BT Stack AIO 8
GEPRC SPAN-F722-BT Stack AIO

GEPRC SPAN-F722-BT Stack AIO

$104.99

The GEP-F722-BT is a F722 DUAL GYRO ICM20689 Flight Controller. It’s got a Built-in BlackBox, 32Mb onboard Flash, and a BlueTooth wireless adapter.

In Stock

SKU: GP102551 Categories: Electronics, Electronic Speed Controllers (ESC), Flight Controllers, Video Transmitters
Product categories
  • 3D Printed Quad Parts
  • Accessories
    • Battery Accessories
    • Build Accessories
    • Cables and Connectors
    • Drone Accessories
    • Goggle Accessories
    • Racing Gear
    • Radio Accessories
  • Antennas
    • 2.4G Antennas
    • 5.8G Antennas
    • Long Range Antennas
  • Batteries
    • Micro Quad Batteries
    • Mini Quad Batteries
    • X Class Batteries
  • Battery Chargers
  • DJI/HD FPV
  • Electronics
    • Electronic Speed Controllers (ESC)
    • Flight Controllers
    • LED Lighting
    • PDBs
  • FPV Drone Bundles
  • FPV Equipment
    • Action Cameras
    • FPV Cameras
    • FPV Monitors
    • Video Goggles
    • Video Receivers
    • Video Transmitters
  • Merch
  • Motors
  • Propellers
    • 10" Propellers
    • 12" Propellers
    • 13" Propellers
    • 2" Propellers
    • 3" Propellers
    • 4" Propellers
    • 5" Propellers
    • 6" Propellers
    • 7" Propellers
    • Micro Props
  • Quadcopter Frames
    • 3" Quad Frames
    • 4" Quad Frames
    • 5" Quad Frames
    • 6" Quad Frames
    • 7" Quad Frames
    • Micro FPV Frames
    • Spare Parts
  • Radios
    • Long Range FPV Equipment
    • Radio Controllers
    • Radio Receivers
  • Ready to Fly Drones
    • Bind-N-Fly
    • Plug-N-Play Quads
  • Toothpick FPV
  • Uncategorized
  • Whoop Drones
    • Ready to Fly
    • Whoop Drone Parts
  • X-Class FPV
  • Description
  • Additional information
  • Reviews (0)

GEPRC SPAN-F722-BT Stack AIO 9

GEPRC SPAN-F722-BT Stack AIO

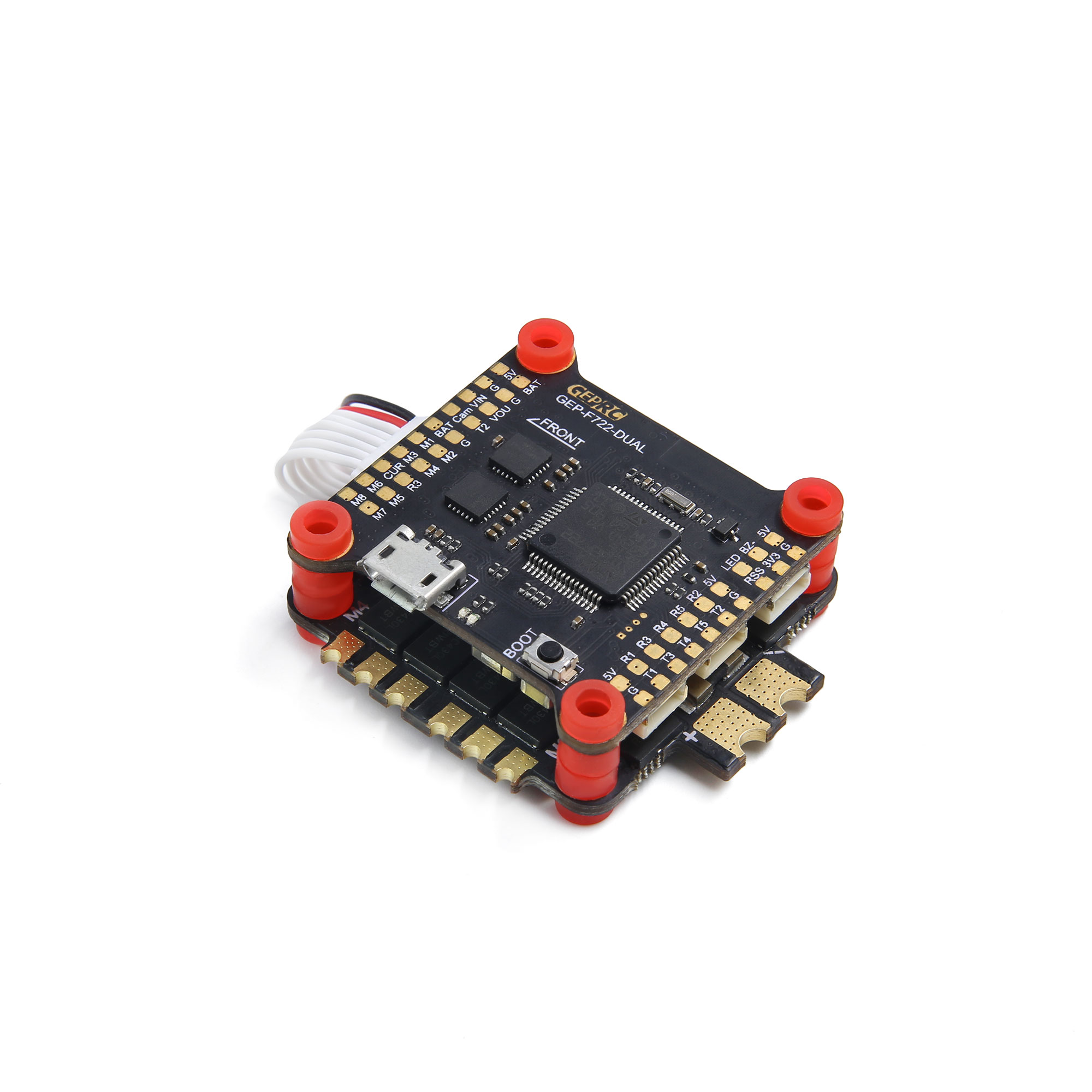

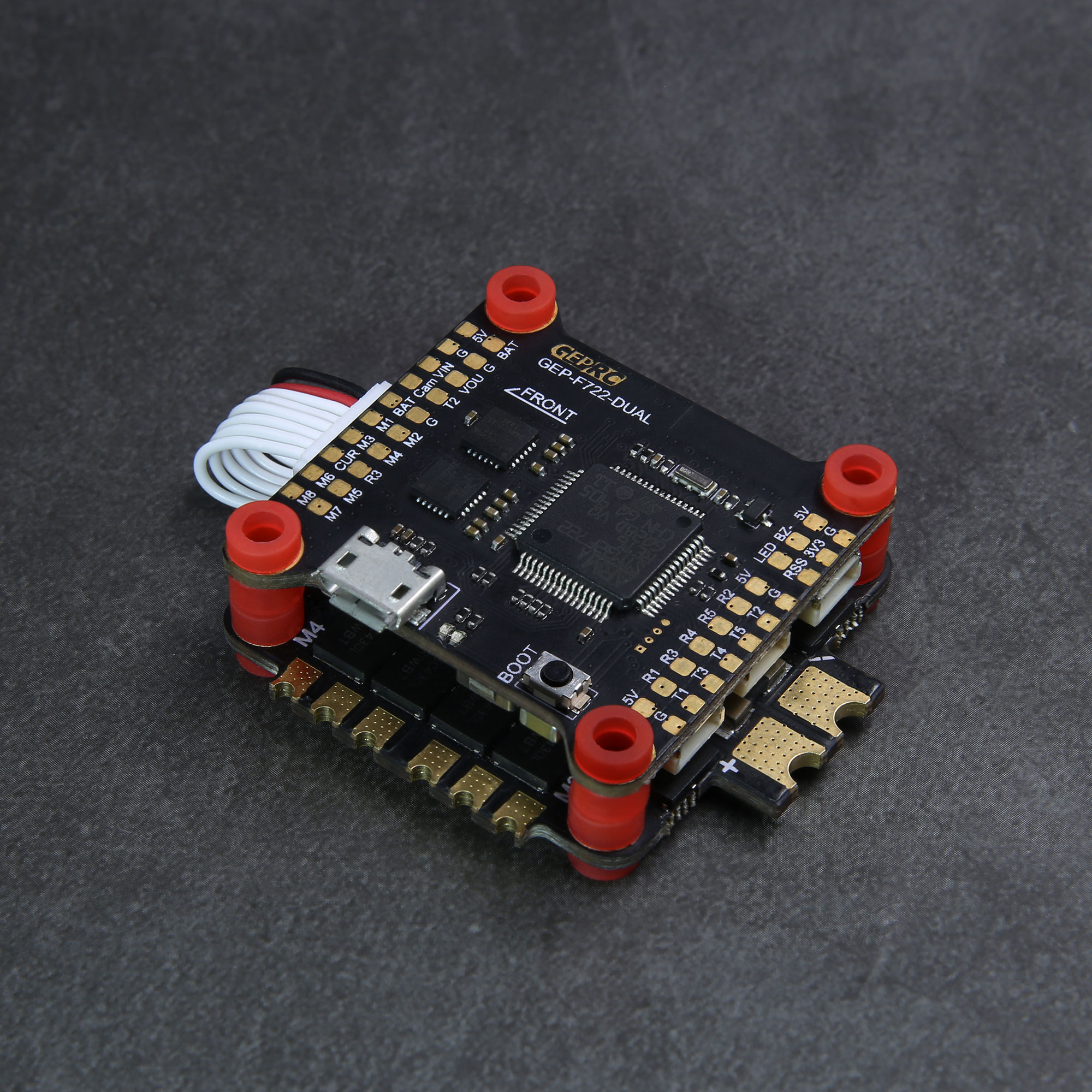

The GEP-F722-BT is a F722 DUAL GYRO ICM20689 Flight Controller. It’s got a Built-in BlackBox, 32Mb onboard Flash, and a BlueTooth wireless adapter. It’s easy to make Betaflight setup parameters on your phone using the SpeedyBee APP. Combines a powerful 50A ESC BLheli 32bit.

F722 and DUAL gyro have  amazing flight experience, It’s very smooth.

The GEP-F722-BT supports a variety of receivers including Sbus, PPM, CRSF, DSMX, iBus protocols, which can be used with your remote control.

SpeedyBee App Download

Android:
https://play.google.com/store/apps/details?id=com.runcam.android.runcambf

iPhone:
https://apps.apple.com/us/app/speedybee-app/id1150315028

Flight Controller Firmware(EXF722DUAL):
https://github.com/betaflight/betaflight/releases

Main Feature:

  • MCU: STM32F722RET6
  • IMU: 2x ICM20689(SPI)
  • Build-In: BlueTooth wireless adapter
  • BlackBox: 32Mb onboard Flash
  • BLheli_32 50A ESC 4in1 3-6S
  • Integrated LC Filter
  • Simple installation method, compact space
  • Support:Sbus,PPM,CRSF,DSMX,iBus

Specifications:

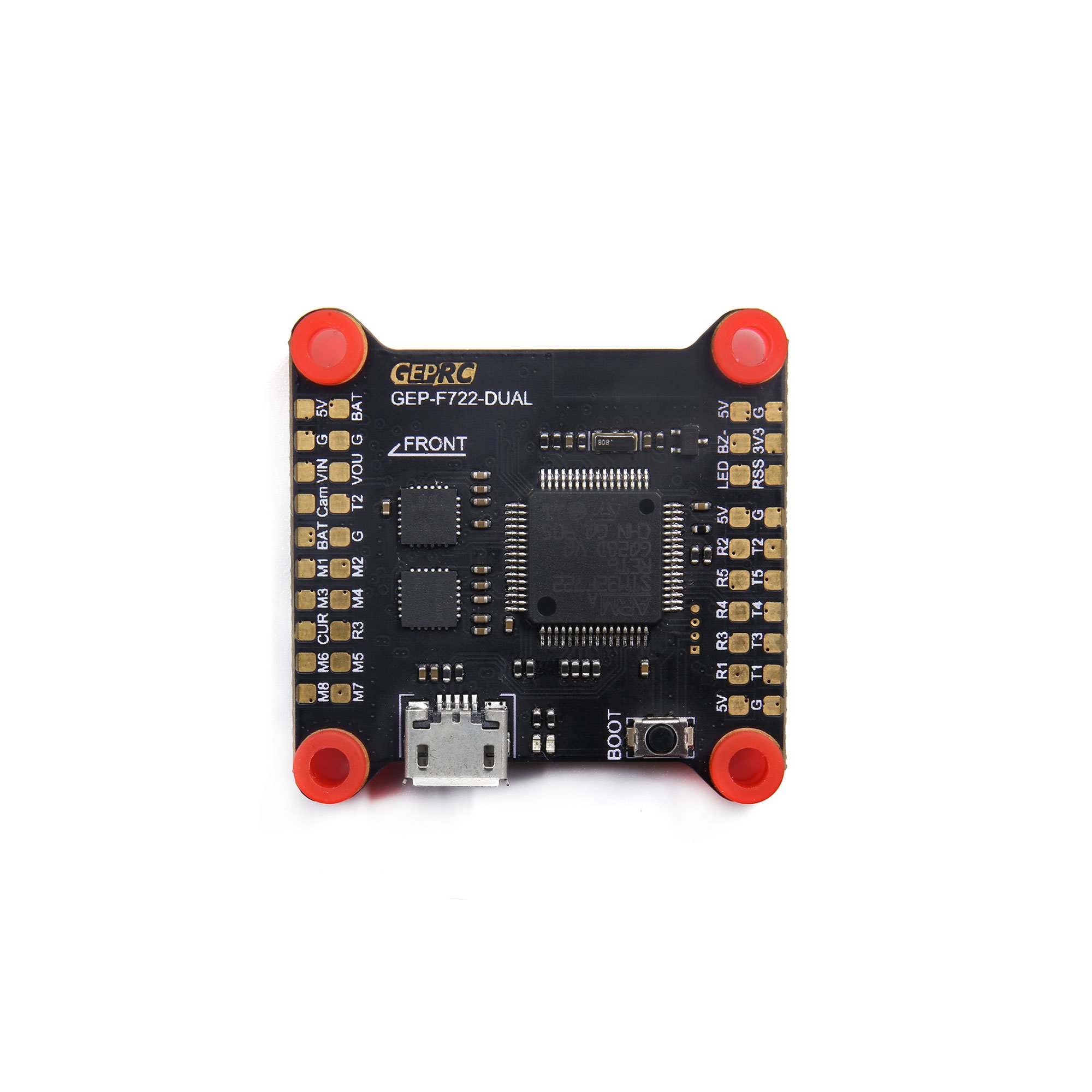

F722 DUAL ICM20689 Flight Controller:

  • MCU: STM32F722RET6
  • IMU: 2x ICM20689(SPI)
  • Build-In: BlueTooth wireless adapter (SpeedyBee APP)
  • BlackBox: 32Mb onboard Flash
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro:BMP280
  • BEC Output: 5V@3A
  • Integrated LC Filter
  • Firmware target: EXF722DUAL
  • Size: 36x36mm board, φ4mm with Grommets φ3mm
  • Power input: 3-6S LiPo
  • 5x UART
  • 8x Motor outputs

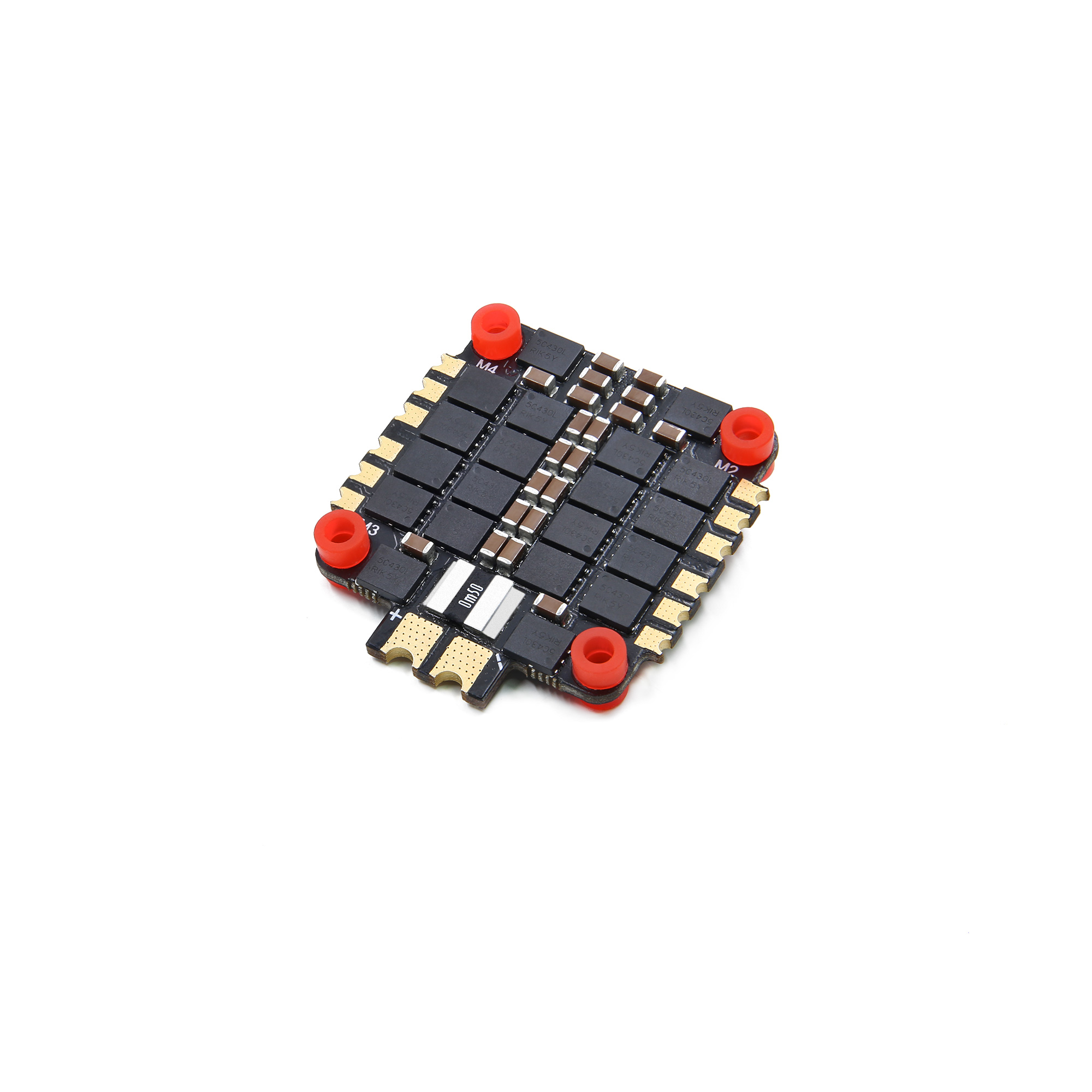

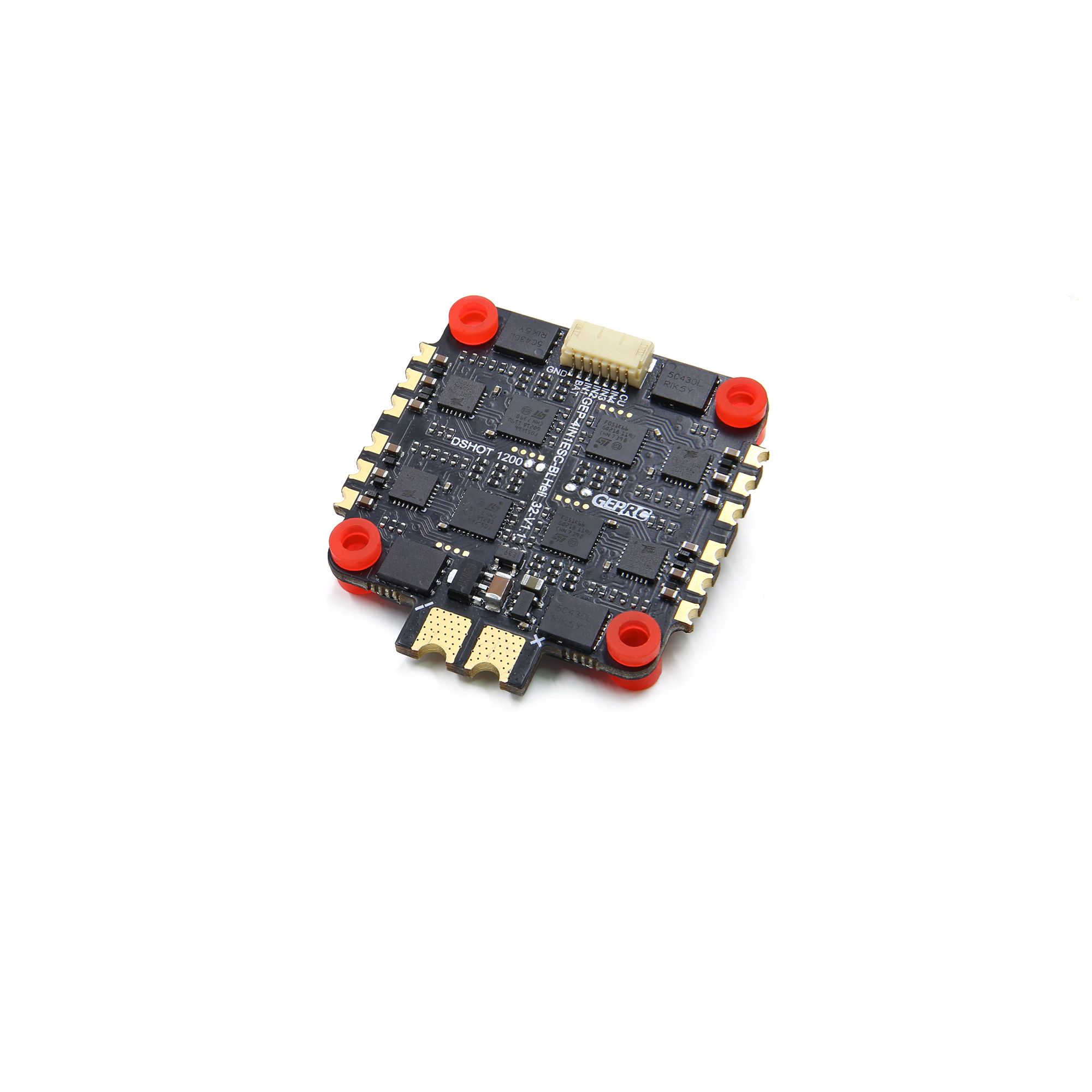

BL32 50A ESC 4IN1:

  • MCU: STM32FO51K86(32bit 48mHz)
  • Continuous Current: 50A
  • Peak Current: 55A (5S)
  • Current sensor: YES
  • Telemetry:Supported
  • Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
  • Firmware Version:GEPRC-BL32-4IN1
  • Input Voltage: 3-6S Lipo

BLHeliSuite download:

http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

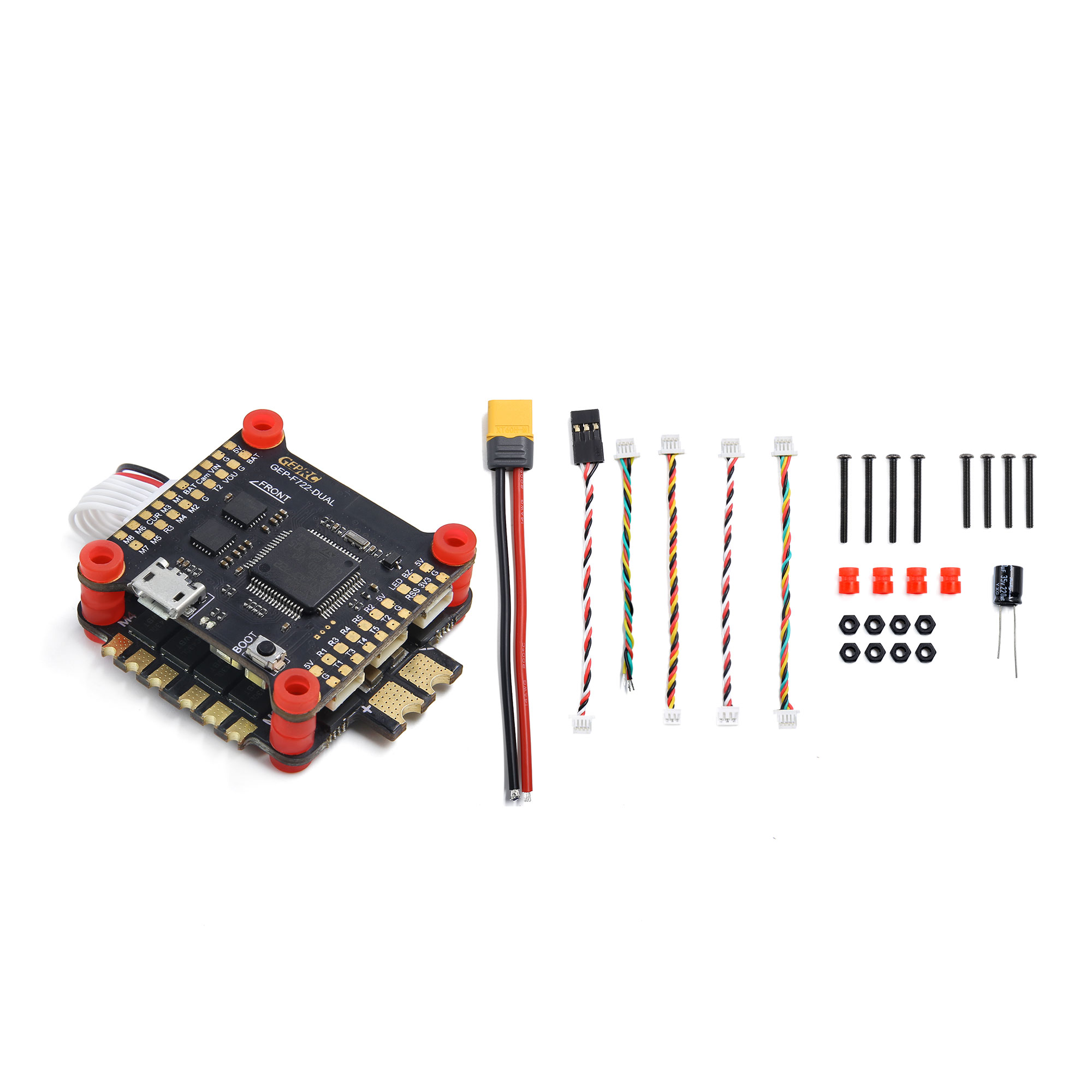

Package Included:

  • 1x FC & VTX board
  • 1x 50A ESC board
  • 1x 8pin cable
  • 4 x 4pins JST-SH sockets
  • 1x 35v 220uf Capacitor
  • 1x XT60 Power cable
  • 12x Silicon grommets M4 to M3
  • 4x M3*25 YFS screw
  • 4x M3*30 YFS screw
  • 8x M3 Nylon nut



Weight .254 lbs
Dimensions 5 × 3 × 1 in
