RUSHFPV Rush Blade F722 Flight Controller for DJI Digital FPV – 20x20mm

Check out all of our RushFPV Products!

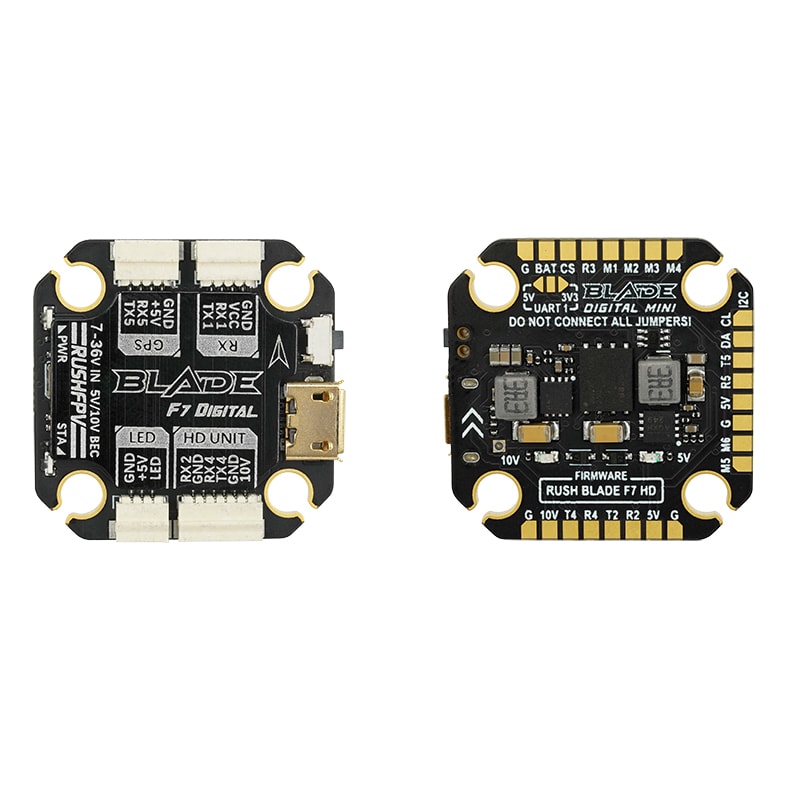

The Rush Blade Mini F722 Flight Controller Digital is a 20×20 integrated flight controller that combines the MPU6000 high-performance 6-axis motion sensor, and a high-speed 32-bit STM32 F722 MCU to bring you unparalleled flight control capability. These features allow you to fly with full confidence even in tough environments.

**Also available in Analog Version.

Features

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• Using MPU6000 with an integrated accelerometer and gyroscope, stable and reliable.
• Built-in analog video OSD,
• 16M black box, SUART ports, 6PWM output ports, 2 ADC ports, 1 I2C port,1 camera control port.
• Integrated 36V input power supply, up to 6S lipo battery power supply, 5V 5A output.

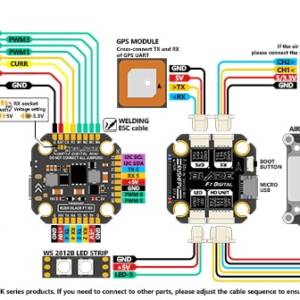

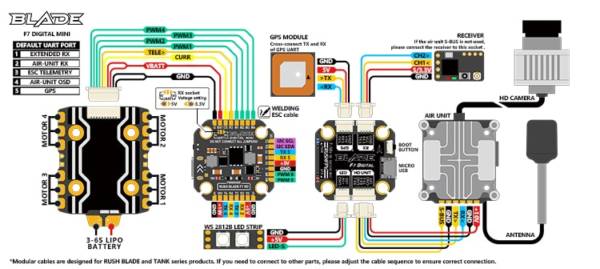

• A modular cable design, with a reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Optimized for stack installation, the single-sided component placement method makes the thickness thin, and the bottom is covered with complete copper to resist ESC interference.
• The full-covered lightweight metal shell protects internal electronic components and provides perfect heat dissipation.

Specifications

• Brand: RUSH BLADE
• Item Name: F722 HD Mini Flight Controller
• MCU: STM32 F722 RET6
• Port: 6x PWM  6x UART  1xI2C
• Gyro: MPU6000
• ADC: BATTERY VOLTAGE / CURRENT
• BEC Input: 7-36V 3-6S LIPO
• BEC Output: 5V 2A
• LED: SUPPORTS WS2812 LED STRIP
• Navi: SUPPORTS COMPASS/GPS
• OSD: CVBS PAL/NTSC
• Mounting holes: 20* 20mm
• BLACKBOX: 16MB SPI FLASH
• Size: 29mm*29mm*6.8mm
• Target: RUSH_ BLADE F7
• Voltage: 3-6S
• Weight: 5g(without cable)

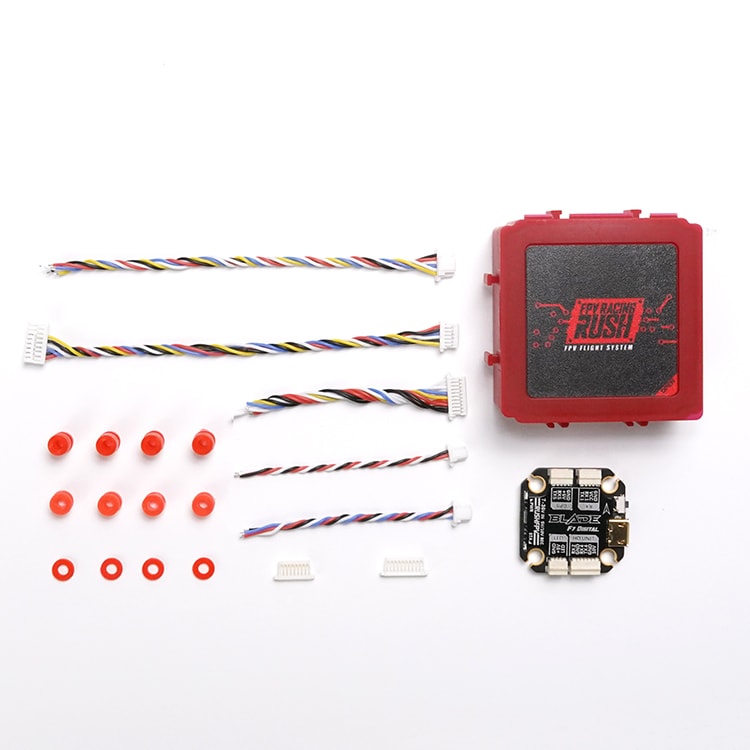

Includes

• 1 x F722 HD Mini Flight Controller
