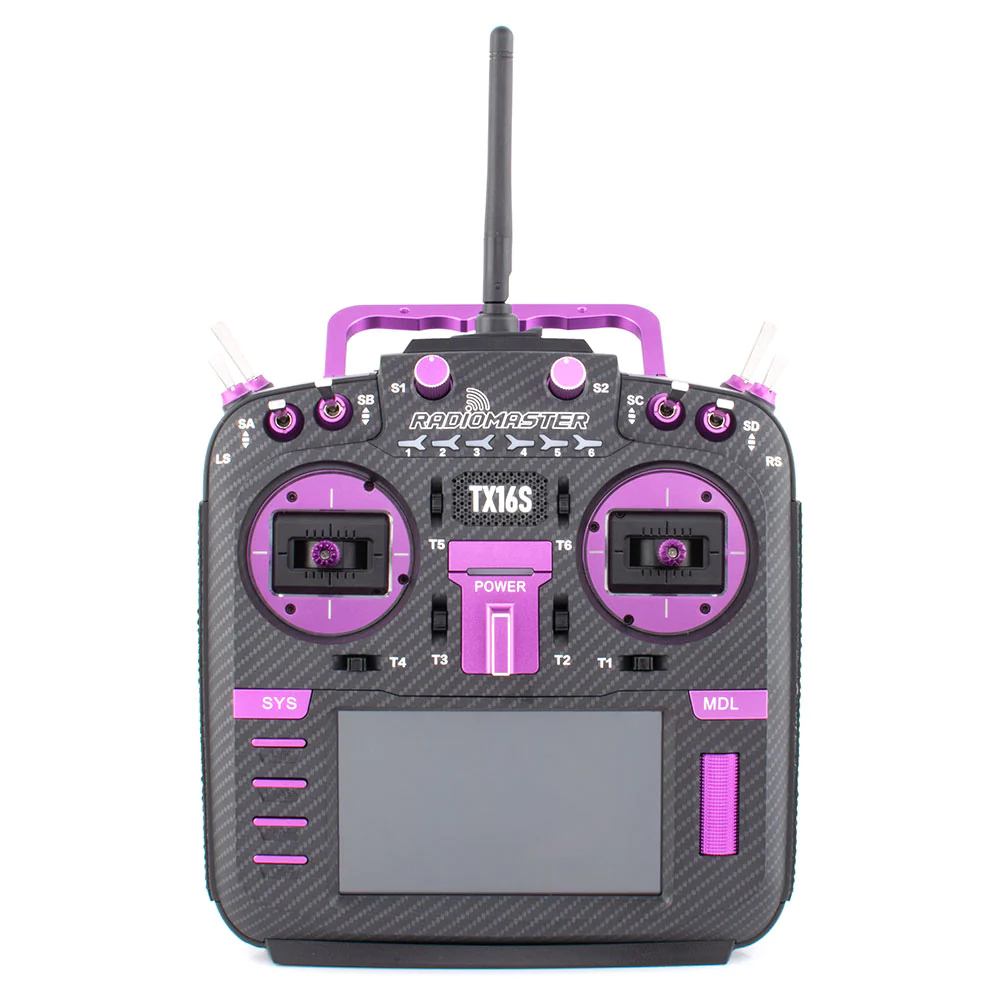

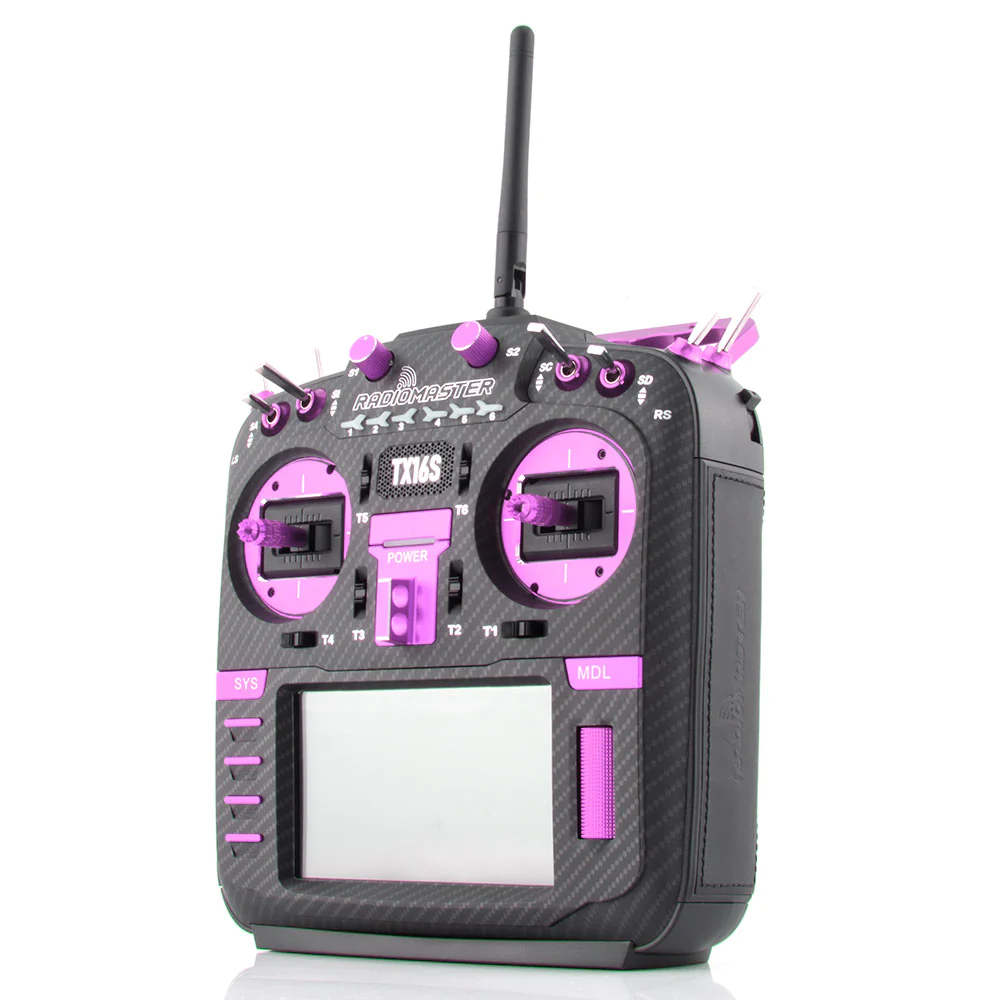

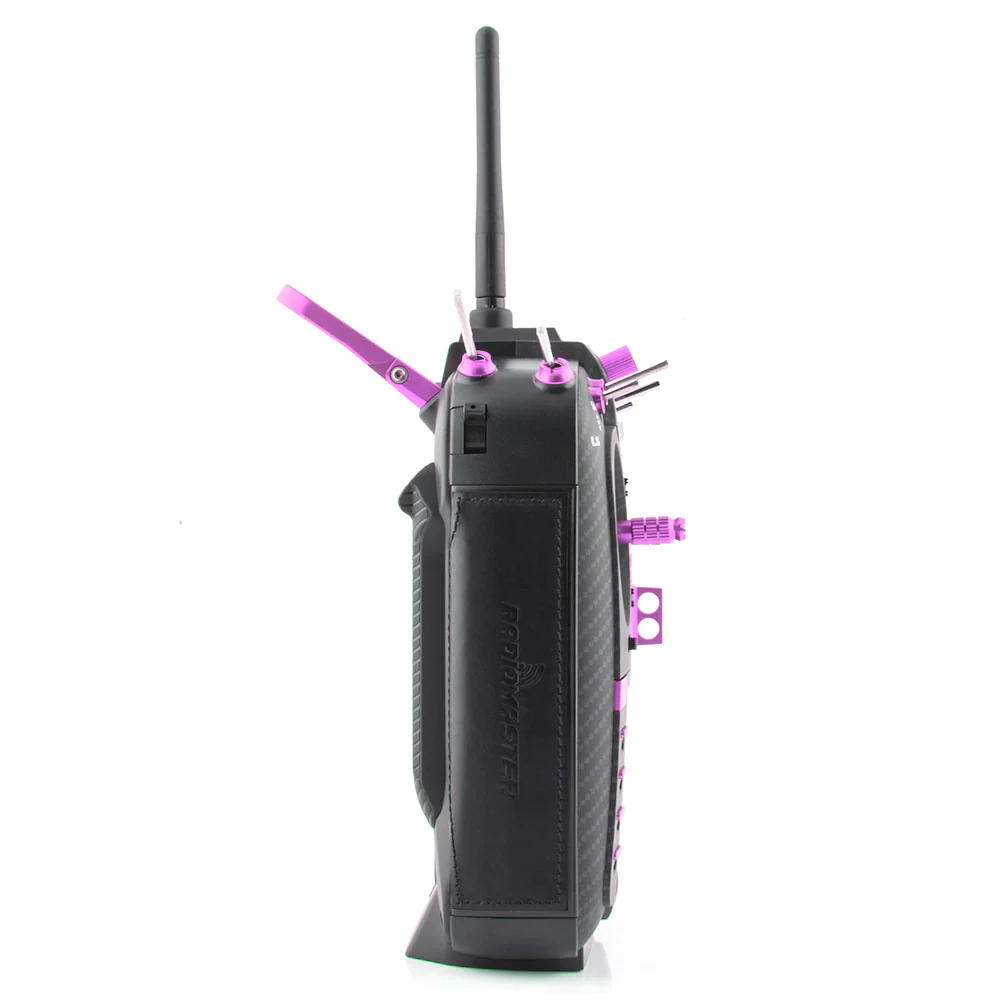

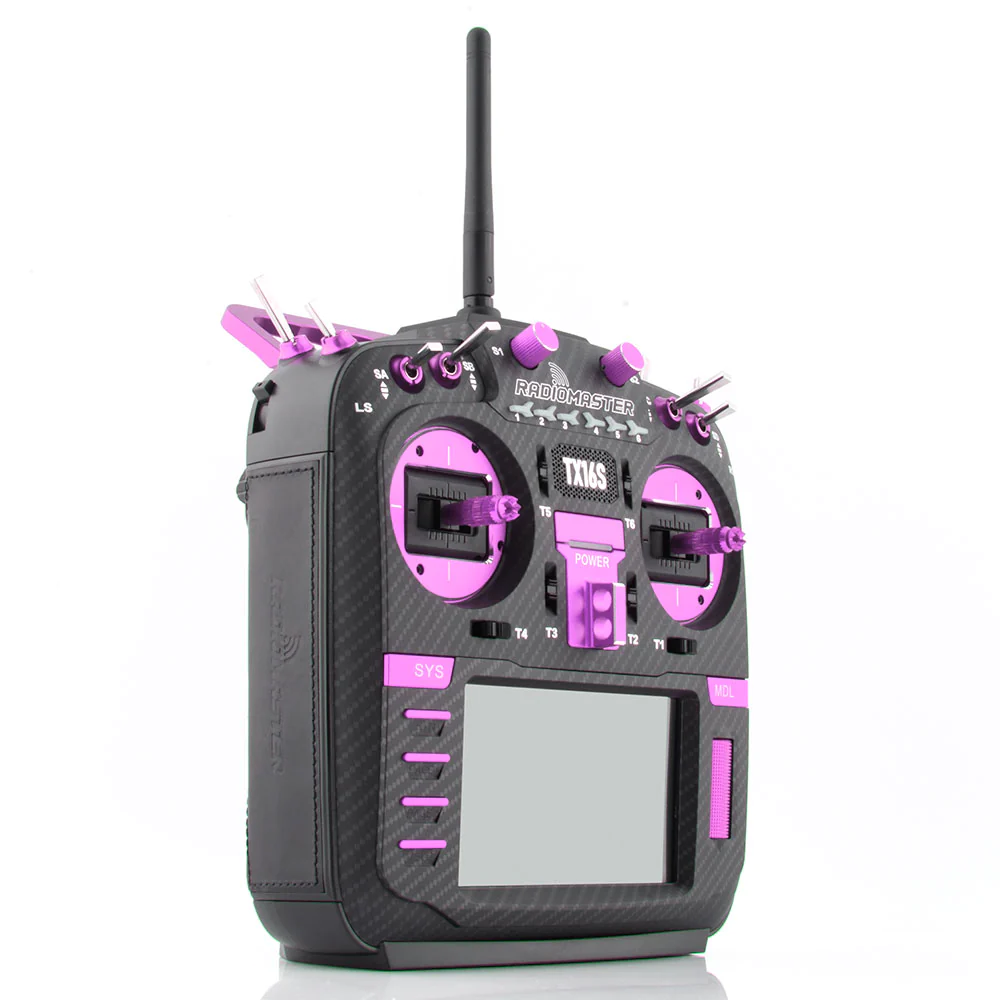

RadioMaster RC TX16S Mark II Max Radio Controller (Joshua Bardwell Edition / ELRS / M2)
Check out all of our RadioMaster products, and all of our Radio Controllers!
**Batteries are not included, so pickup the TX16s 5000mAh battery, or 2x 18650 batteries**
Thanks to Joshua Bardwell for his joint edition – New JB Edition TX16S Mark II built in ExpressLRS. Featuring carbon fiber faceplate, purple CNC parts, with V4.0 hall gimbal, this is definitely the high performance JB radio that everyone can afford it.
Features
- Improved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.
- Improved LS/RS Sliders with smoother feel and better centre-detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalised mods.
- Improved internal plastics for better longevity.
Specification
- Item:Â TX16S Mark II Max (Joshua Bardwell Edition)
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module:Â Internal ELRS (SX1280)
- Transmitting power: Internal ELRS: Max 250mw (transmitting power is adjustable)
- SD card: 256MB by default, 8GB maximum
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Remote control distance:> 2km @ 22dbm
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: V4.0 Hall sensor with Aluminium fascia
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
