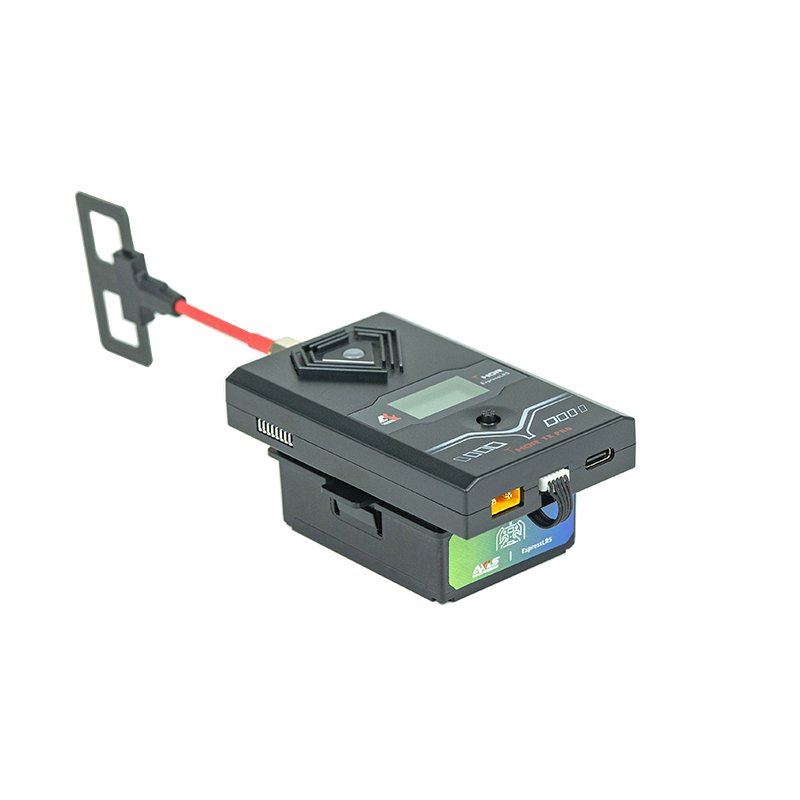

AxisFlying Thor TX PRO ELRS 2.4G Module
Introducing the AxisFlying Thor TX PRO, a feature-packed, high-power ExpressLRS (ELRS) module designed for pilots who demand the absolute best in performance and convenience. Housed in a durable CNC case for superior heat dissipation, the Thor brings an unprecedented 1000mW of power, intelligent fan control, and a user-friendly onboard interface to your radio. It’s the ultimate transmitter module for your long-range and freestyle FPV drone.
Unleash 1W of Long-Range Power
The Thor PRO’s massive 1 Watt (1000mW) maximum output power provides an incredibly robust and penetrating signal link. This gives you the confidence to fly in challenging RF environments or push the limits of long-range FPV flight without fear of a failsafe. With multiple adjustable power levels, you can easily switch from low power for racing to full power for exploration.
Intelligent Cooling & Power Management
High power requires smart cooling. The Thor features an advanced, temperature-controlled fan that only spins up when needed, keeping the 1W amplifier cool and performing reliably without making constant noise. It also has a built-in accelerometer for motion detection, which can automatically switch the module to a low-power state when the radio is stationary, saving battery and reducing heat.

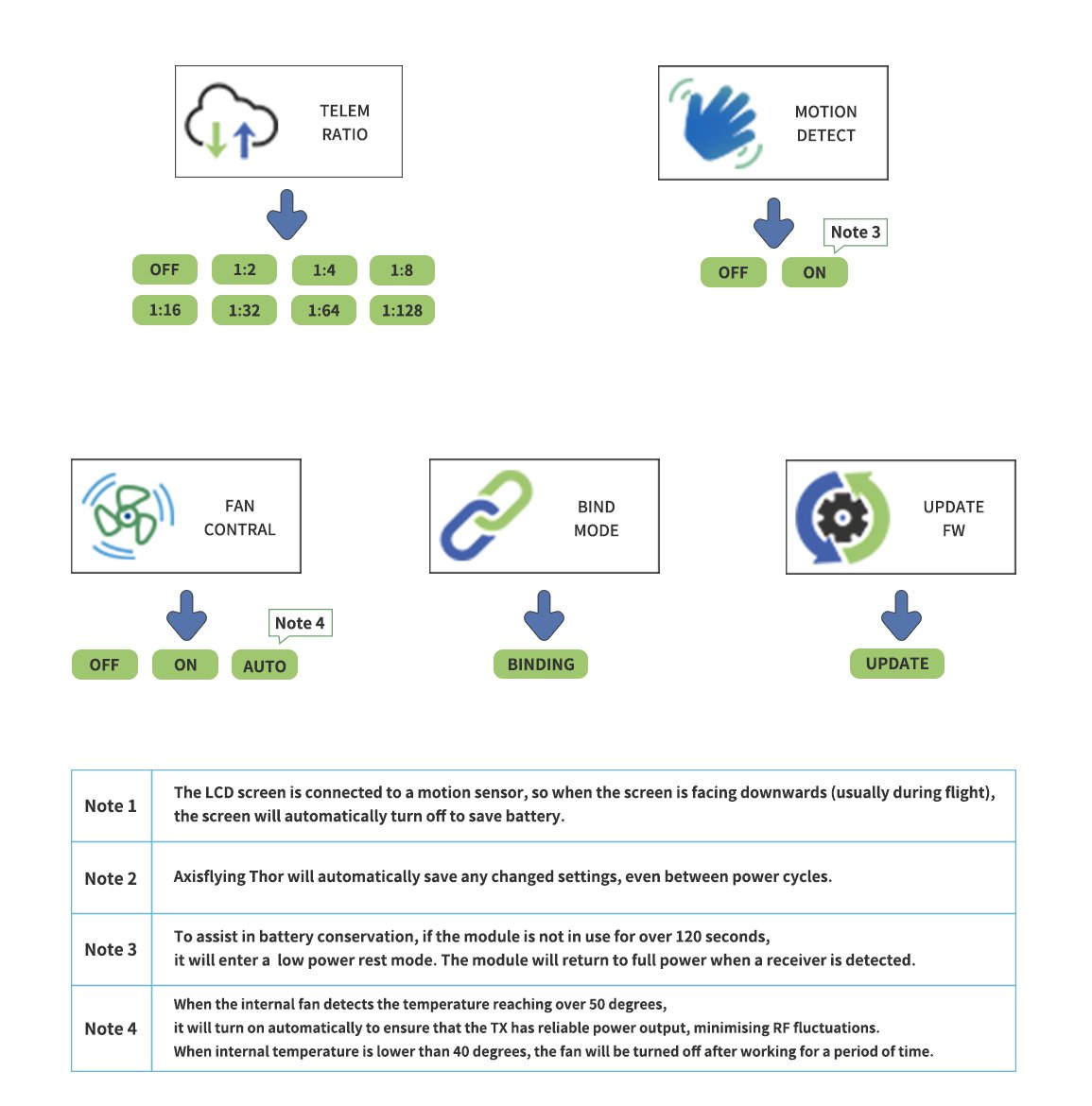

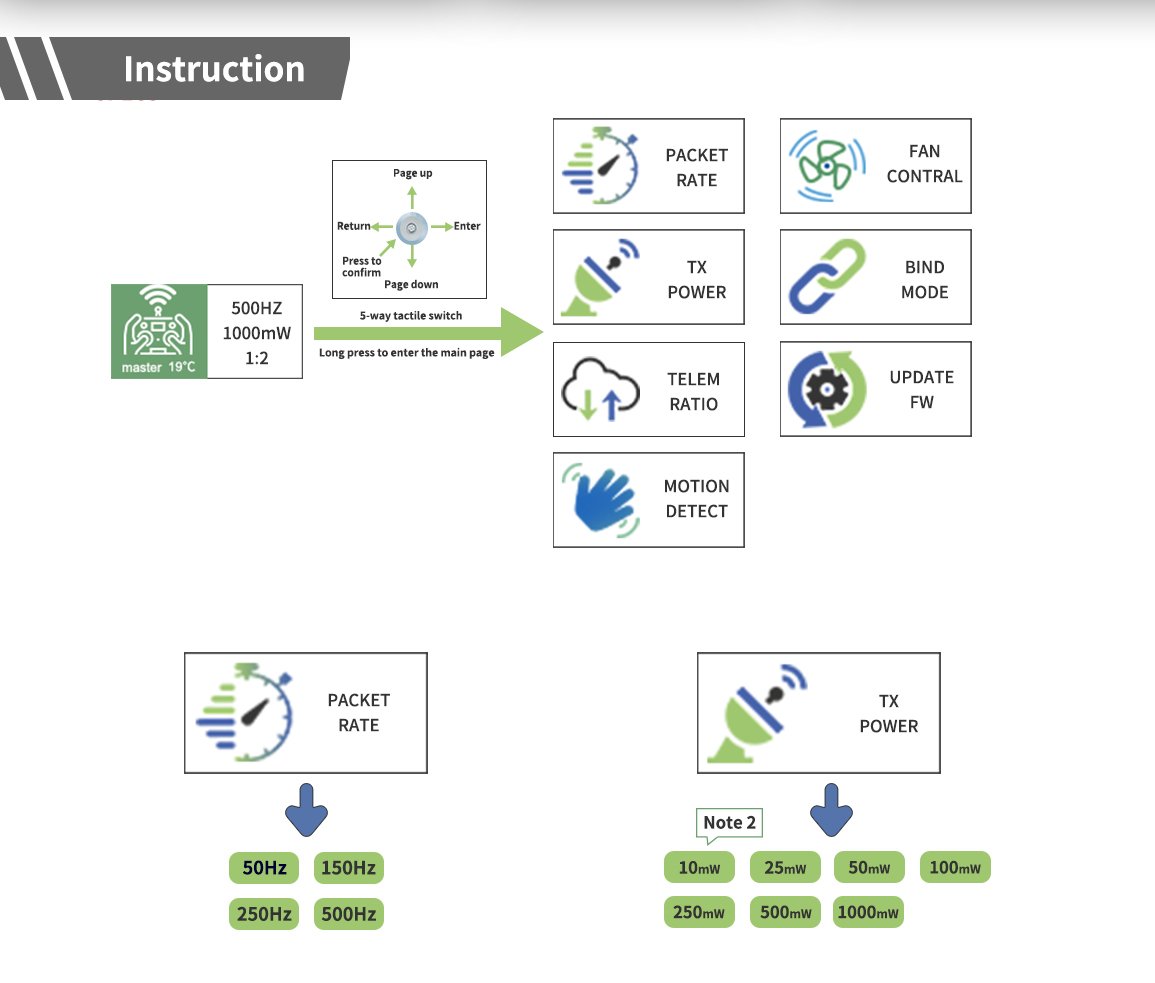

Intuitive Onboard Controls
Forget about complicated LUA scripts. The Thor TX PRO features a bright color OLED display and a 5-way tactile switch, giving you a full menu system directly on the module. This allows you to easily change power levels, packet rates, and other critical ELRS settings on the fly, making it one of the most user-friendly modules available.
Important: Power & Compatibility

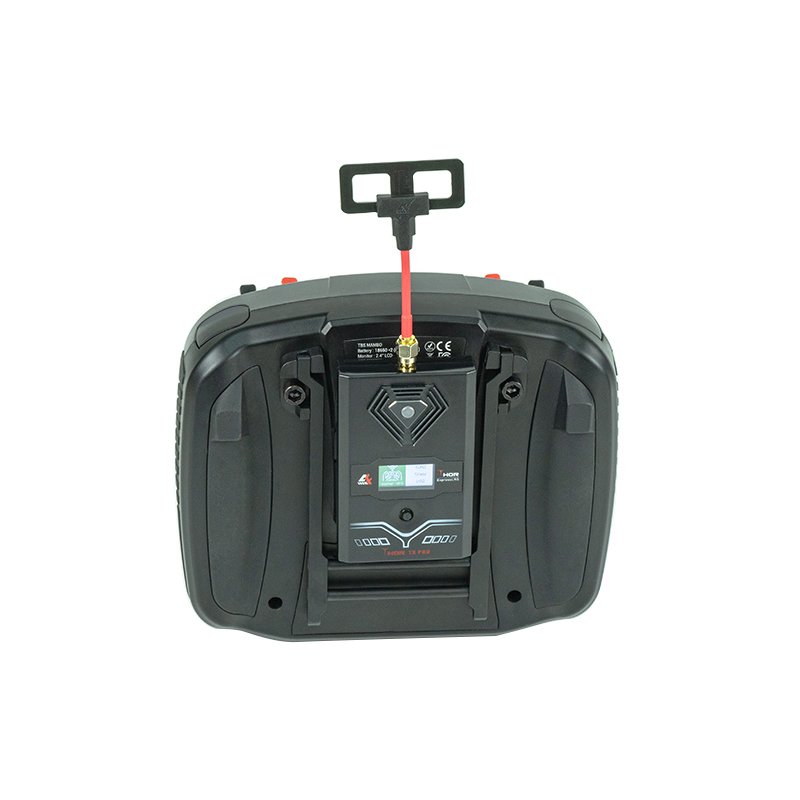

- Form Factor: This is a Nano / LITE form factor module, designed for radios like the FrSky X-Lite, TBS Tango 2, and RadioMaster Zorro/TX12.
- Power: To achieve the full 1W power output, it is recommended to use the external XT30 power input with a 2S-4S LiPo battery.
Specifications
- Brand: AxisFlying
- Model: Thor TX PRO
- Protocol: ExpressLRS (ELRS) 2.4GHz
- RF Output Power: 10mW – 1000mW (1W)
- Packet Rates: Up to 1000Hz
- Input Voltage: External DC 6V – 16.8V (via XT30)
- Features: Color OLED, 5-Way Nav Key, Temperature-Controlled Fan, Accelerometer

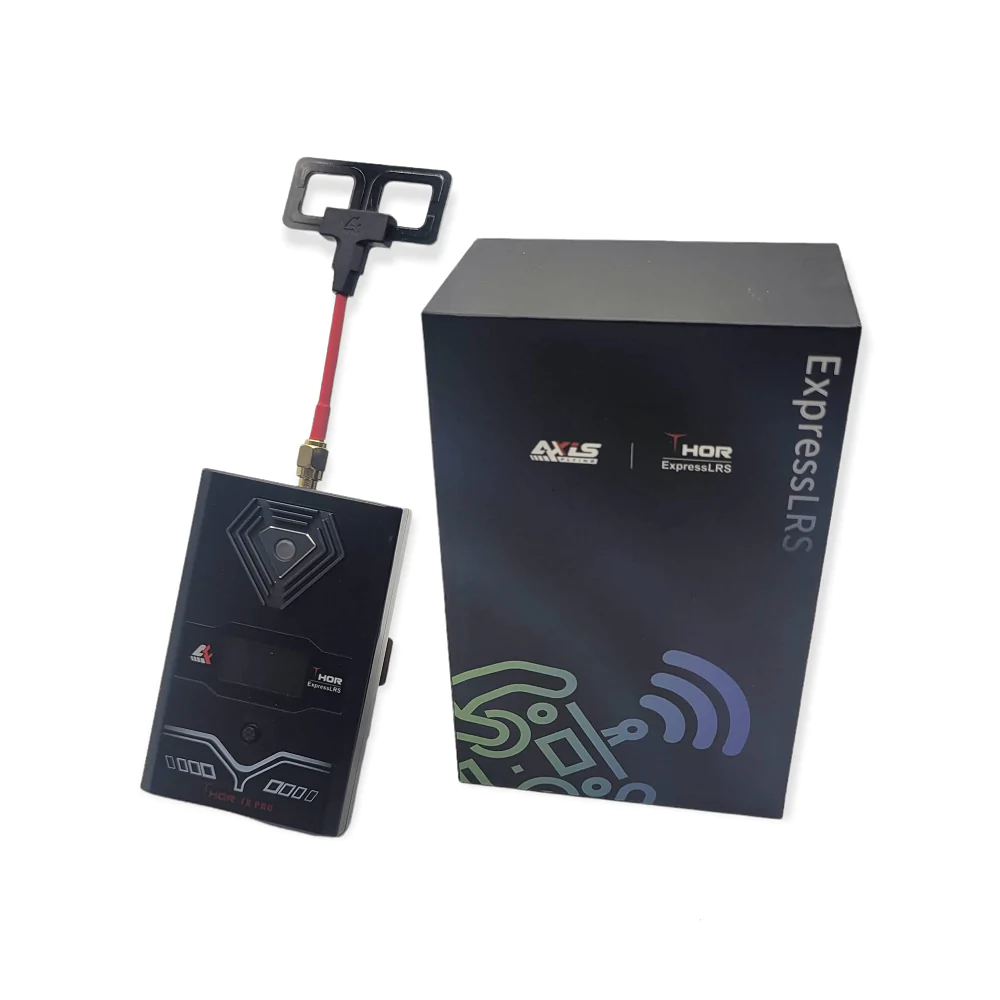

What’s in the Box?
- 1x AxisFlying ELRS 2.4G Thor TX Pro Module
- 1x AxisFlying 2.4G T-Antenna
- 1x Empty Nano Module Adapter for modification
- 1x Instruction Manual
You can find the specialized receiver for this module here. You can also get the Antenna for this module here.
