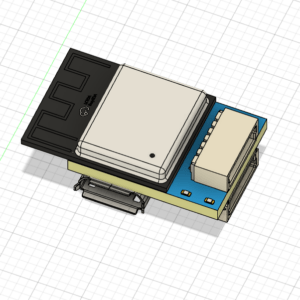

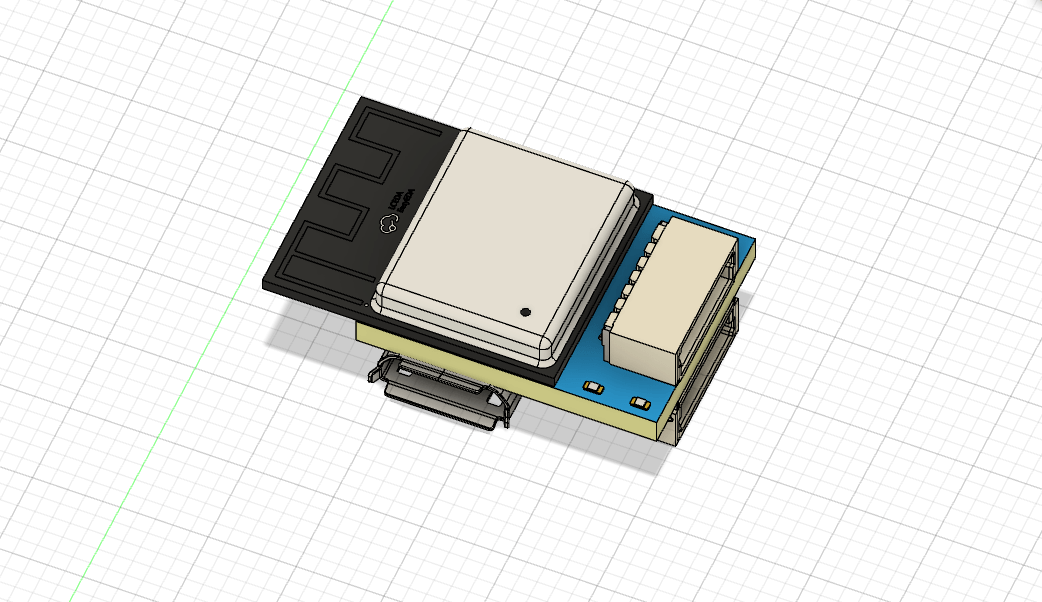

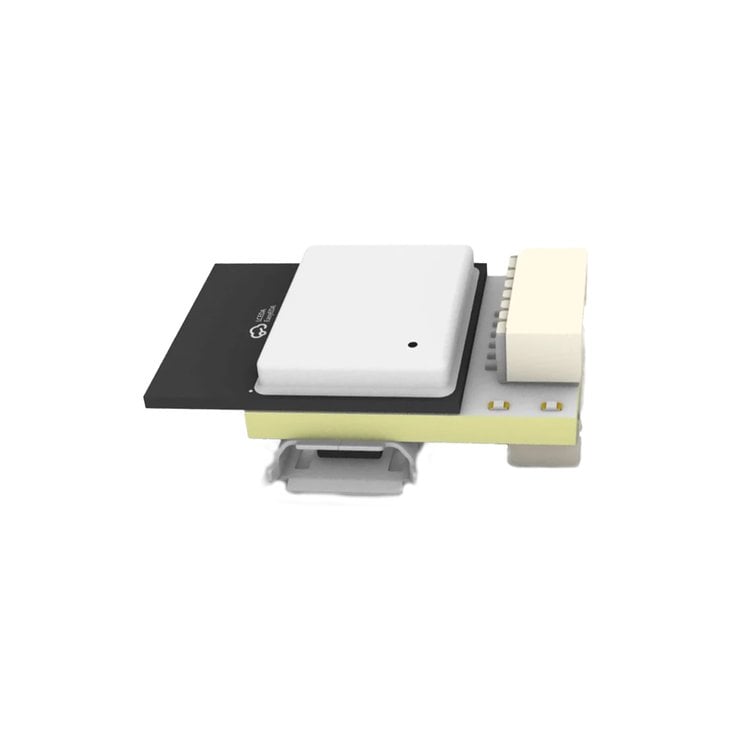

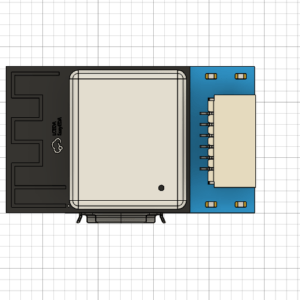

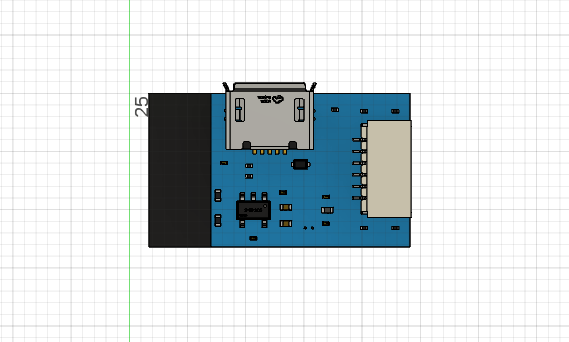

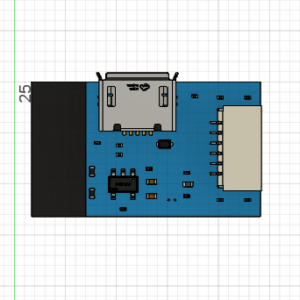

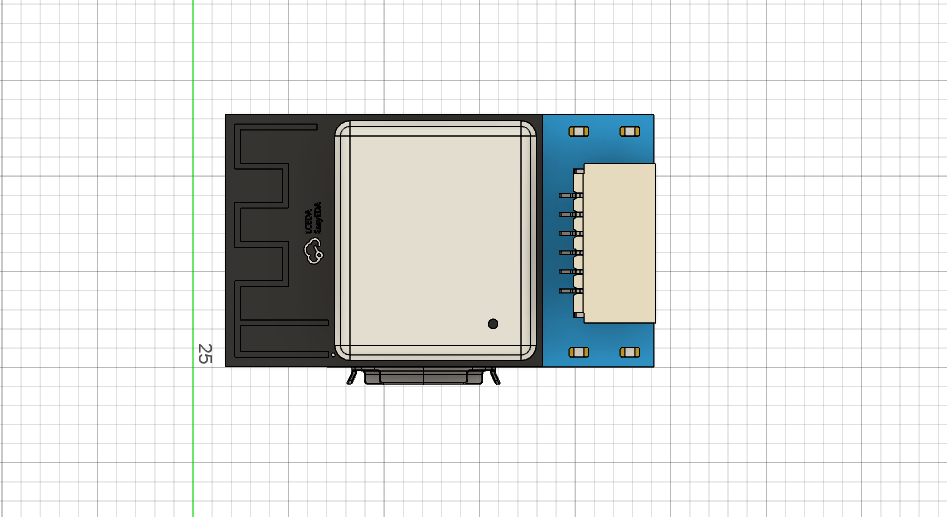

Phoenix UAS Remote-ID Module
Built by FPV pilots, for FPV pilots
Features:
- Compliant with FAA regulations
- Compatible with M10 Ublox-based GPS
- Versatile power options: 5V flight controller connection, 1S battery, or USB
- GPS and compass data compatible with Betaflight and INav; Ardupilot compatibility under testing
- USB for GPS cold start, conserving flight battery
- Built-in Bluetooth antenna, eliminating the need for additional antenna installation
- Compact size (24mm x 14mm x 8mm) offers multiple mounting possibilities
- Fits inside numerous frame types
- Can be enclosed in a 3D printed case for secure external mounting
- Transferable between different UAS
- Convertible into a self-powered unit with over 30 minutes of runtime using a 100mAh 1s LiPo battery
- Four status LEDs for power, GPS lock, telemetry pass-through, and failure detection.
Specifications:
- Transmission: Bluetooth 5LE / BT4
- Power Options: 3.3-5V, 1S battery, or USB
- Power Usage: Less than 40mA
- Size: 24mm x 14mm x 8mm
- Weight: 2.2 grams
- LED Indicators: Blue for power on, Green for GPS lock/flight readiness, Blinking Green for GPS data transmission to flight controller
- Additional Requirement: User-provided m10 GPS needed.
In The Box:
- Phoenix UAS mrid
- 1 6 pin SH 1.0 cable with terminated ends
- 2 SH 1.0 connectors
