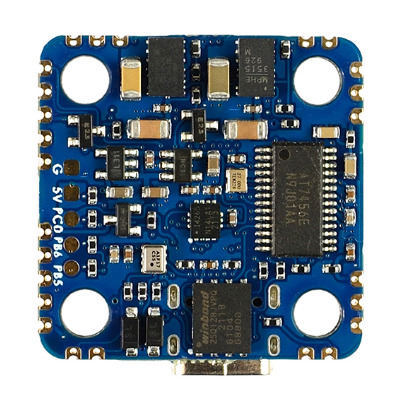

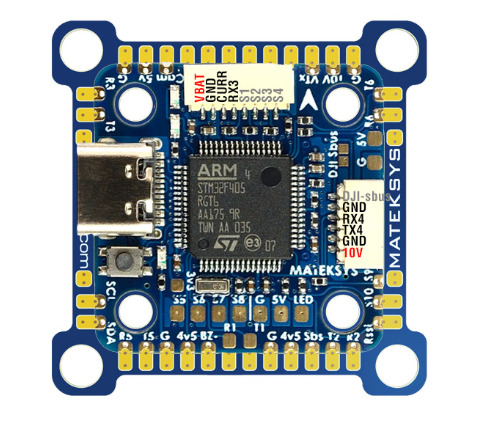

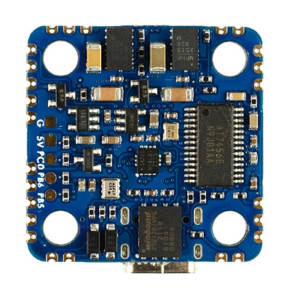

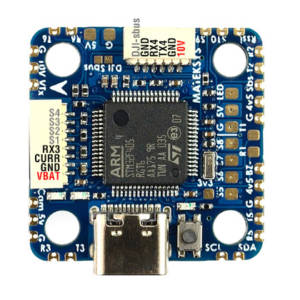

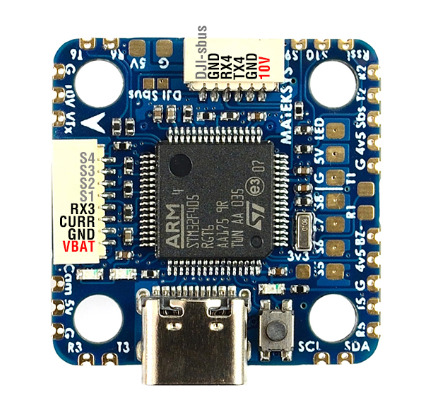

Matek F405 miniTE Flight Controller

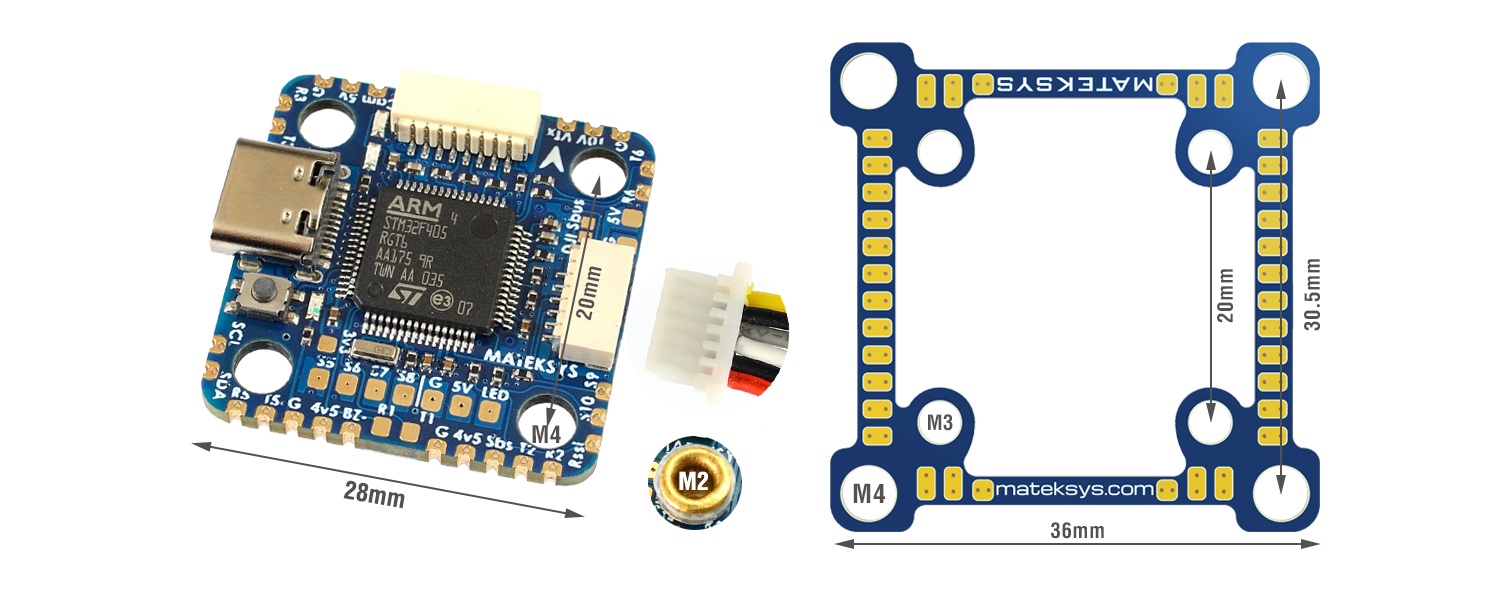

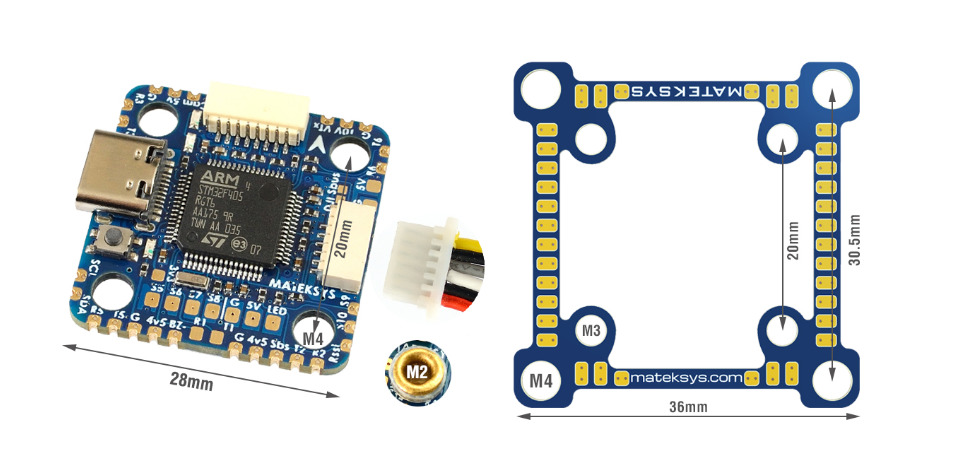

The F405 MiniTE Flight Controller by Matek Systems is a compact and lightweight solution, smaller than its predecessor with a versatile 20x20mm mount that can be converted to 30.5mm, offering greater flexibility in build space.

Key Features:

• Supports 8 motors + 3 servos in INAV/BF multirotor mixer compared to F722-miniSE
• 8x bi-directional DSHOT capabilities and DJI air unit plug-and-play compatibility
• Onboard 1MB flash for ArduPilot, InvenSense GEN3 IMU ICM42605, and redesigned target MATEKF405TE

Technical Specifications:

• Mounting Pattern: 20×20 M2/M3, 30X30 M3
• ADC: 4 (VBAT, Current, RSSI, Airspeed)
• Blackbox: 16M-byte Flash memory
• Barometer: Goertek SPL06-001 (I2C)
• PWM outputs: 12 (8 Dshot)
• BEC: 5V 1.7A & 10V 1.4A
• Dimensions: 28x28mm
• Input Voltage: 630V (26S LiPo)
• MCU: STM32F405RGT6
• IMU: ICM42605
• OSD: AT7456E
• Weight: 5g
• UARTs: 6
• PINIO: 2
• I2C: 1

Firmware Compatibility:

• ArduPilot (Copter, Plane, Rover latest)
• INAV (inav_3.0.2_MATEKF405TE, inav_4.0.0_MATEKF405TE)
• BetaFlight (betaflight_4.3.0RC1_MATEKF405TE, betaflight_4.3.0RC2_MATEKF405TE, betaflight_4.2.10_MATEKF405TE)

Package Includes:

• 1x MATEKSYS F405-MiniTE Flight Controller – Mini 20×20
• Cables for 4in1 ESC and DJI Air Unit
• Conversion plate and grommets
