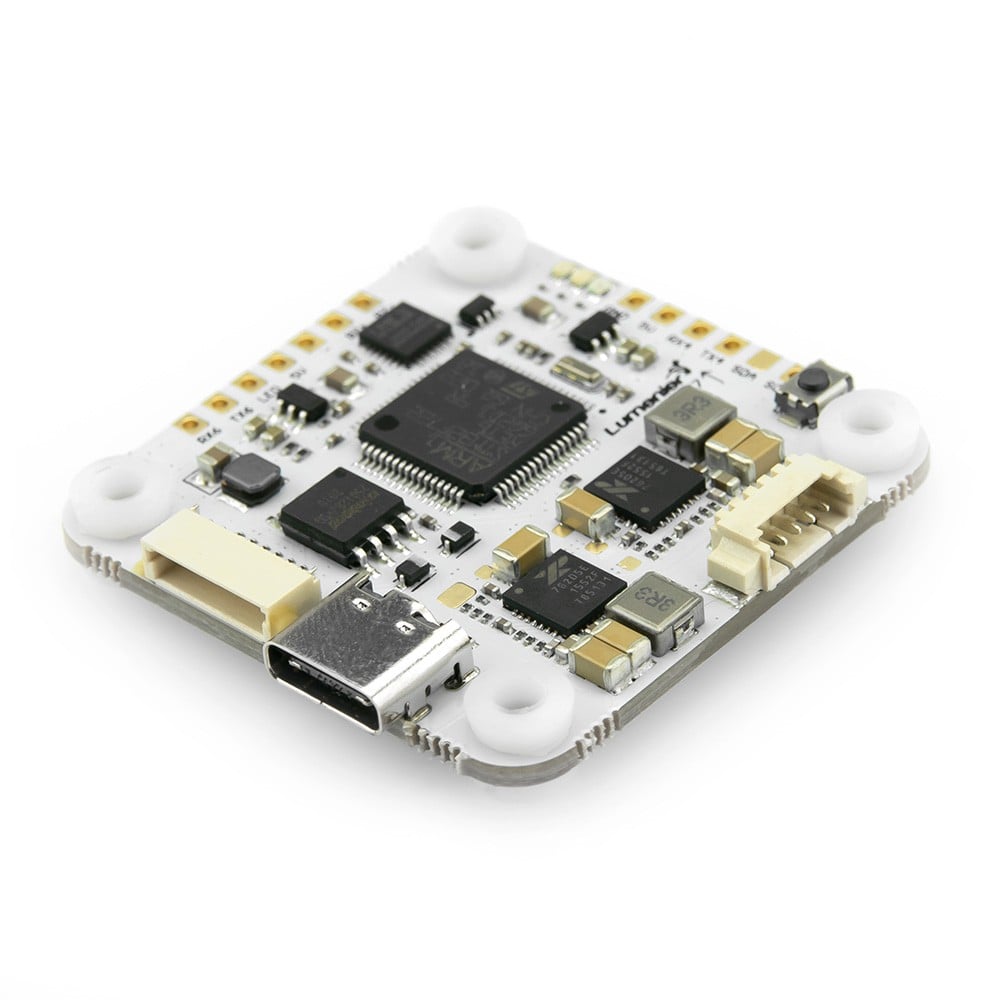

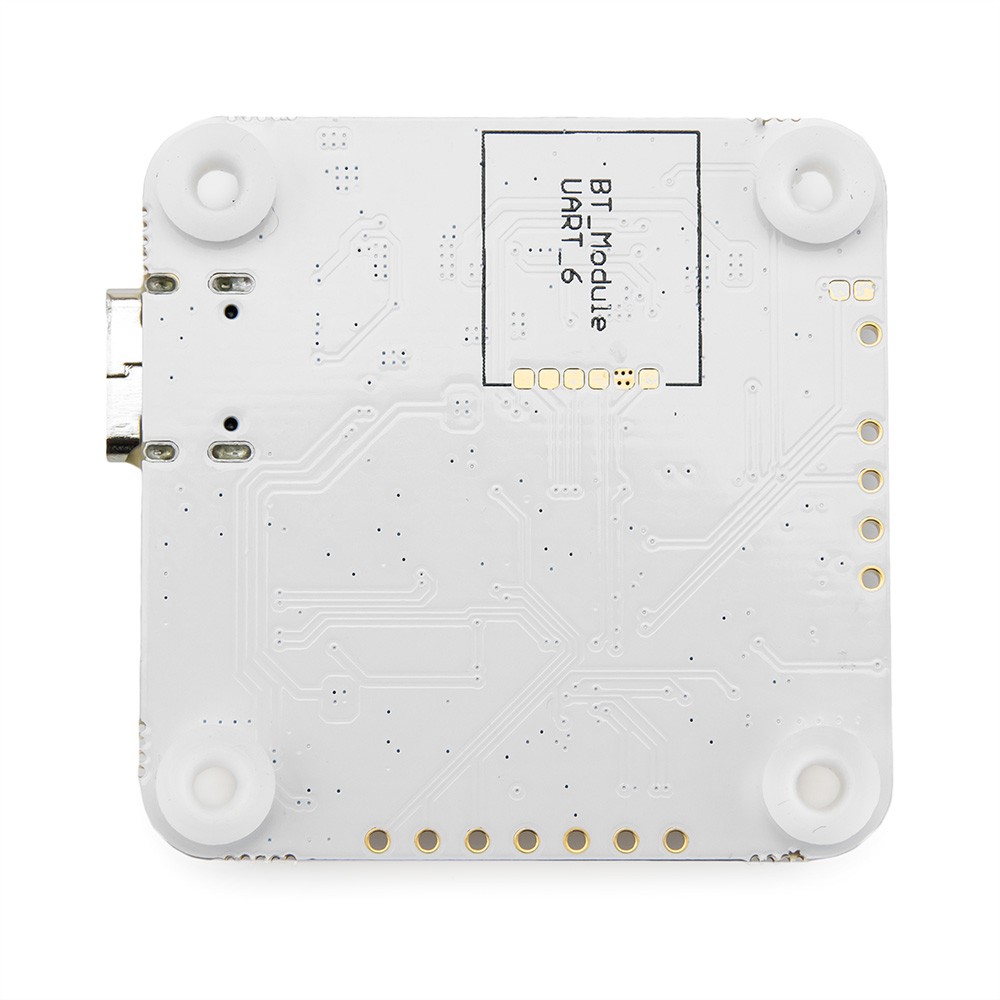

The Lumenier LUX HD Lite F7 Flight Controller is DJI HD System Ready with an on-board 9v regulator to power the DJI Air Unit in a simple plug and play configuration. It uses a powerful F7 processor along with top of the line hardware. Unleash the capabilities of your FPV Racing Quadcopter with the Lumenier LUX HD Lite F7 Flight Controller. This LUX HD Lite F7 comes in a standard 30.5×3.5 form factor weighing only 7g! The bottom of the FC is also completely flat without any components, making it super low profile and easy to stack above a 4in1 ESC for example.

The LUX HD Lite F7 builds on all the best features of its predecessors and further improves on hardware components and layout, and now dedicated with a design for the DJI digital HD system. You get a whopping 6x dedicated UART ports with built-in inversion for peripherals, along with built in 128Mbit 16MB flash memory for Blackbox recording. This “Lite” version removes the analog OSD overlay chip saving space and weight since it is not needed for the DJI digital system. However all the data is still there and can be passed via the digital link to display in your goggles. The telemetry link will show you important information on your digital FPV display like battery voltage, flight time, warnings, RSSI, smart audio features and more.

This Flight Controller feature 2 on-board LC VBAT filtered power pads designed to power your DJI Air Unit at 9v and also other 5v accessories. The onboard 5v 3A regulator can be used to power the camera, Rx, and LEDs all at the same time, while the dedicated 9v 2A regulator reliably powers the DJI Air Unit or Vista system.

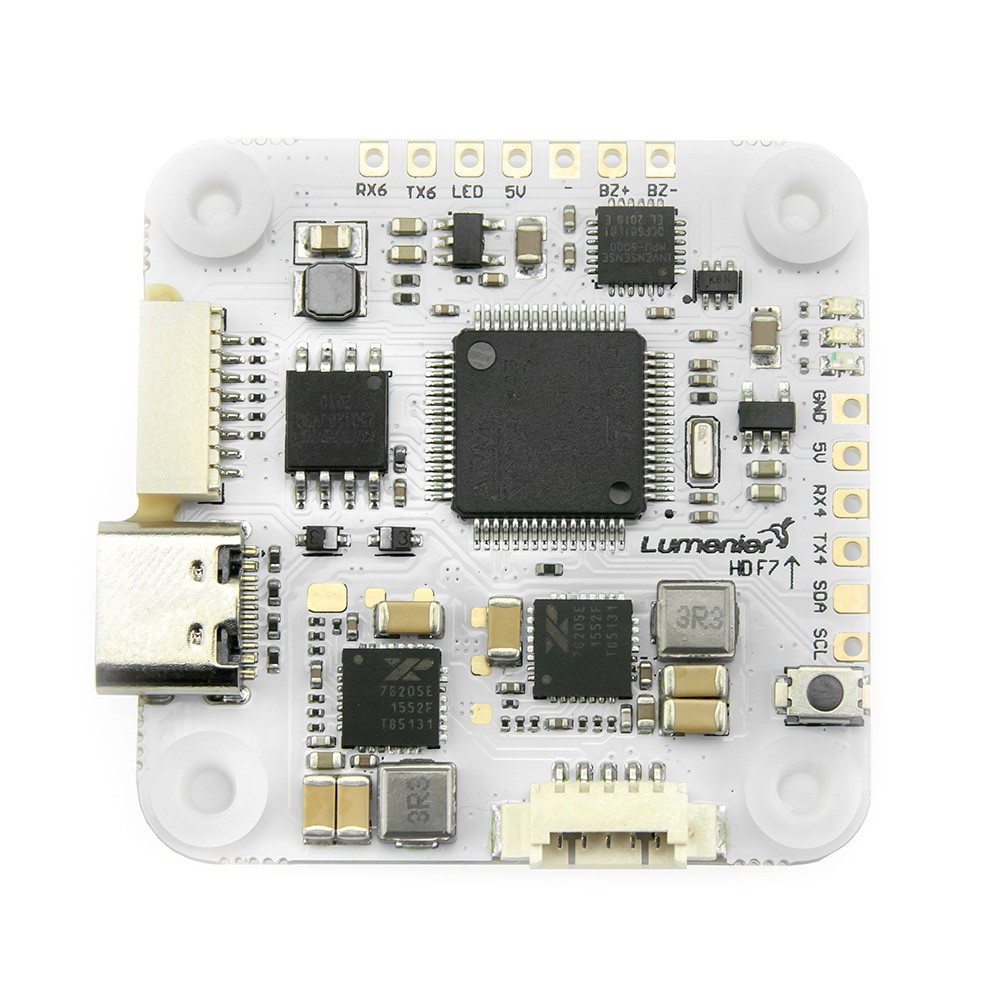

Features

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000
• Blackbox: 128Mbit / 16MByte
• Anti-Vibration silicone grommets built in
• 6x Uarts with built-in inversion
• 1x I2C
• 1x SH1.0_8pin connector (Vbat/G/Curr/TLM/S1/S2/S3/S4)
• LC Power Filter
• WS2812 Led Strip support
• Beeper solder pad
• Input: 8~40V (3~8S LiPo)
• BEC: 9v 3A cont. (for DJI HD System)
• BEC: 5V 3A cont.

Software/Hardware Features

• Betaflight support – target LUXF7HD

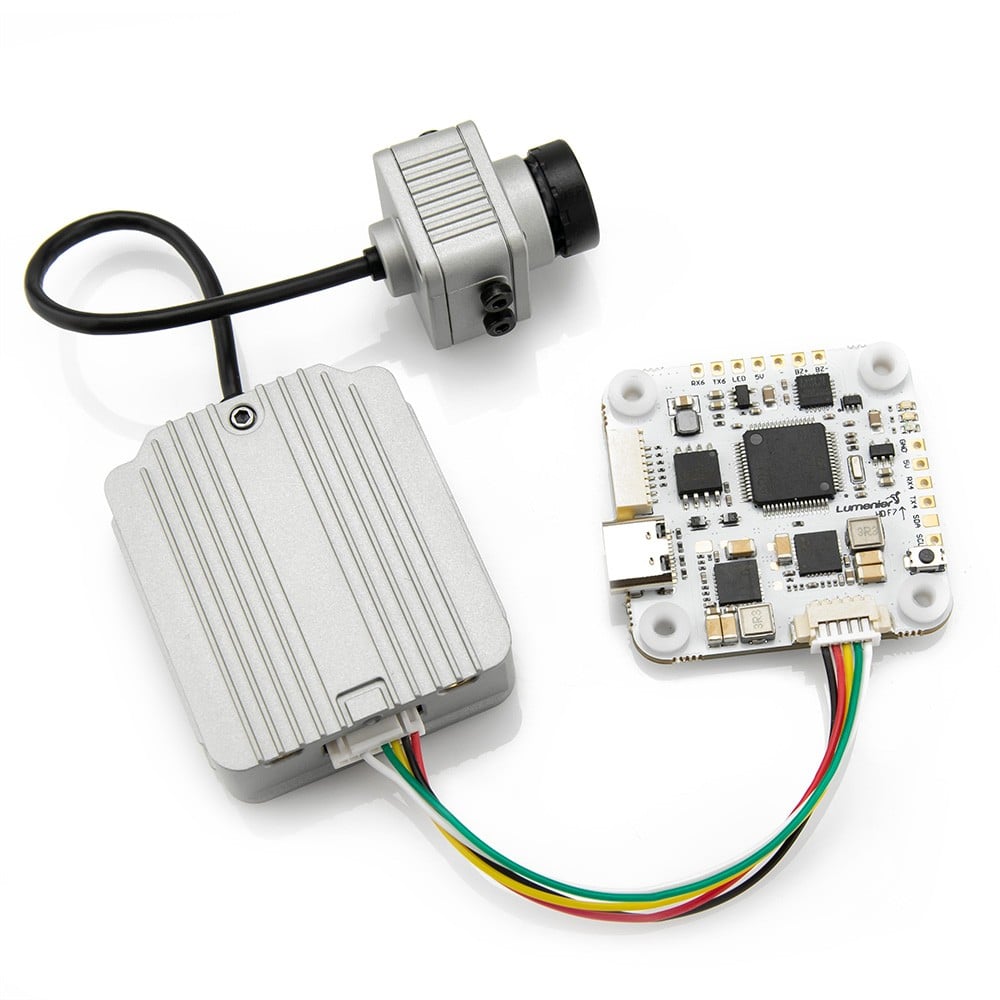

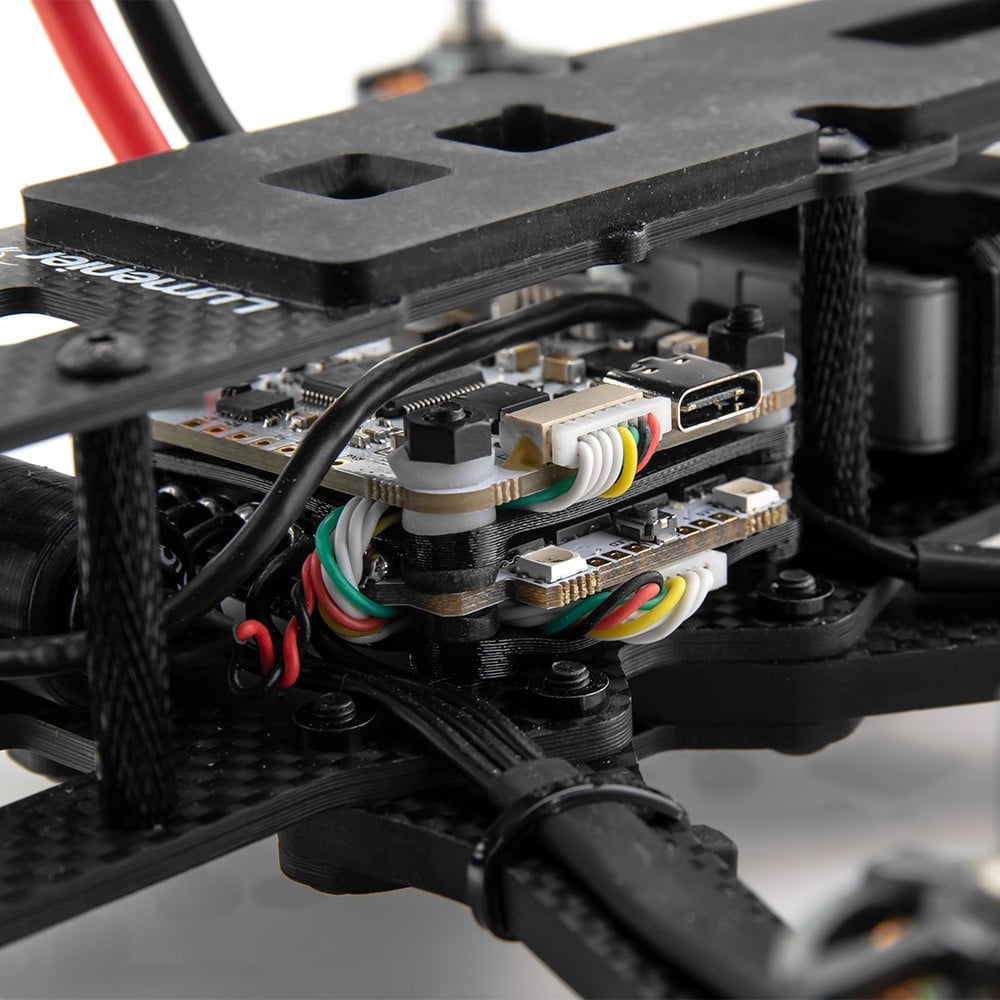

• Direct Plug and Play with DJI Air Unit or Caddx Vista
• BLHeli passthrough flashing supported by hardware

Specifications

• High quality, gold plated PCB
• USB C connector for programming
• Dimensions: 38x38x5mm (includes USB in height)
• Mounting Holes: 30.5mm square to center of holes
• Weight: 7g

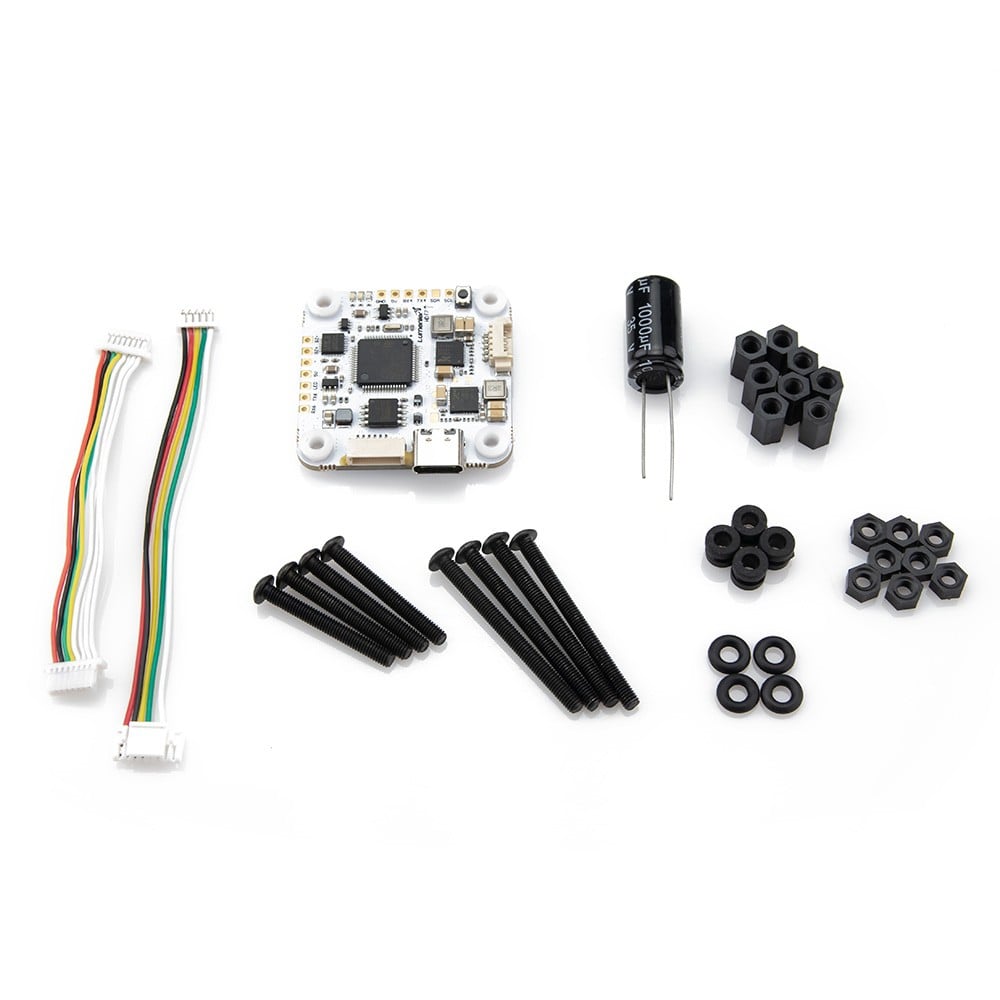

Includes

• 1x Lumenier LUX HD Lite F7 Ultimate Flight Controller
• 4x Anti-vibration silicone grommets (pre-installed for M3 sized screws)
• 1x 8pin micro JST-SH 7cm connector for 4in1 ESC
• 1x 8pin (5 wire) micro JST-GH 8cm connector for DJI AIr Unit
• 1x set of mounting hardware
  • 4x M3x35mm black oxide steel screws
  • 4x M3x25mm black oxide steel screws
  • 4x M3x8mm threaded hex plastic spacer
  • 4x M3 silicone grommet insert (black)
  • 4x M3x3mm plastic spacer
  • 4x M3 rubber o-rings
  • 8x M3 plastic hex nuts
  • 1x 1000uF low ESR Capacitor
