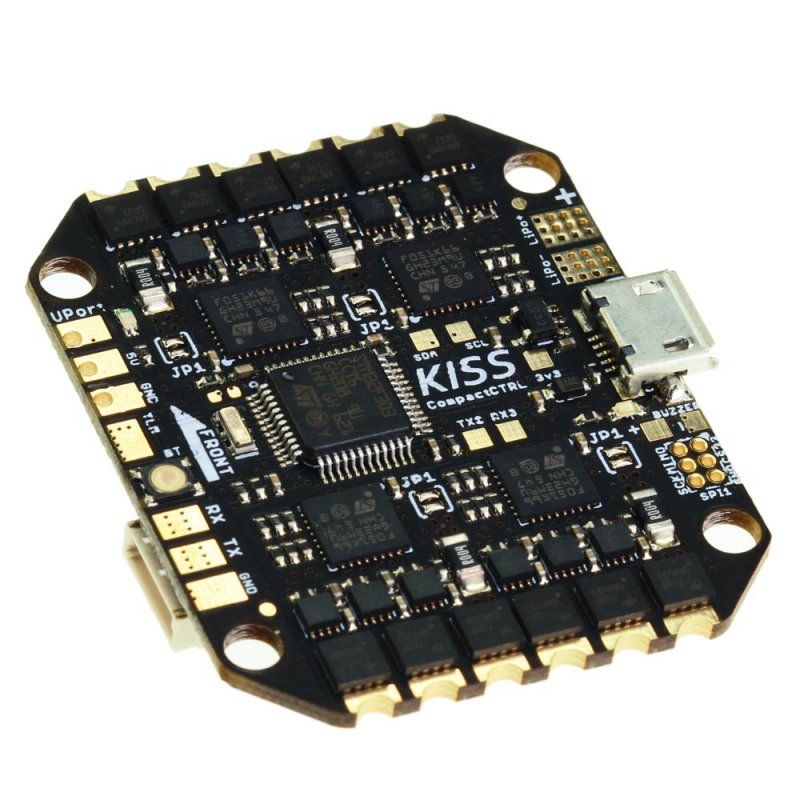

KISS CompactCTRL CC All-in-One FC & ESC

Check out all of our Flyduino products!

Experience the legendary “Keep It Super Simple” flight performance in a single, streamlined package with the KISS CompactCTRL CC All-in-One board. This drone part integrates a genuine KISS F3 flight controller and four 16A 32-bit ESCs onto one board, designed for pilots who prioritize the ultimate flight feel over endless features. It’s the perfect core for a clean, simple, and high-performance micro FPV drone build.

The Legendary KISS Flight Feel The KISS ecosystem is famous within the FPV drone community for its proprietary firmware and ESC protocol that deliver an incredibly smooth, connected, and “locked-in” feeling. Many top pilots swear by this unique flight characteristic. This AIO board brings that entire experience to your build, providing a proven, well-tuned setup right out of the box.

Build & Power Recommendations: The KISS CompactCTRL CC is optimized for lightweight FPV drones. For the best performance and reliability, it is ideally driven with up to a 4S LiPo battery and propellers up to 4 inches in size. While 5-inch props are possible, it requires very careful motor and all-up-weight considerations, as the ESCs actively limit their output to $24\text{A}$ to protect the hardware. It is the perfect heart for a 3-inch or 4-inch FPV drone.

Key Features:

• All-in-One KISS Solution: Integrates a genuine KISS F3 flight controller and four 32-bit ESCs onto a single board for a simple build.
• Signature KISS Flight Feel: Experience the ultra-smooth, responsive, and locked-in performance of the proprietary KISS firmware.
• Optimized for Micro Drones: The 16A continuous ESC rating is perfect for 3-inch and 4-inch builds on up to 4S.
• Active Current Limiting: Protects the hardware by actively limiting the current to a maximum of $24\text{A}$.
• Full Telemetry Support: Provides full telemetry and data logging capabilities via a serial port connection.

Specifications

• MCU: STM32F3
• Weight: $11\text{g}$ (Bare Board)
• Size: $35\text{x}42\text{mm}$
• Mounting Holes: $30.5\text{mm}\times 30.5\text{mm}$ ($3.2\text{mm}$ Diameter)
• ESCs: 4x KISS 32-bit ESCs
• ESC Rating: $16\text{A}$ Continuous ($24\text{A}$ Actively Limited)
• Input Voltage: 2S – 4S LiPo
• Supported Protocols: DShot600

What’s in the Box?

• 1x KISS CompactCTRL CC All-in-One FC & ESC
• 1x User Manual
