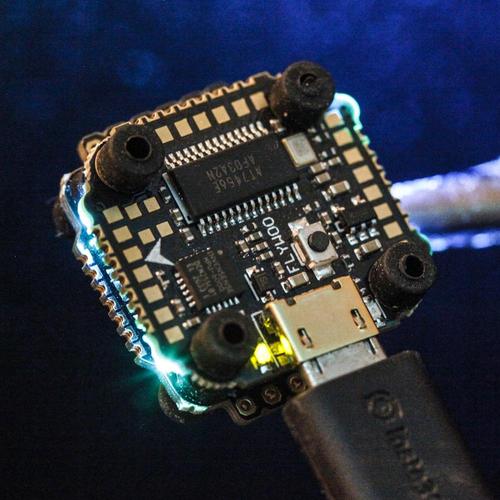

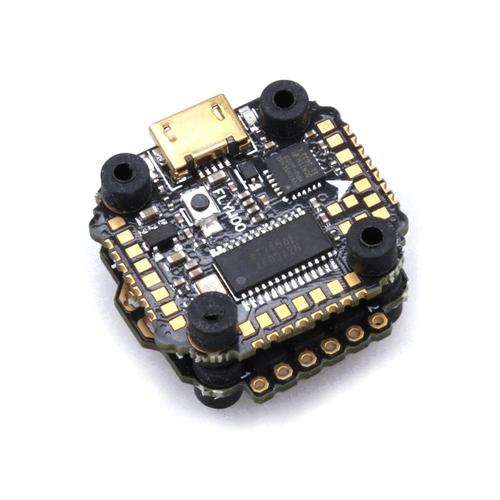

Goku F745 Nano 2-4S 16×16 Stack F745 FC / 13A 4in1 ESC

This stack features a powerful F745 flight controller packed with features including a barometer, BlackBox, 7 complete hardware serial ports, I2C functionality, and WS2812 LEDs on each corner. The accompanying ESC is a 4in1 ESC with 13A of continuous current. This feature-packed stack is sure to cover all the bases when it comes to micro long-range builds.

Specifications

GOKU F745 16X16 FC

• SIZE: 22*23mm Weight: 2.3g
• Hole: 16*16-3mm
• MCU: STM32F745
• UARTS: 1/2/3/4/5/6/7
• I2C: SCL/SDA
• GYRO: MPU6000
• BARO: BMP280 BEC: 5V 2A
• LED:4*WS2812 FLASH: 8M
• Input Voltage: 2-4S
• Firmware: FLYWOOF745NANO

BS13A BLheli_S 2-4S 4in1

• Weight: 2.5g
• Mounting Hole: 16x16mm (M3)
  – Support Oneshot, Multishot,  DShot150/300/600
