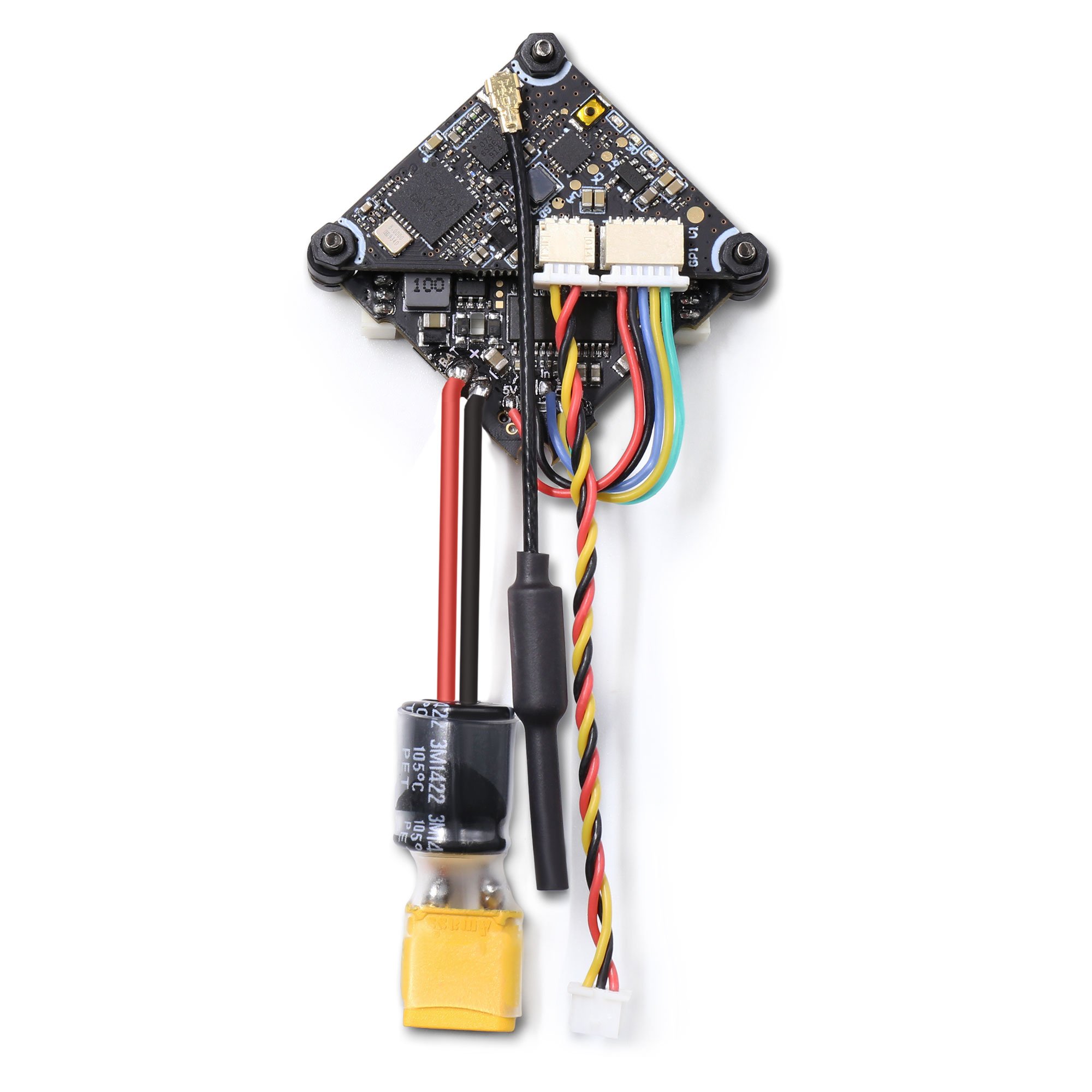

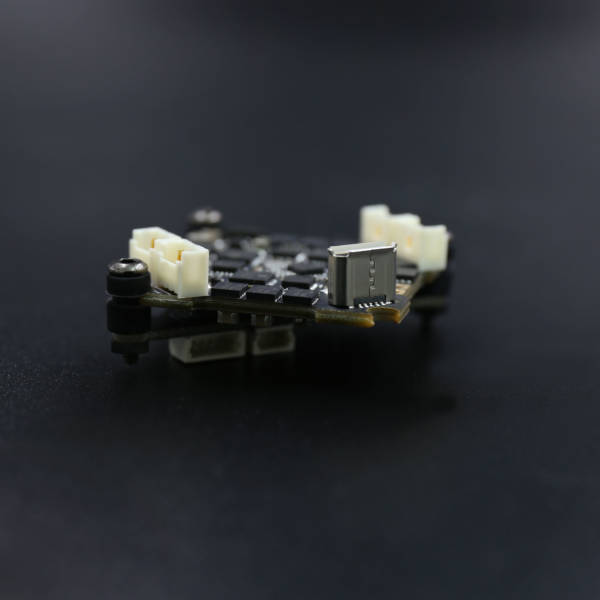

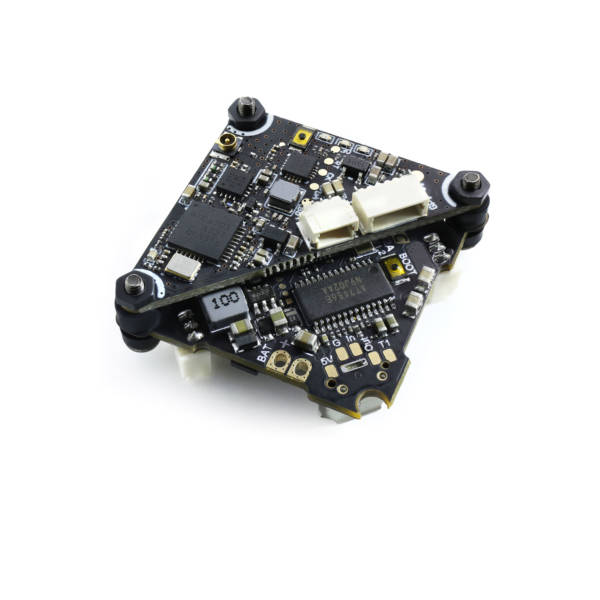

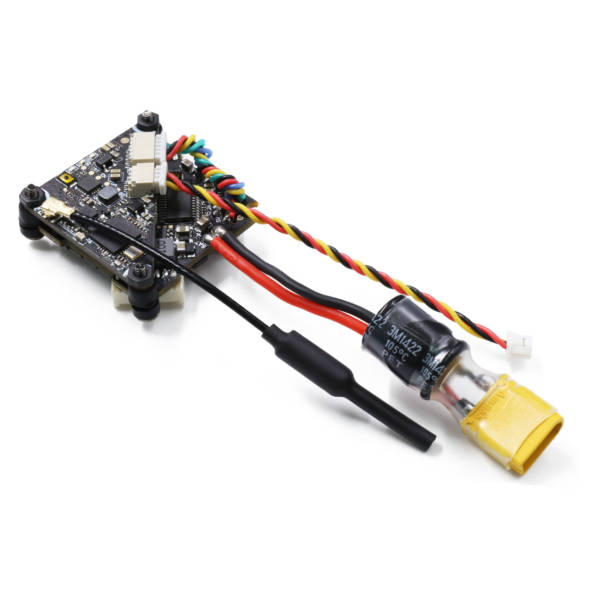

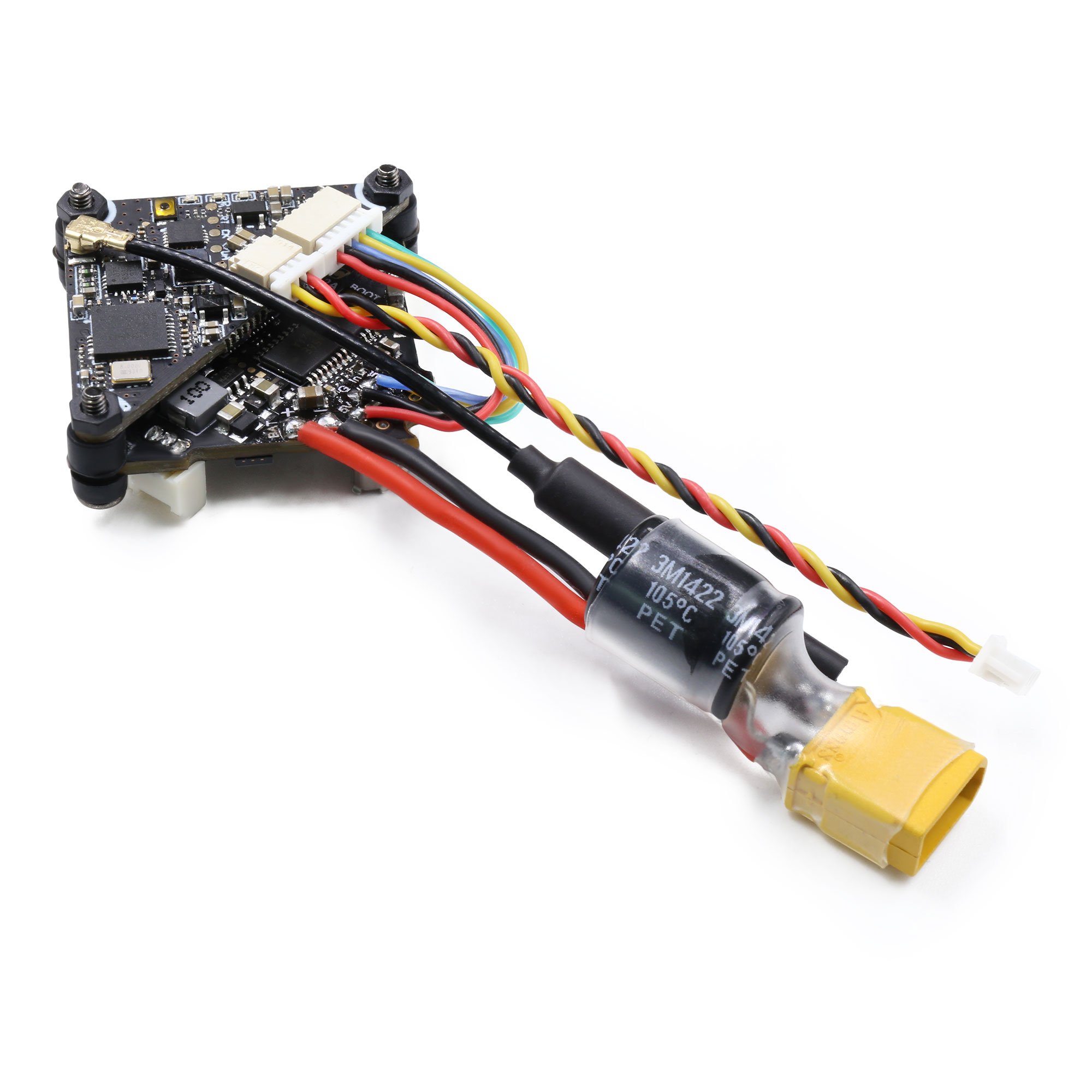

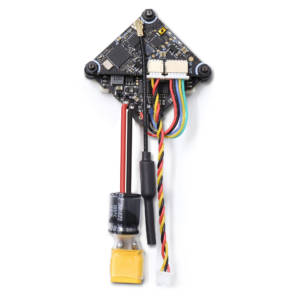

GEP-12A-F4 Flight controller:

Specifications:

• Model Name:GEP-12A-F4
• MCU: STM32F411
• IMU: MPU6000 gyro/accelerometer (SPI)
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:NO
• BEC Output: 5V@1A
• Integrated LC Filter
• Firmware target: GEPRCF411
• Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
• Installing Hole: 25.5×25.5mm, M2
• ESC MCU: BB21F16G
• Continuous current: 12A
• Input:2-4s lipo
• Supports Dshot600 ,Oneshot,Multishot
• Current meter: 210
• Target: G_H_30

VTX Specifications:

• Model Name:GEP-VTX200-Whoop
• Item name: 25~200mw 48CH VTX FPV Transmitter
• Output power: Pit/25/100/200mw switchable
• Channels: 48CH
• Input voltage: 4.5V –  5.3V
• Current consumption: 300mA(type)
• Antenna: RG178 antenna U.FL interface
• Frequency: 5.8GHz 5 bands 48 channels With Raceband
• Video Format:PAL/NTSC
• Control protocol：IRC Tramp
• Weight: 2g without antenna

Receiver Support:

1. Frsky XM/XM+/R-XSR
2. Futaba Receiver
3. DSM/DSMX
4. FlySky Receive
5. TBS Crossfire Receiver
6. AC900
7. Most receivers that support SBUS

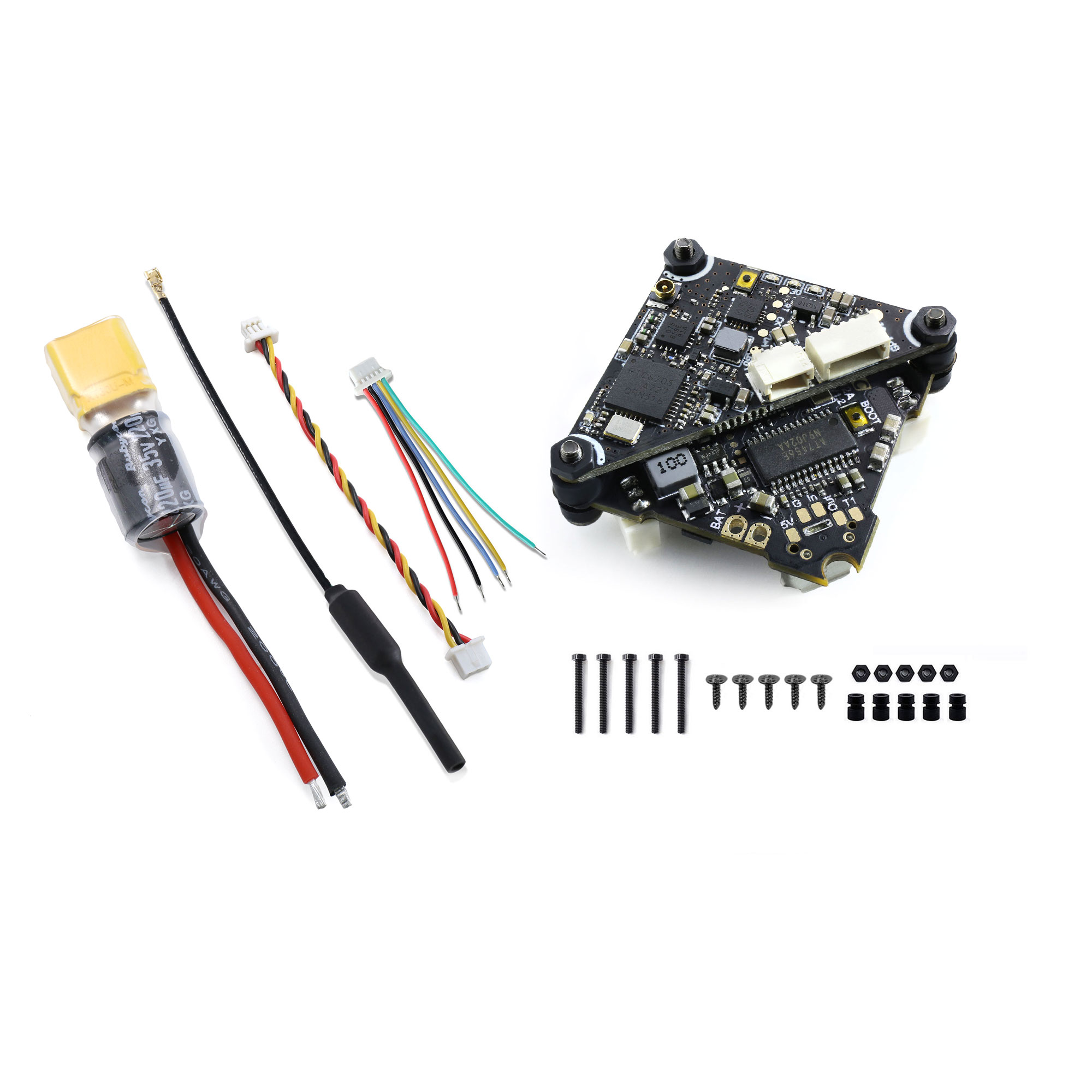

Includes：

– 1 x GEP-12A-F4
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
