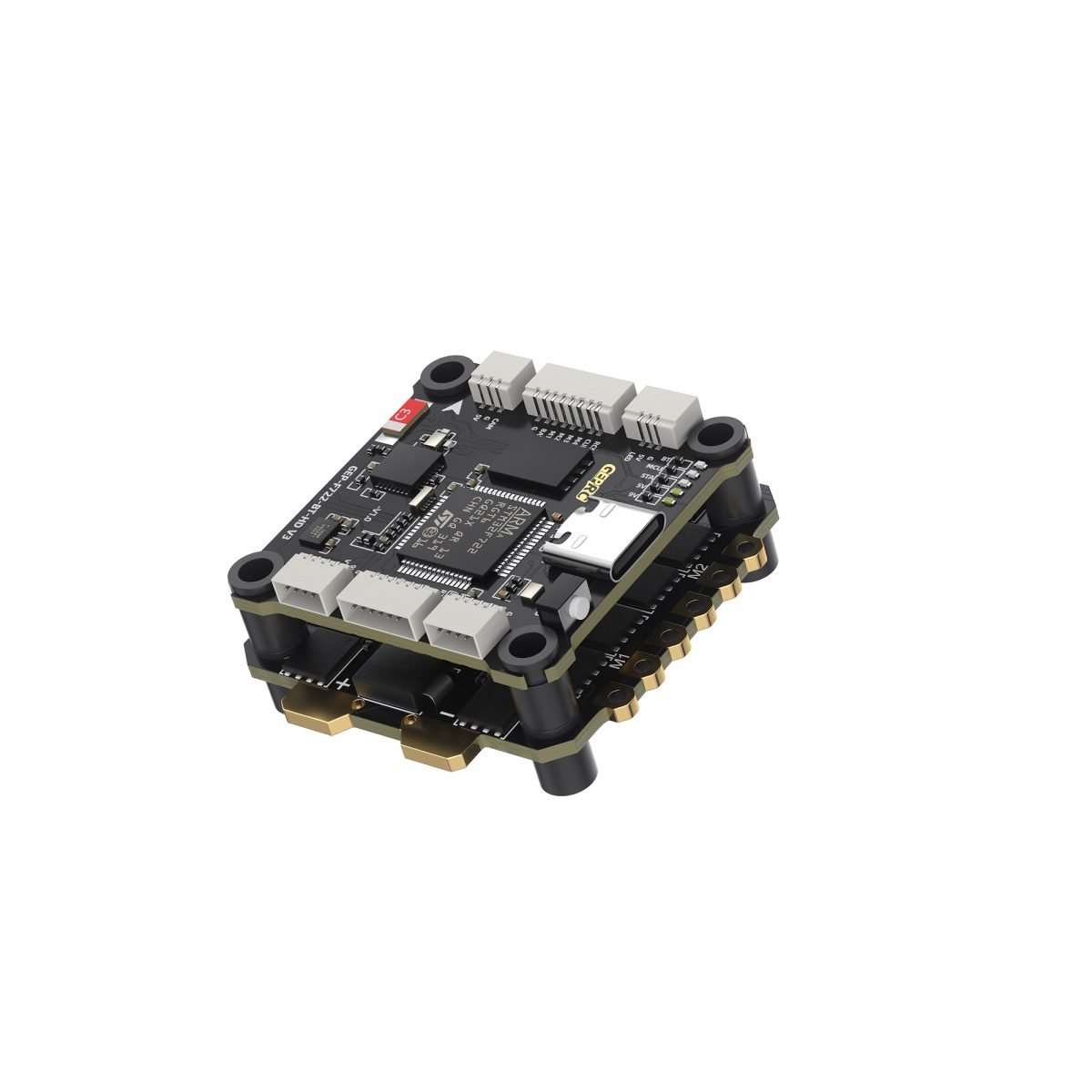

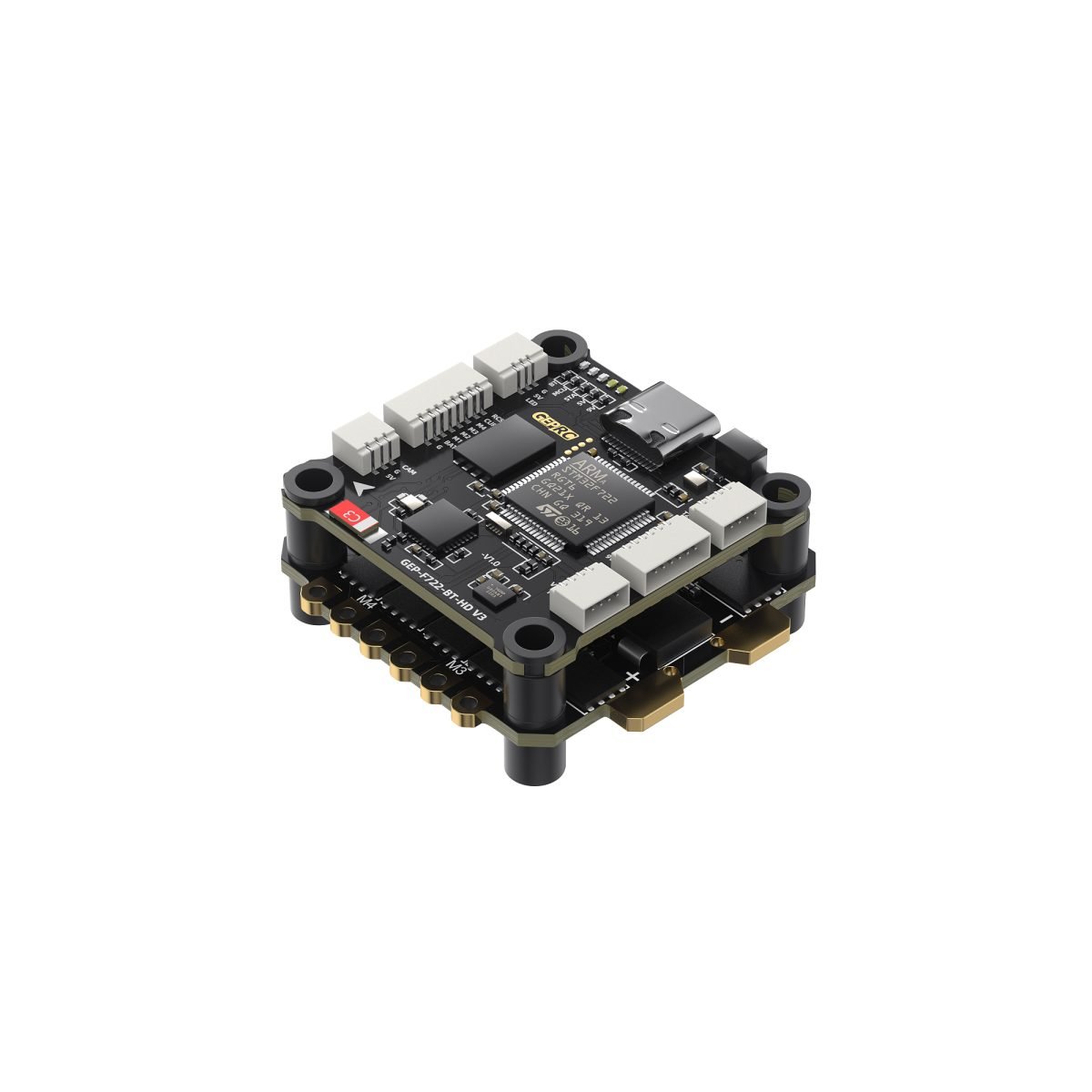

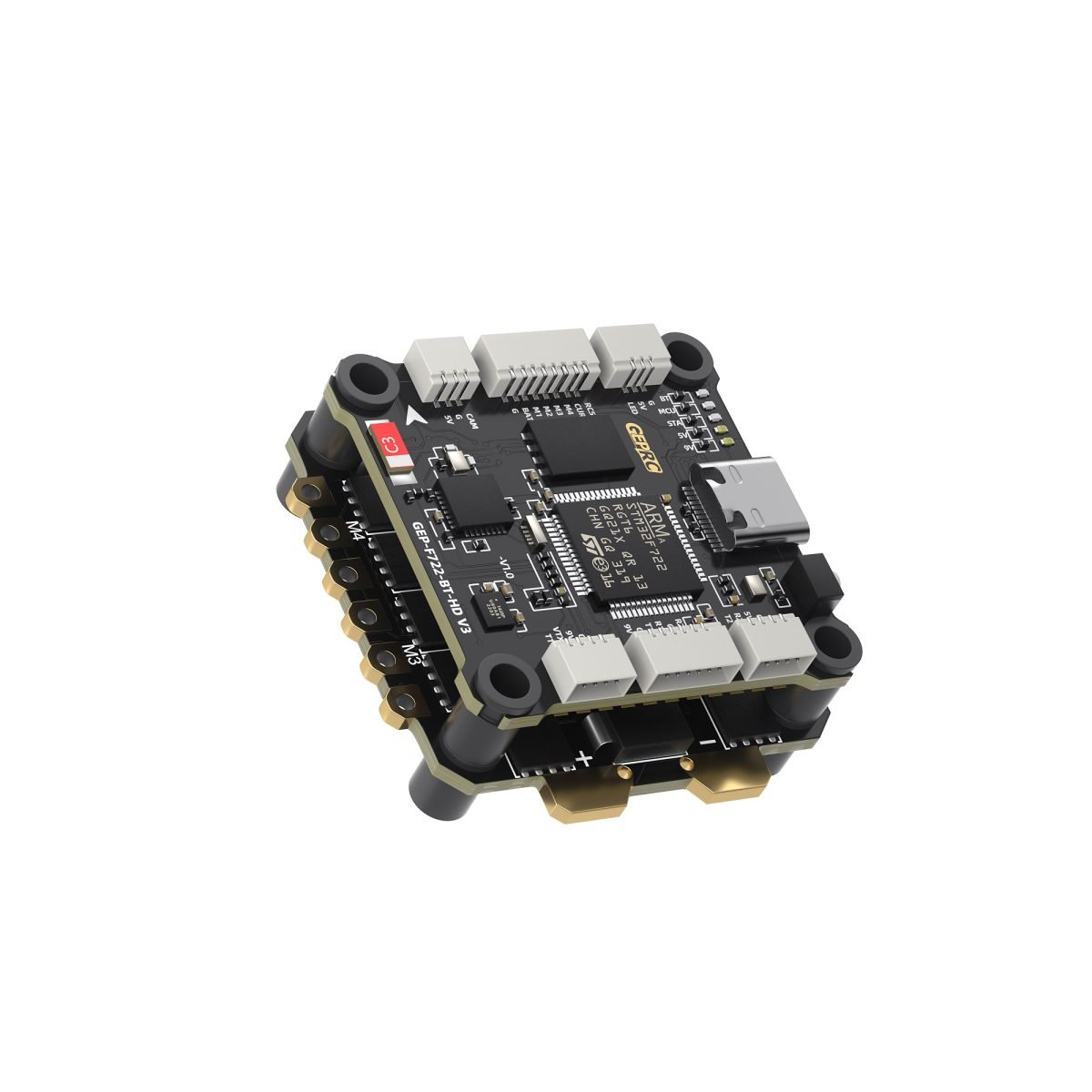

TAKER F722 BT 32Bit 50A Stack

Elevate your flight experience with the TAKER F722 BT 32Bit 50A Stack, a premium electronics package that combines high-end processing with next-generation motor control. This stack pairs the ultra-convenient GEP-F722-BT-HD V3 flight controller with the advanced GEP-BL32 50A 4-in-1 ESC, delivering the silky-smooth performance that serious freestyle and cinematic pilots demand.

The core of this stack’s superior flight feel is the 32-bit ESC. Running BLHeli_32 firmware at a high 96K PWM frequency, it provides faster, more precise motor response, resulting in a locked-in and incredibly smooth flight. The 32-bit processor also enables advanced features like ESC telemetry, giving you real-time data from your motors. With a robust 50A continuous current rating, it can handle demanding 3-6S builds with ease.

Complementing the advanced ESC is the feature-packed F722 flight controller. Tune your drone anywhere, anytime, with the integrated Bluetooth module that connects directly to your phone—no more USB cables in the field. Capture extensive flight logs for perfect tuning with the massive 512M onboard black box. Built for modern HD systems, the stack includes a direct plug for the DJI Air Unit and dual BECs (9V & 5V) to provide clean, stable power to your entire setup.

KEY FEATURES

• 32-Bit BLHeli_32 50A ESC: Delivers next-generation motor control with 96K PWM frequency for an incredibly smooth and responsive flight feel.
• Wireless Bluetooth Tuning: Connect to your mobile device to adjust Betaflight settings without a USB cable.
• Massive 512M Black Box: Provides a huge amount of storage for detailed flight data logging and analysis.
• High-Performance F7 Core: Features a powerful STM32F722 MCU and a stable ICM42688-P gyroscope.
• Plug-and-Play DJI HD Ready: Includes a direct port for any DJI Air Unit for a clean, solder-free installation.
• Integrated Barometer: Onboard barometer for accurate altitude hold and GPS rescue functions.
• Dual Independent BEC: Provides filtered 9V@2.5A and 5V@3A power for your VTX and other peripherals.

SPECIFICATIONS

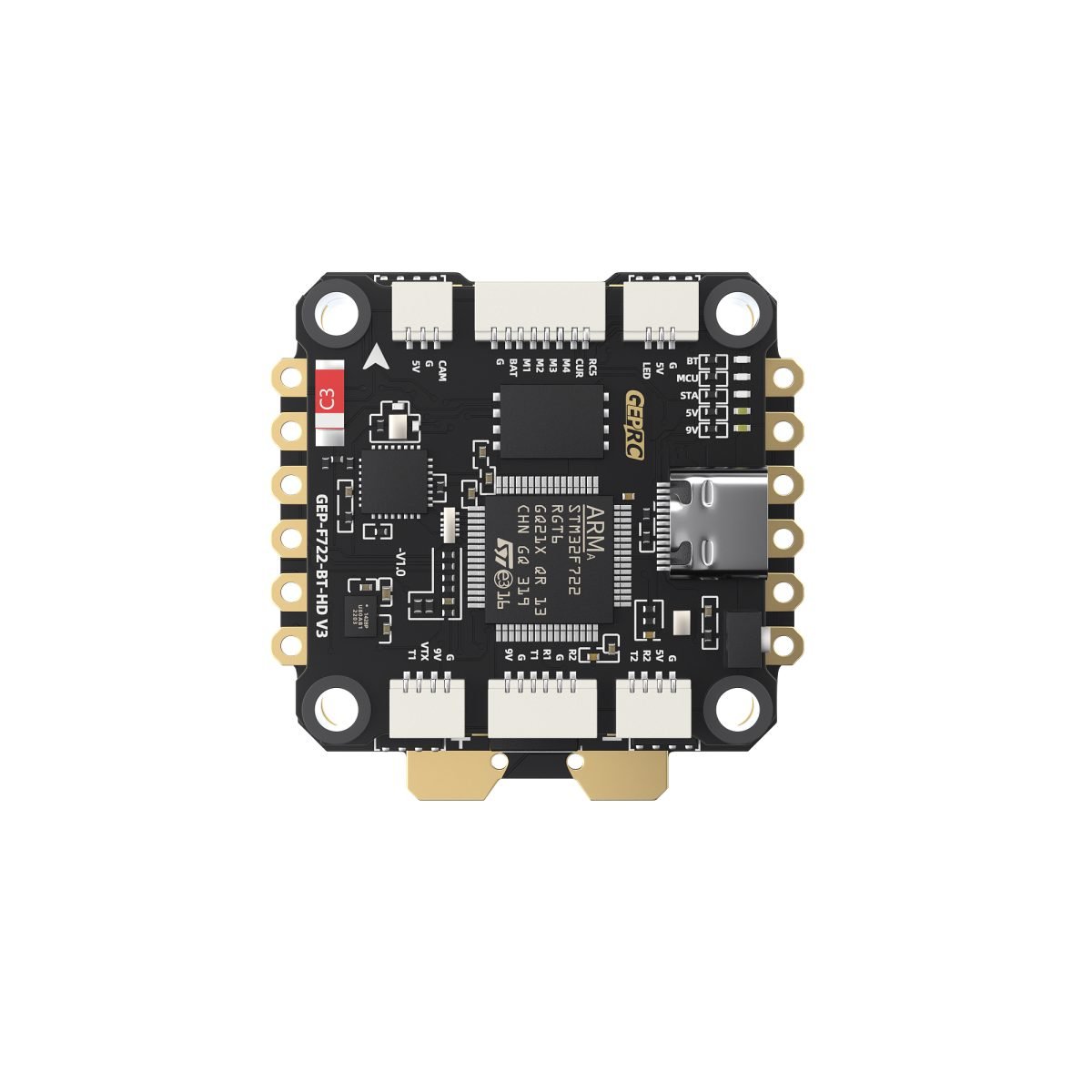

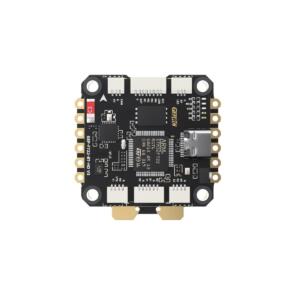

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Black Box: 512M onboard
• Input Voltage: 3-6S LiPo
• BEC: 9V@2.5A & 5V@3A
• Firmware Target: GEPRCF722_BT_HD_V3

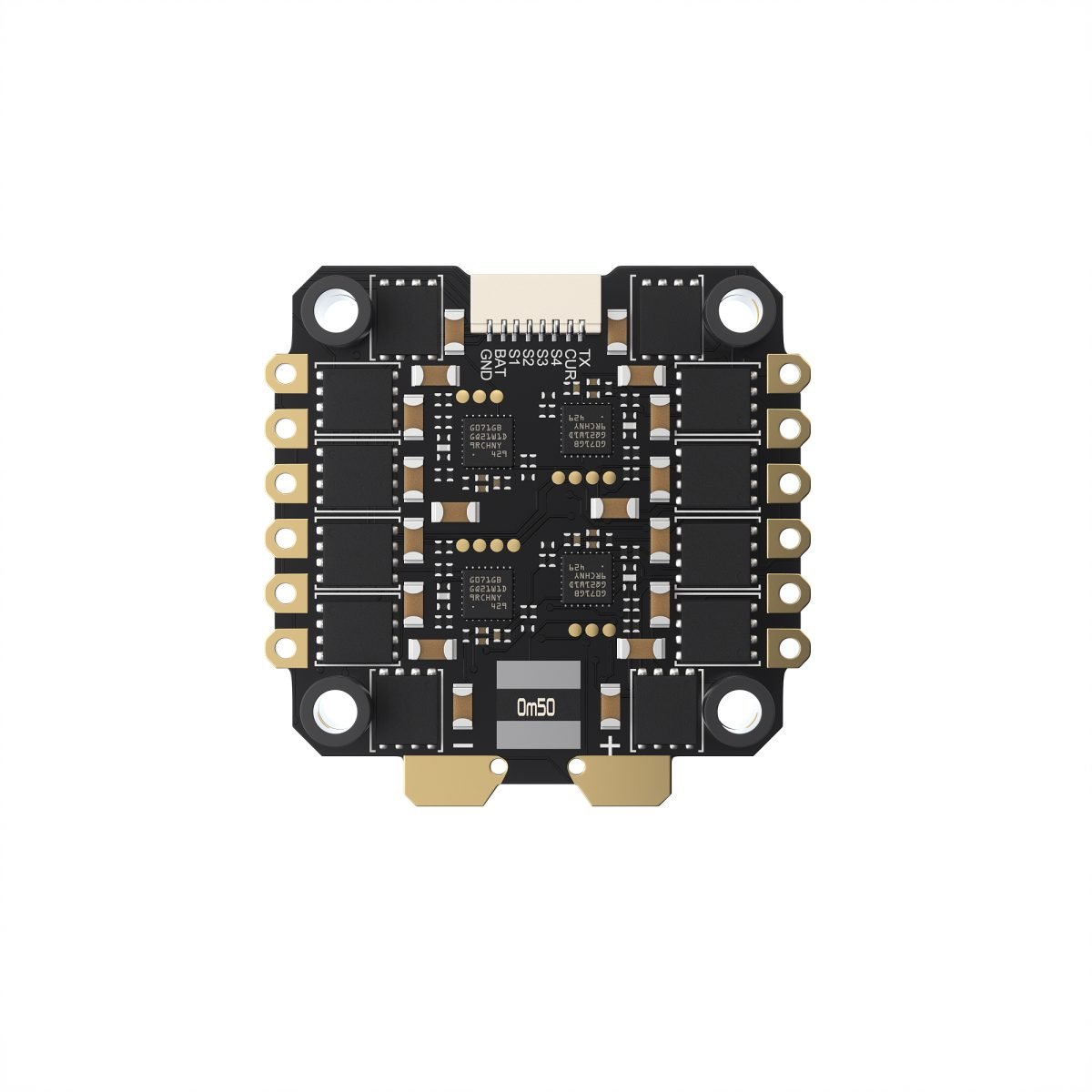

GEP-BL32 50A 96K 4IN1 ESC

• Continuous Current: 50A
• Burst Current: 55A (5s)
• Input Voltage: 3-6S Lipo
• Firmware: BLHeli_32 (Target: ST_G0_05 – 31.92)
• Telemetry: Supported

INCLUDES

• 1 x GEP-F722-BT-HD V3 Flight Controller
• 1 x GEP-BL32 50A 96K 4IN1 ESC
• 1 x Capacitor
• 1 x O3 3-in-1 Connection Cable
• 1 x FC Adapter Cable
• 1 x Camera & VTX Connection Cables
• 1 x XT60 Power Cable
• All necessary screws, nuts, and silicone grommets
