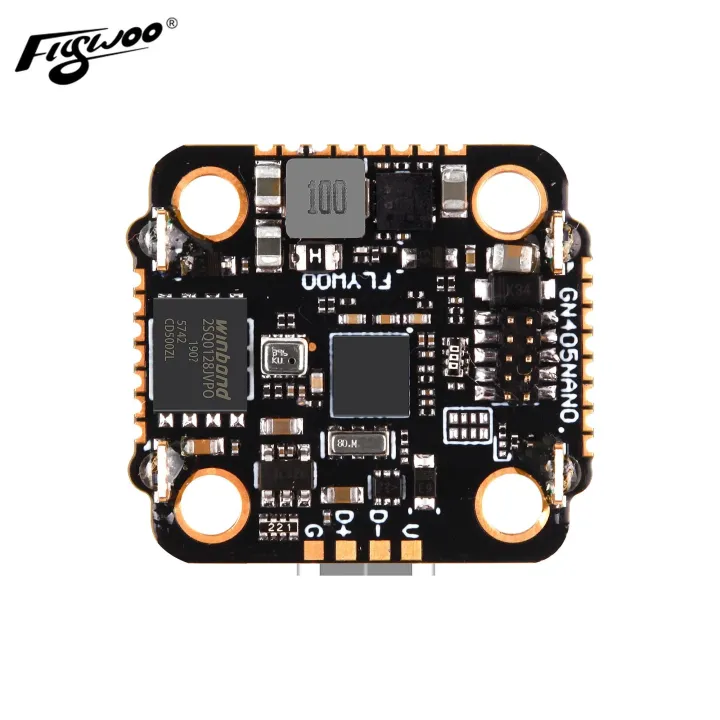

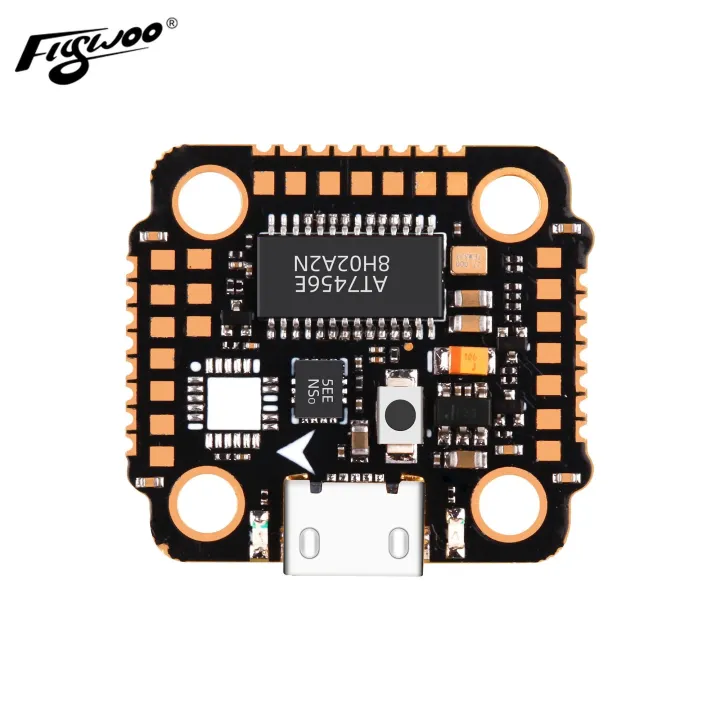

Flywoo GOKU HEX GN405 Nano Flight Controller w/ 4pcs WS2812 LED ( 16*16 )
Check out all of our Flywoo products!

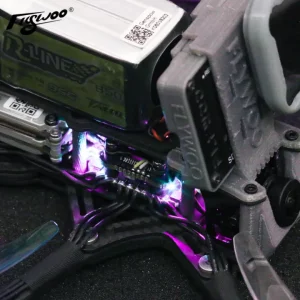

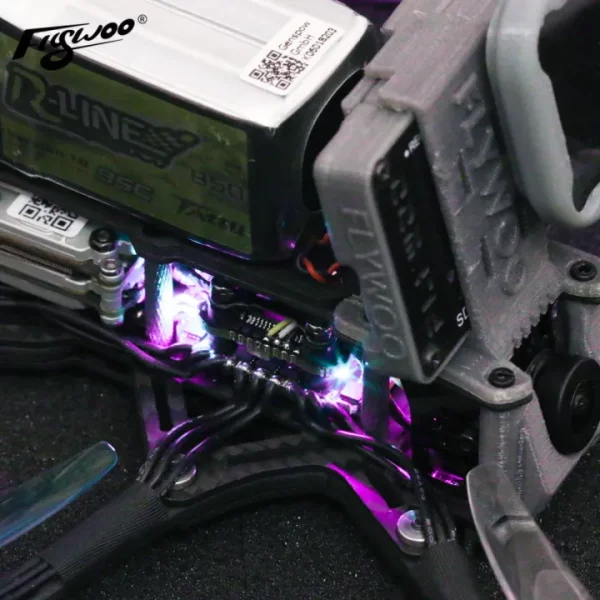

Experience the next level of drone flying with the Flywoo GOKU HEX GN405 Nano Flight Controller, complete with 4 embedded WS2812 LEDs for enhanced visibility and flair. This compact 16x16mm board is powered by the robust F405 BGA MCU and supplemented with a precise SPL06 barometer. It provides a versatile input voltage range of 2-6S and offers dedicated onboard LED features using WS2812*4. The board is furnished with 6 hardware UARTS, compatible with most serial receivers like SBUS, iBus, Spektrum, and Crossfire. Take note, however, that it doesn’t support PPM and PWM receivers. An ample 16MB onboard blackbox ensures that all your flight data is meticulously logged. Precisely designed to a dimension of 22x22mm, it offers standard 16/16mm mounting holes. Tipping the scales at just 2.3g, it ensures lightweight integration into your setup. And with the FLYWOOF405NANO firmware, you’re always up-to-date with the latest advancements.
Features
- F405 BGA MCU
- Barometer
- 5V 2A BEC
- Black Box 16MB
- 6 UARTS
- WS2812LED
Specifications
- MCU: STM32F405 BGA
- IMU: ICM42688/BMI270 (SPI)
- Barometer: SPL06
- input voltage ： 2-6S
- Onboard LED：WS2812*4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 22x22mm
- Mounting Holes: Standard 16/16mm square to center of holes
- Weight: 2.3g
- Firrmware : FLYWOOF405NANO
