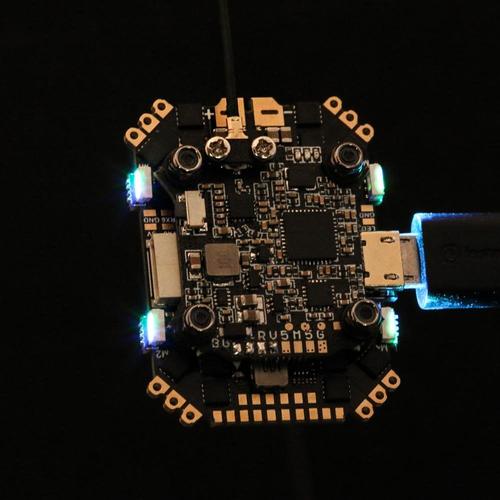

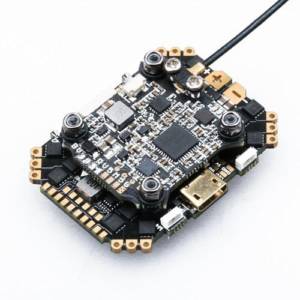

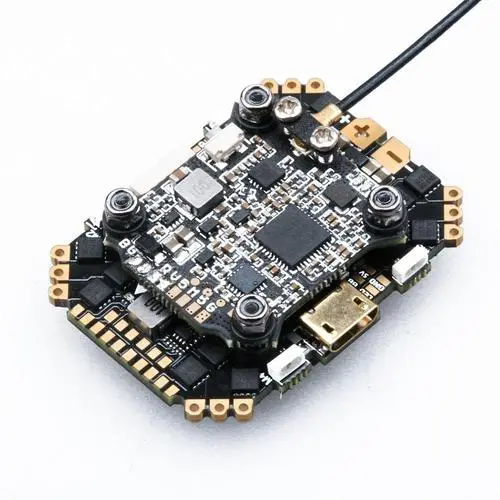

FLYWOO GOKU HDF745 EVO 40A AIO STACK FOR DJI (600mw Vtx)

FLYWOO’s new top GOKU series AIO stacks are finally here! GOKU HD F745 40A is currently the highest level of all-in-one FC, it can meet all your HD FPV needs.

Uses a powerful F745 BGA chip and BLHELI_32 ESC firmware, integrate 5V/9V dual BEC, barometer, black box, WS2812LED, supports 7 complete hardware serial ports, I2C and other functions are all open.
This is currently the most integrated and powerful FC AIO board on the market. It brings pilots a more stable and smoother flight! Perfect for ultralight quads! It will be the most powerful FC AIO board in 2021.

Specifications

MCU: STM32F745 32-bit processor,216MHz, 512Kbytes Flash
IMU: MPU6000 (SPI)
Barometer: BMP280
Onboard LED：WS2812*4
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
7 hardware UARTS (UART1,2,3,4,5,6,7)
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onbord 8Mbytes for Blackbox logging
9V Power Out: 1.5A max
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max

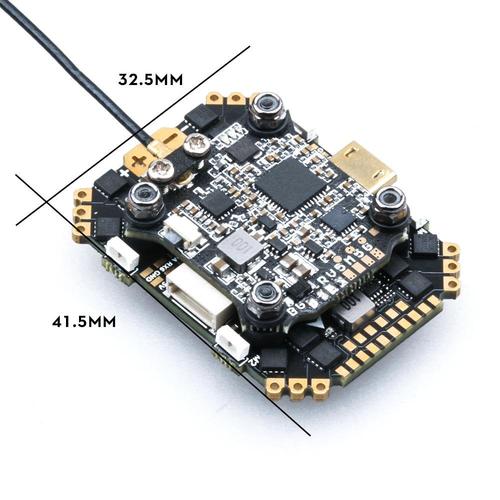

Dimensions: 41x32mm
Mounting Holes: Standard 20mm square to center of holes

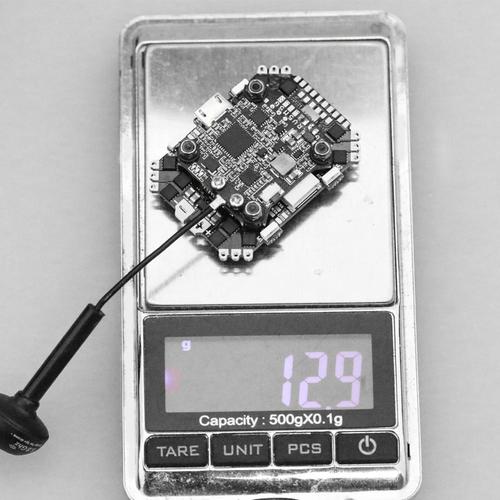

Weight: 8.5g

Built-in 40A BL_32 4in1 ESC

Supports BLheli / BLHELI_32
Supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
Input Voltage: 2-6S Lipo
Continuous Current: 40A
Firmware: BLHELI_32
