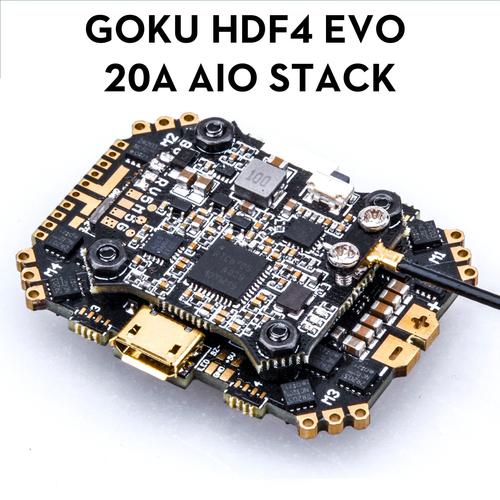

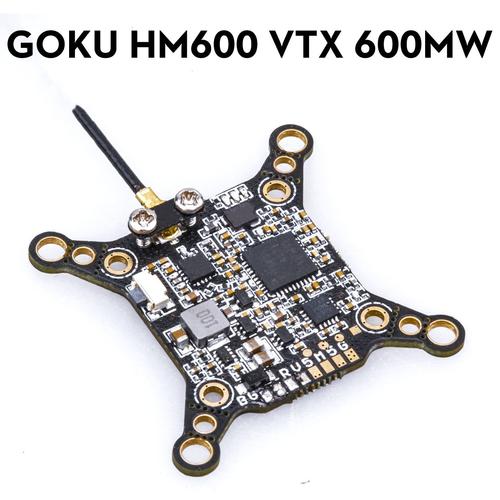

GOKU HDF4 EVO 20A AIO STACK FOR DJI ( 600mw Vtx )
Check out all of our Flywoo Products!
Introducing the new GOKU series AIO board from FLYWOO – the GOKU HDF4 40A FC. This all-in-one board is both economical and durable, making it an ideal choice for most FPV needs. With a powerful F411 chip and BLHELI_S ESC firmware, the board features DUAL BEC, a black box, and supports 2 complete hardware serial ports and 1 Soft serial port. Additionally, all I2C and other functions are open. Boasting the title of the most integrated and powerful F411 AIO board on the market, the GOKU HDF4 40A FC offers pilots a more stable and smoother flight experience. This board is perfect for 3”-5” ultralight quads and was the most powerful F411 AIO board of 2021.
GN411EVO HD BLHELI_S 20A
Specification:
MCU: STM32F411
IMU: MPU6000 (SPI)
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
2 hardware UARTS (UART1,2)
1 Software serial port
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
PPM and PWM receivers are not supported.
Onboard 8Mbytes for Blackbox logging
9V Power Out: 1.5A max
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 41x32mm
Mounting Holes: Standard 20mm square to center of holes
Weight: 8.5g
Built-in 20A/40A BL_S 4in1 ESC
Support BLheli / BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2-6S Lipo
Continuous Current: 20A
Firmware: BLHELI_S
