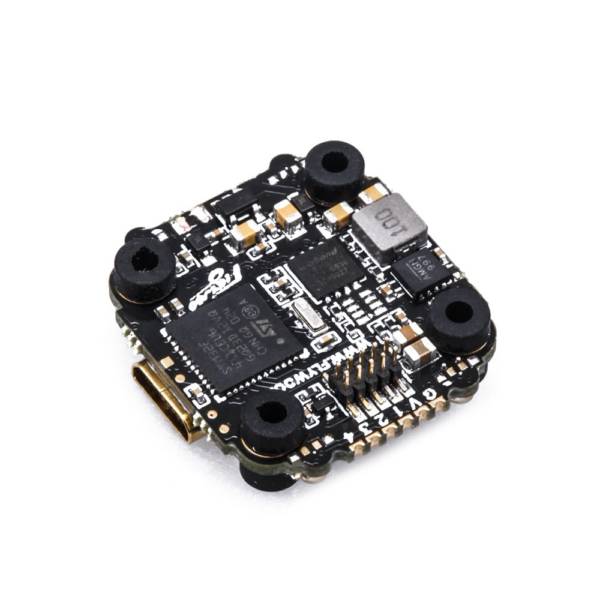

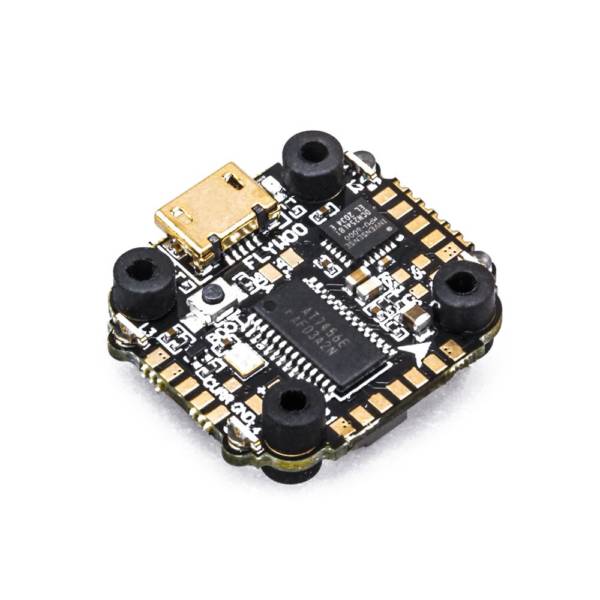

Flywoo GOKU F411 V2.1 16×16 Flight Controller

The Flywoo GOKU F411 Flight Controller (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.

Specifications

• MCU: STM32F411
• IMU: MPU6000 (SPI)
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 2 hardware UARTS (UART1,2)
• 2 Software serial port
• 1 I2C port for compass/baro
• Onboard LED：WS2812*8(FC*4/ESC*4)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onboard 8Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 23.5×23.5mm
• Mounting Holes: Standard 16mm square to the center of holes
• Weight: 6.5g

Diagram

Includes

•  1 x Flywoo GOKU F411 16×16 Flight Controller V2.1
