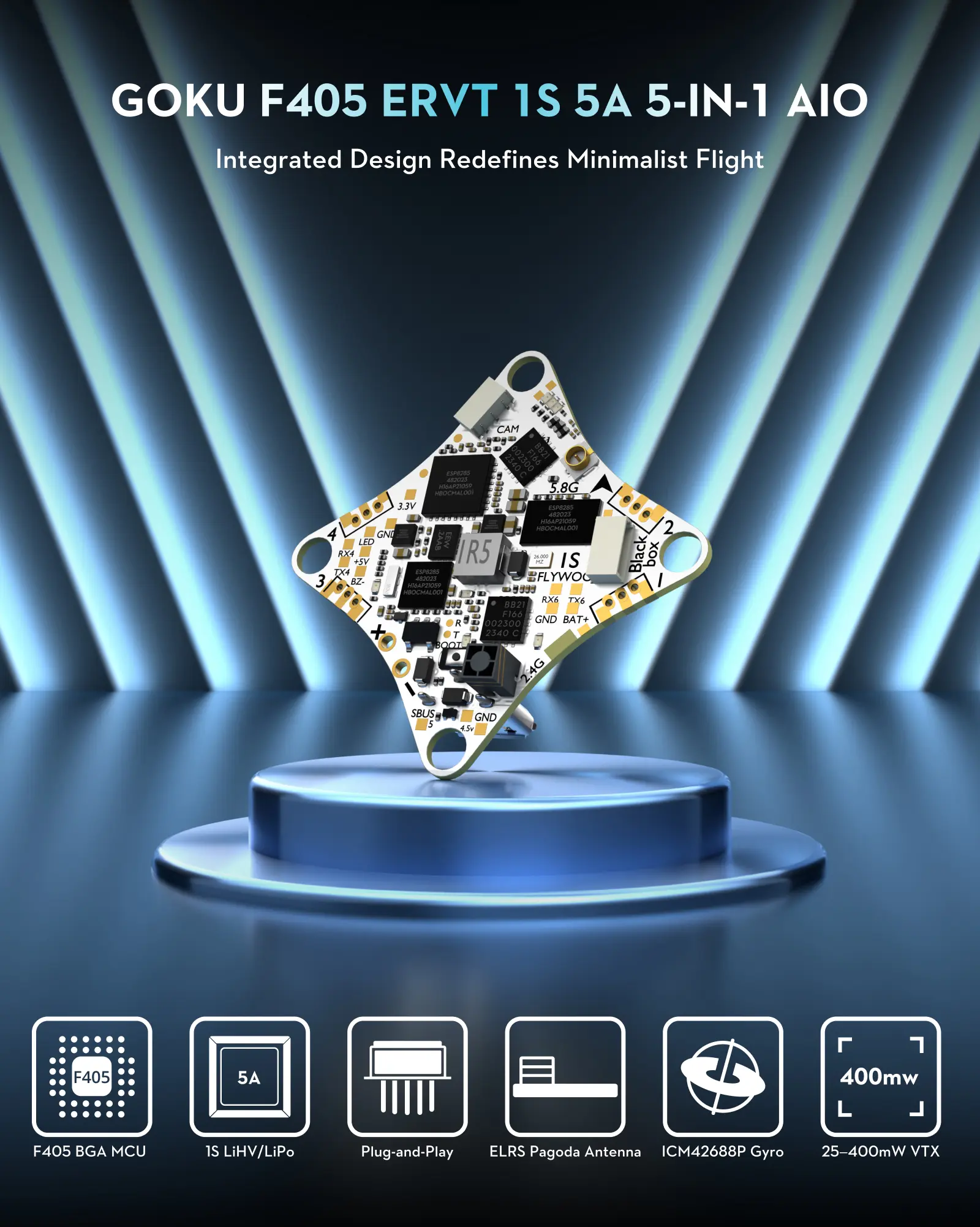

GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO

Check out all of our Flywoo products!

Simplify your build and maximize performance with the revolutionary Flywoo GOKU F405 ERVT 1S 5A 5-in-1 AIO. This all-in-one masterpiece integrates five critical components—Flight Controller, ESC, VTX, Receiver, and OSD—into a single, ultra-compact 4g board.¹ It is the ultimate solution for Tiny Whoops and 1S ultralight toothpicks, where weight and space are at a premium.

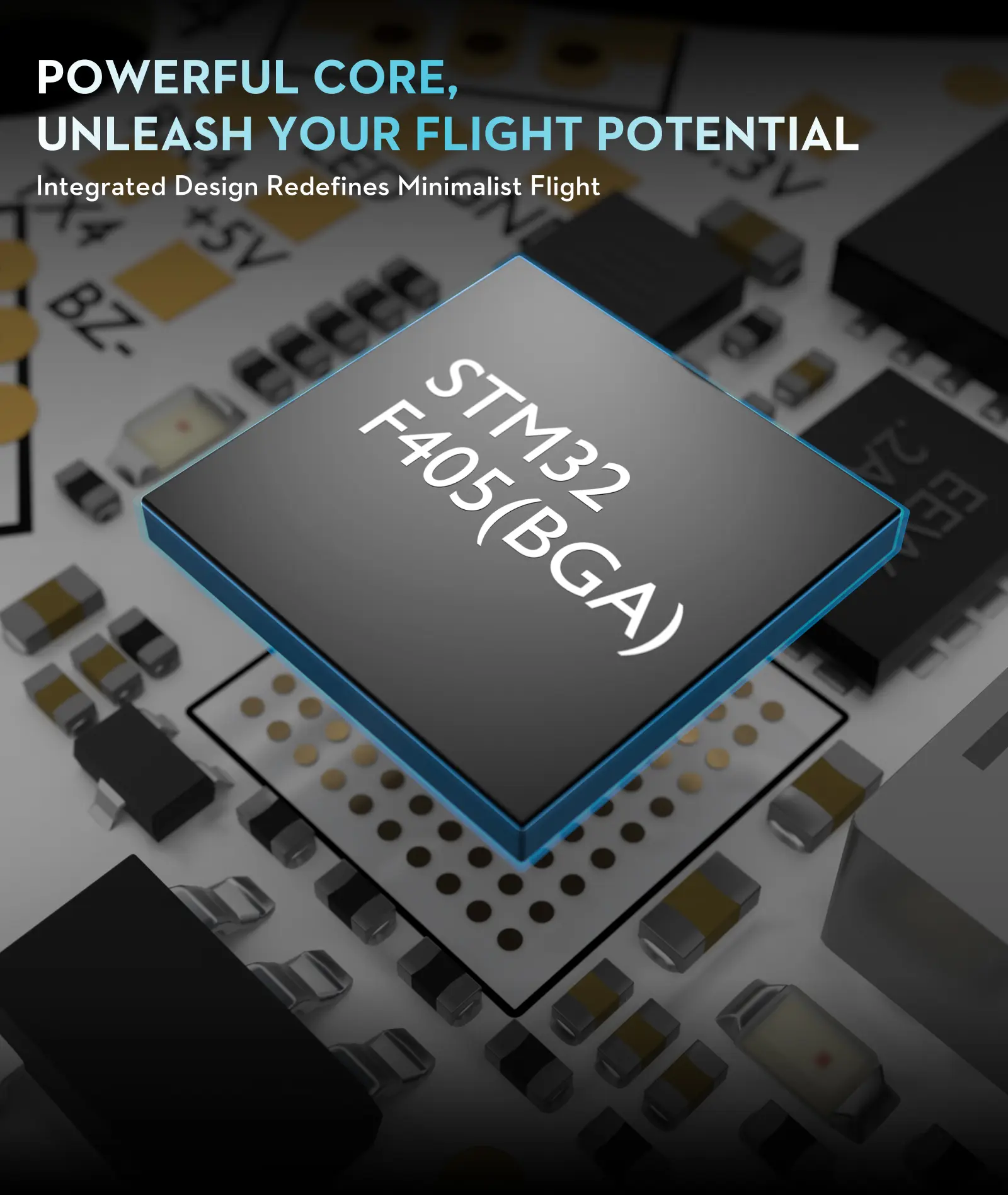

Next-Gen F405 Processing Power

Say goodbye to the bottlenecks of older F411 chips. The GOKU ERVT is powered by the STM32F405 BGA MCU, delivering 68% higher processing power. This allows you to run faster PID loops, advanced bidirectional DShot filtering, and more complex firmware features without sacrificing performance. The result is ultra-low latency handlin,g perfect for competitive racing and acrobatic maneuvers.

Powerful 5-in-1 Integration

This board redefines “all-in-one.” It features:

1. F405 Flight Controller for superior stability.

2. 5A Bluejay ESC for smooth motor control.

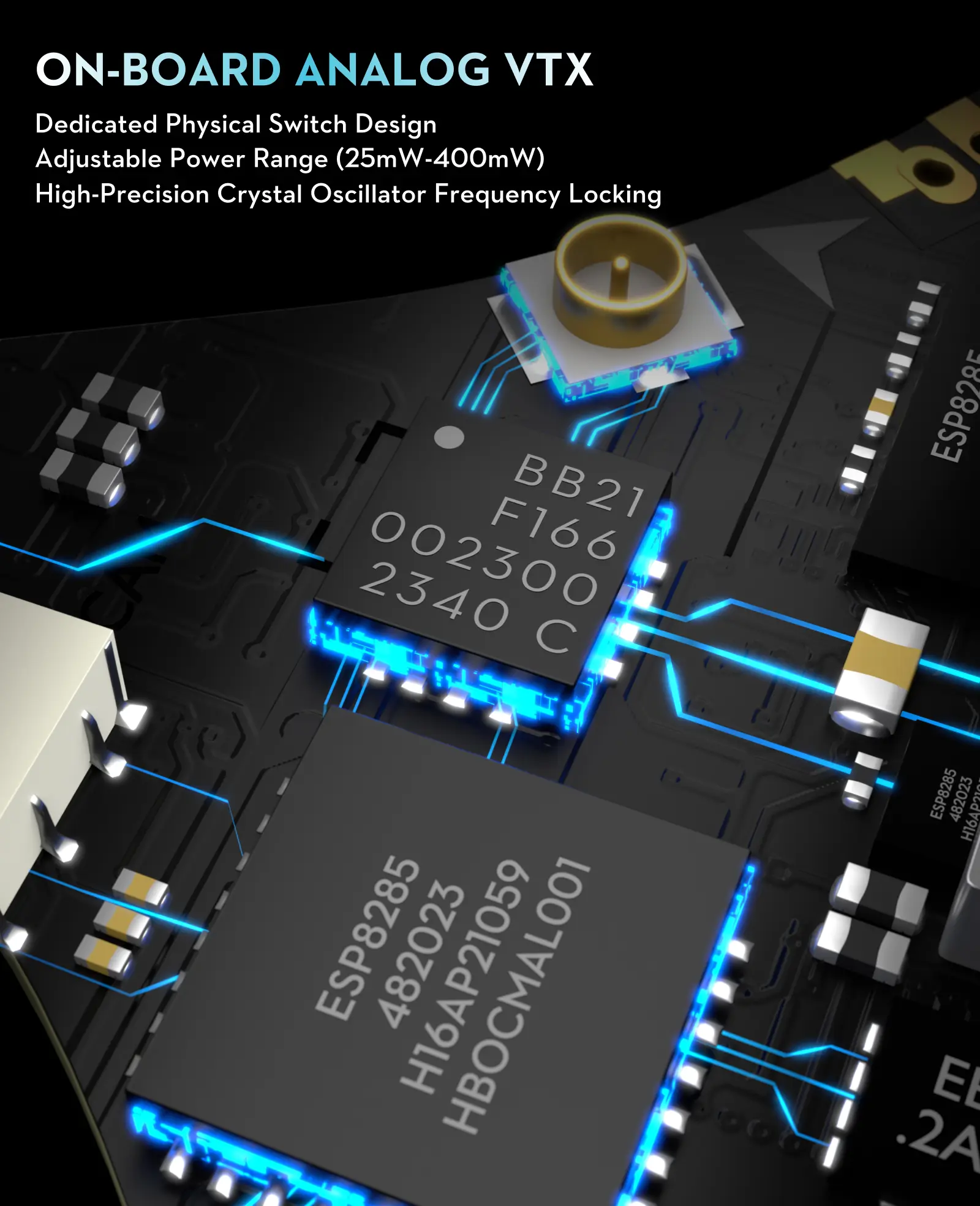

3. 400mW Analog VTX for long-range video clarity.

4. Serial ELRS 2.4GHz Receiver for low-latency control.

5. OSD Chip for vital flight data.

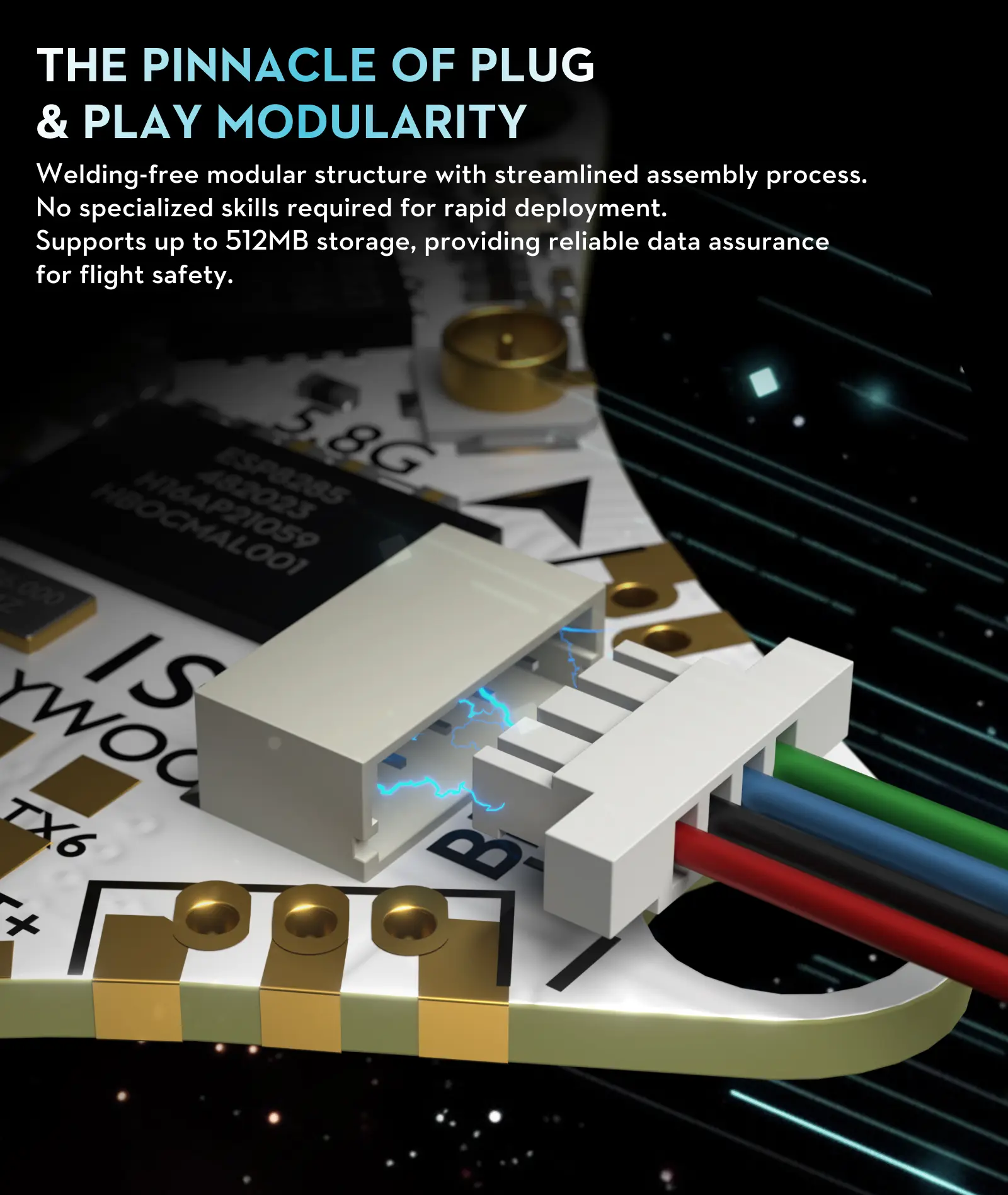

Long Range Video & Solder-Free Build

Equipped with a built-in 400mW Analog VTX and a specialized Pagoda-style integrated antenna, this AIO delivers an impressive transmission range of ≥1.5km. The intelligent design features plug-and-play interfaces, allowing for the solder-free installation of motors, cameras, and external blackbox units, making repairs in the field faster than ever.

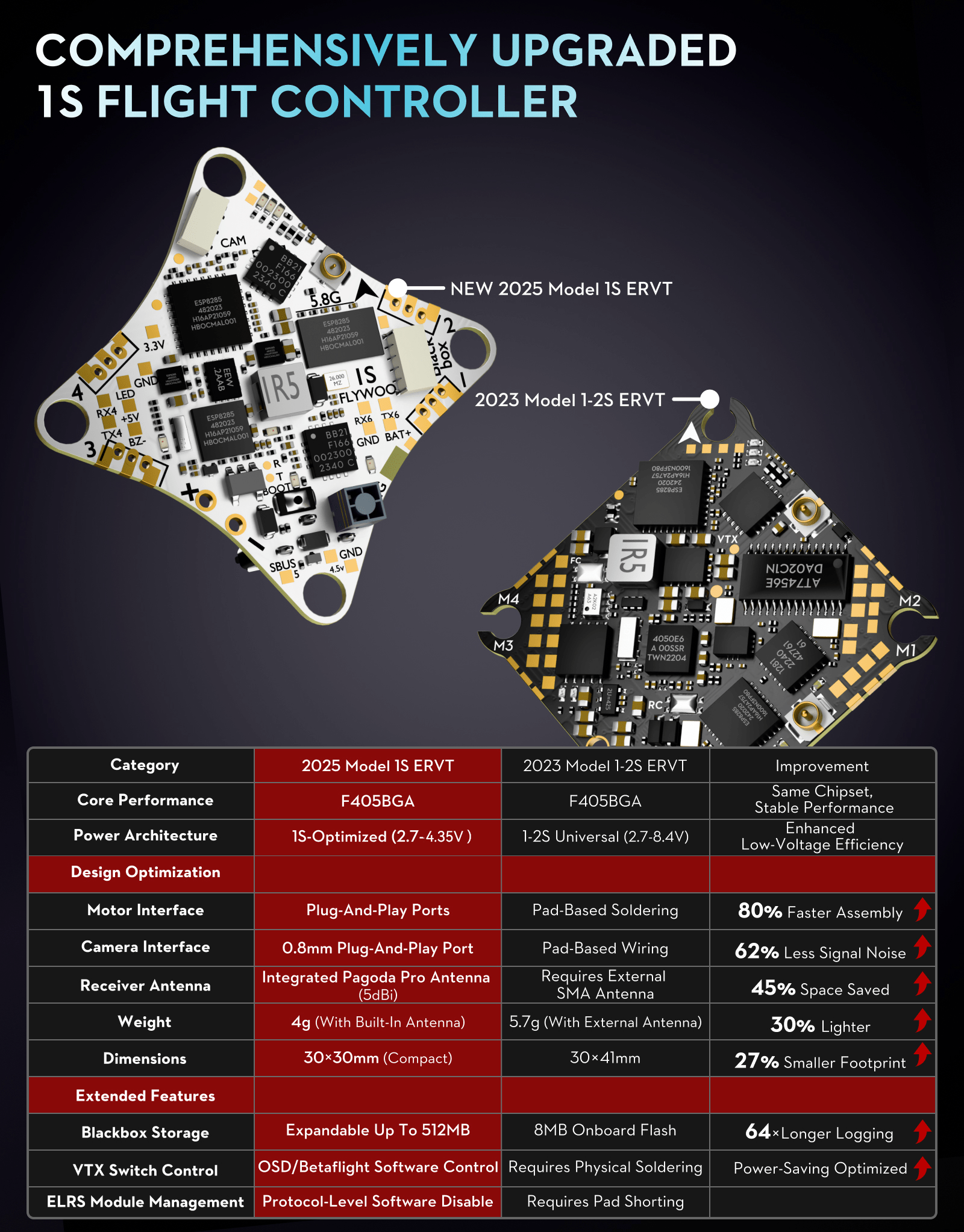

Key Features:

• 5-in-1 Design: FC, ESC, VTX, RX, and OSD in one 4g board.

• F405 Power: 68% faster than F411 for smoother flight performance.

• High Power VTX: Switchable up to 400mW for reliable video penetration.

• Plug-and-Play: JST connectors for motors and cameras reduce soldering.

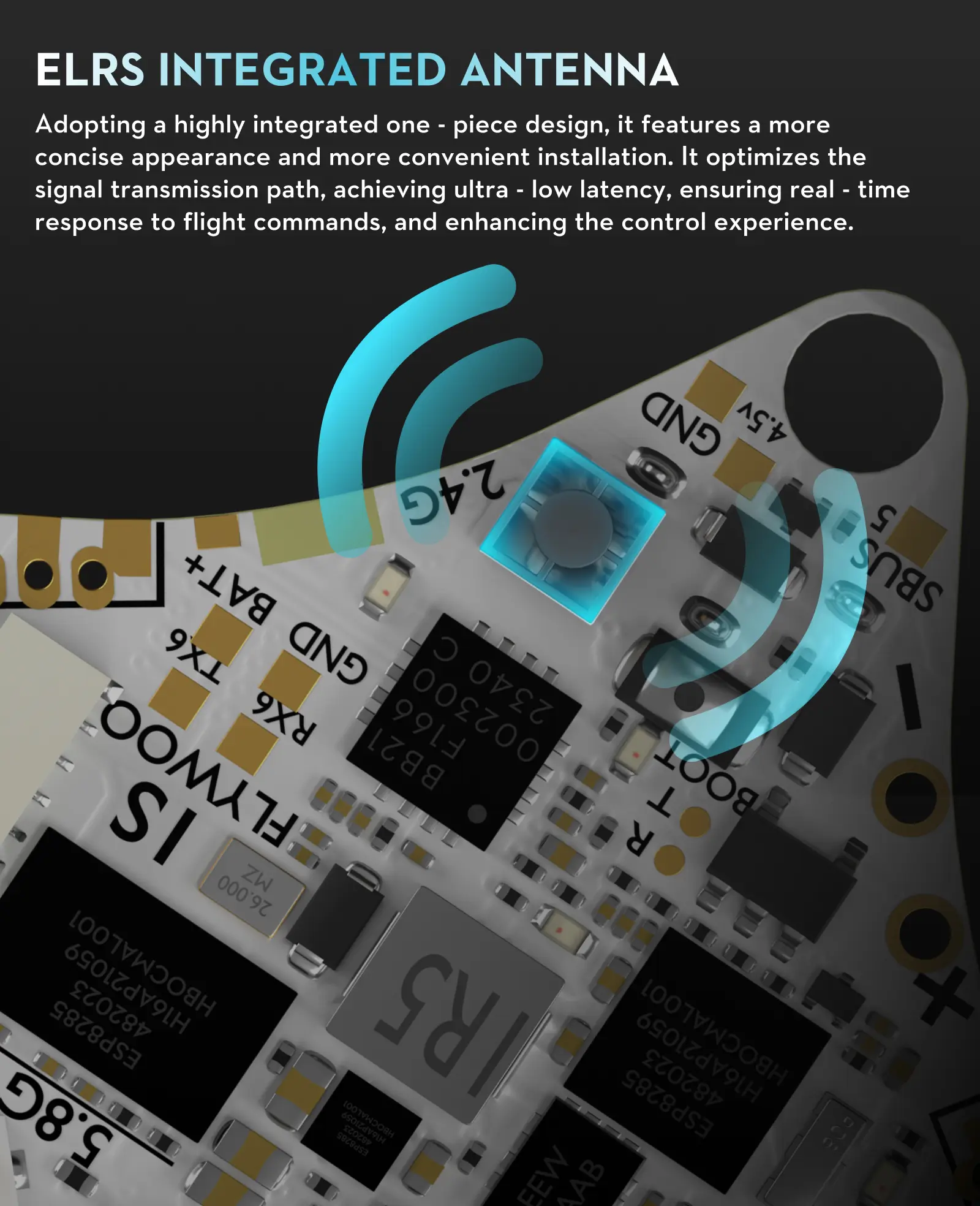

• ELRS Integrated: Built-in low-latency ExpressLRS 2.4GHz receiver.

• Bluejay Ready: Pre-loaded with Bluejay firmware for RPM filtering.

Specifications:

What’s in the Box?

• 1x Flywoo GOKU ERVT 5-in-1 AIO Board

• 1x A30 Power Cable

• 1x Camera Cable (JST-0.8 3pin)

• 1x External Blackbox Connector Cable

• 4x Motor Sockets (1.25mm 3-Pin)

• 4x Shock-Absorbing Balls (M2x6.6)
