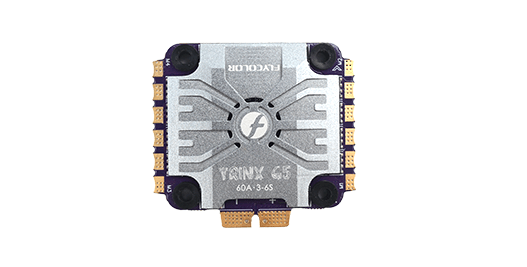

Flycolor Trinx G5 60A 3-6S BLHeli32 4-in-1 ESC

Flycolor Trinx G5 60A 3-6S BLHeli32 4-in-1 ESC

Check out all of our Flycolor products!

Unleash the full power of your FPV drone with the Flycolor Trinx G5 60A 4-in-1 ESC. This electronic speed controller is engineered to satisfy the most power-hungry quadcopters, delivering a massive 60A of continuous current to each motor. It’s the perfect choice for FPV pilots building high-performance 5-inch, 6-inch, or 7-inch freestyle and racing drones who need an absolutely bulletproof power system.

Extreme Power for Demanding Builds The Trinx G5 is built to handle the most powerful motor and propeller combinations. With a continuous current rating of $60\text{A}$ per motor ($70\text{A}$ peak) and support for up to 6S LiPo batteries, this ESC provides all the power you need for aggressive racing, demanding freestyle, and heavy-lift cinematic FPV drones. It gives you the confidence to perform the most demanding maneuvers without fear of desyncs or overheating.

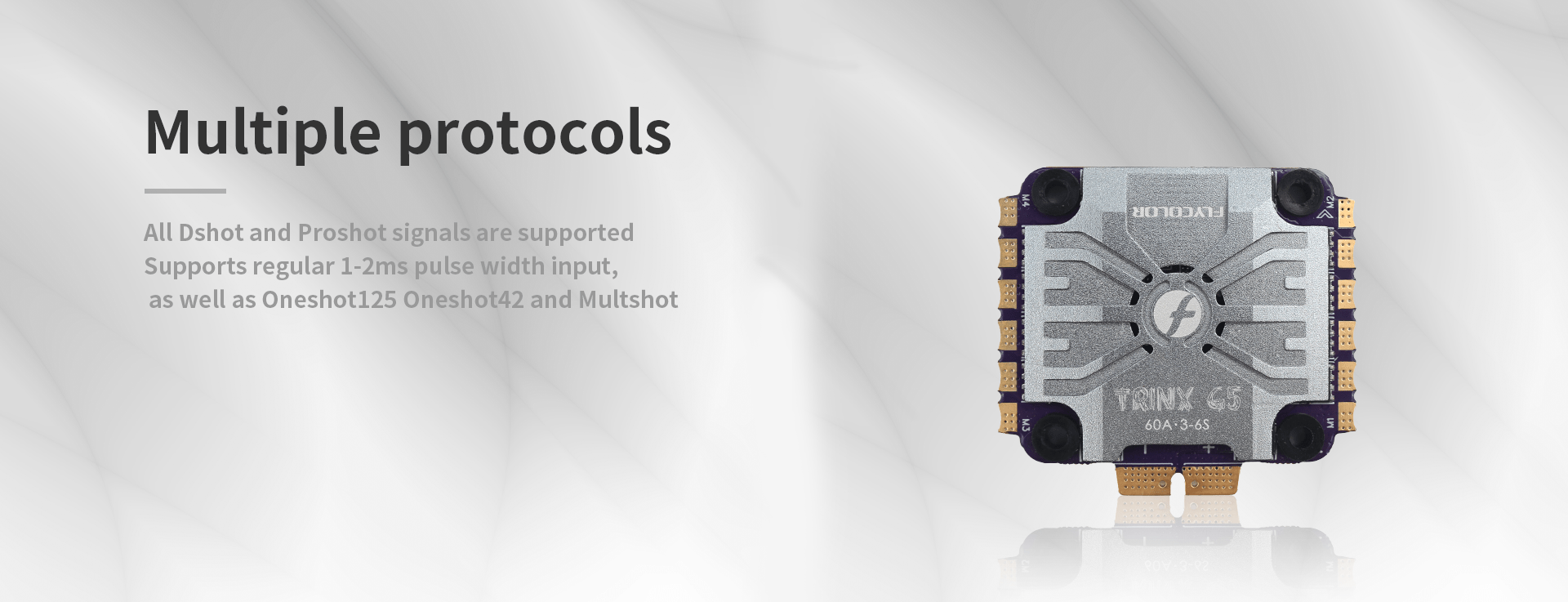

Advanced 32-bit Performance Running on a high-powered MCU and Flycolor’s performance-tuned Raptor 5 (BLHeli_32) firmware, the Trinx G5 offers incredibly smooth and responsive motor control. The advanced 32-bit platform supports high PWM frequencies and digital protocols, ensuring efficient power delivery and a locked-in feel. It also supports full ESC telemetry for real-time monitoring of your drone’s performance.

Key Features:

• Massive 60A Current Rating: A huge $60\text{A}$ continuous current ($70\text{A}$ burst) for extreme power demands.
• Advanced BLHeli_32 Firmware: Runs on Flycolor’s performance-tuned Raptor 5 firmware for smooth and responsive control.
• 3-6S LiPo Ready: Compatible with a wide range of batteries for high-voltage FPV performance.

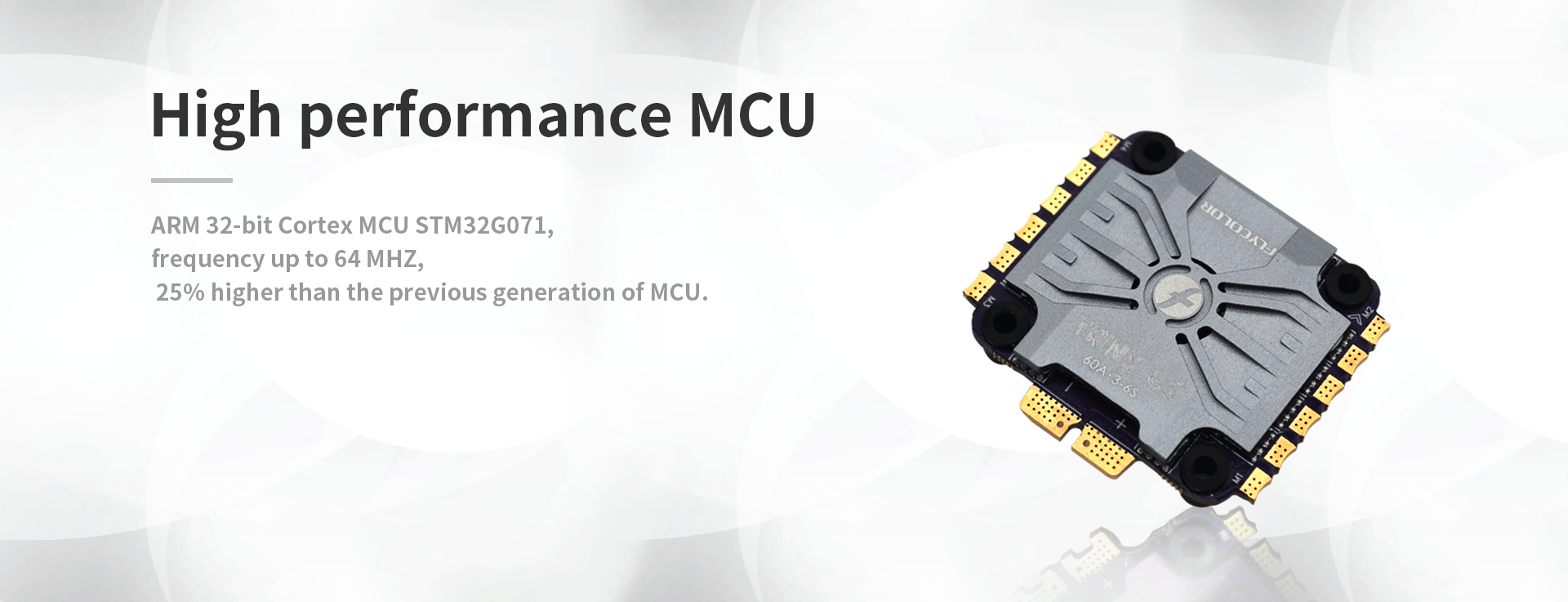

• High-Powered MCU: Features a powerful processor to handle the advanced 32-bit firmware with ease.
• Onboard Current Sensor: Provides real-time current draw information to your flight controller.

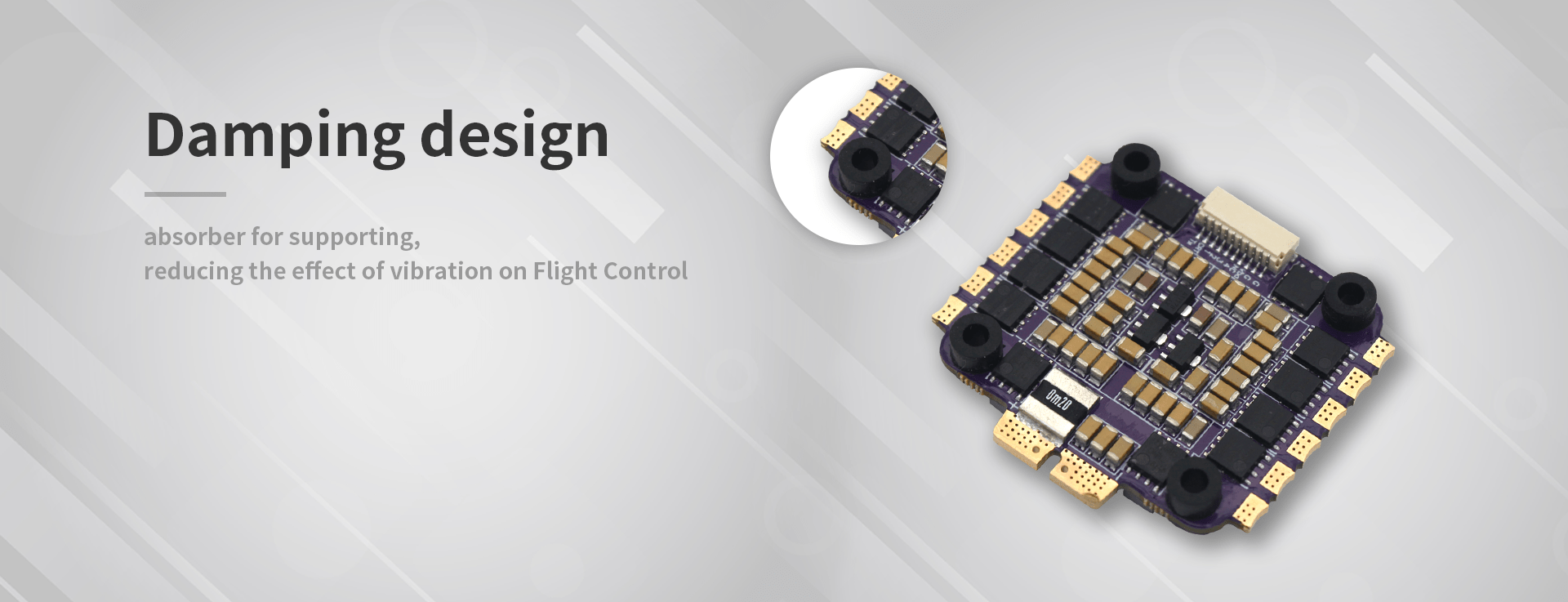

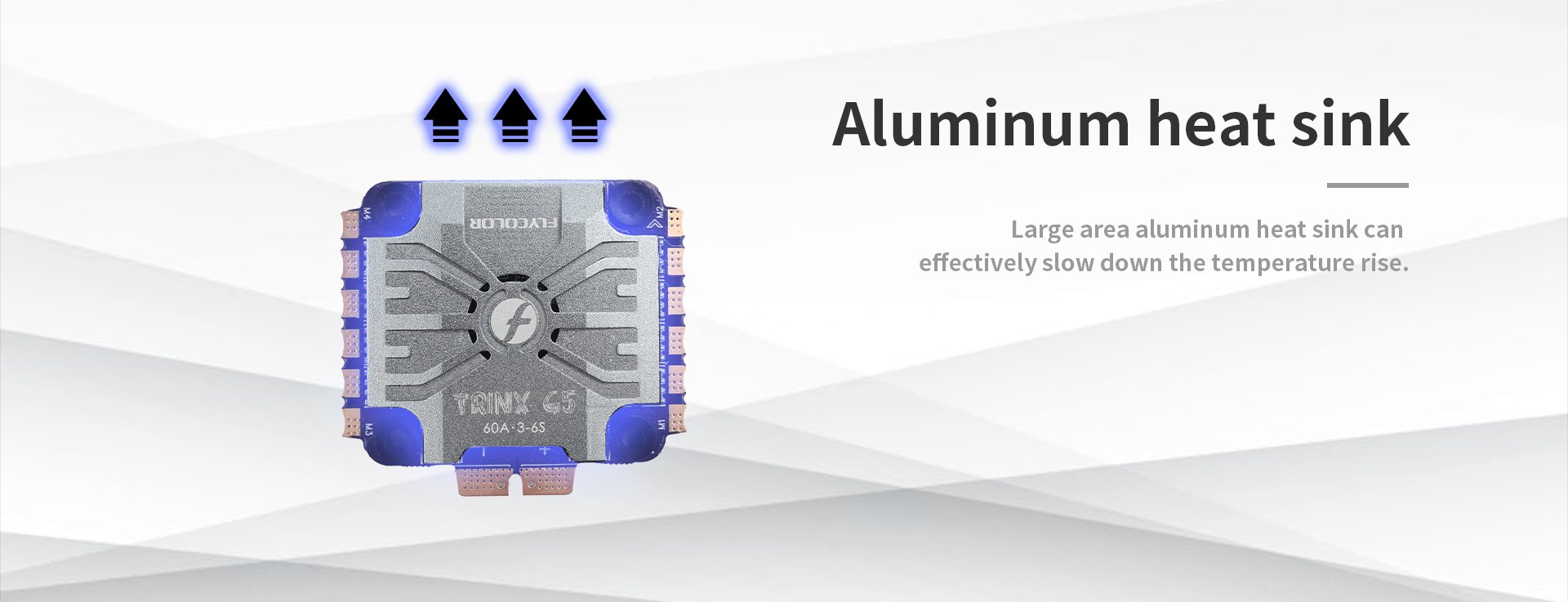

• Durable Construction: Built with high-quality components to handle the high-stress environment of FPV racing and freestyle.

Specifications

• Input Voltage: 3-6S LiPo
• Continuous Current: $60\text{A}$
• Burst Current (10s): $70\text{A}$
• BEC: No
• Current Sensor: Yes
• Weight: $19.6\text{g}$
• Dimensions: $45\times 41\times 8.3\text{mm}$
• Mounting: $30.5\times 30.5\text{mm}$
• Firmware: Flycolor_Raptor_5 (BLHeli_32)

Includes

• 1x Flycolor Trinx G5 60A 4-in-1 ESC
• 1x XT60 Power Pigtail
• 1x Capacitor
• 1x ESC to FC Cable
• 1x Set of Mounting Hardware
