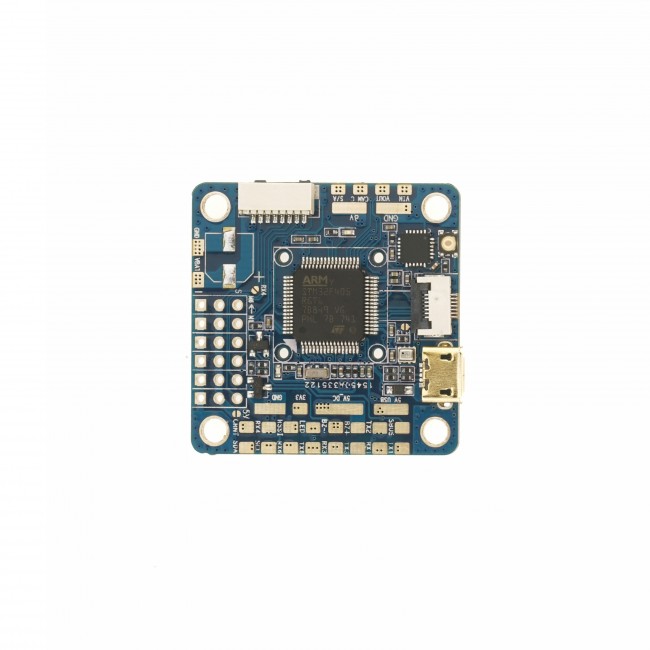

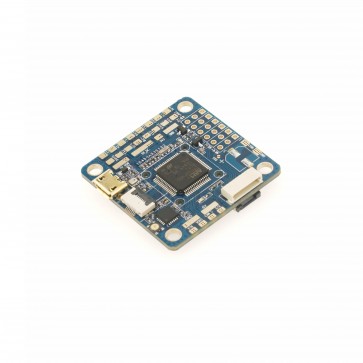

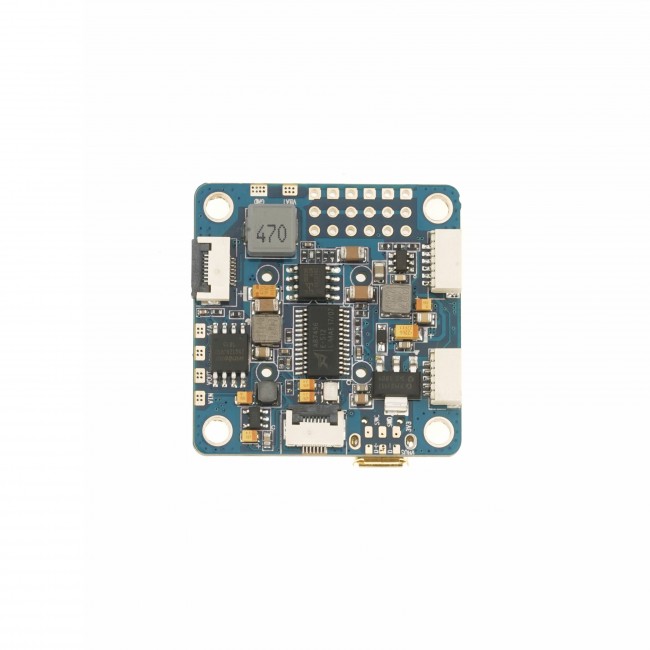

OMNIBUS AIO F4 V6 Flight Controller – 5xUARTs
OMNIBUS F4’s upgraded version, using the F405 and a new target, along with 5x UARTs now.
Sticks to the classic OMNIBUS design, using F4 MCU controls OSD over a SPI bus, compared to the first version, they added BMP280 as a barometer and SD Card support.
OSD Configuration has been incl. in Betaflight GUI.
FC incl. 5V1A BEC on board(3-6s) and 1x 8V BEC for Camera
MPU6000 at SPI bus, Ext, SPI for damped gyro
New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.
On v5, we added jumpers for Current source select, please read the manual and set the jumper before using the FC.
- STM32 F405 MCU, Runs Betaflight 3.0 firmware
- SBUS/PPM input (Pinheaders)
- 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
- Only 36x36mm, mount holes 30.5×30.5mm
- INCL. BARO BMP280
- SPI Sensor MPU6000
- 1x FC
