Furious FPV – RACEPIT HD Flight Controller
See all of our FuriousFPV Products!
Simplify your digital FPV drone build without sacrificing performance with the Furious FPV RACEPIT HD Flight Controller. This feature-packed FC is engineered specifically to provide seamless, plug-and-play integration with the DJI Digital FPV System. With a powerful F7 processor, a clean MPU6000 gyro, and a thoughtful, builder-friendly layout, the RACEPIT HD is the perfect brain for your next high-performance digital FPV drone kit.
Effortless HD FPV Integration
The standout feature of the RACEPIT HD is its dedicated support for digital FPV systems. It includes an onboard plug-and-play connector for the DJI Air Unit or Caddx Vista, eliminating complex soldering. Furthermore, it features a robust, dedicated 9V @ 2.5A BEC to provide clean and stable power to your video transmitter, preventing video dropouts and ensuring your HD FPV feed is crystal clear.
Powerful & Feature-Packed
Built around a high-performance STM32F722 MCU, this flight controller has all the processing power needed for modern flight firmware features. It also boasts 5 dedicated hardware UARTs for all your peripherals, a built-in VTX PIT switch to remotely turn your video transmitter on/off, and 8 motor outputs, allowing for X8 cinelifter FPV drone configurations. The onboard 16MB blackbox flash is perfect for easy, data-rich tuning sessions.
Built for Builders
Furious FPV designed the RACEPIT HD with the builder in mind. It features large, logically arranged solder pads that are easy to work with, making the assembly process clean and straightforward. The entire layout is intuitive, ensuring a frustration-free experience when connecting your drone parts.
Specifications
- MCU: STM32F722
- Gyro: MPU6000
- Input Voltage: 2-6S LiPo
- BEC: 5V @ 2A and 9V @ 2.5A (Switchable)
- Blackbox: 16MB Onboard Flash
- UARTs: 5
- Motor Outputs: 8
- Special Features: Plug-and-Play HD VTX Connector, VTX PIT Switch
- Mounting Holes: 30.5mm x 30.5mm
What’s in the Box?

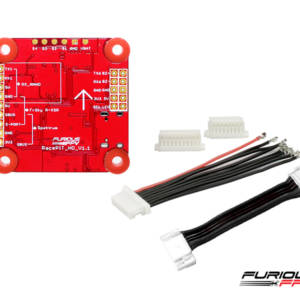

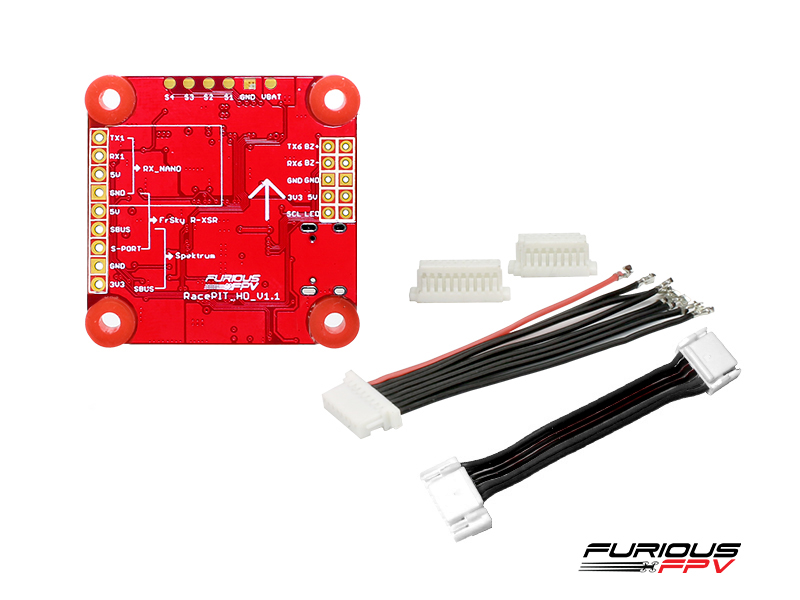

- 1x Furious FPV RACEPIT HD Flight Controller
- 1x Set of Mounting Grommets
