iFlight Mini F7 Stack (E55 Mini 4-IN-1ESC)

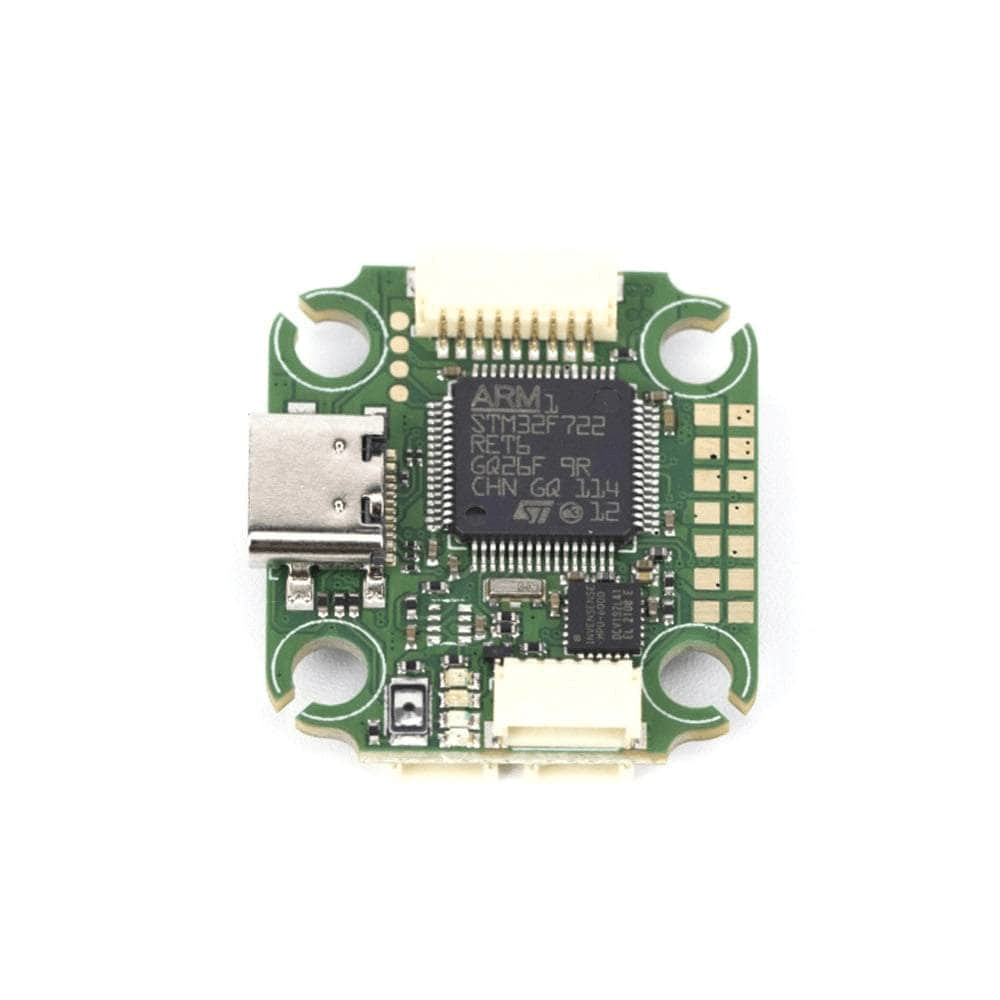

BLITZ Mini F7 V1.1 Flight Controller
The new iFlight blitz series offers stellar performance at an affordable price. With an F7 processor and high quality BMI270 gyro, this FC is all you could ever need for daily cruising or even hardcore freestyle and racing!
Specifications
- MCU: STM32F722
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456
- Blackbox: 16MB
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C: SDA / SLA pads
- LED: Yes
- Beeper: Yes
- Firmware Target: IFRC-IFLIGHT_BLITZ_F722
- Mounting Pattern: 20x20mm
- Dimensions: 30.5x27mm
- Weight: 5g

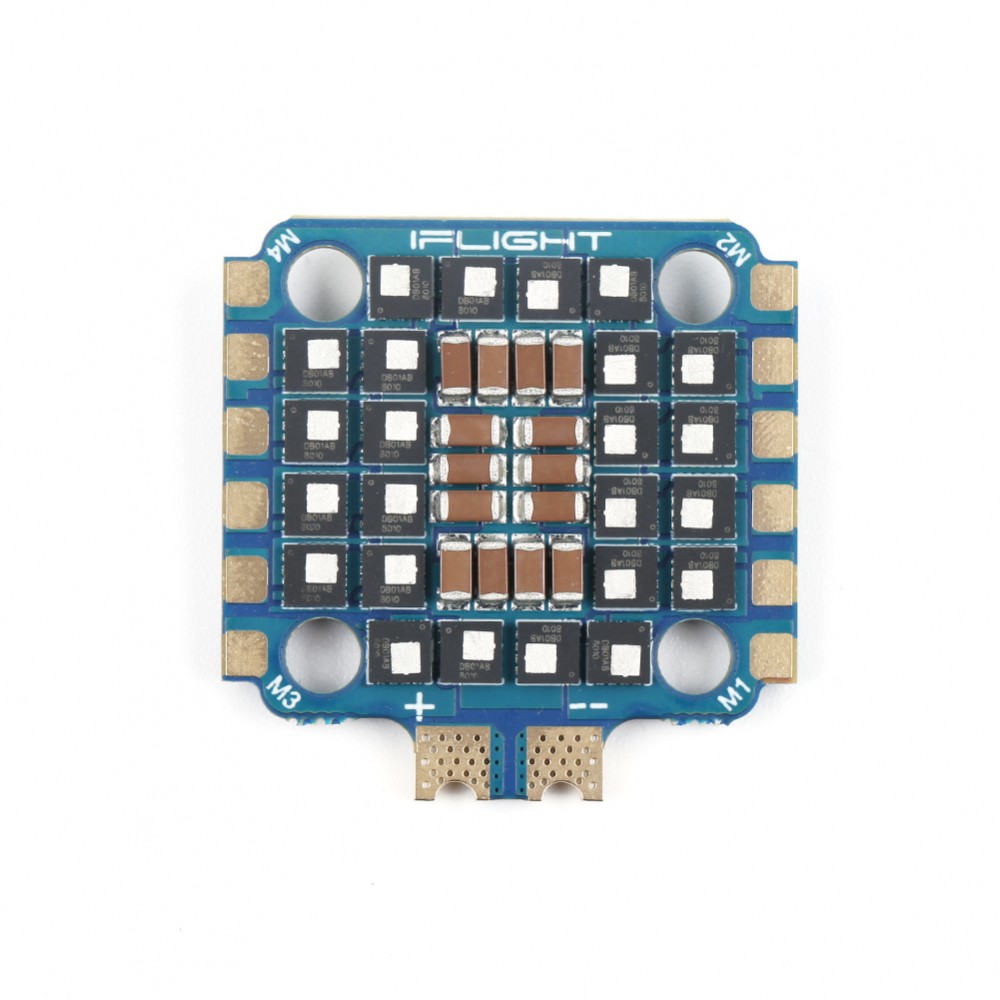

ESC // SucceX Mini 55AÂ
Features:
– 6 layers double-sided PCB board;
– 2OZ copper skin thickness for 1-4 layers,better operating load capacity;
– Standard 20*20 Φ4mm mounting holes, rational layout, countersunk holes on extended power soldering pad enable each layer board can be powered;
– Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
Specification:
– Dimension: 31*31mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 7.6g
– Supports 2-6S lipo input
– MCU：G071
– Constant: 55 AmpsÂ
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
–Â Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
–Â Firmware: BLHeli 32
– Target:Â iFlight-G071-4IN1Â
Package includes:
- 1pc x BLITZ Mini F7 V1.1 Flight Controller
- 1pc x SucceX Mini 55A 4in1
