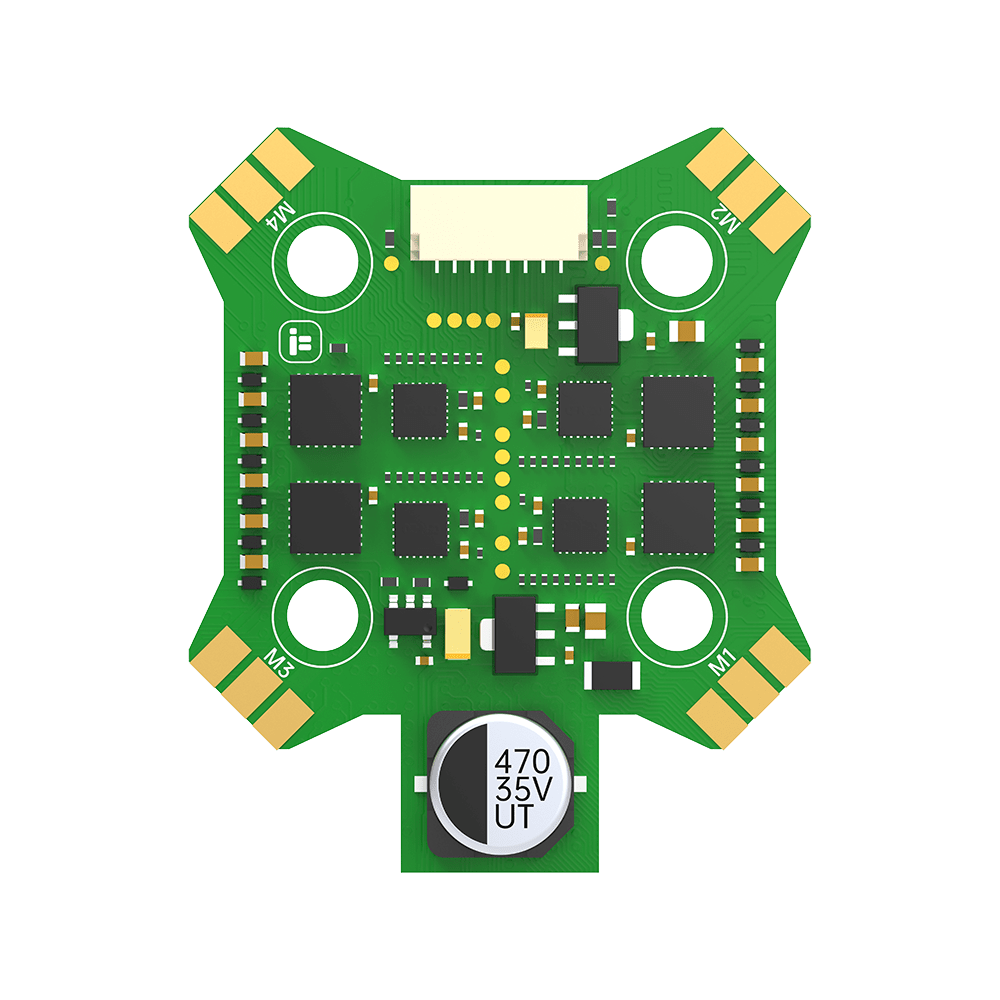

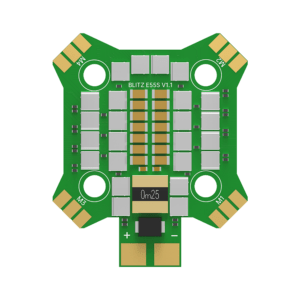

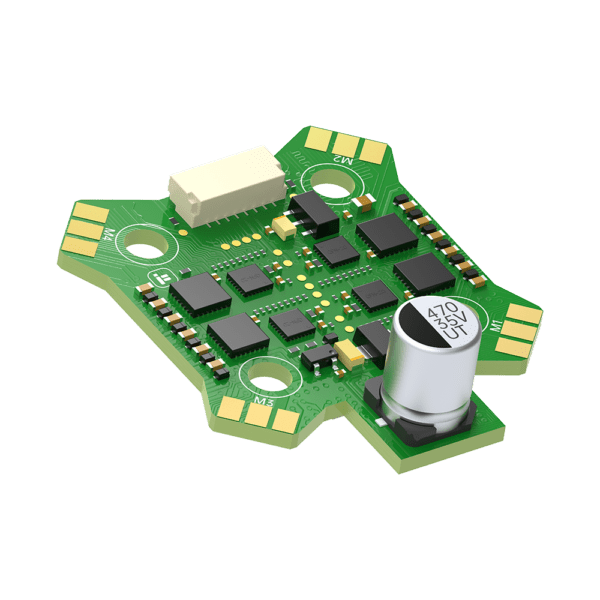

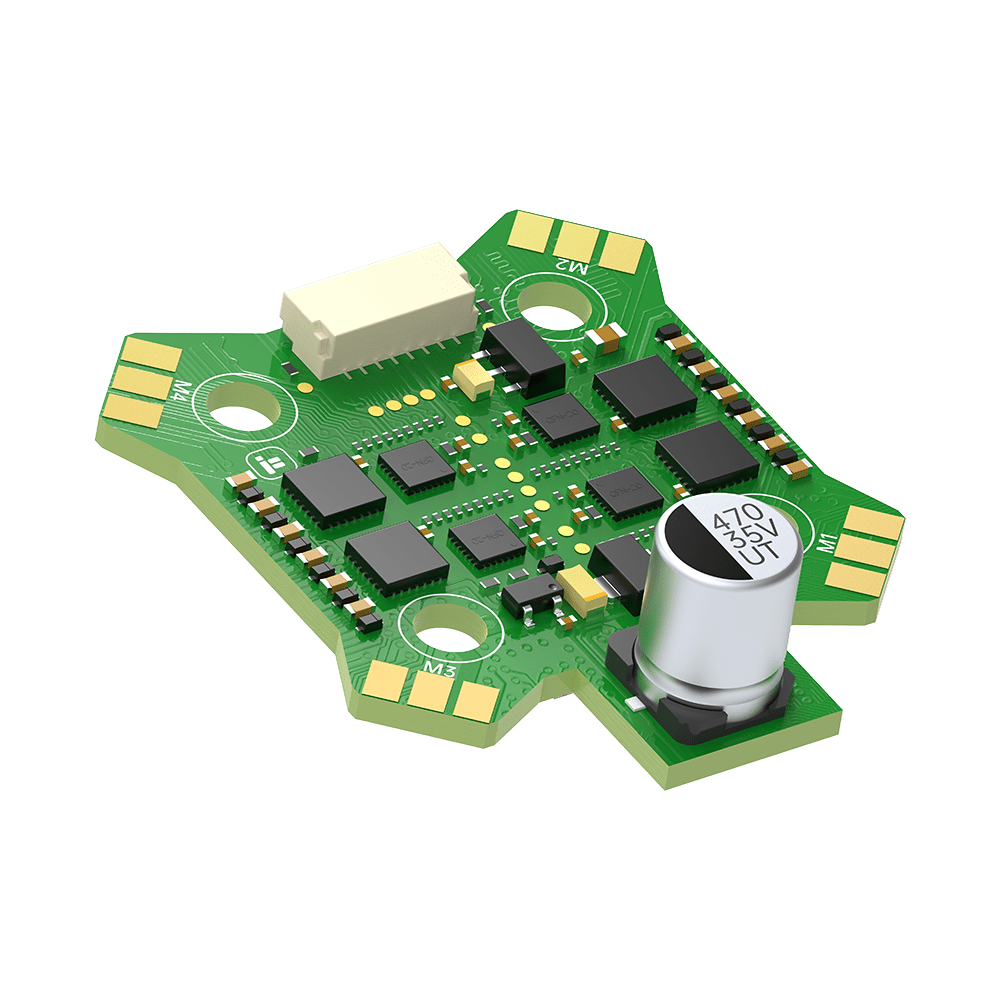

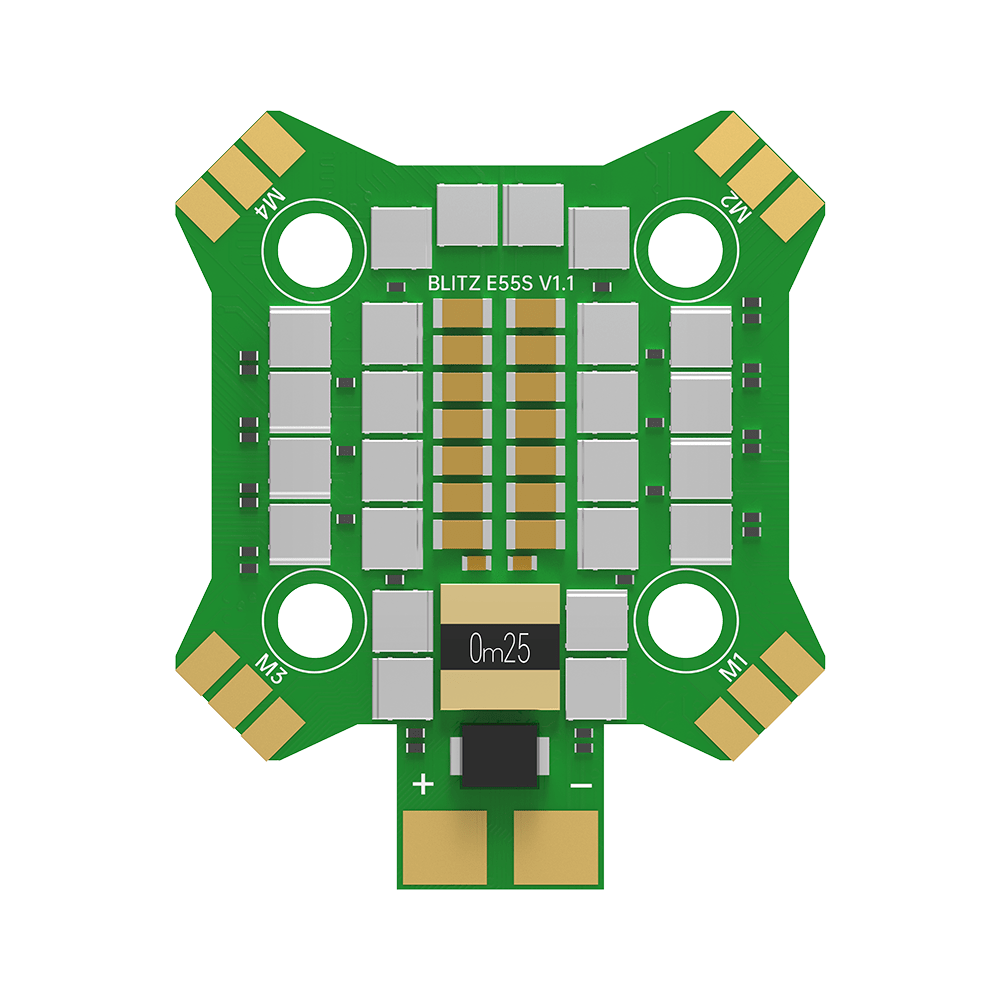

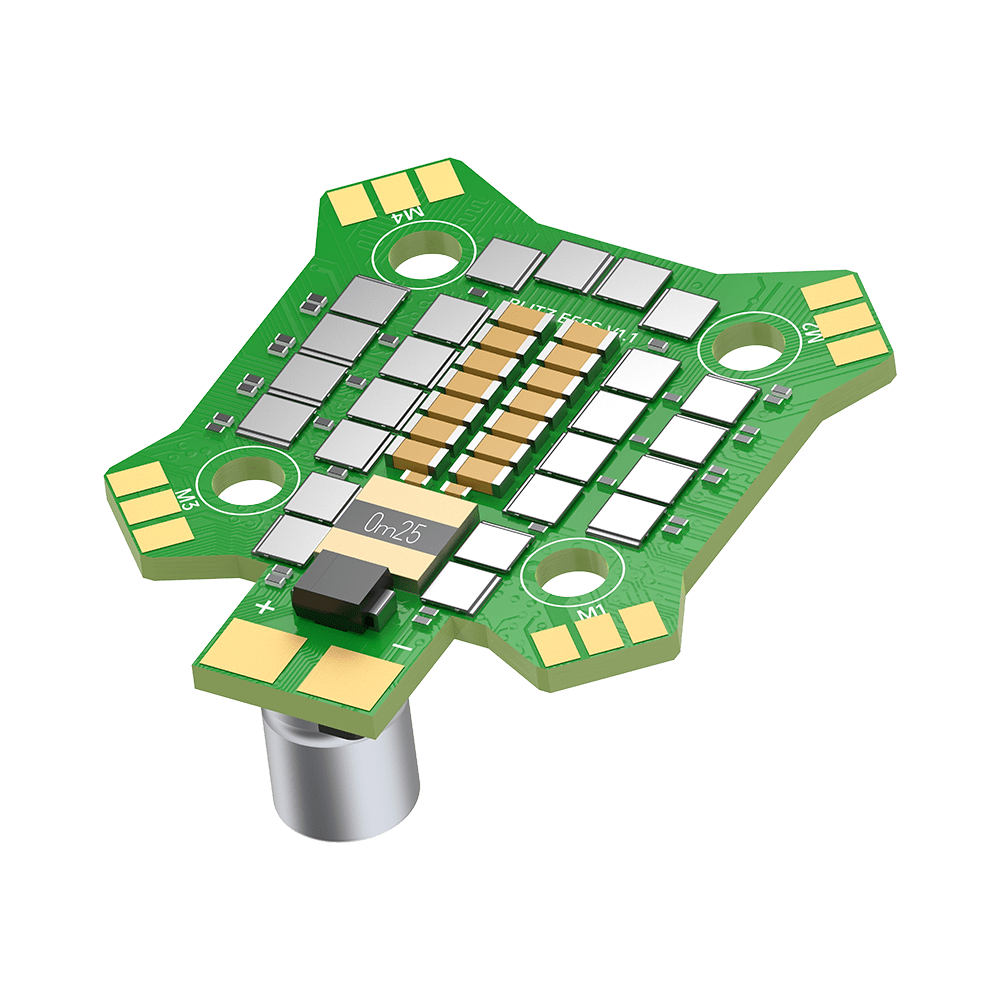

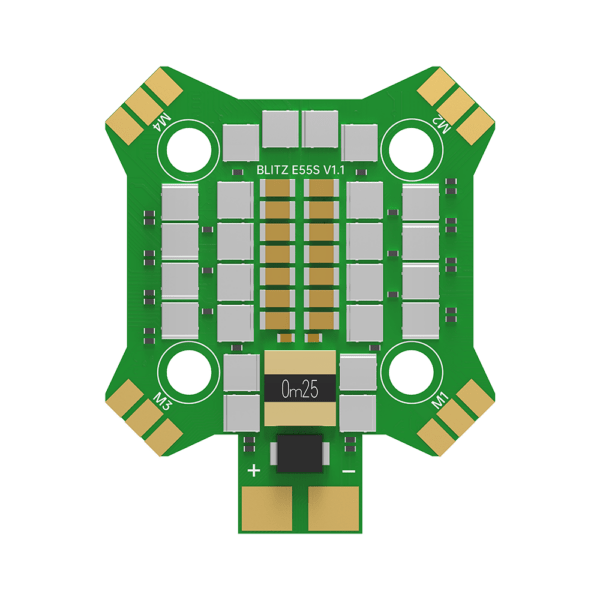

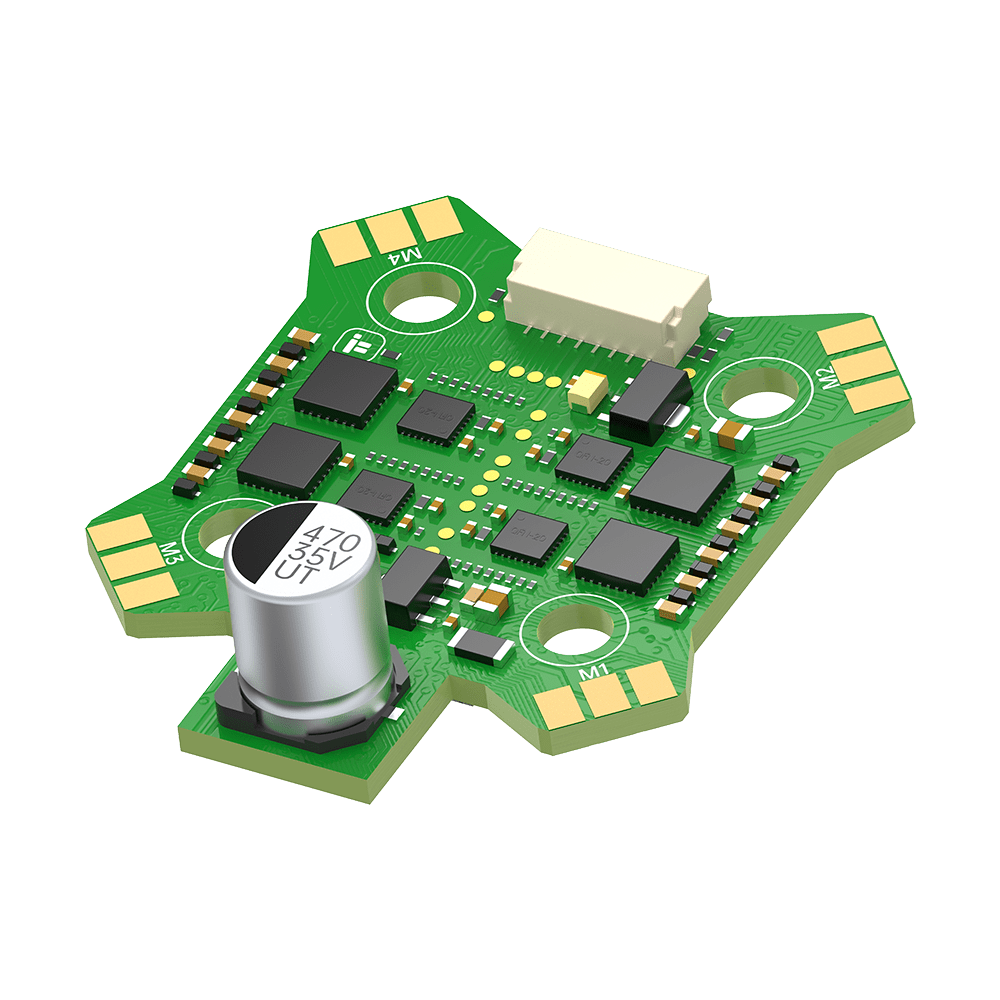

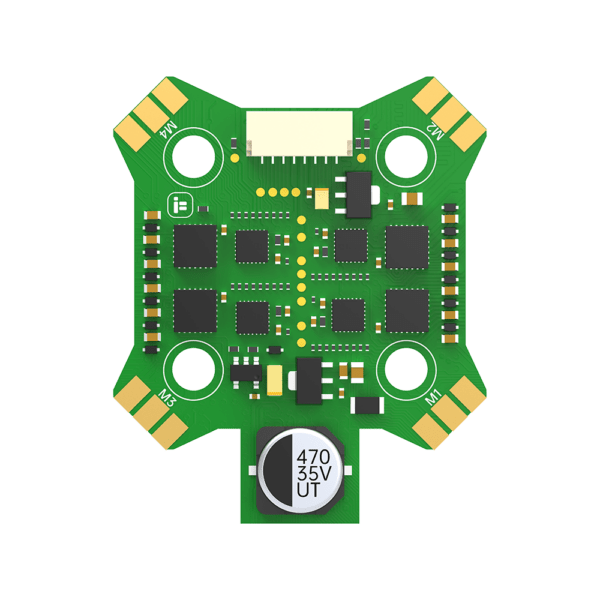

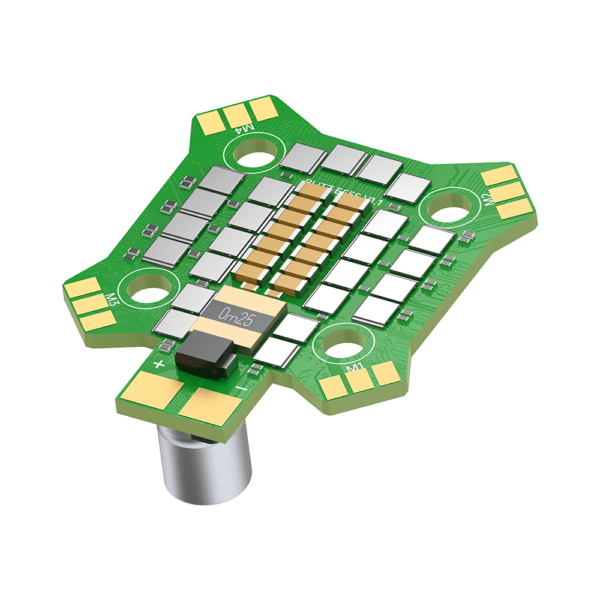

iFlight BLITZ Mini E55S 4-IN-1 ESC
Embrace peak performance in a minimal footprint with the iFlight BLITZ Mini E55S 4-IN-1 ESC, a linchpin for any high-demand, compact FPV drone. This ESC brings robust power management into the fray, accommodating 2-6S lipo inputs within a form factor that weighs merely 11.3g.
Designed for dynamic flight, it delivers a steadfast 55A constant and peaks at 65A, ensuring your drone responds with agility and power, regardless of the intensity of the flight. Compatibility with leading protocols like DShot and MultiShot, alongside a precise current sensor, this ESC is tailored for enthusiasts aiming for a seamless blend of performance and size. It’s not just an ESC; it’s your next step towards a superior flying experience.
Check out all of our iFlight Products!
Specifications
- Mounting Holes: 30.5*30.5mm/Φ4mm
- Weight: 14.7g
- Supports 2-6S lipo input
- MCU: BB21
- Constant: 55 Amps
- Burst: 65 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-25 (Bluejay)
Packing List
- 1 x BLITZ E55S 4-IN-1 2-6S ESC
- 1 x Power cables & ESC signal wires
