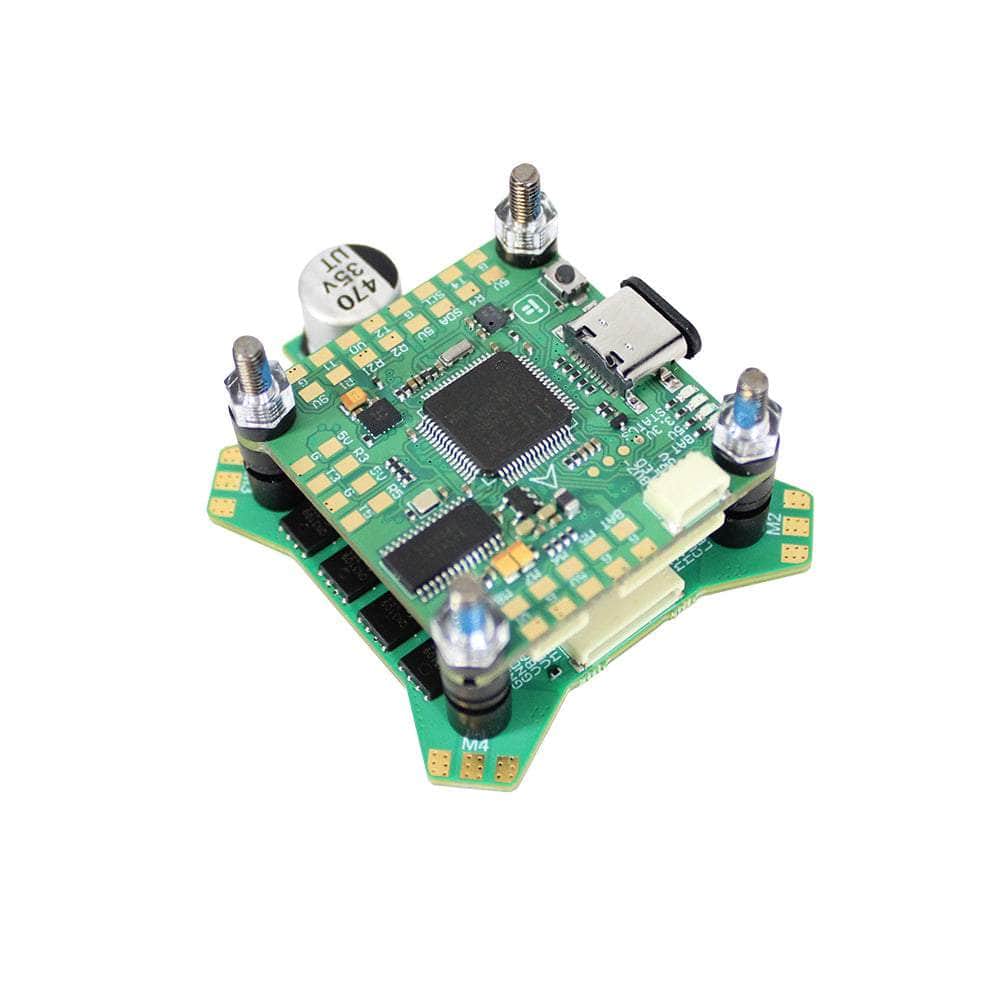

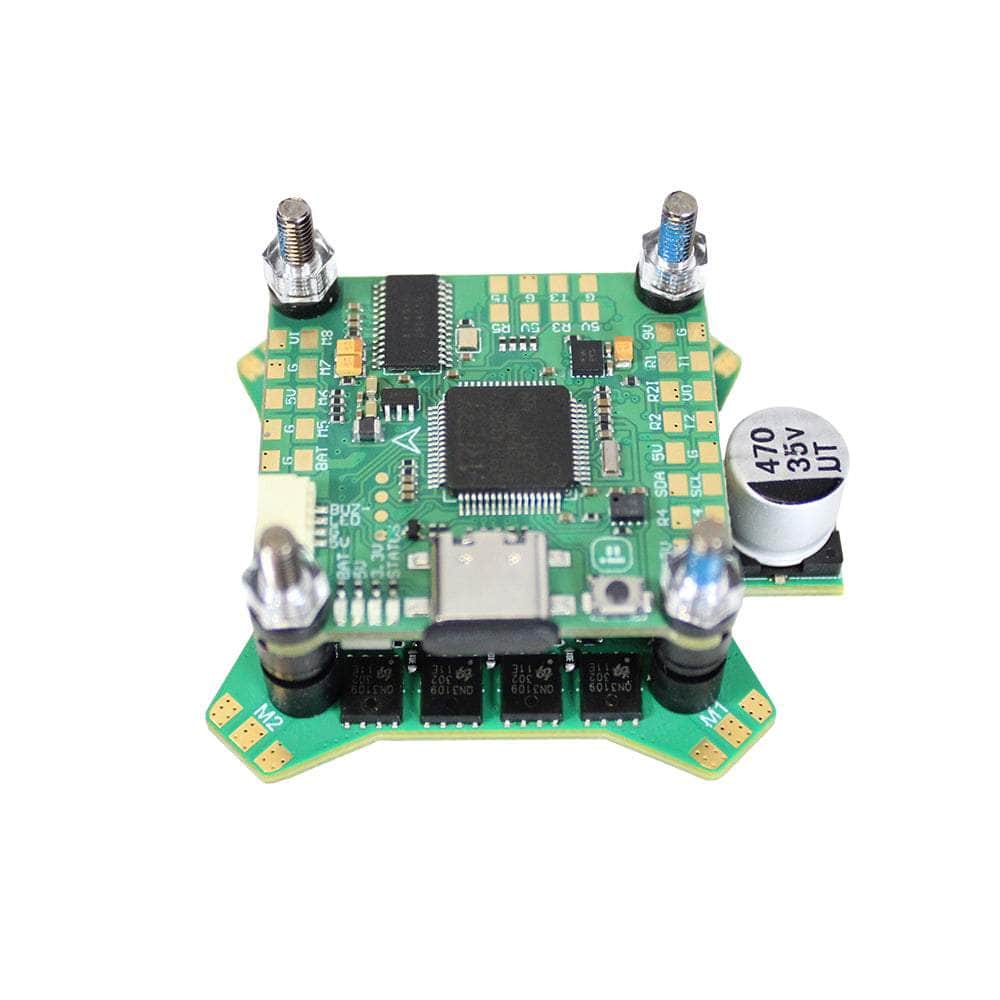

iFlight BLITZ ATF435+BLITZ E55S FPV Stack
Introducing the iFlight BLITZ ATF435+BLITZ E55S Tower System – a cutting-edge combination designed to propel your FPV flying to new heights. This powerhouse duo integrates the advanced iFlight Blitz ATF435 flight controller with the robust Blitz E55S ESC, providing a seamless blend of high performance, durability, and control. Whether you’re a seasoned pilot or just starting out, this tower system is engineered to offer an unparalleled flying experience, ensuring your drone flies smoothly, responsively, and with the power you need to stand out from the competition.
Specifications

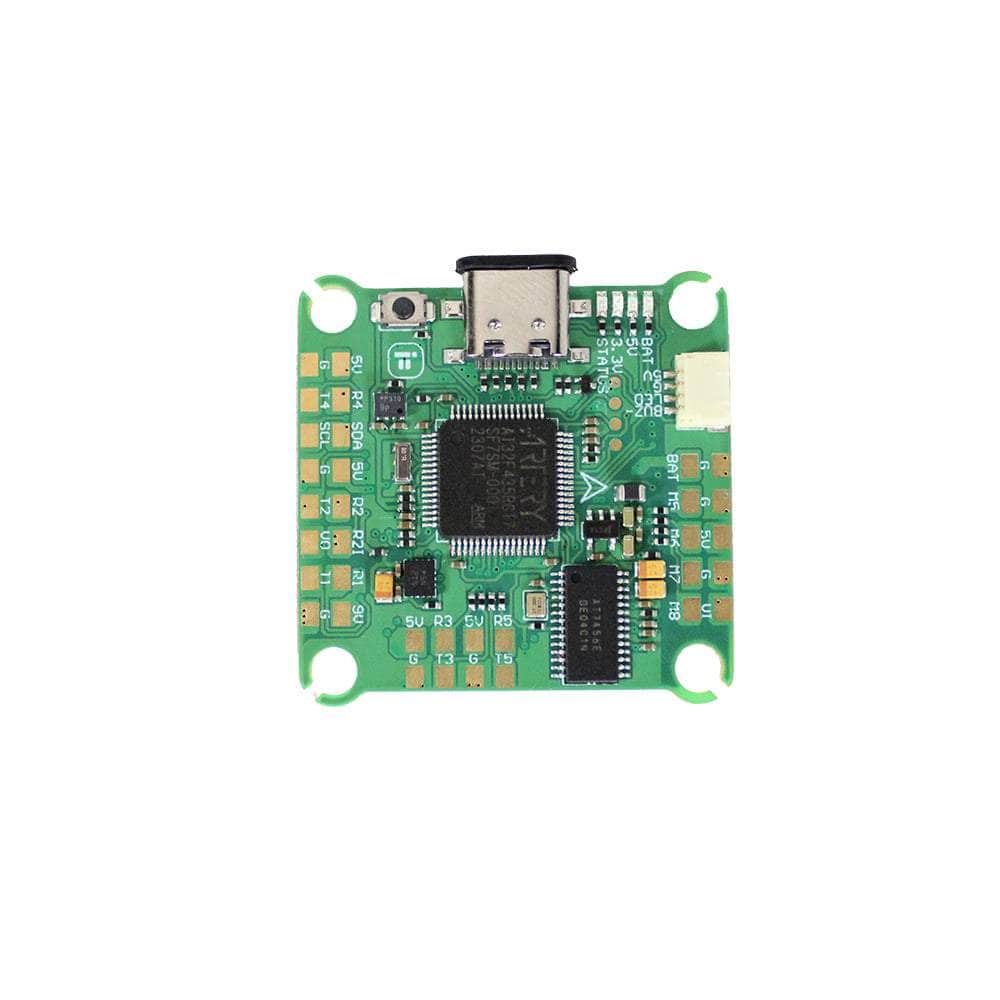

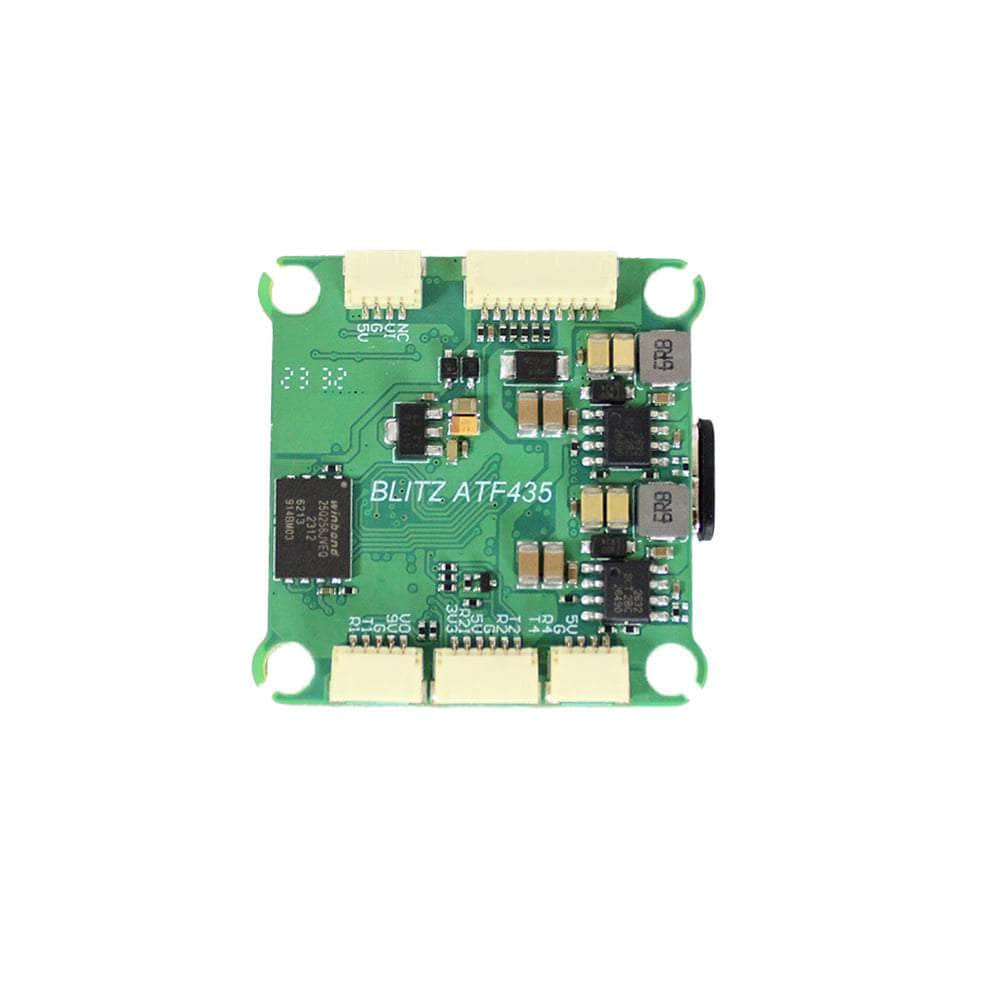

iFlight Blitz ATF435
- MCU: AT32F435CGU7
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_ATF435
- Mount pattern: 30.5×30.5mm / 4mm PCB hole diameter
- Dimensions: 36.5×35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A

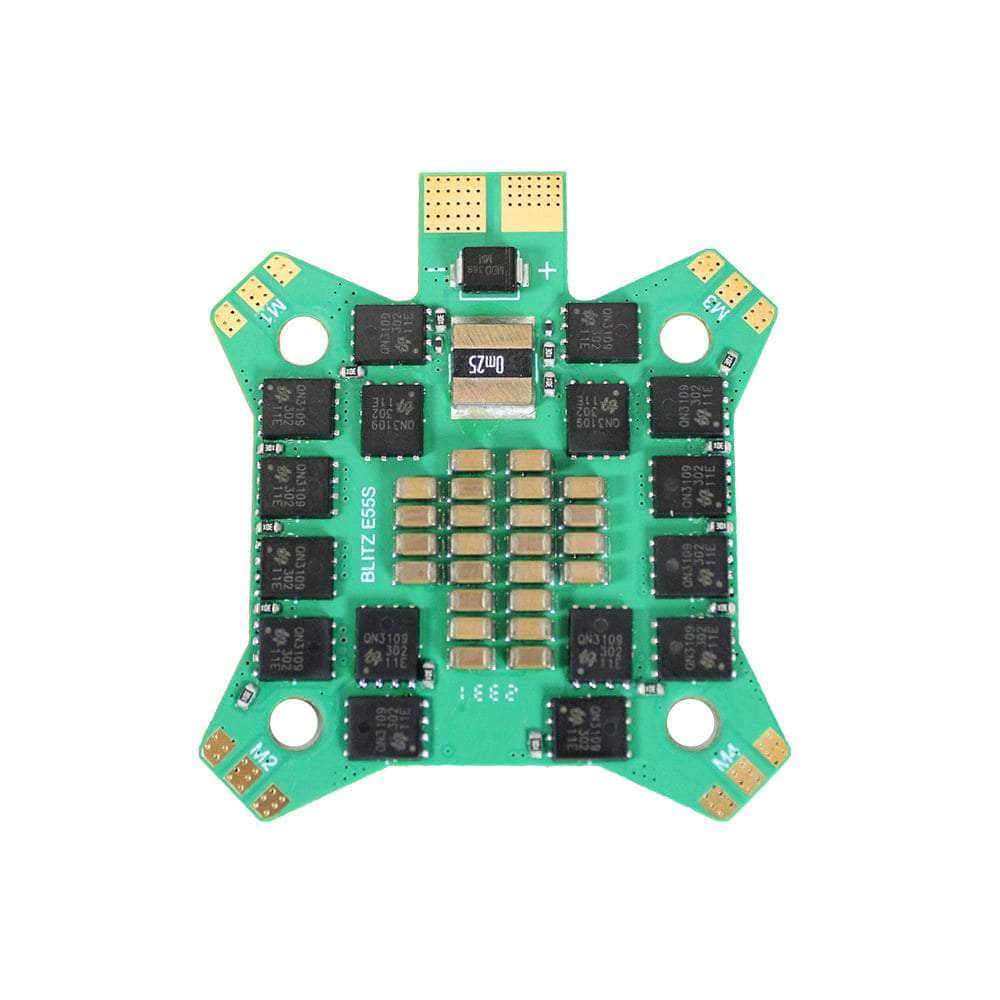

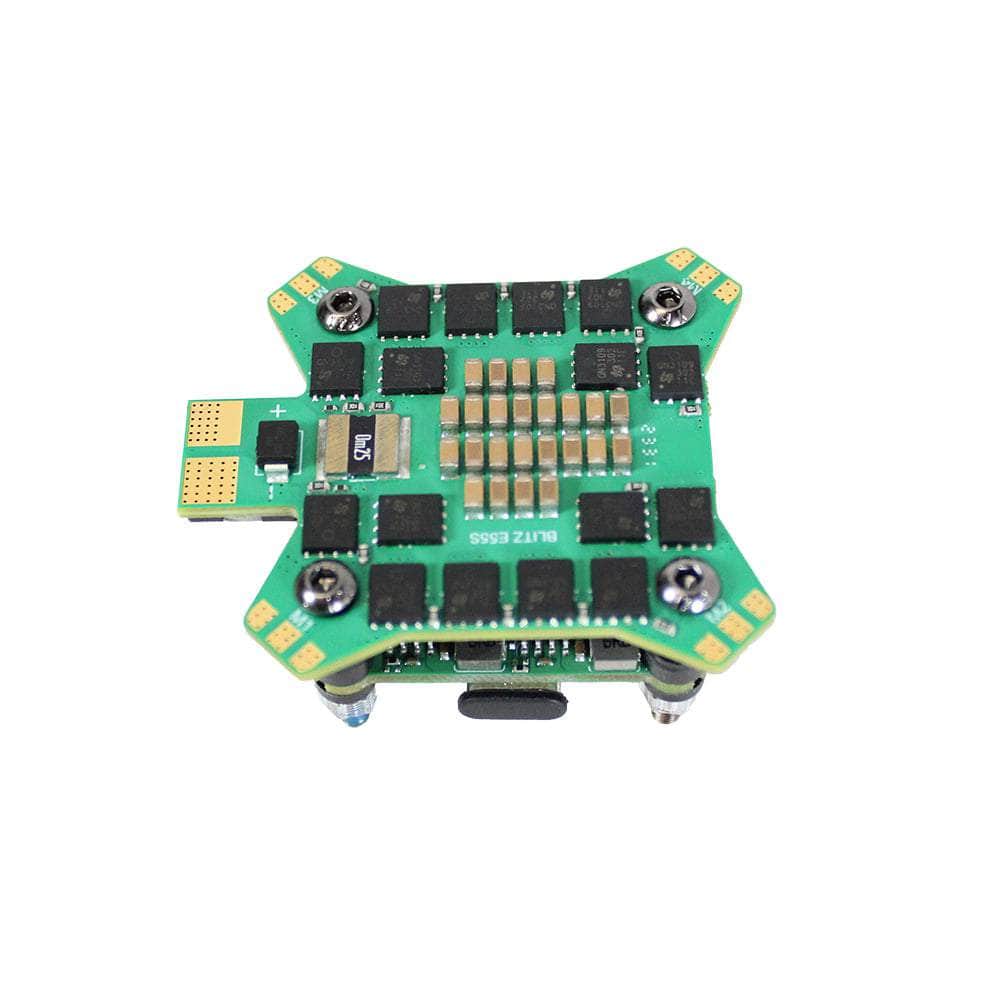

Blitz E55S ESC
- Mounting Holes: 30.5×30.5mm/Φ4mm
- Weight: 14.7g
- Supports 2-6S lipo input
- MCU: G071
- Constant: 55 Amps
- Burst: 65 Amp
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Includes
1x iFlight Blitz ATF435 E55S 2-6S 30×30 Stack/Combo (ATF435 FC/ 55A 8Bit 4in1 ESC)
