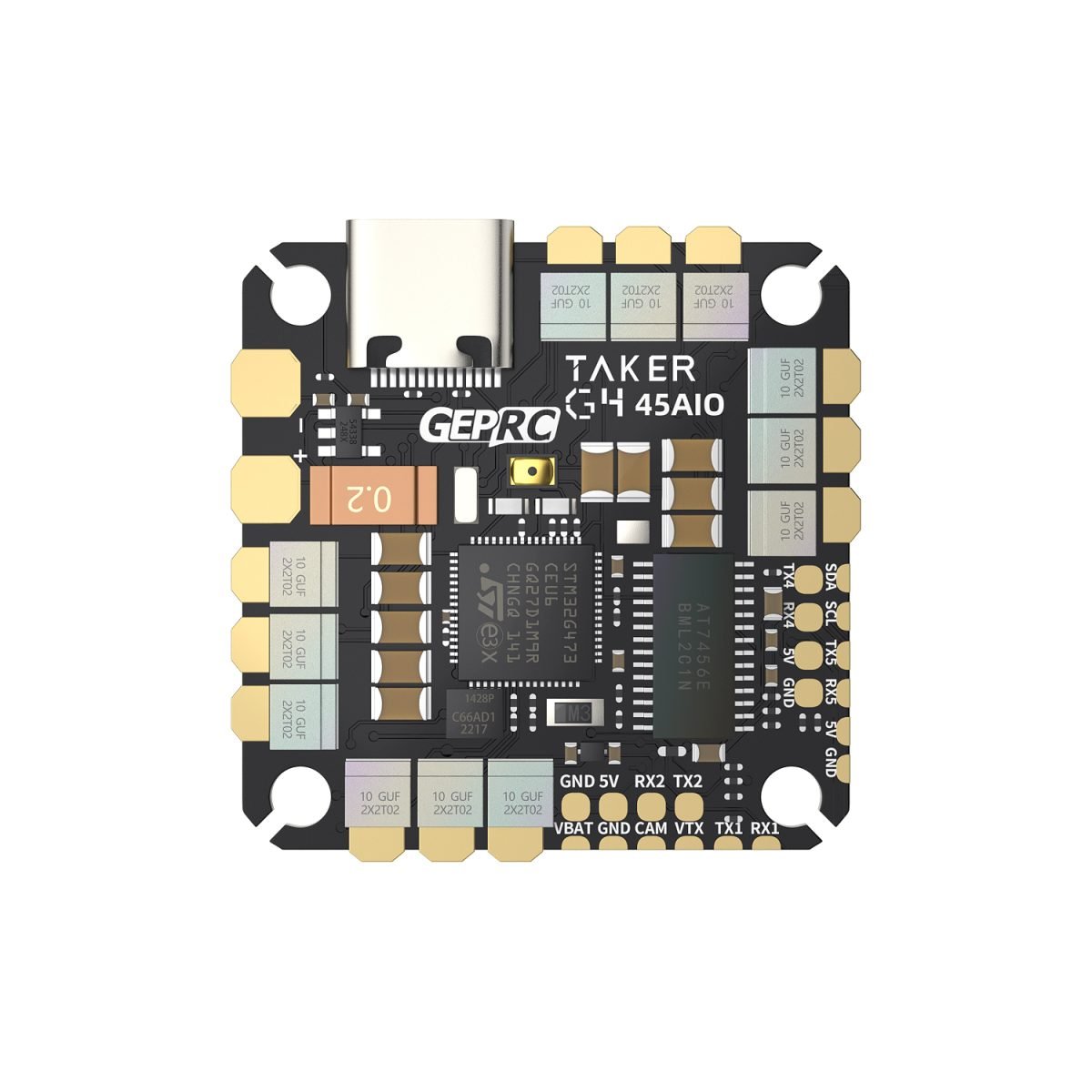

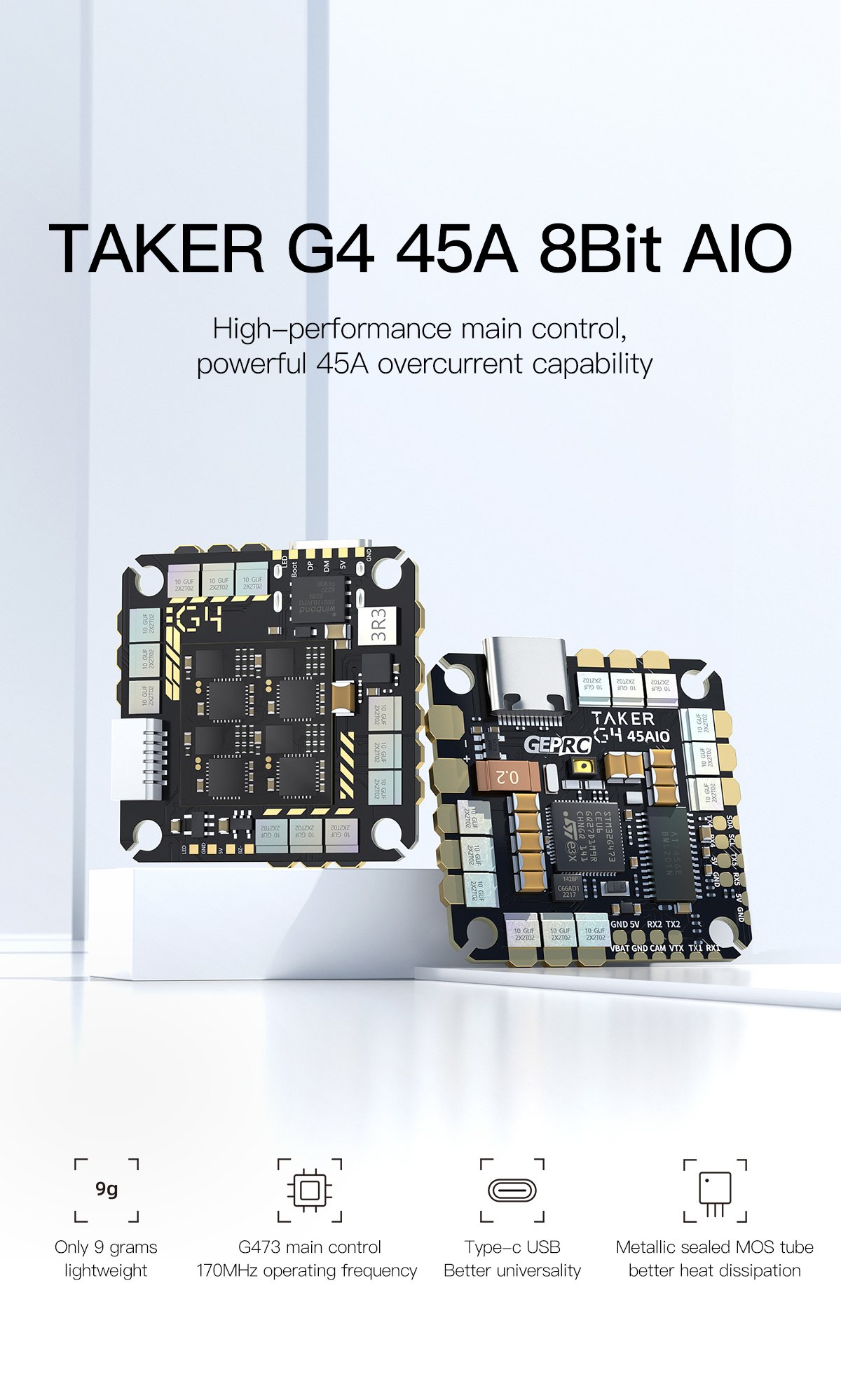

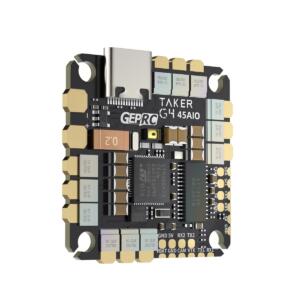

TAKER G4 45A 8Bit AIO

Experience a new level of performance in a compact package with the GEPRC TAKER G4 45A AIO. This all-in-one flight controller is engineered for pilots who want to build lightweight, high-performance FPV drones without compromise. By integrating a powerful flight controller and a robust 45A ESC onto a single board, the TAKER G4 AIO provides a clean, simple, and powerful core for your next build, weighing in at an incredible 9 grams.

At the heart of this AIO is the advanced STM32G473 flight controller, boasting a 170MHz operating frequency for outstanding computing capability. This next-generation processor, paired with the stable ICM 42688-P gyroscope, ensures your drone feels incredibly responsive and locked in. The enhanced processing power allows you to run the latest Betaflight features with ease, providing a smooth and precise flight experience.

Despite its tiny footprint, the TAKER G4 packs a serious punch. The integrated 4-in-1 ESC can handle a continuous 45A current (50A burst) on a wide 2-6S LiPo voltage range. This makes it incredibly versatile, perfect for everything from a 2S whoop to a powerful 6S ultralight freestyle quad. With its 25.5mm x 25.5mm mounting pattern, this AIO is the ultimate solution for toothpick, whoop, and lightweight FPV frames.

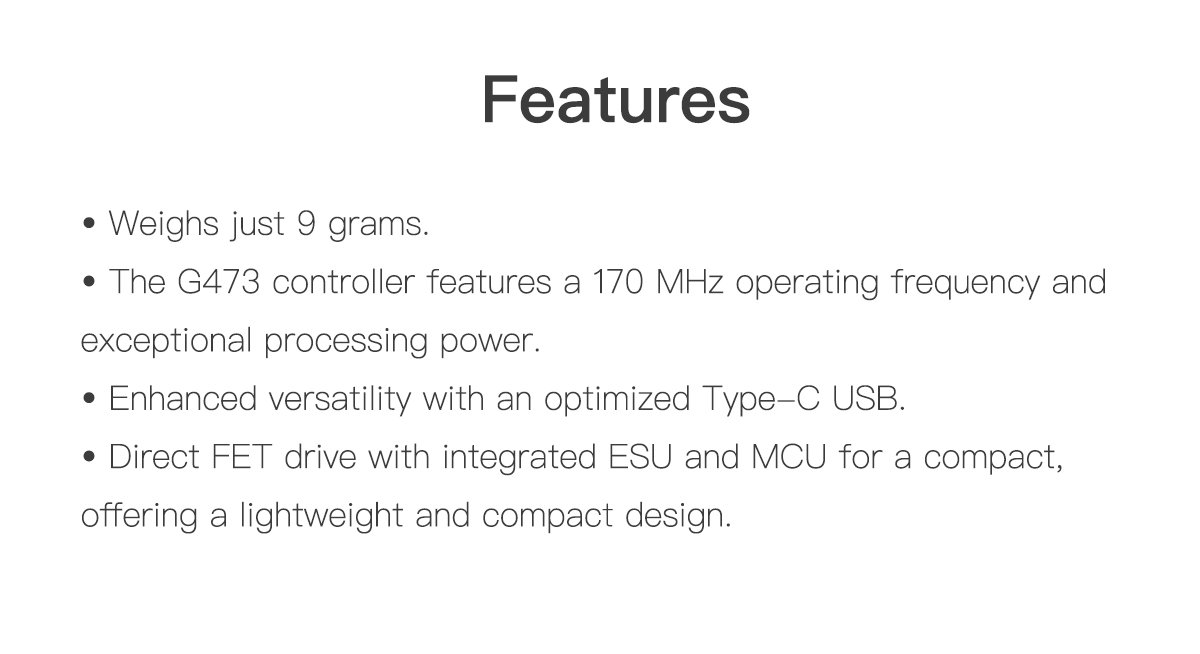

KEY FEATURES

• Powerful G4 Processor: Features a high-speed STM32G473 MCU with a 170MHz operating frequency for exceptional computing power and flight performance.
• True All-In-One Design: Combines the flight controller and a 4-in-1 ESC on a single board for a lightweight and compact build.
• Robust 45A ESC: Capable of handling 2- 6S LiPo input with a 45A continuous current, perfect for a wide range of motor and prop combinations.

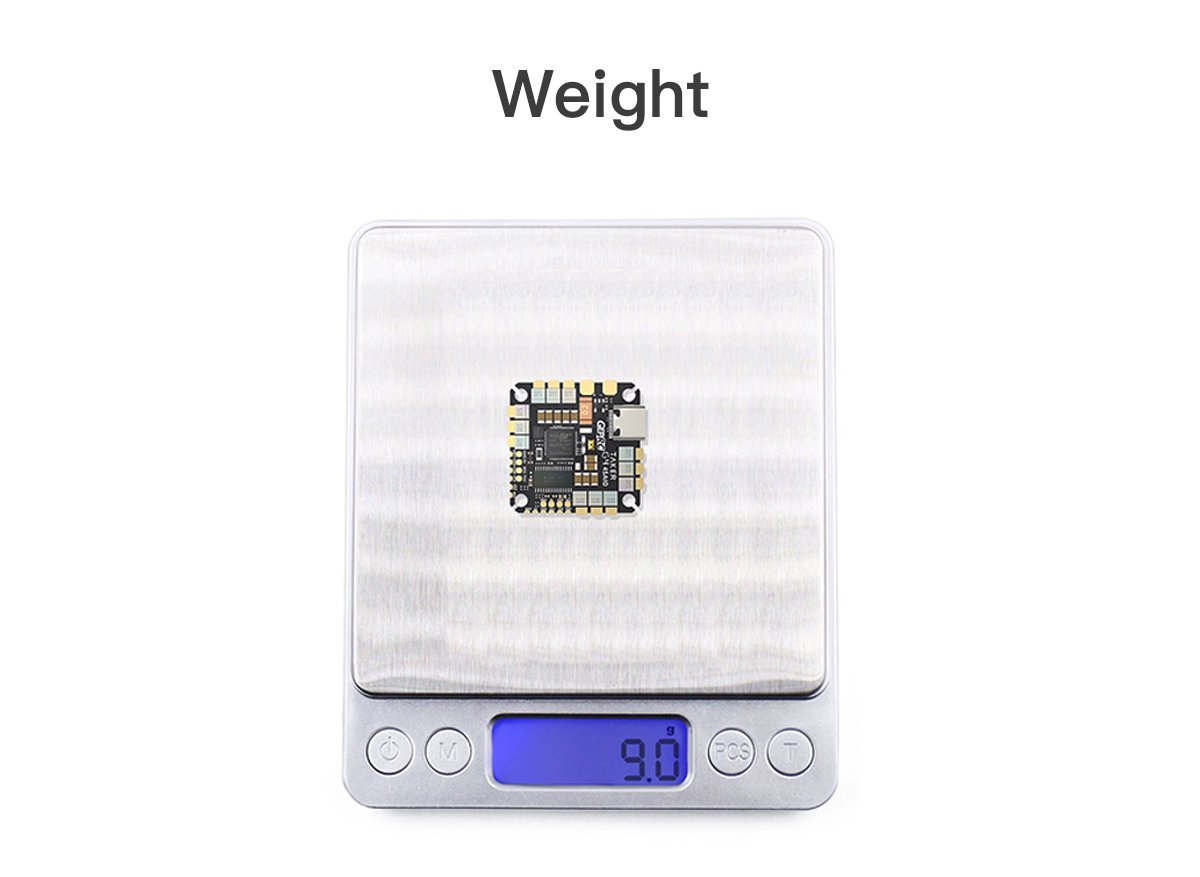

• Extremely Lightweight: Weighs only 9 grams, making it ideal for builds where every gram counts.
• Modern Gyro: Equipped with the stable ICM 42688-P IMU for clean and reliable flight data.
• 25.5×25.5mm Mounting: Designed to fit the popular “whoop-style” mounting pattern common in modern lightweight frames.

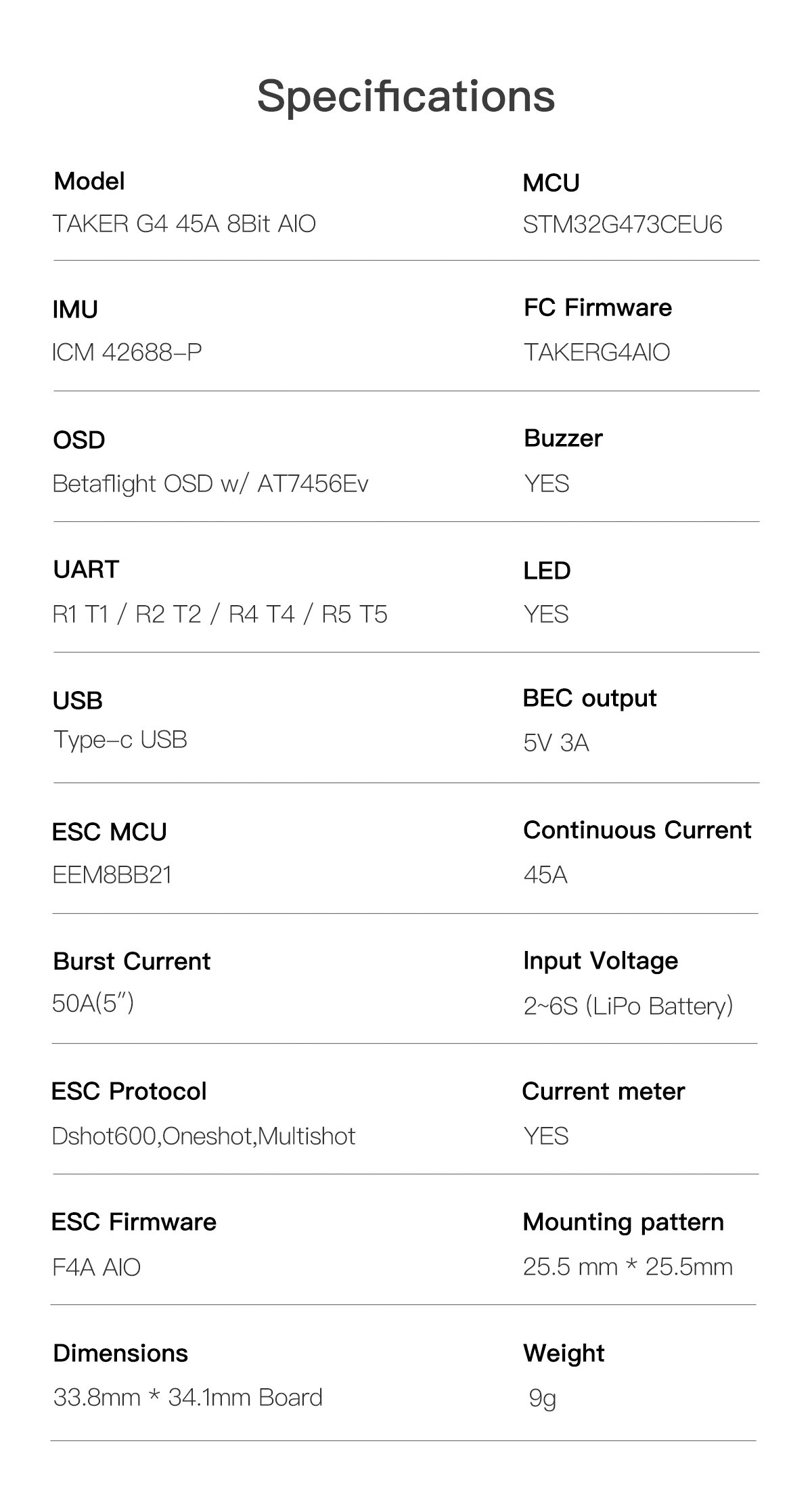

SPECIFICATIONS

• Model: TAKER G4 45A 8Bit AIO
• MCU: STM32G473CEU6
• IMU: ICM 42688-P
• FC Firmware Target: TAKERG4AIO
• Input Voltage: 2- 6S LiPo
• Continuous Current: 45A
• Burst Current: 50A
• ESC Target: F4A AIO

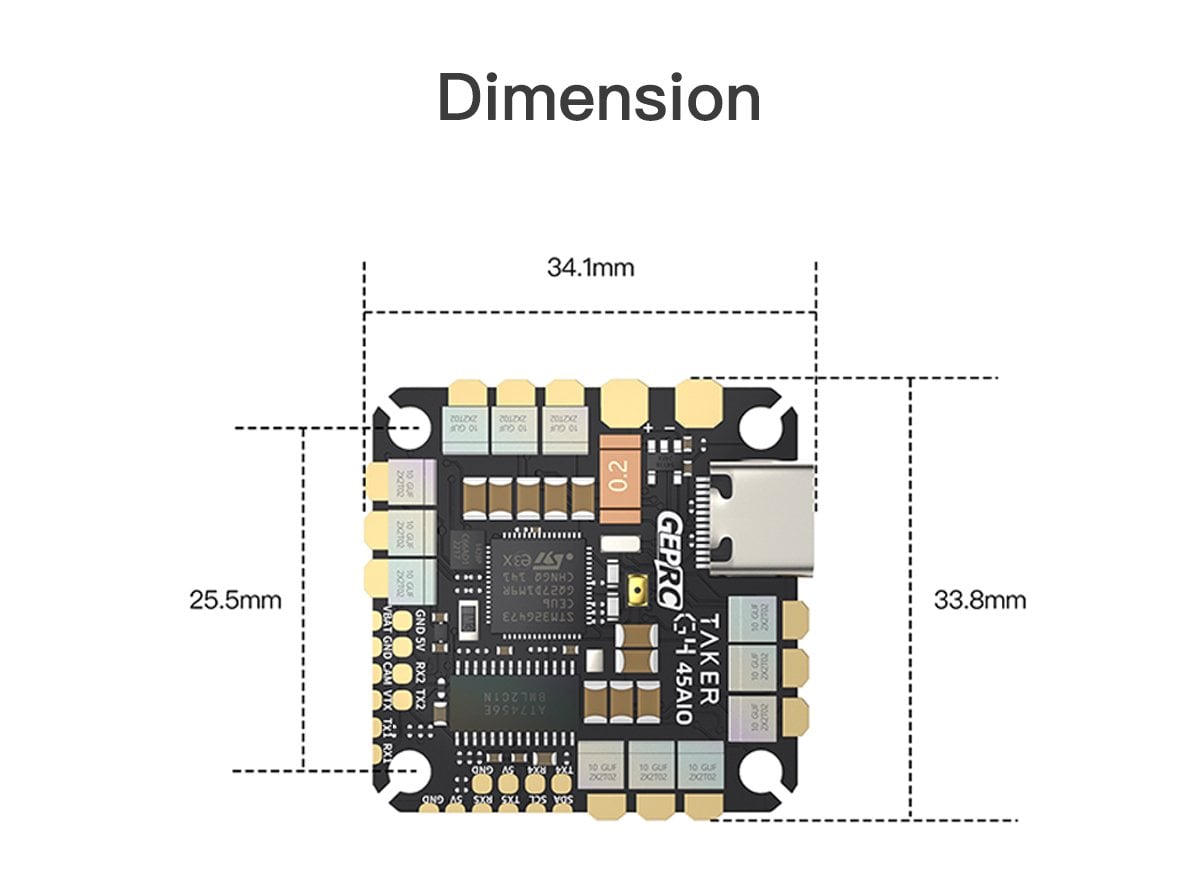

• Mounting Hole: 25.5mm x 25.5mm
• Weight: 9g

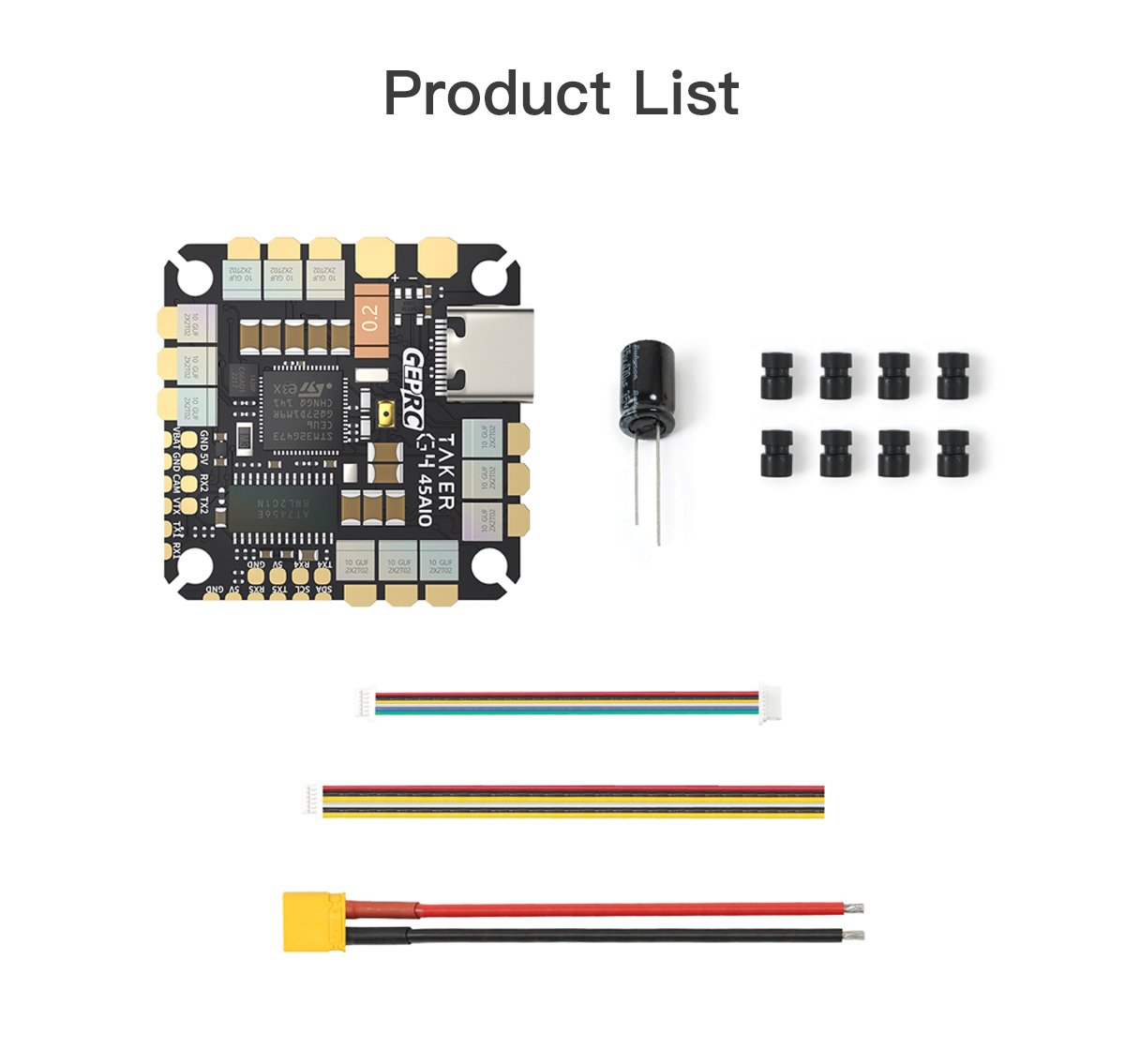

INCLUDES

• 1 x GEP-TAKER G4 45A AIO
• 1 x Cable Set
