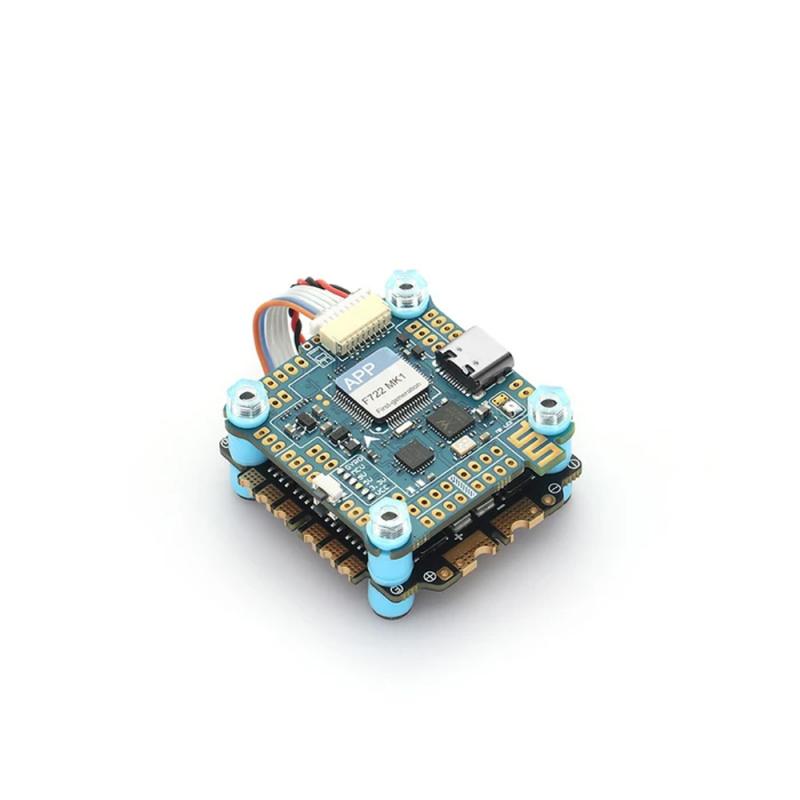

FC Specifications

• MCU: 216MHz STM32F722RET6 32BIT
• IMU: MPU6000
• Barometer: No
• OSD: BF OSD
• Blacbox: 16M Flash Memory
• Uarts: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: RX6
• LED indicator: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V
• LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
• WIFI: SpeedyBee APP
• Smartaudio: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25V)
• TVS Protection: Yes
• BEC: 5V 2.5A & 9V 2A (Max 3A)
• MOUNTING: 30.5mm/M3 WEIGHT: 9g
• Supply :
• 8pin sh1.0 *1
• Smartaudio: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25V)
• VTS Protection: Yes

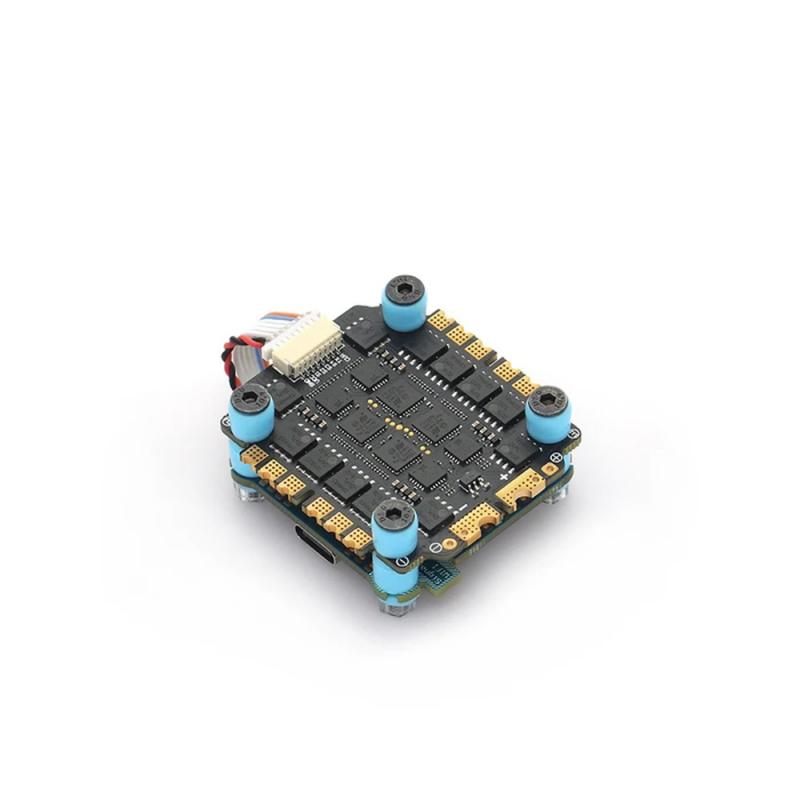

ESC Specifications

• F50 BL32
• INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
• CONTINUE CURRENT: 50A×4
• BURST CURRENT: 60A (10S)
• BEC: NO
• ESC Dshot300/600/1200
• MOUNTING: 30.5mm/M3
• Supply : Panasonic High Frequency 470uF/35V
• Mounting: 30.5×30.5mm,Φ3
• Dimensions:
• Weight: 22g
