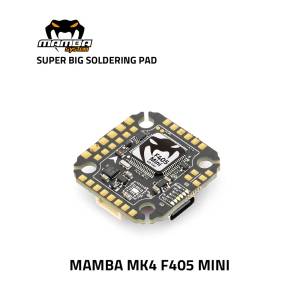

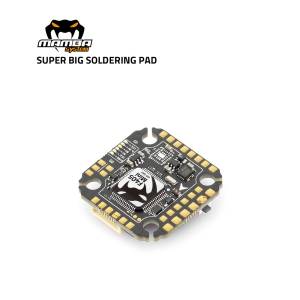

Diatone MAMBA MK4 F405MINI Flight Control – 20mm/M2
Experience a new level of building convenience and flight performance with the Diatone Mamba F405 MINI MK4 Flight Controller. Diatone has redesigned this FC from the ground up to address one of the biggest frustrations in building an FPV drone: soldering. With massively increased pad spacing and area, this board is incredibly easy to work on, significantly reducing the risk of errors while packing in the high-end features you need for a modern freestyle or cinematic build.

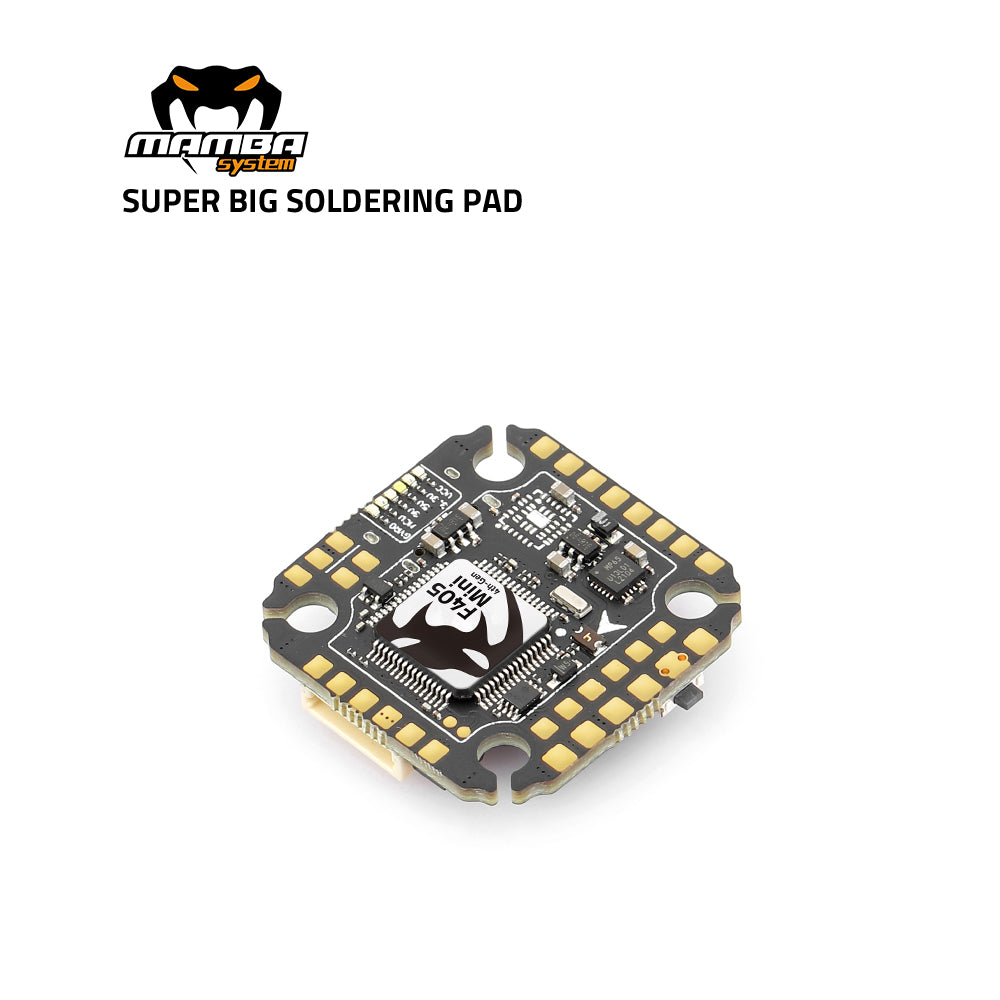

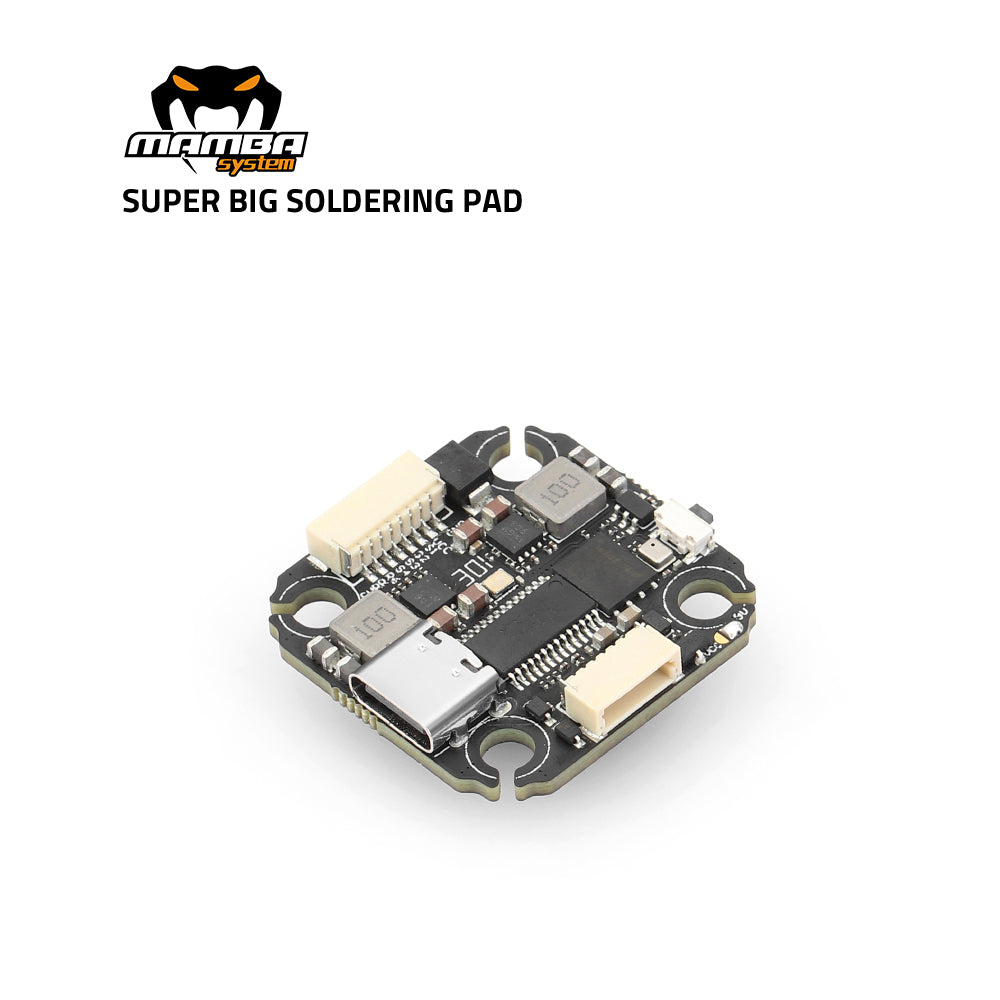

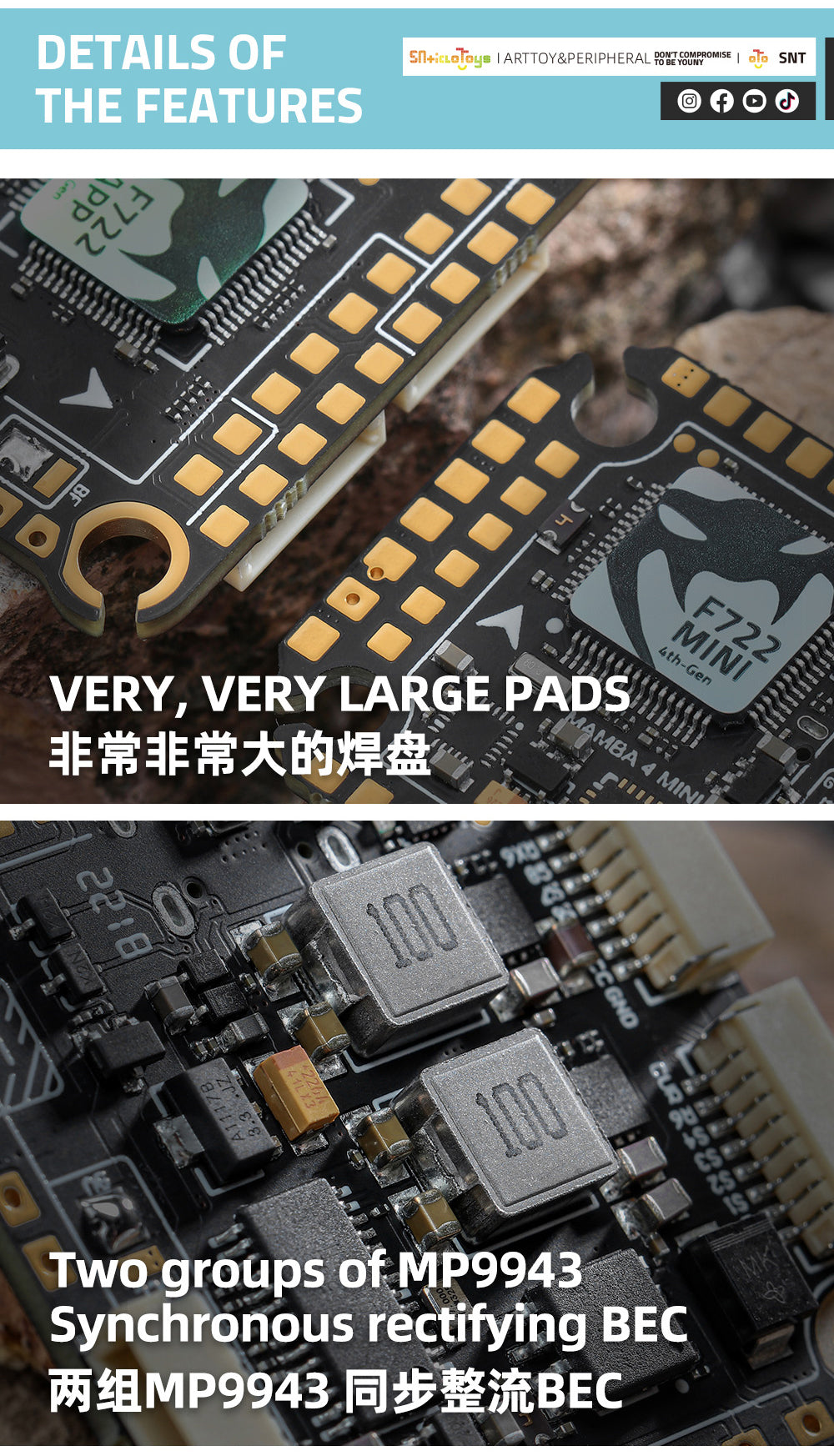

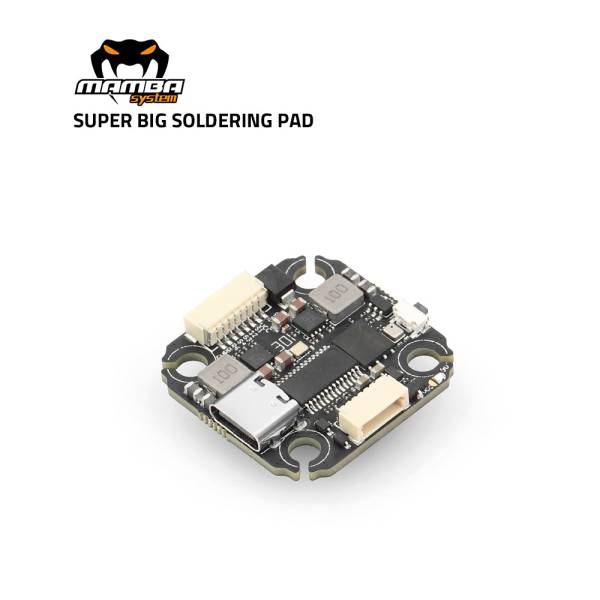

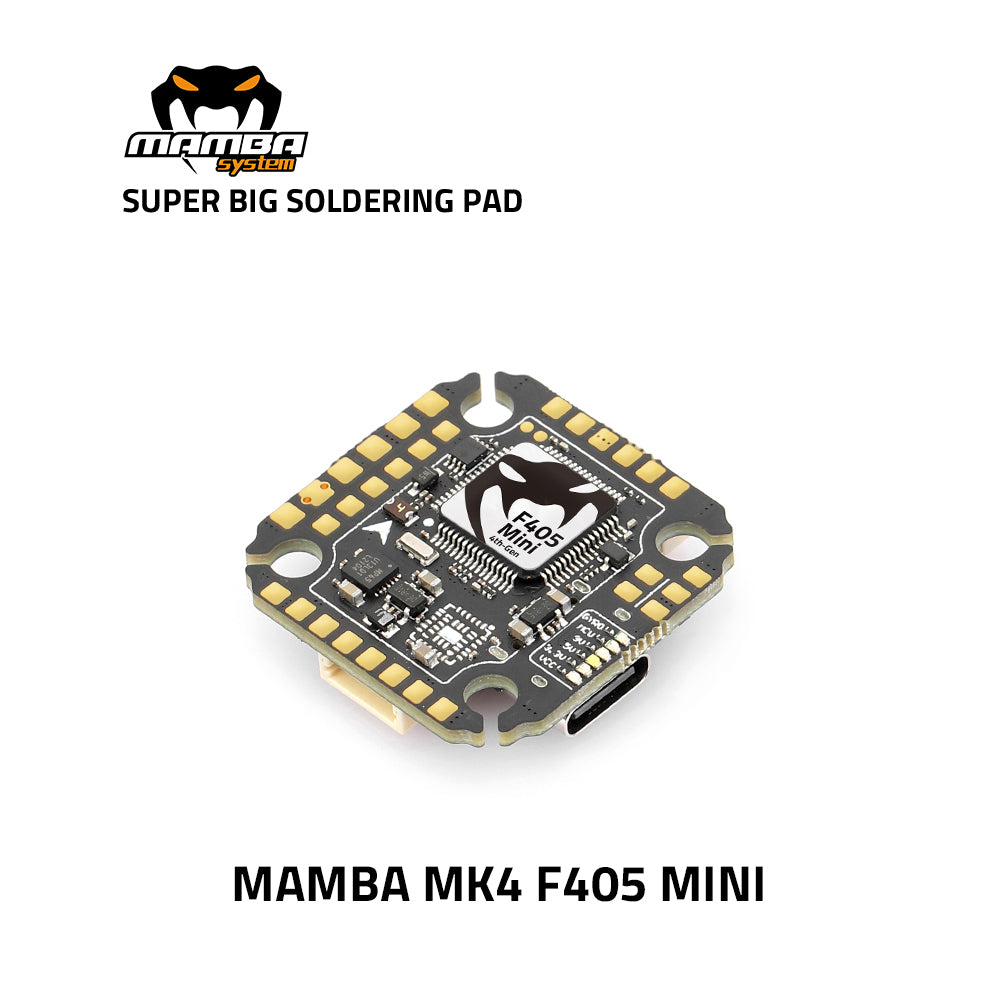

The standout feature of the MK4 is the new solder pad layout. Diatone has increased the pad area by 30% and the spacing by a full 100%, giving you ample room to work. This simple change makes soldering easier, cleaner, and far more reliable, whether you’re a first-time builder or an experienced pro who values a perfect setup.

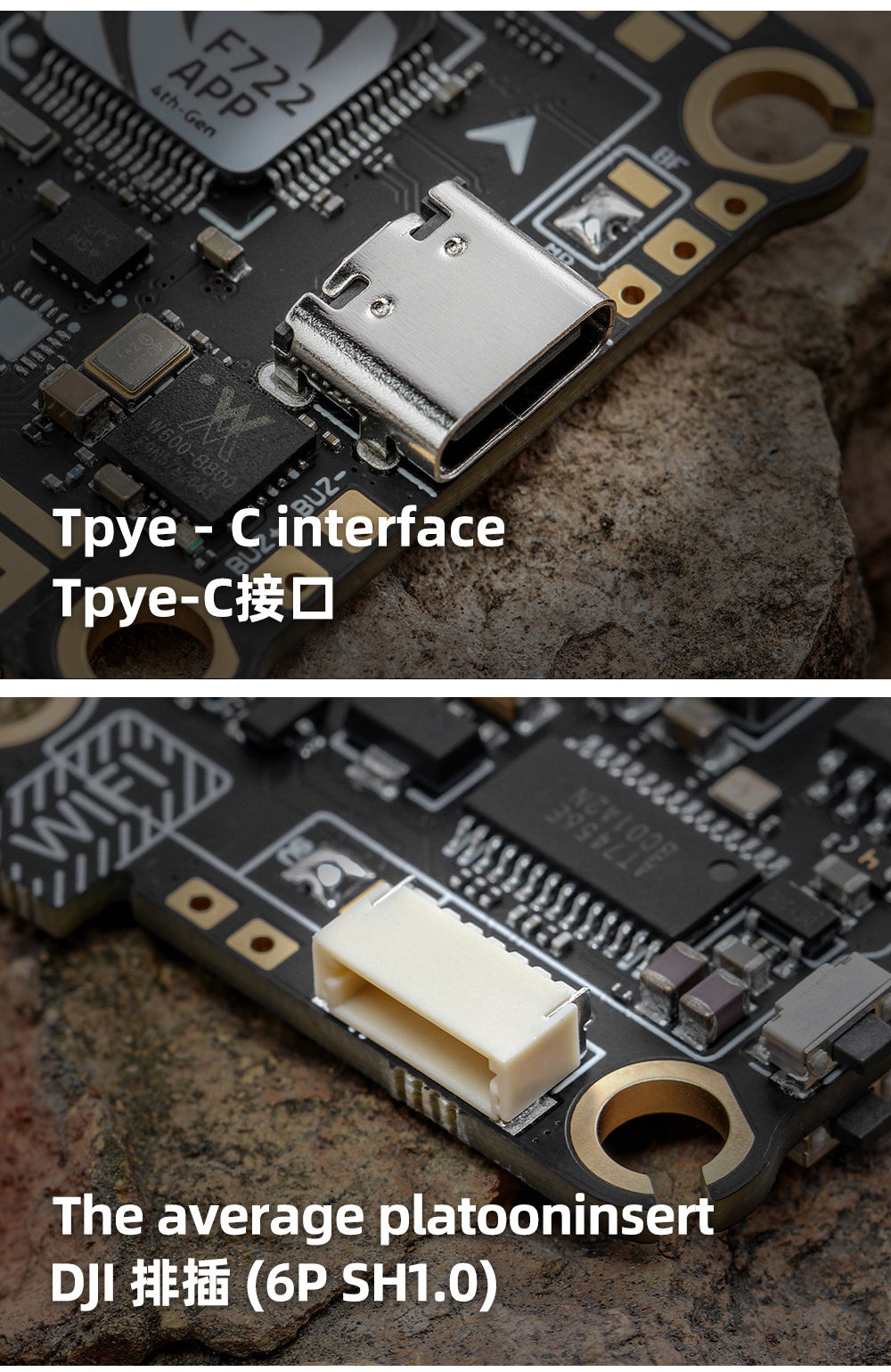

Beyond its user-friendly design, the Mamba F405 MINI MK4 is a true powerhouse. It features a reliable STM32F405 processor, a modern ICM42688P gyro for smooth performance, an onboard barometer, and 16M of blackbox memory. The powerful BEC includes a dedicated 9V 2A output, making it the perfect choice for powering modern HD digital FPV systems like the DJI O3 Air Unit. With 6 UARTs, a dedicated DJI port, and a modern Type-C USB connector, this flight controller has all the connectivity you need for any high-performance 20x20mm build.
KEY FEATURES
- Enlarged Solder Pads: 30% larger pad area and 100% more spacing for easy, clean, and reliable soldering.
- Powerful F405 Processor: A reliable STM32F405 MCU paired with a modern ICM42688P gyro for smooth flight.
- HD-Ready 9V BEC: Features a powerful 9V 2A BEC specifically for DJI O3 and other digital VTXs, alongside a 5V 2.5A BEC.

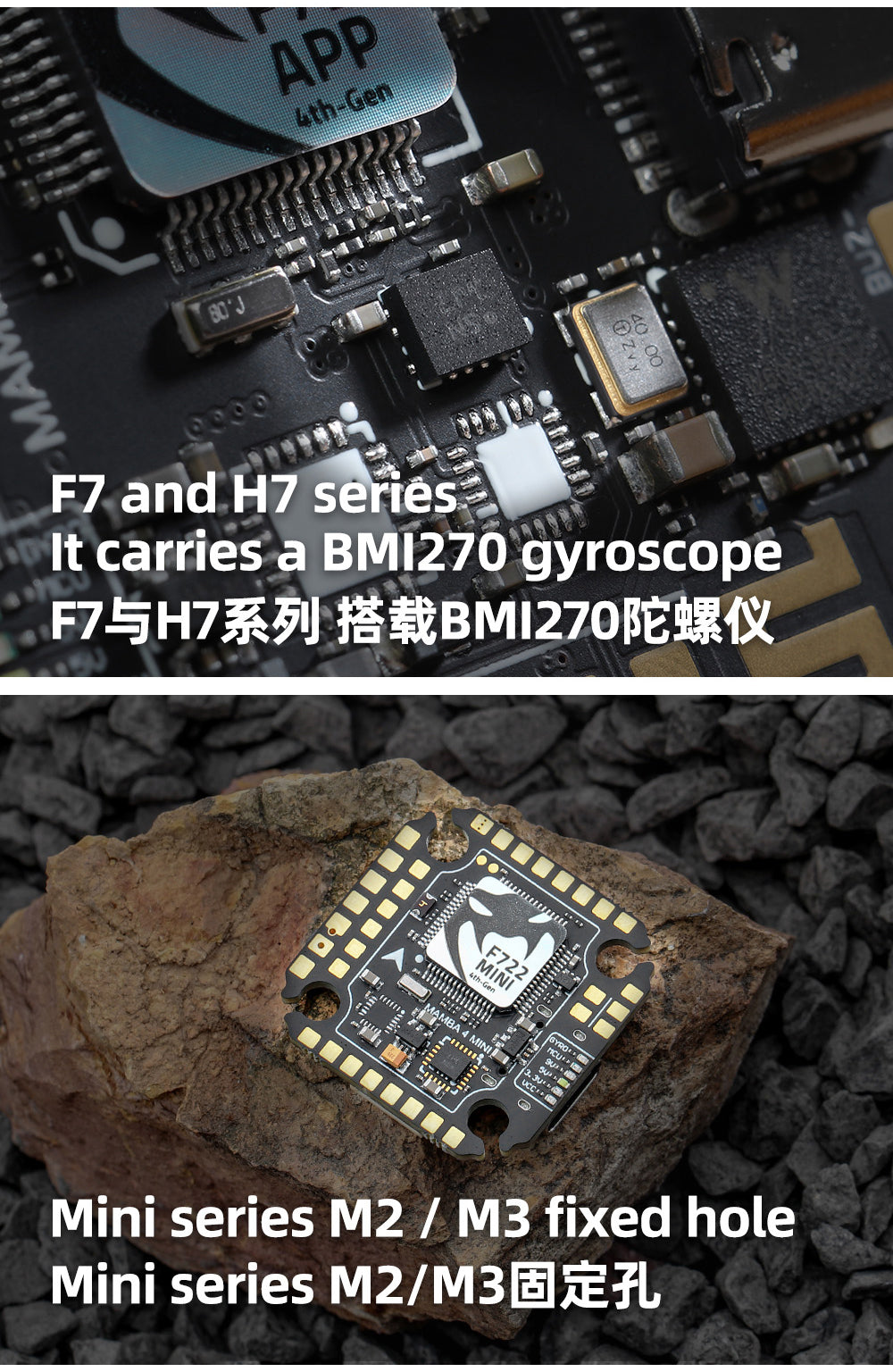

- Compact 20x20mm Mounting: Versatile M2/M3 mounting fits a wide range of modern frames.
- Fully Featured: Includes an onboard barometer, 16M blackbox memory, and 6 available UARTs.

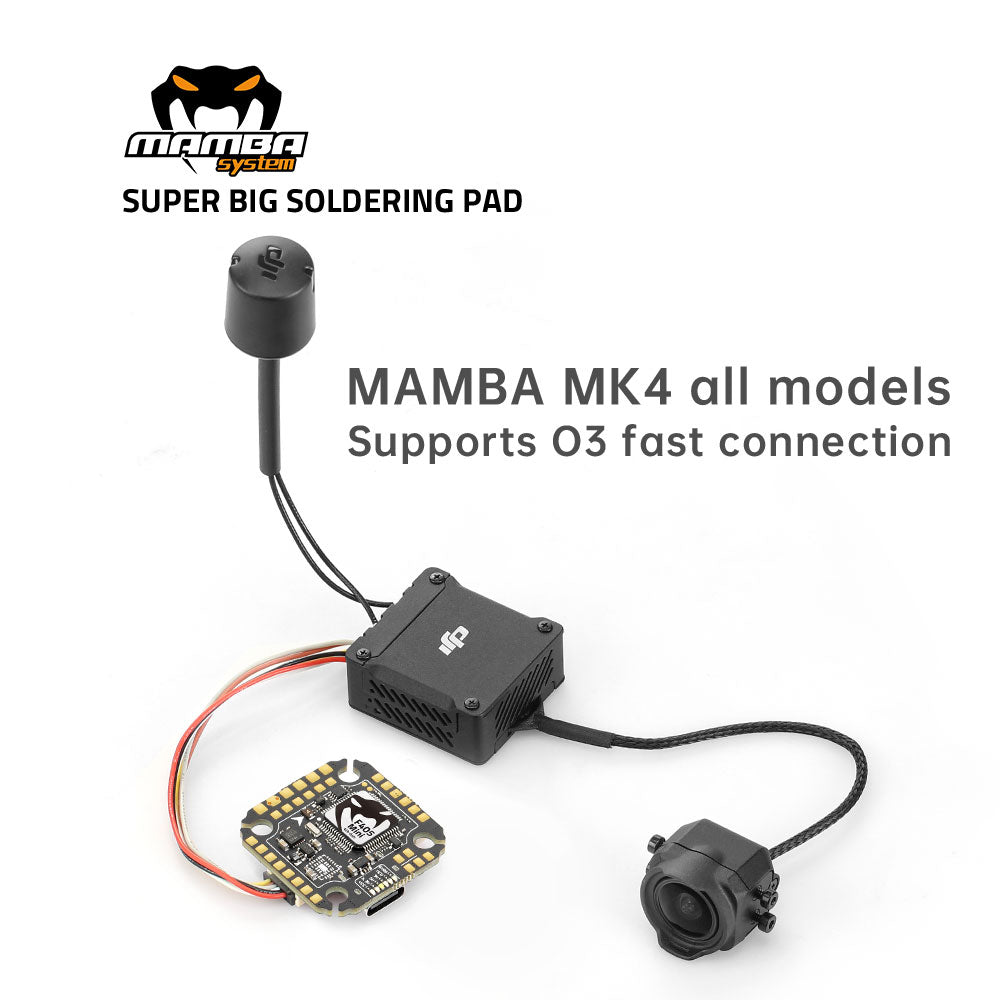

- Plug-and-Play HD: A dedicated port allows for easy, solder-free connection to DJI Air Units.
SPECIFICATIONS
- MCU: STM32F405
- Gyro: ICM42688P
- Input: Up to 6S LiPo
- Blackbox: 16M Memory
- Barometer: Yes
- OSD: AT7456E
- BEC: 3.3V 0.5A / 5V 2.5A / 9V 2A
- UARTs: 6 Sets
- Mounting: 20mm x 20mm (M2/M3)
- Dimensions: 29.0mm x 29.5mm x 6.5mm
- Protection: TVS Protection
INCLUDES
- 1x Diatone MAMBA F405 MINI MK4 Flight Controller
- 2x 8-Pin Cables
- 1x 6-Pin Air Unit Cable
- 5x M2 Silicone Damping Grommets
- 5x M3 Silicone Damping Grommets
- 5x M2 ESC Isolation Columns
- 5x M3 ESC Isolation Columns
