FC Specifications

• MCU: 100MHz STM32F411CEU6
• GYRO: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: NO
• Uarts: 2 Set
• ESC Soft: Dshot300/600
• Power Led: Yes
• LED Controller: BF LED
• F.Port: No
• RSSI: Yes
• Buzz: Yes
• Input: 2~4S Lipo (8.4~16’8V)
• BEC: 5V 2A
• MOUNTING: 25.5mm,M2

ESC Specifications

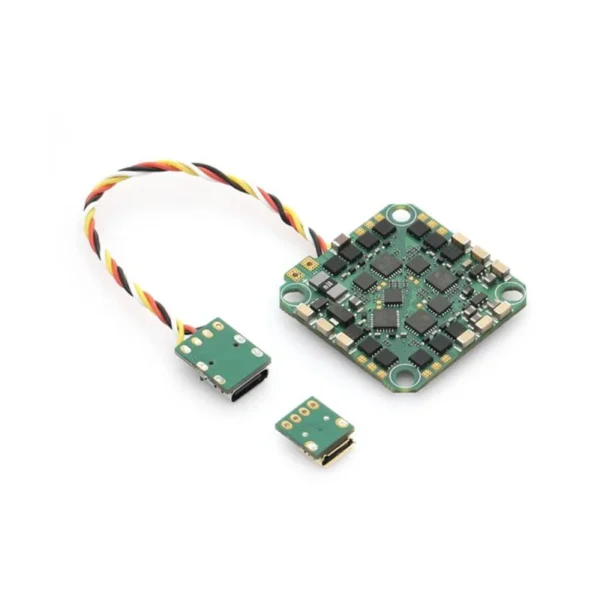

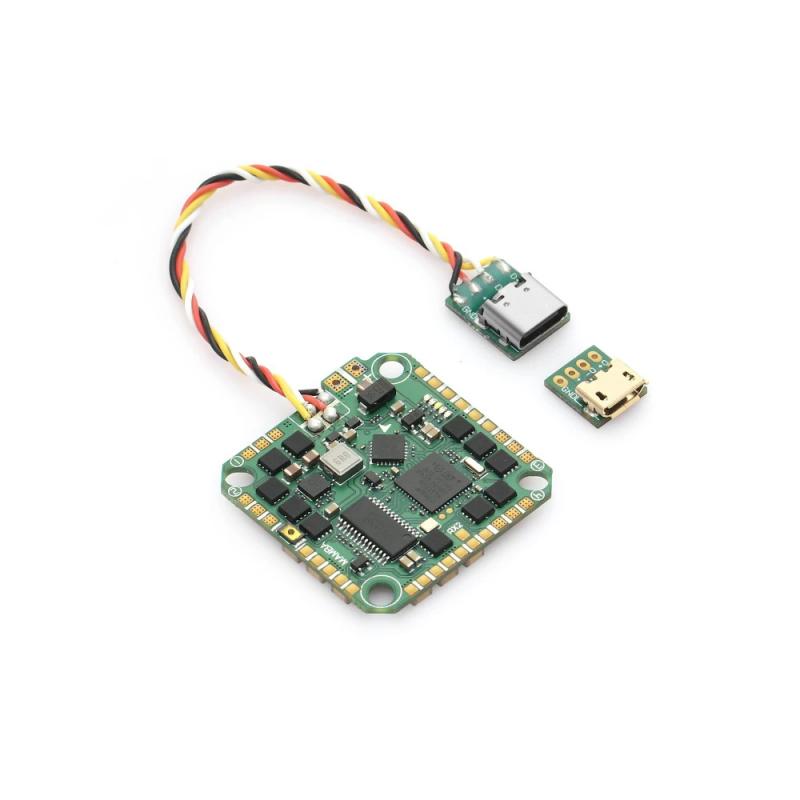

• MAMAB F411 25A AIO MK2 (EXTERNAL USB)
• INPUT VOLTAGE: 2~4S Lipo (8.4V~16.8V)
• CONTINUE CURRENT: 25A×4
• BURST CURRENT: 35A (10S)
• Target：BLHeli_S GH30
• SOFT: Dshot300/600

Supply :

• High-Frequency 330uF/25V ×1
• 18AWG 60mm ×2
• AMASS Original XT30
