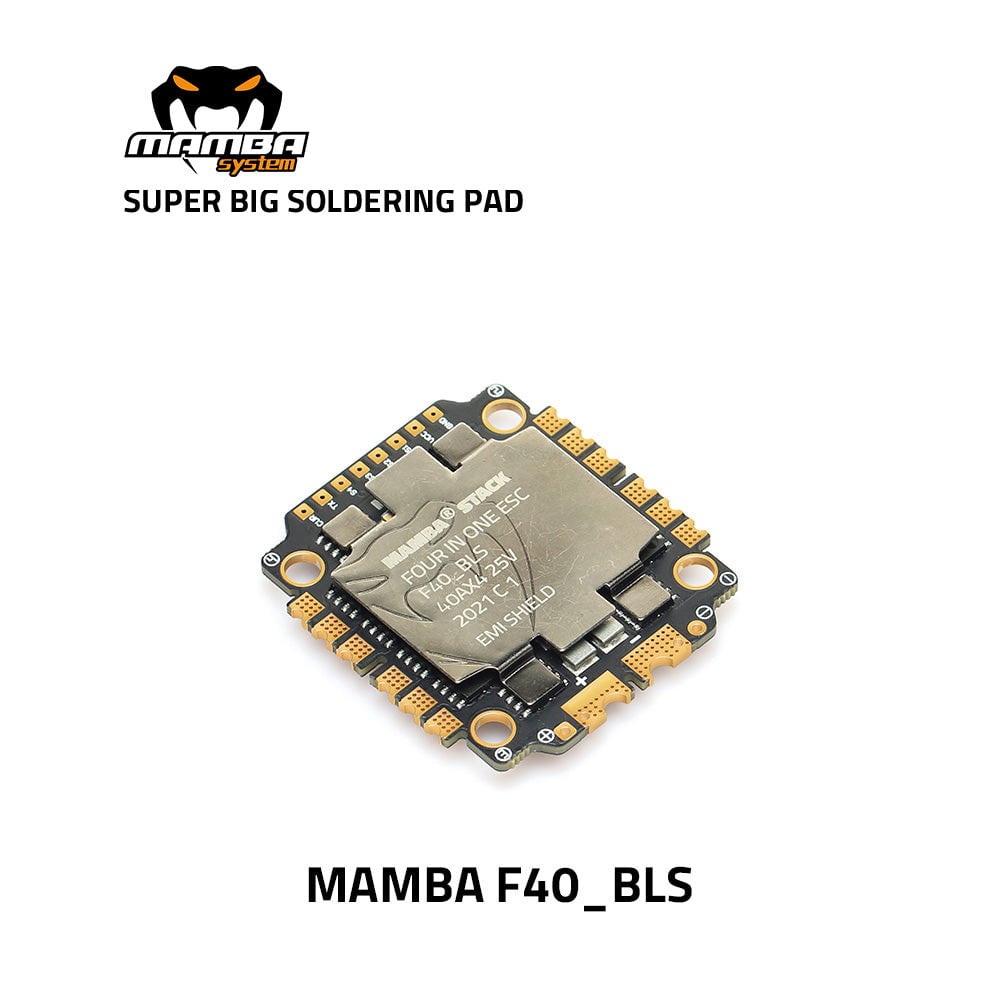

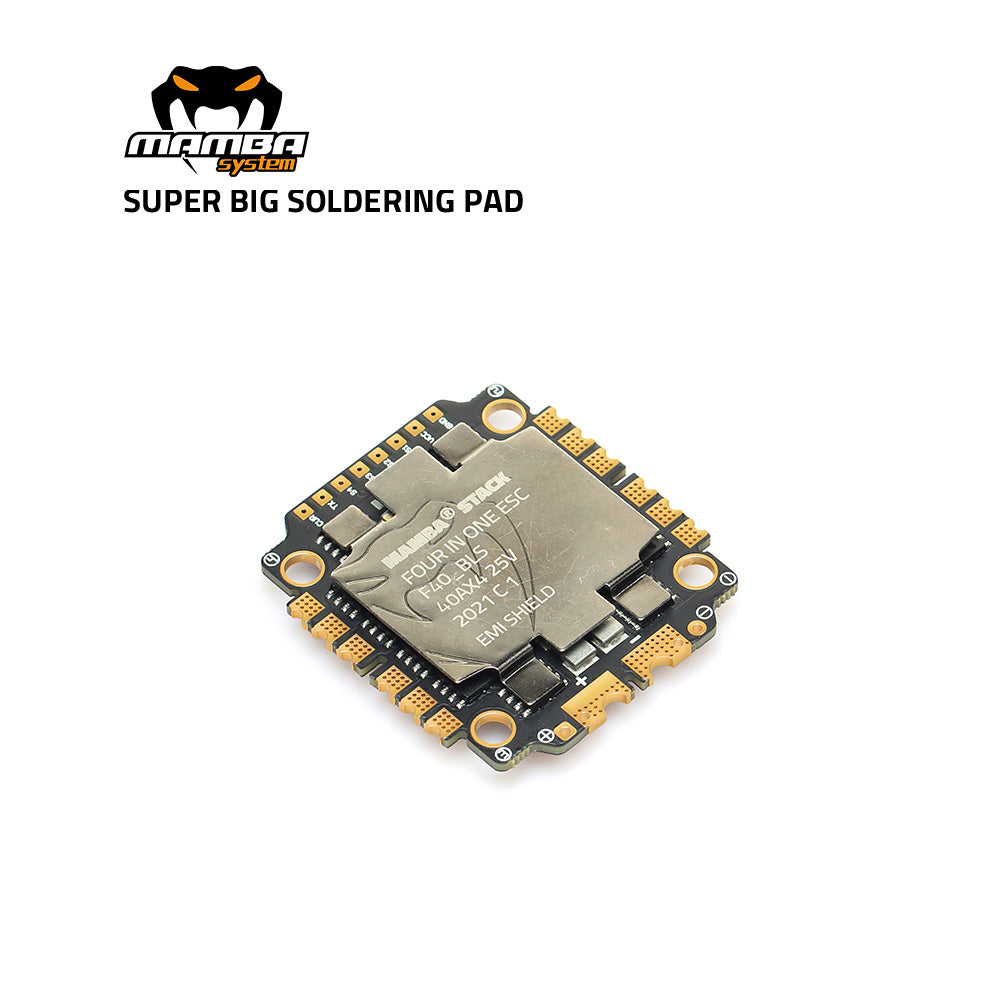

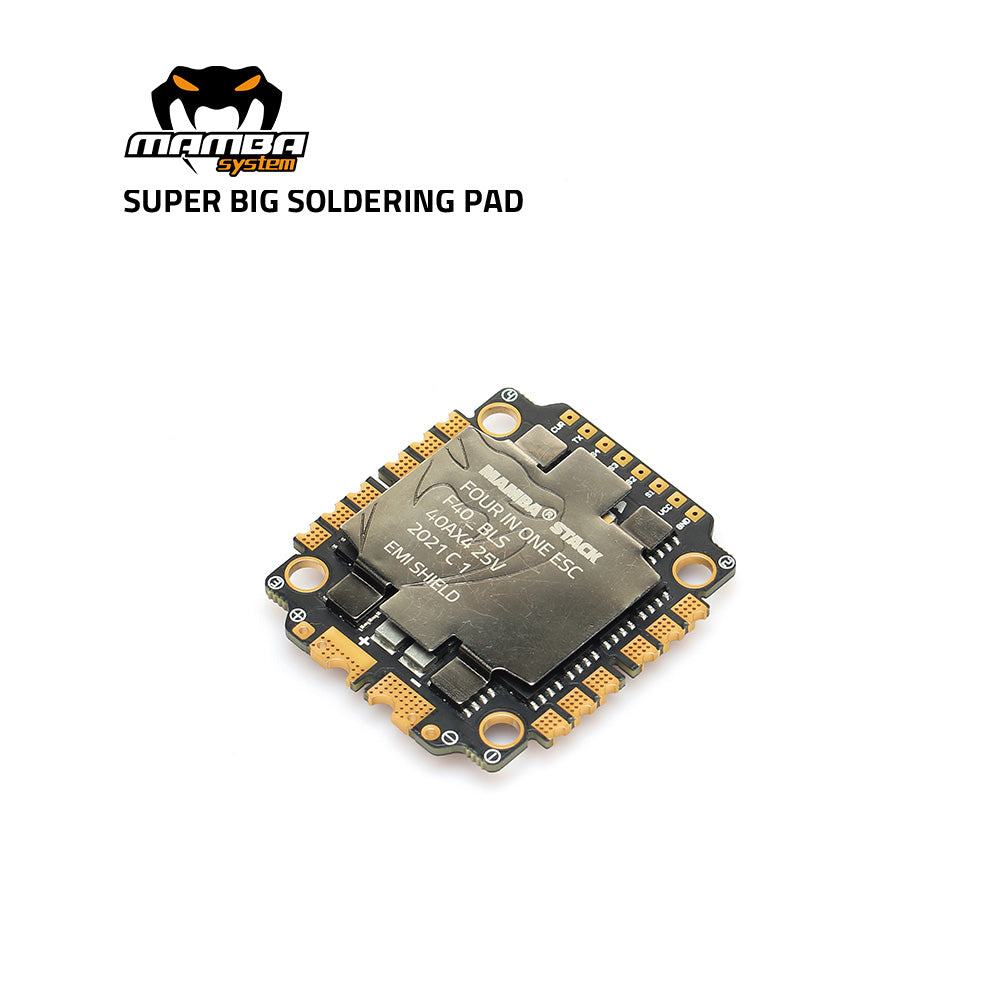

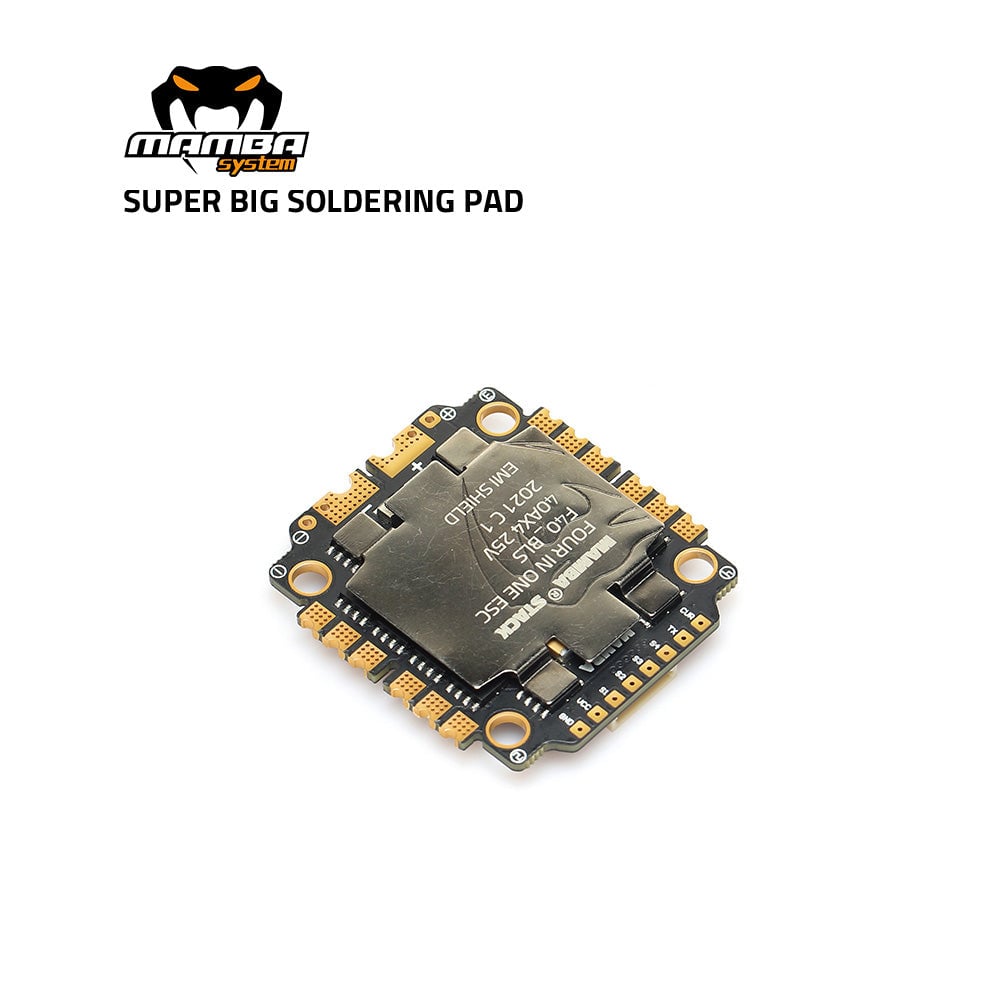

Diatone MAMBA F40_BLS Dshot600 4IN1 ESC 40A 6S

Check out all of our Diatone Products!

Experience the next level of flight precision with the Diatone MAMBA F40_BLS Dshot600 4IN1 ESC. Crafted for high-performance FPV drones, it’s compatible with 3~6S Lipo inputs, ensuring seamless power transitions for both racing and freestyle sessions.

Specification:

• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT: 40A×4
• BURST CURRENT: 50A (10S)
• BEC: NO
• SOFT: Dshot300/600
• Target：BLHeli_S CH40
• TVS Protection: Yes
• MOUNTING: 30.5mm/M3

Supply : 8pin sh1.0 ×2
AMASS Original XT60
High-Frequency 470uF/35V
