XT60 Smoke Stopper
See all of our Stores’ useful products! We also have a 2-in-1 Smoke Stopper
 Product Description
Â
1-6S 33V Amass XT60 Smoke Stopper is for pilots who don’t want to blow up their new build! ALWAYS test your gear before you plug it in to full lipo. You do now want your FPV Drone to be ruined before you get to fly it!
A multimeter is always better, but if you are short on time, or short on patients, just plug in your smoke stopper!
Description:

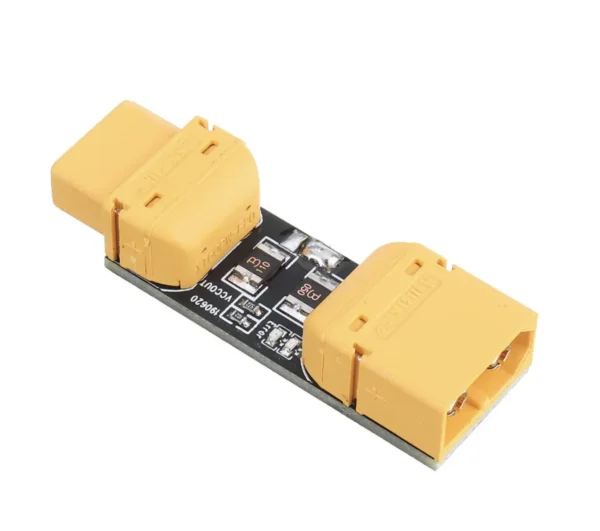

Product: XT60 Smoke Stopper Circle Breaker
Battery: 1-6s Capable(33v max)
0.5A Hold current,1A Trip Current
1.1A Hold current,2.2A Trip Current
0.5S Trip time
Â
Â
 How to use it:
– Green Light means it is ok
– Green Light dim or blinking, it means Fuse tripped.Â
– Red Light means connection error
– Red Light dim or blinking, which means Fuse trippedÂ
– Optional 0.5A Hold Current, 1A Trip Current
– Optional 1.1A Hold Current, 2.2A Trip Current
Unplugging for 10 seconds can reset the Solid State of the Smoke Stopper.
Package Included:
1x XT60 Smoke Stopper
This Smoke Stopper has a very unique feature – It allows you to unsolder the bridge for the voltage in/out and bridge the voltage in/out pad (depending on application)
*We do not warrant any damages caused even when the smoke stopper is in-use.
