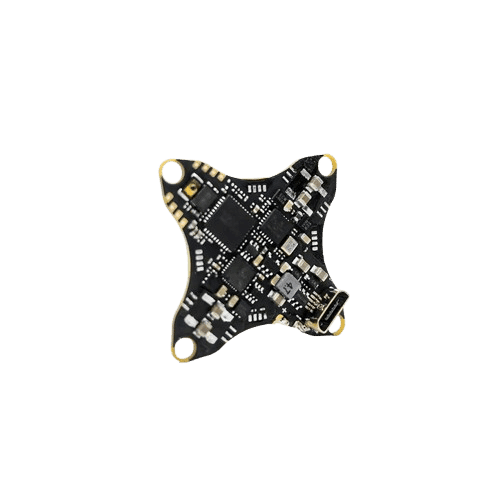

Hummingbird RaceSpec AIO with ELRS and 25mw VTX
This is the official All-in-One (AIO) flight controller for the NewBeeDrone Hummingbird V3.1 RaceSpec BNF Whoop. It integrates a flight controller, 12A ESC, a built-in Serial ELRS 2.4G receiver, and a 25mW video transmitter onto a single, lightweight board. This is a direct factory replacement to get your RaceSpec whoop back in the air with its original championship-winning performance.
CRITICAL: Please Read Before Purchasing
This is a professional-grade racing component with specific terms of sale. Please read the following carefully:
- This flight controller is designed exclusively as a replacement part for the complete Hummingbird V3.1 RaceSpec BNF Whoop.
- It is NOT intended or supported for DIY projects or use with any third-party components or frames.
- Each unit is rigorously tested at the factory to ensure flawless operation. We do not provide technical support for this product.
- By purchasing, you acknowledge that you are buying a replacement part for the specified drone and accept full responsibility for its installation and use.
Race-Tuned Performance in a Single Package
This AIO is built for one thing: competitive whoop racing. It features a powerful STM32F411 MCU and the high-performance BMI270 gyro for precise and stable flight. The 12A ESCs come pre-flashed with Bluejay firmware, enabling advanced features like bi-directional DShot for RPM filtering, which results in an incredibly smooth and locked-in flight feel essential for racing. By integrating all core electronics—including the long-range ELRS receiver and race-legal 25mW VTX—this board creates an extremely lightweight (4.57g) and clean setup, minimizing wiring and potential points of failure.
Key Features:
- Official Replacement Part: Guarantees perfect compatibility and restores the original factory tune and performance of your Hummingbird V3.1 RaceSpec BNF.
- Fully Integrated AIO: Combines FC, ESC, ELRS Receiver, and VTX on one board for the lowest possible weight and maximum durability.
- High-Performance Gyro: The BMI270 provides clean, precise gyro data essential for a locked-in race tune.
- Bluejay ESC Firmware: Enables RPM filtering for superior propwash handling and smoother motor performance.
- Built-in ExpressLRS Receiver: Provides a top-tier, low-latency radio link without the need for a separate receiver.
- GNB A30 Connector: Includes the modern, high-performance A30 battery connector for less voltage sag than older connectors.
Specifications
- MCU: STM32F411
- Gyro: BMI270
- Receiver: Integrated Serial ELRS 2.4G
- VTX: 25mW with BeeTX 5.8Ghz Antenna
- ESC: 12A Continuous, BLHeli_S with Bluejay Firmware
- Input Voltage: 1S LiPo Only
- Power Connector: GNB A30 (BT2.0 Compatible)
- Mounting Holes: 25.5mm x 25.5mm
- Weight: 4.57g
What’s in the Box?
- 1x Hummingbird V3.1 RaceSpec AIO Flight Controller
Binding Video:
