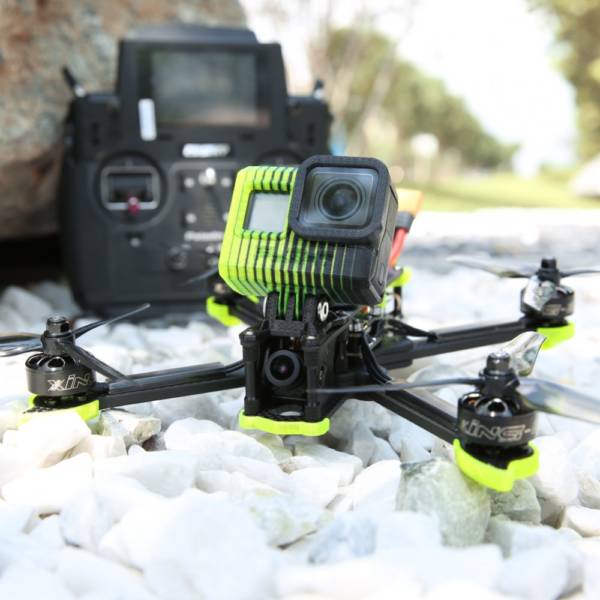

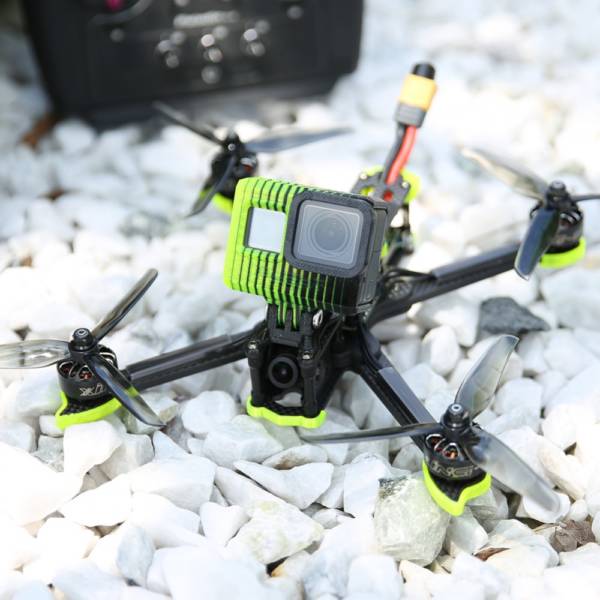

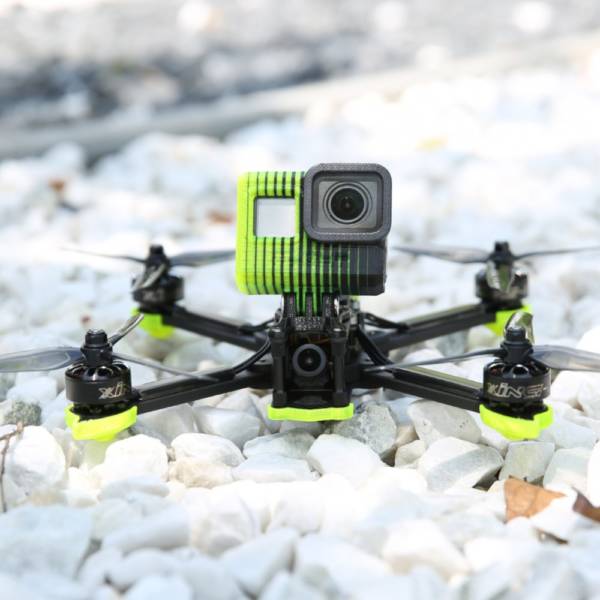

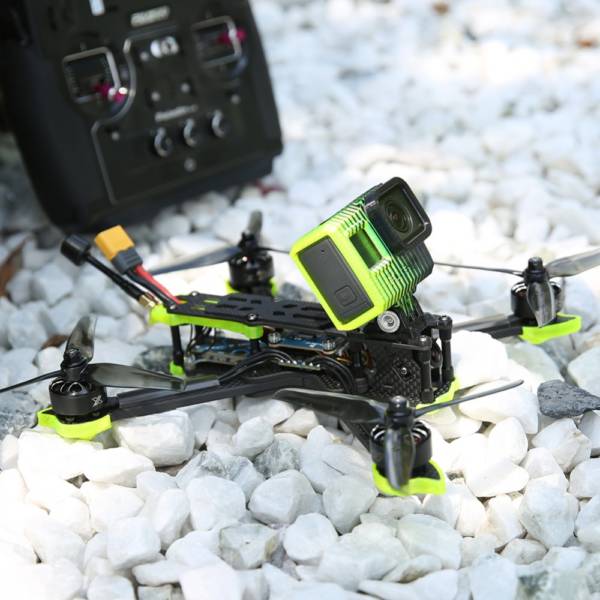

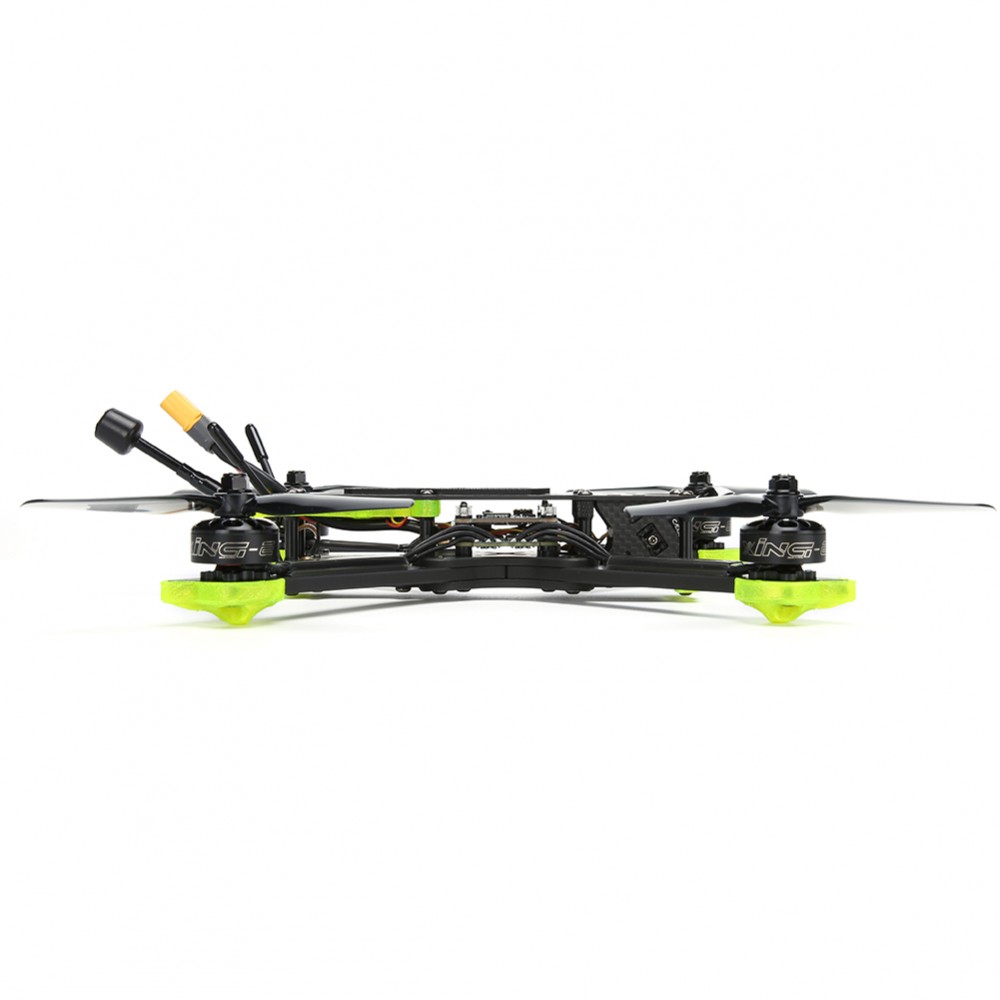

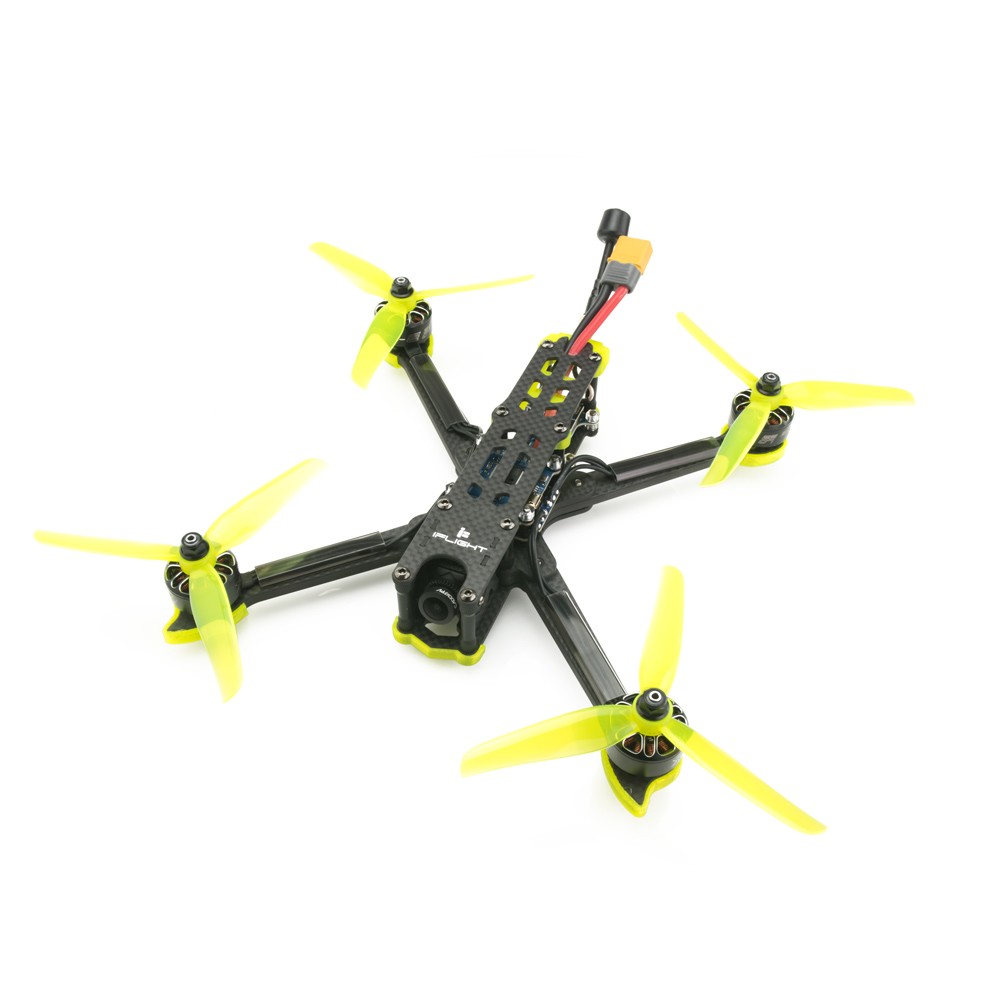

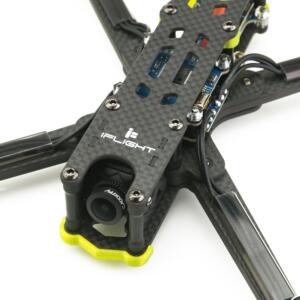

The Nazgul5 V2 is a 5″ size PNP (Plug-N-Play) quadcopter. It is updated to the XL5 V5 FPV frame. Pre-tuned and setup, everything you need is just a receiver and some batteries! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don’t worry, get some spares with your order and easy-swap out in field. Wanna strap your GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!

HIGHLIGHTS:

– 5mm arm design for more durability

– Easy-Swap arms

– LED illuminated Logo

– XING-E 2207 motors and NAZGUL 5140 props
– 5″ version also fits 5.1″ style propellers
– Popular True-X configuration
– TPU crash-guards
– Fits both 30.5x and 20x stacks

XL5 V5 frame specs:

• SucceX-E F4 45A flight stack
• XING-E 2207 FPV Motor （6S 1800KV / 4S 2750KV)

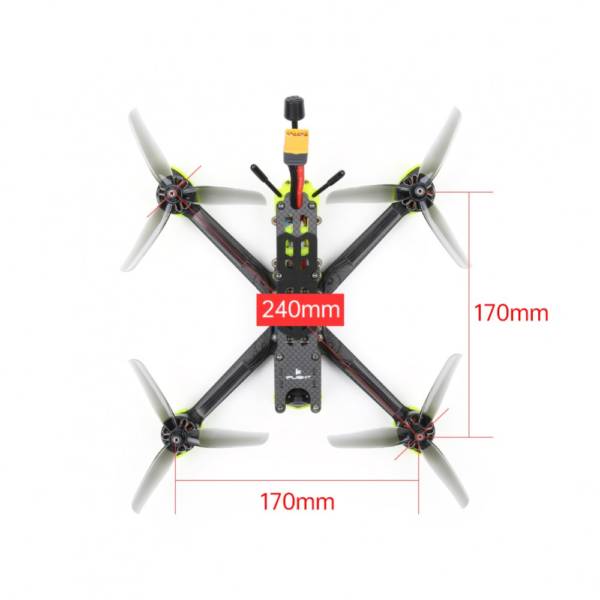

• Wheelbase:   240mm*240mm
• Body size: 170*170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.5*30.5/20*20 mm
• FPV cam spacing: 19mm
• Weight: 393.4g (without battery)

Nazgul5 V2 Quad Included Components and Parts

• Prebuilt and tested Quadcopter
• 1x XL5 V5 Frame

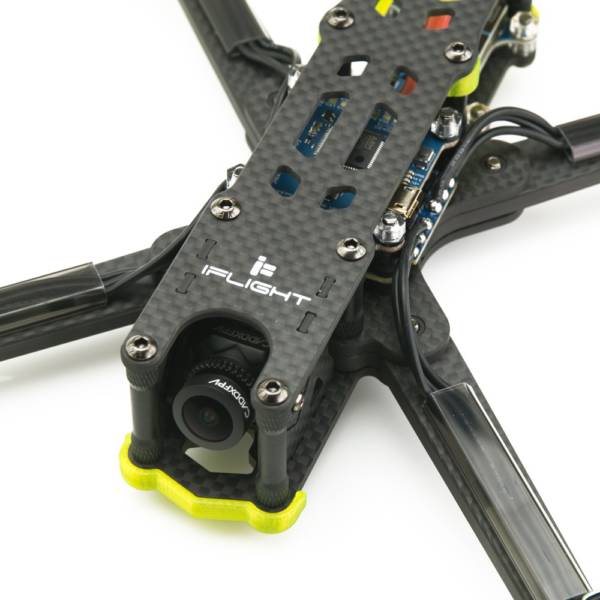

• 1x Caddx Ratel, 2.1mm lens camera
• 1x Albatross RHCP SMA 5.8g antenna
• 2 sets x Nazgul 5-inch 3-blades (Set of 4 – Color may vary)
• 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

FC // SucceX-E F4 Flight controller

– MCU：STM32F405

– Gyro：MPU6000

– Betaflight OSD：YES

– Blackbox：8MB

– 4X Uarts（1 2 3 6 )

– 8 x Dshot/Proshot/Oneshot output

– 8 x individual ESC power/ signal pads

– 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

– VTX telemetry: YES

– WS2812 led Strip：YES

– Baro：No

– Beeper：YES

– Input：2-6S（Max 8S）

– BEC：5V/2.5A cont

– Firmware target : BETAFLIGHTF4

– Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm

– Dimensions：36*36mm

– Weight：7.6g

ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

– Dimension: 40*43mm

– Mounting Holes: 30.5*30.5mm/Φ3mm

– Weight: 14.4g

– Supports 2-6S Lipo input

– STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware

– Current sensor: YES

– BEC: NO

– Supports: DShot150/300/600/1200/MultiShot/OneShot etc.

– Target: G-H-30 BLS 16.7

VTX// SucceX Force 5.8g 800mW VTX Adjustable

– The output power is stable;

– Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;

– Output 48 frequency points,

– Frequency lock fast, the boot does not interfere with companions;

– Built-in output power self-check function;

– Full format video format: NTSC /PAL;

– Wide input voltage range. low power consumption:

7V～36V，+12V/380mA@800mW;

– Small size:36*36*3mm

– Mounting holes 4-M3

– Lightweight: 7.2g(excluding antenna)

Specs:

– Item: SucceX-Force 800mW adjustable VTX

– Input voltage:5V

– Output voltage/ Max current: 5V 1A

– 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@400mW, 380mA@800mW

– Output 48 frequency points,

– Size: 36*36*3mm

– PIT/25mW/200mW/400mW/800mW

Additional Suggested Parts

• Battery 6S 1300mAh
• GoPro Mounts
