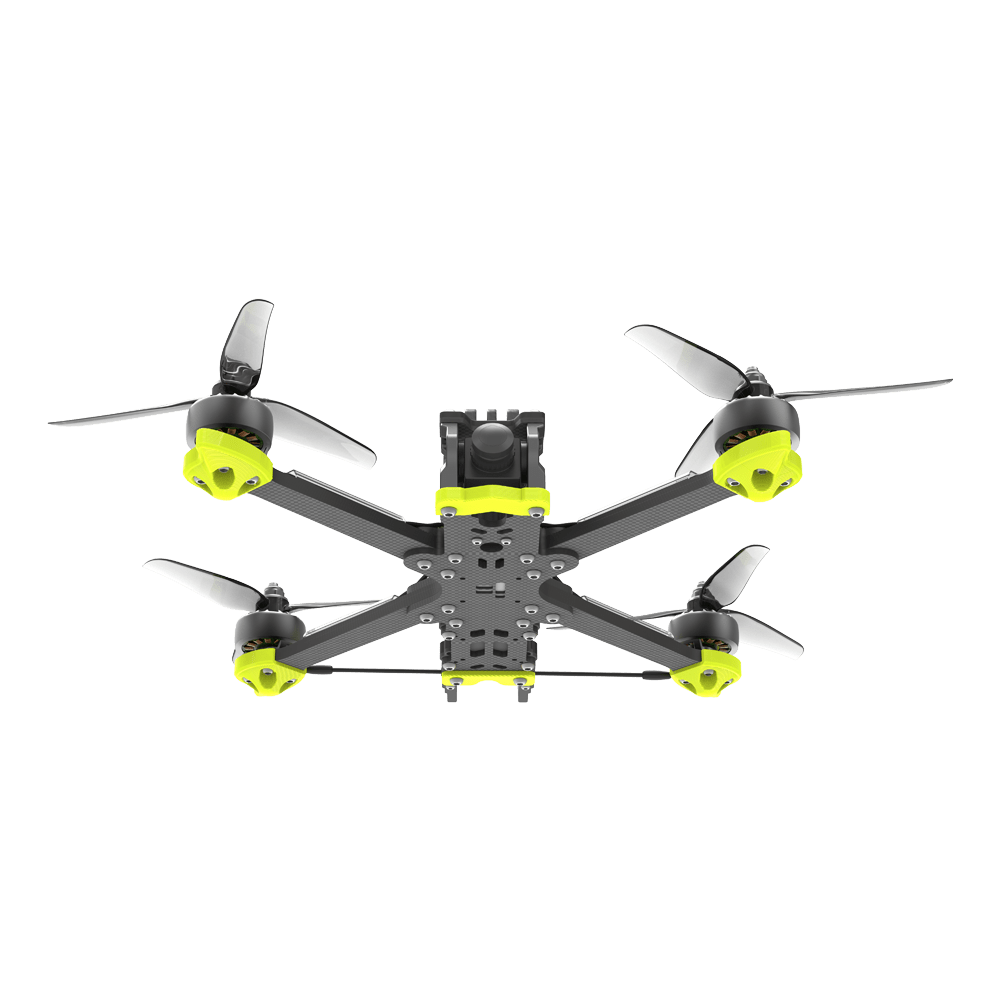

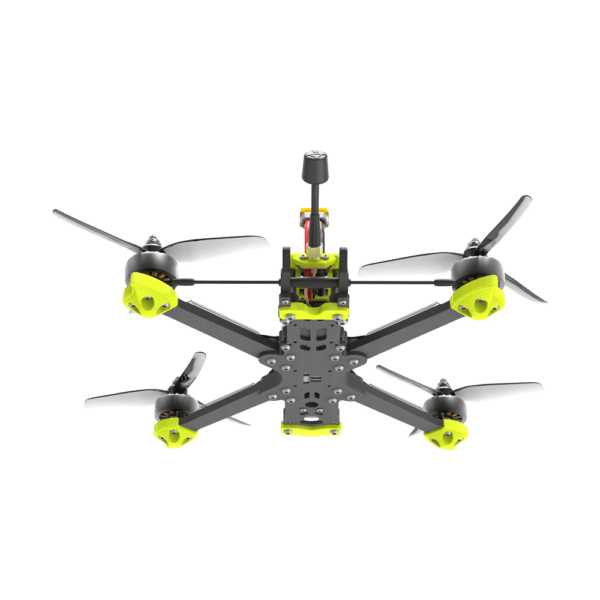

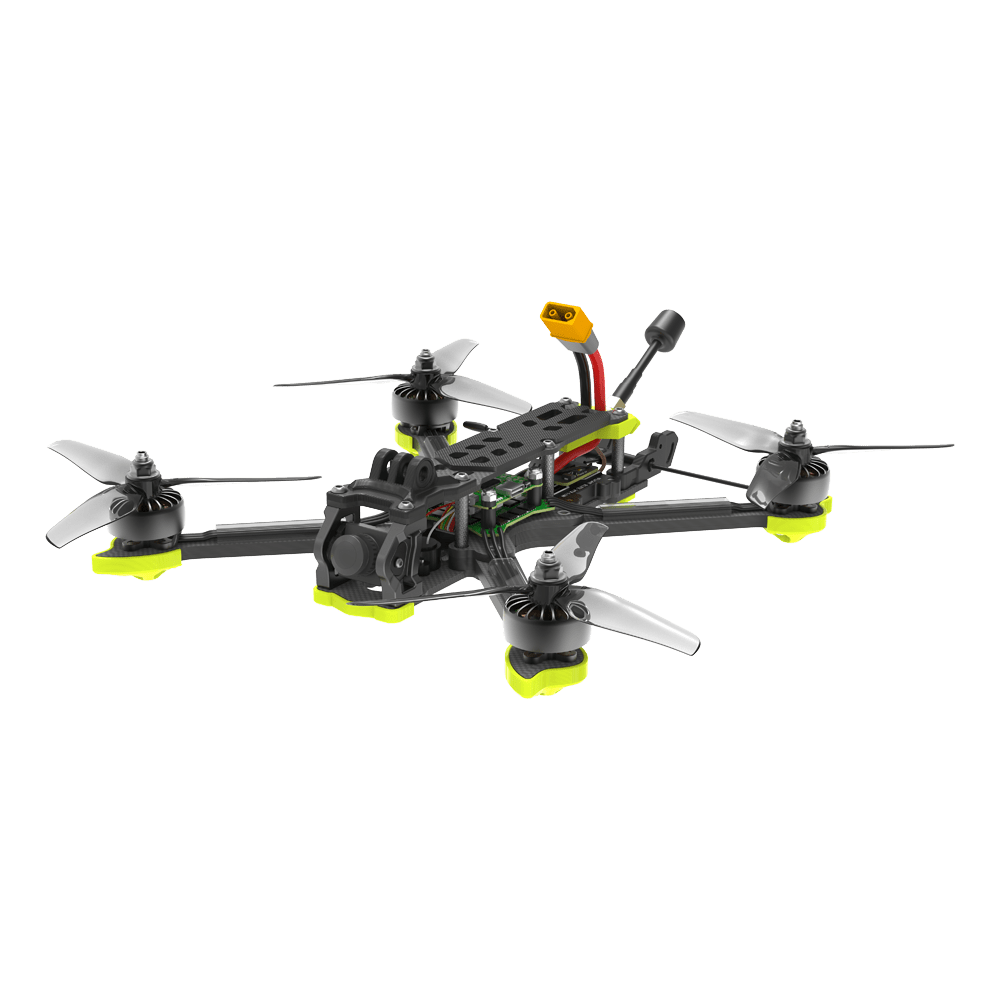

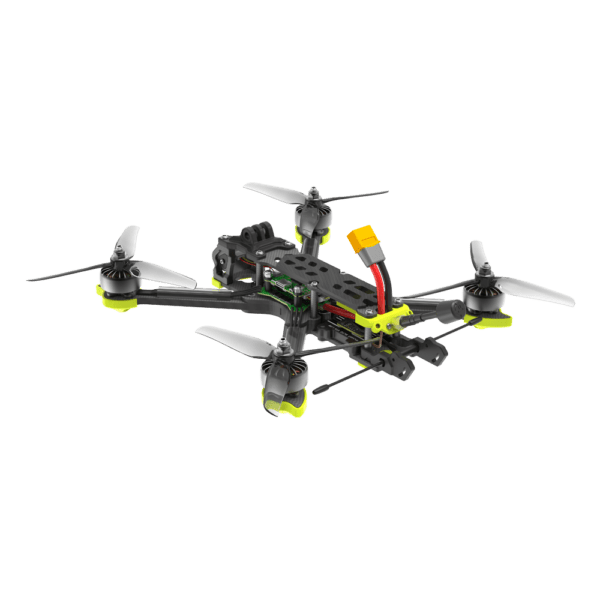

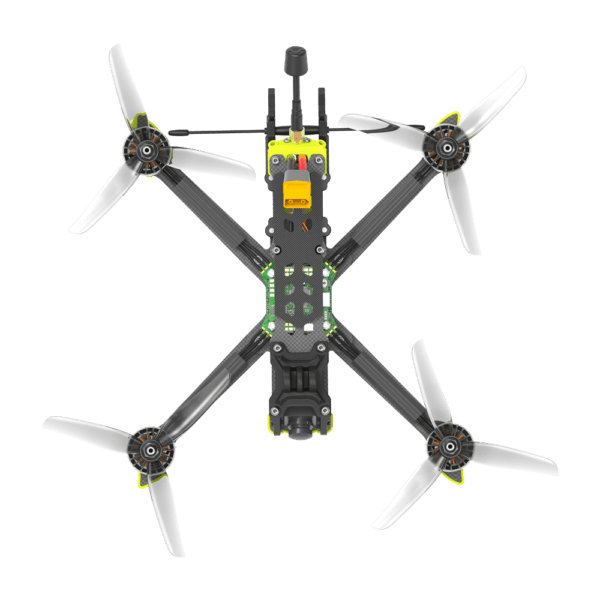

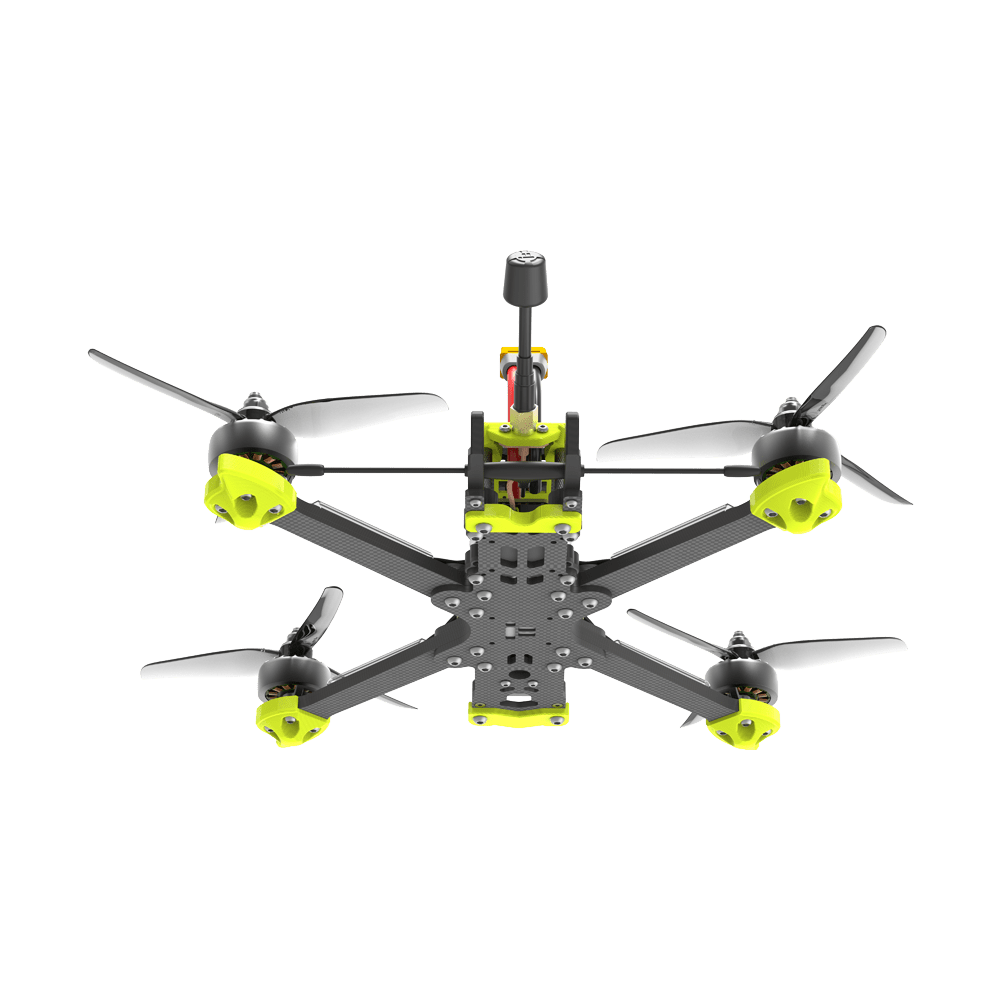

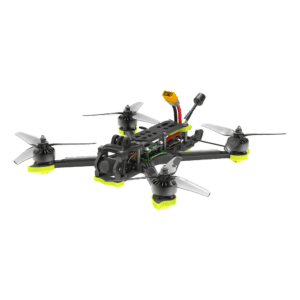

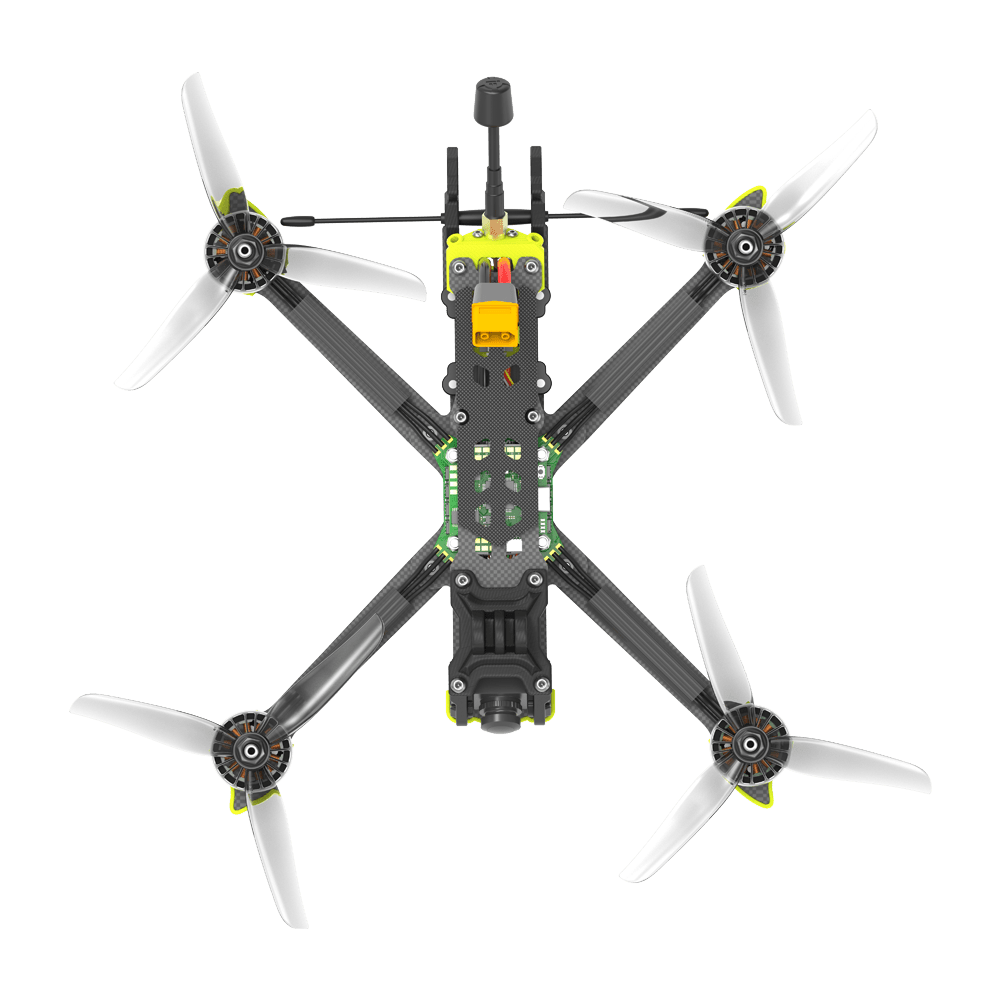

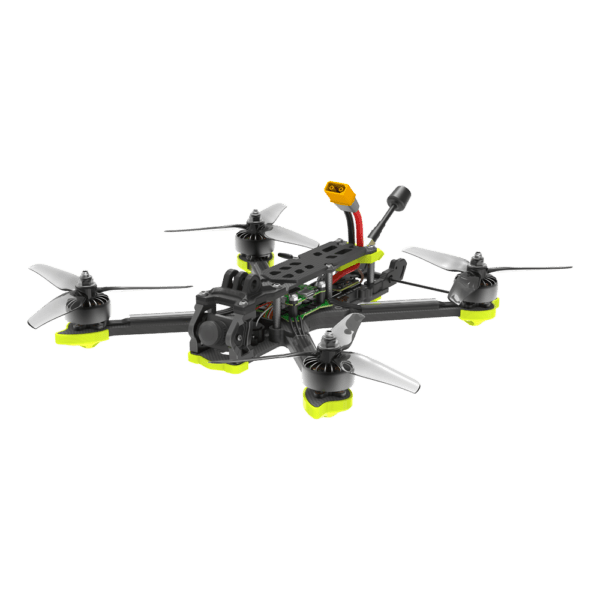

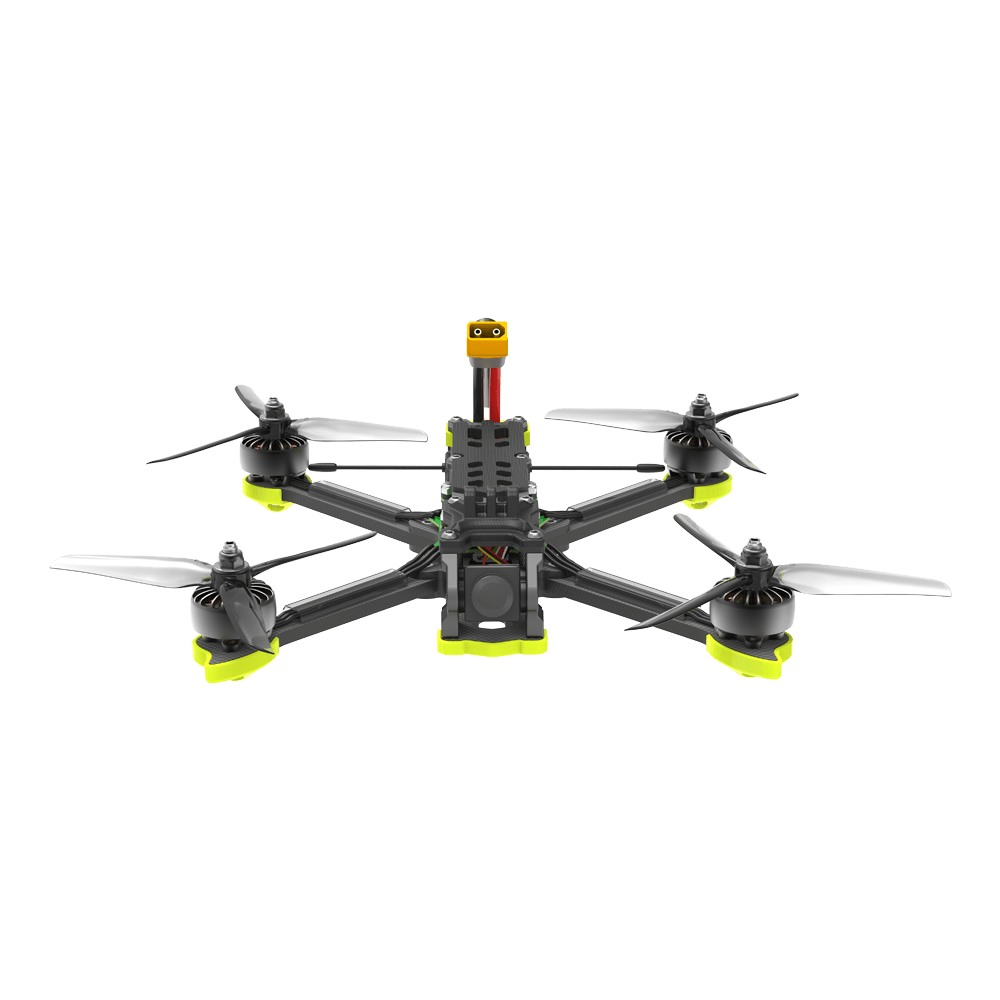

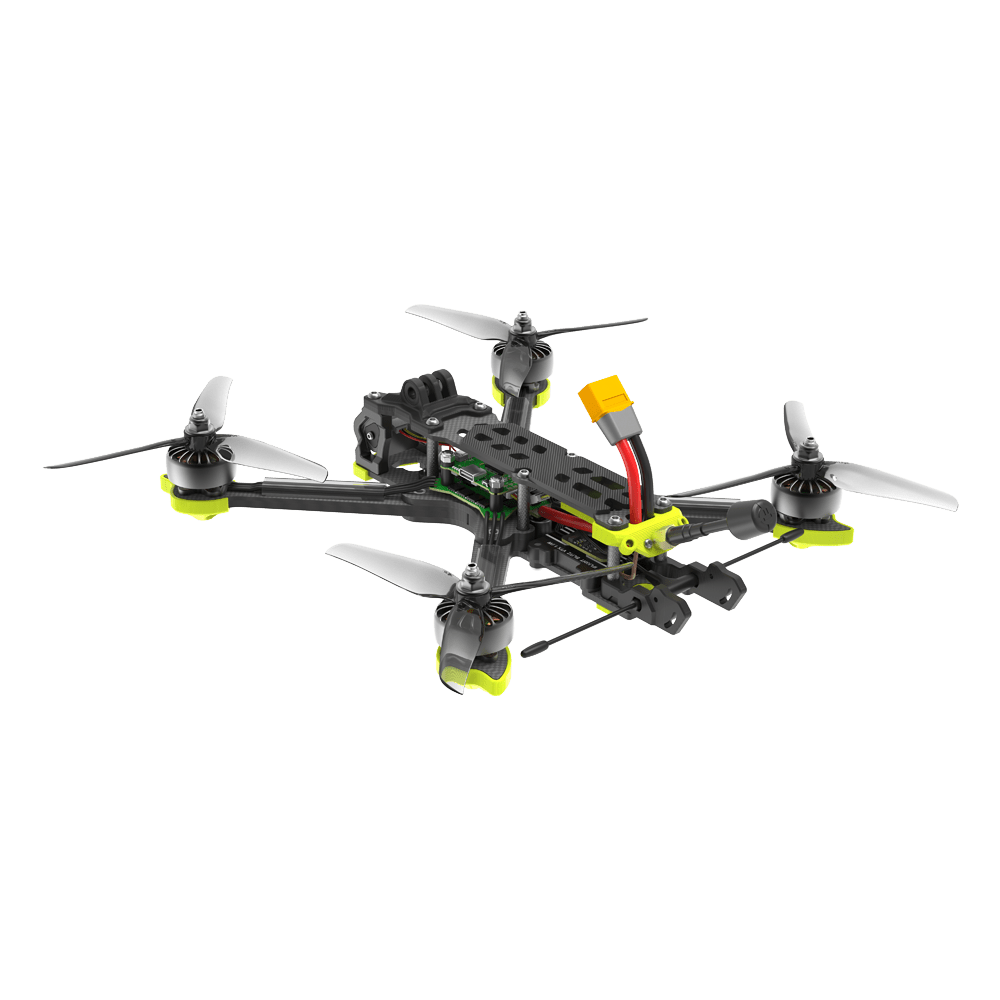

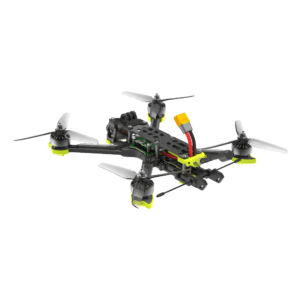

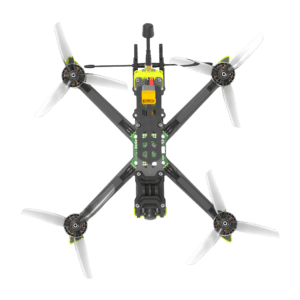

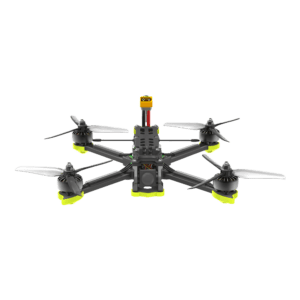

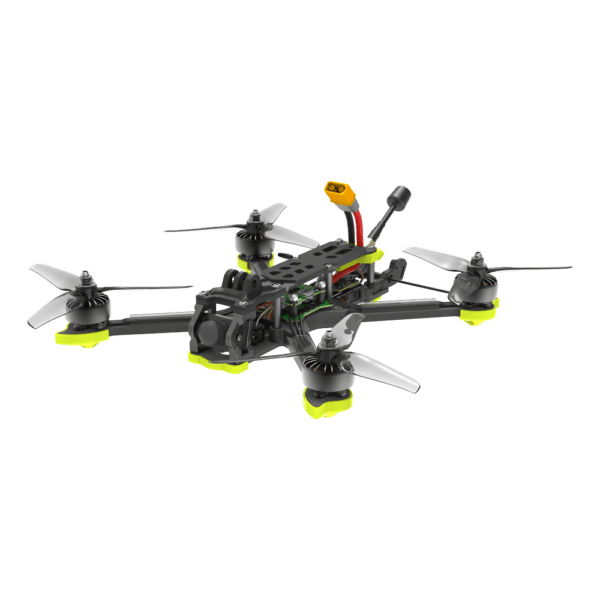

iFlight Nazgul XL5 V3 6S FPV Drone – PNP

Embark on an unparalleled FPV journey with the iFlight Nazgul XL5 V3 6S FPV Drone – PNP, a pinnacle of drone engineering, designed for enthusiasts craving for power, durability, and precision. Upgraded with the robust XING-E Pro 2207 motors and paired with NAZGUL F5 props, this drone is a force to be reckoned with in the skies.

Featuring a versatile frame that accommodates both 5″ and 5.1″ propellers, the Nazgul XL5 V3 is built to adapt to your flight style, offering the flexibility to switch between prop sizes effortlessly. The drone’s design is optimized for both 30.5×30.5 and 20×20 stacks, ensuring compatibility with a wide range of components.

Durability is at the forefront of the design with a 5mm arm thickness, providing the resilience needed for the most demanding maneuvers. The True-X configuration is favored for its balanced flight characteristics, making it a popular choice among pilots. Additionally, the drone features an LED illuminated logo for visibility and aesthetics, along with TPU crash-guards to protect vital components during rough landings.

Highlights

• XING-E Pro 2207 motors and NAZGUL F5 props
• 5″ version also fits 5.1″ style propellers
• Fits both 30.5×30.5 and 20×20 stacks
• 5mm arm design for more durability
• Popular True-X configuration
• LED illuminated Logo
• TPU crash-guards
• Easy-Swap arms

Changelog

October 17, 2023: ESC changed from BLITZ E45S 4-IN-1ESC to E55S 4-IN-1 ESC.

March 23, 2024: The product name was changed from Nazgul5 V3 to Nazgul XL5 V3.

Specifications

• Product Name: Nazgul XL5 V3 6S Analog
• Geometry: Squashed-X
• FC: BLITZ F722 FC
• ESC: BLITZ E55S 55A 4-IN-1 ESC
• Video Transmission: BLITZ 1.6W VTX
• Frame: 245 ±2 mm wheelbase
• Motor: XING-E Pro 2207 motors
• Prop: Nazgul 5 inch propellers
• Takeoff Weight: Approx. 435g / 660±10g (With 6S 1400mAh Battery)
• Dimensions (L×W×H): 173×173×34±2 mm
• Diagonal Distance: 245mm
• Max Speed: 190 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 3200 m
• Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: Single Antenna
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

Video Transmission

• Product Name: BLITZ Whoop 1.6W VTX
• Input voltage: 7V～34V
• Interface: MMCX
• Power levels: PIT/25mW/400mW/800mW/1600mW
• Channels: 40 (including Raceband)
• Mounting pattern: 30.5×30.5mm/Φ3
• Lightweight: 18.9g (excluding antenna)
• VTX telemetry: IRC Tramp
• Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
• RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Packing List

1 x Nazgul XL5 V3 6S Analog BNF

1 x Antennas

2 x Battery pads

2 x Nazgul F5 Prop(Pairs)

Important

Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
