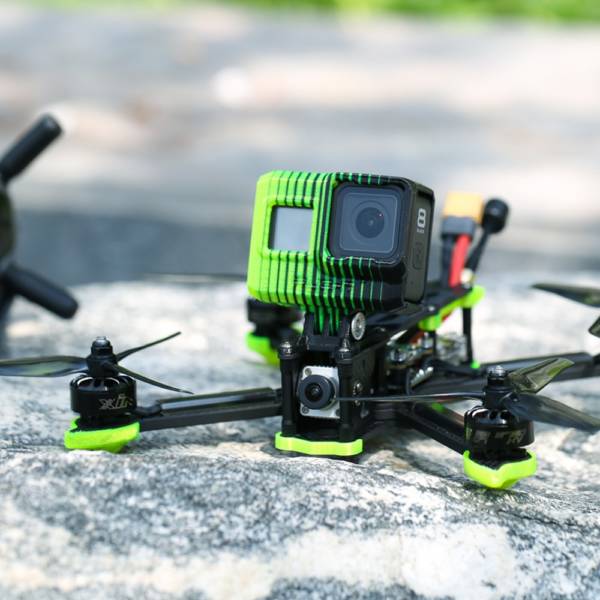

Nazgul5 HD is a 5″ size BNF (Bind-and-Fly) quadcopter with Caddx Vista Digital HD System on it. We sticked the lighter Caddx Vista on one of our new updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don’t worry, get some spares with your order and easy-swap out in field. Wanna strap your GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!

HIGHLIGHTS:

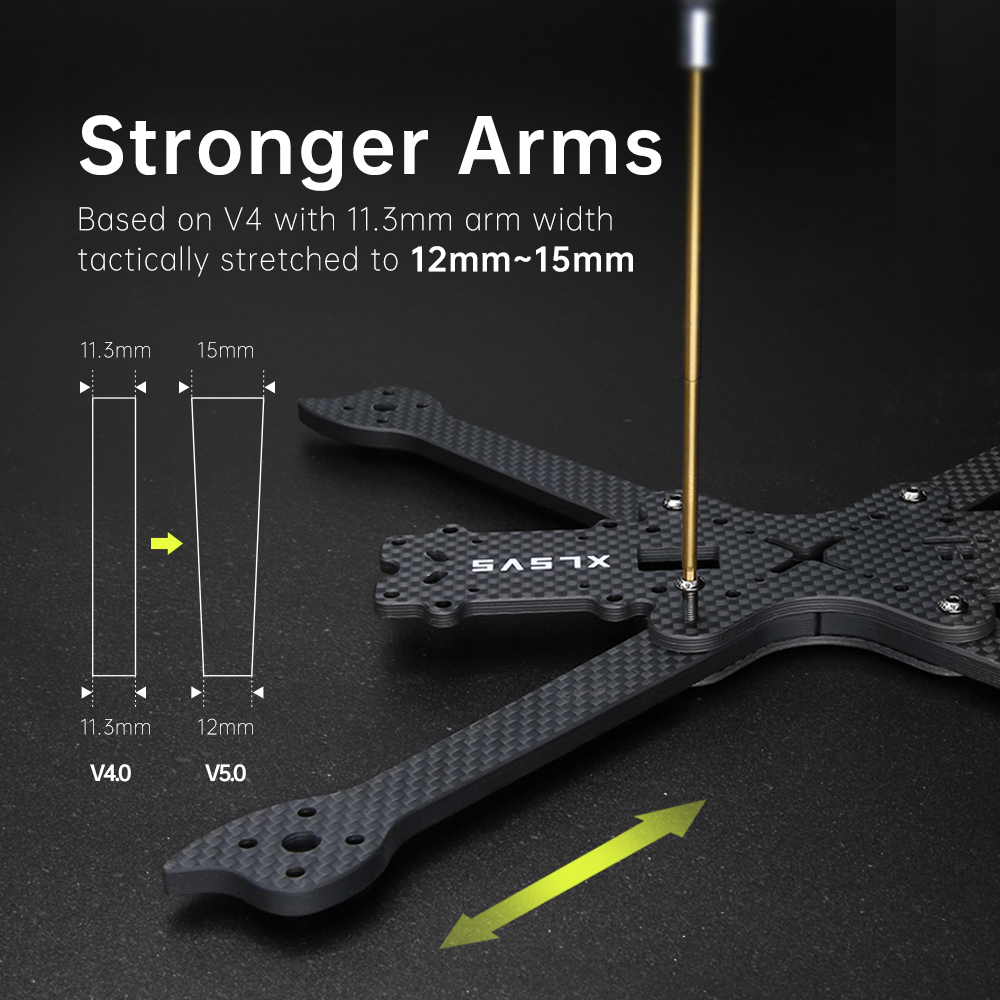

– 5mm arm design for more durability

– Easy-Swap arms

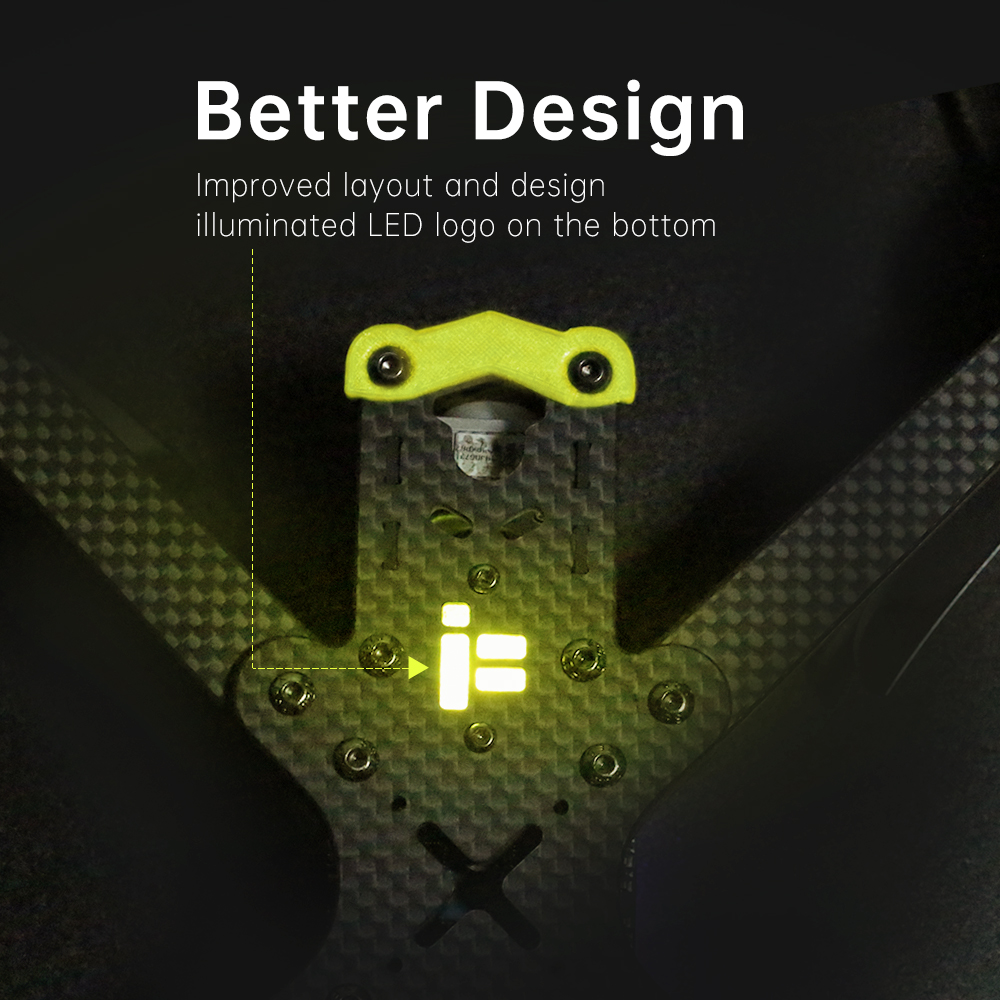

– LED illuminated Logo

– XING-E 2207 motors and NAZGUL 5140 props
– 5″ version also fits 5.1″ style propellers
– Popular True-X configuration
– TPU crash-guards

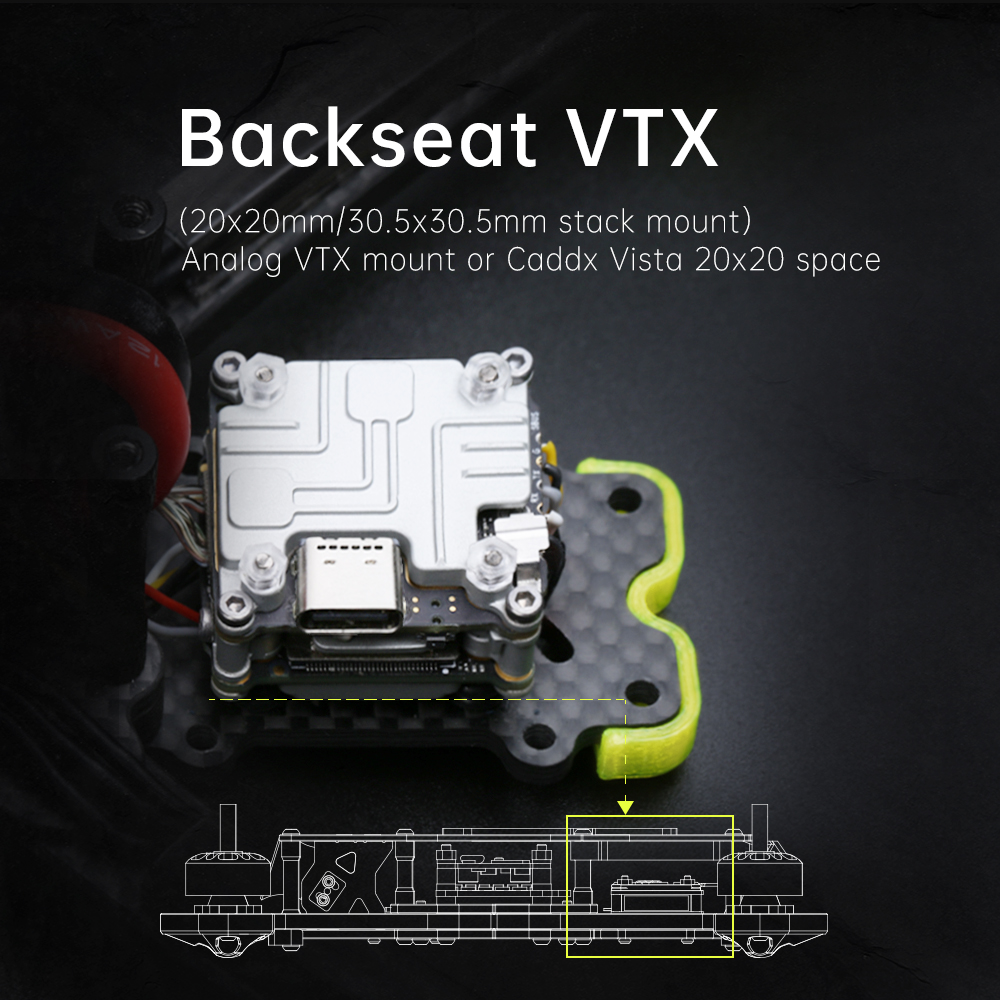

– Fits both 30.5x and 20x stacks

Nazgul5(XL5 V5) frame specs:

• BLITZ F7 Flight Controller
• BLITZ E45S 4-IN-1 45A 2-6S ESC
• XING-E 2207 FPV Motor (6S 1800kv / 4S 2750kv)
• Wheelbase: 240mm*240mm
• Body size: 170*170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.5*30.5/20*20 mm
• FPV cam spacing: 19mm
• Weight: 400.8g (without battery)

Changelog:

June 2021: Upgraded SucceX-E F4 flight controller to SucceX-E F7

February 2022: Before SucceX-E F7 flight controller changed to BLITZ F7 V1.1

June 2022: Before SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC changed to BLITZ E45S 4-IN-1 45A 2-6S ESC

BNF // Parts lists

• 1x Prebuilt and tested Quadcopter
• 1x Nazgul5(XL5 V5) Frame
• 1x Caddx Polar Vista Digital HD System Kit
• 1x Albatross LHCP RP-SMA 5.8g antenna
• 2sets x Nazgul 5 inch 3-blades (Set of 4 – Color may vary)
• 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
• 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

FC // BLITZ F7 Flight Controller V1.1 (SKU: BF12083)

• MCU: STM32 F722
• Gyro: BMI270
• Barometer: DPS310
• OSD Chip: AT7456E

• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
• Dimensions: 36.5*35 mm
• Weight: 7.8g

ESC // BLITZ E45S 4-IN-1 45A 2-6S ESC

– Supports: DShot150/300/600/MultiShot/ OneShot etc.

– Mounting Holes: 30.5*30.5mm/Φ4mm

– Supports 2-6S lipo input

– Telemetry Output: NO

– Target: Q-H-25 16.7

– Current sensor: Yes

– Constant: 45 Amps

– Current rate: 200

– Burst: 55 Amps

– Weight: 14.7g

– MCU: BB21

– BEC: NO
