Ummagawd Acrobrat 3 Inch HD Frame
Check out all of our Ummagawd Products!
Experience one of the smoothest 3-inch FPV frames ever designed with the Ummagawd Acrobrat. Created by legendary pilot Tommy Tibajia (Ummagawd), the Acrobrat is a premium cinematic and freestyle platform engineered for incredibly stable flight and robust durability. It’s the perfect choice for pilots who want to capture beautiful HD footage with a small, agile, and jello-free drone.
Engineered for Smoothness
The secret to the Acrobrat’s buttery-smooth performance lies in its custom polyurethane frame dampeners. These soft mounts isolate the flight controller and the entire electronics stack from motor and frame vibrations. This results in cleaner gyro data for your flight controller, which significantly reduces propwash, makes tuning easier, and delivers a pristine, jello-free video feed to your HD camera.
Durable & Thoughtful Design

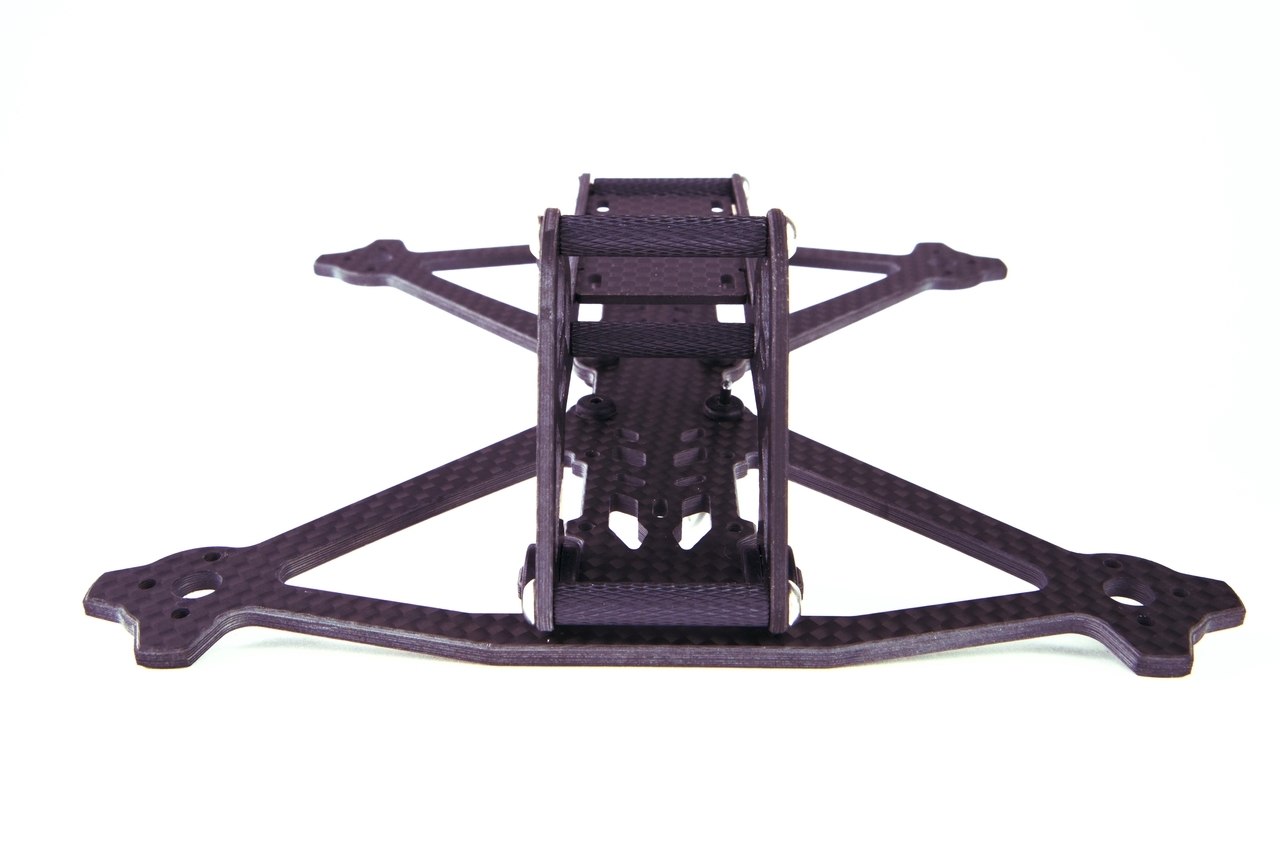

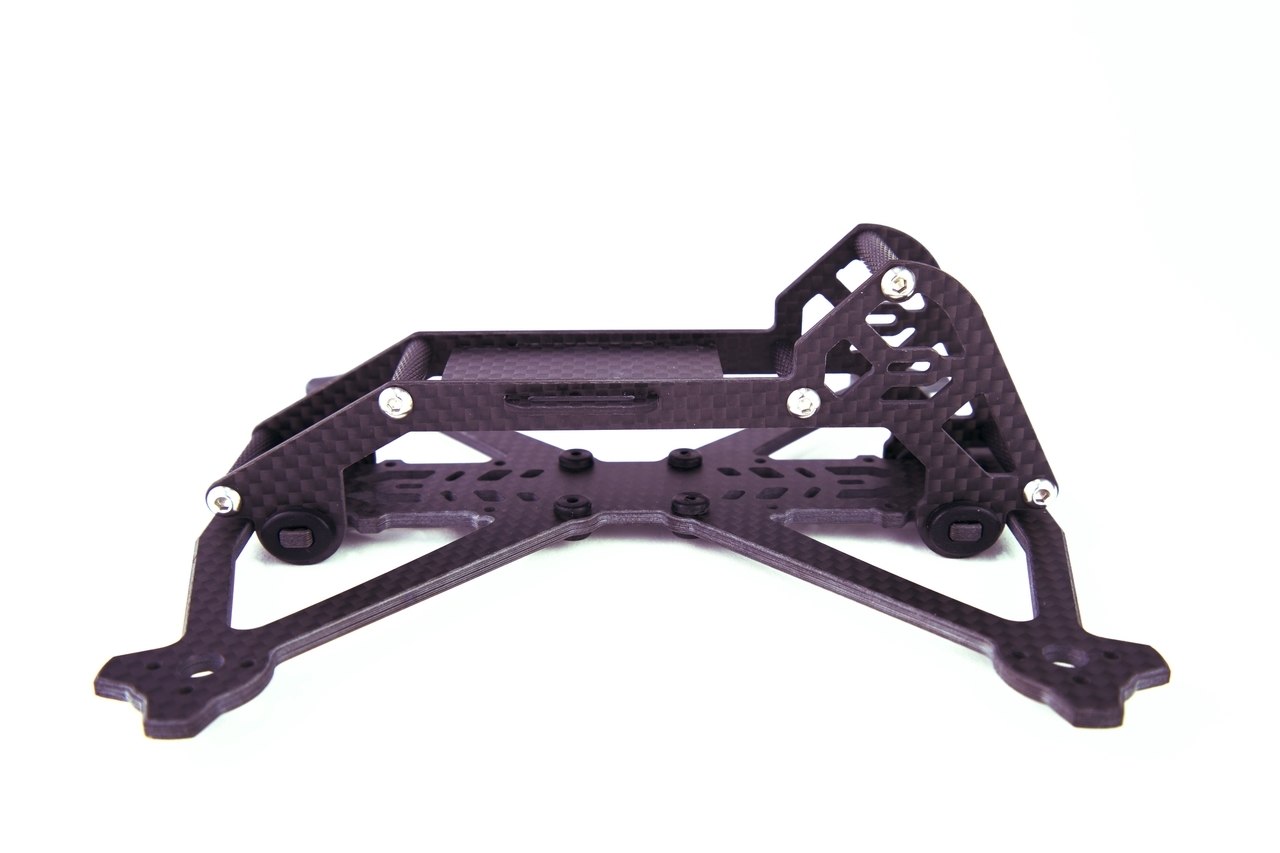

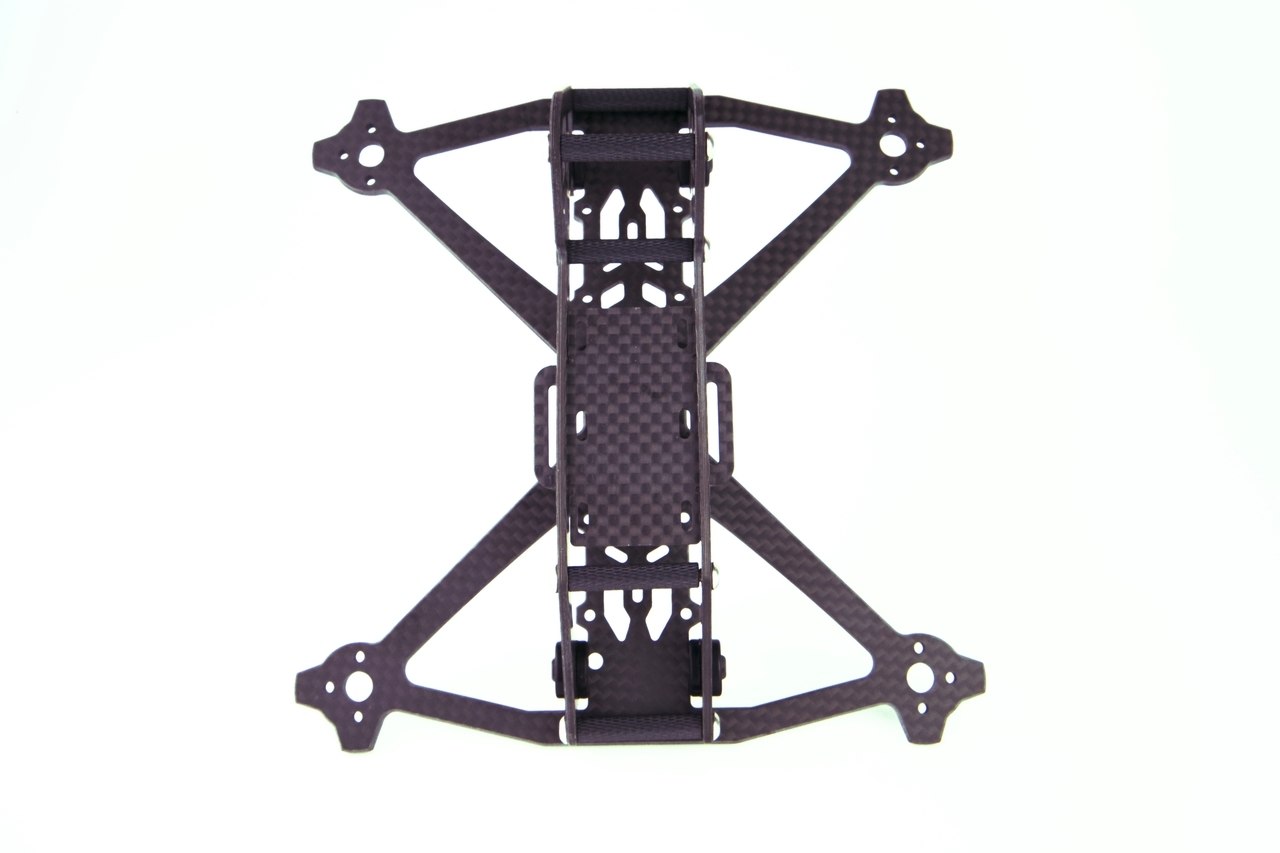

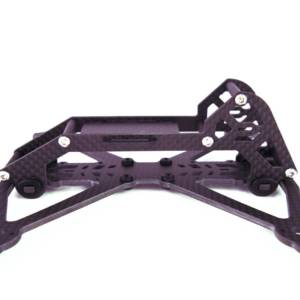

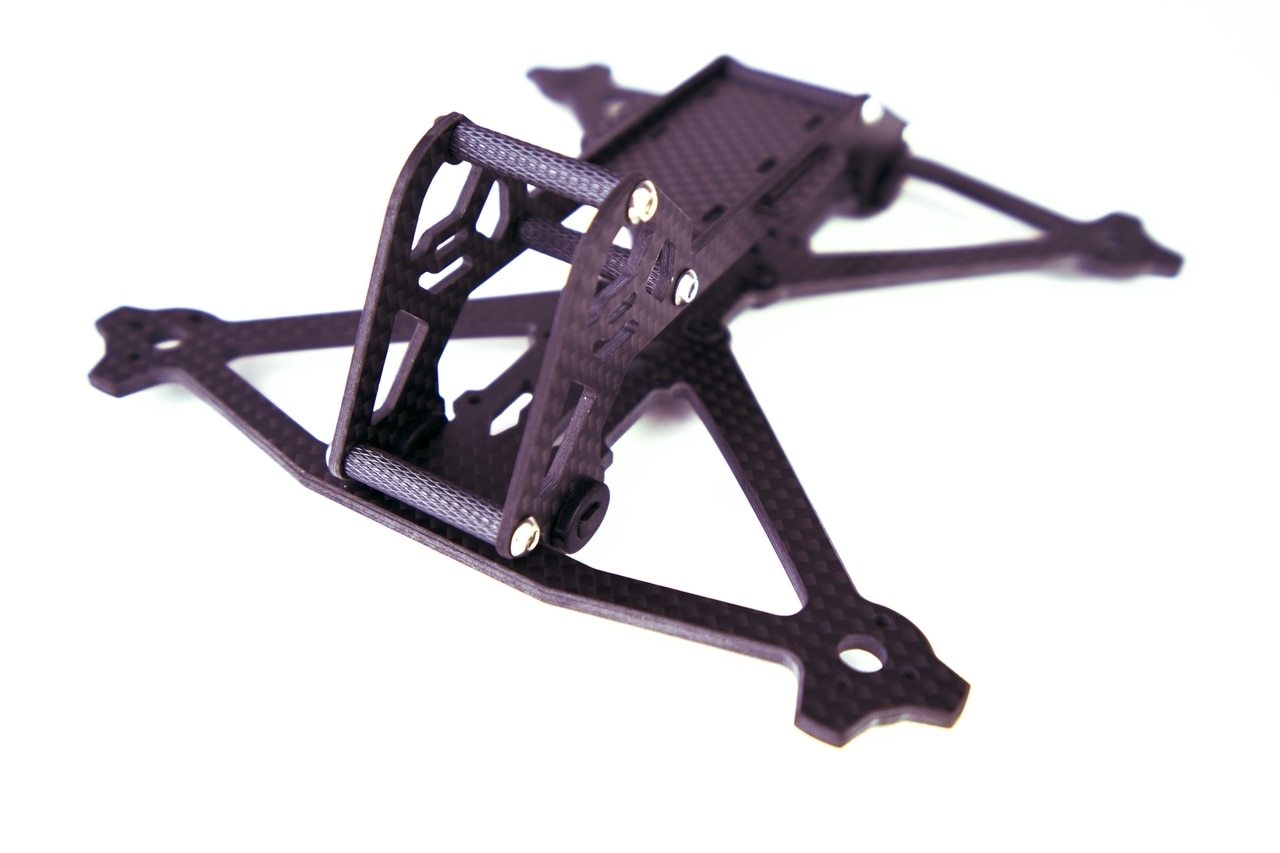

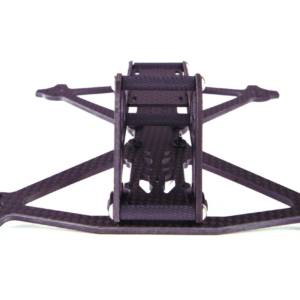

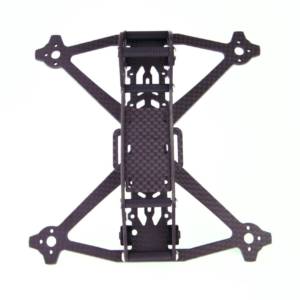

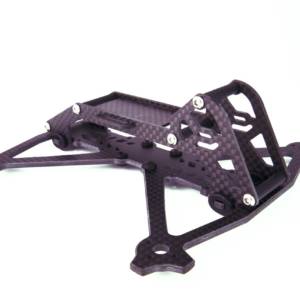

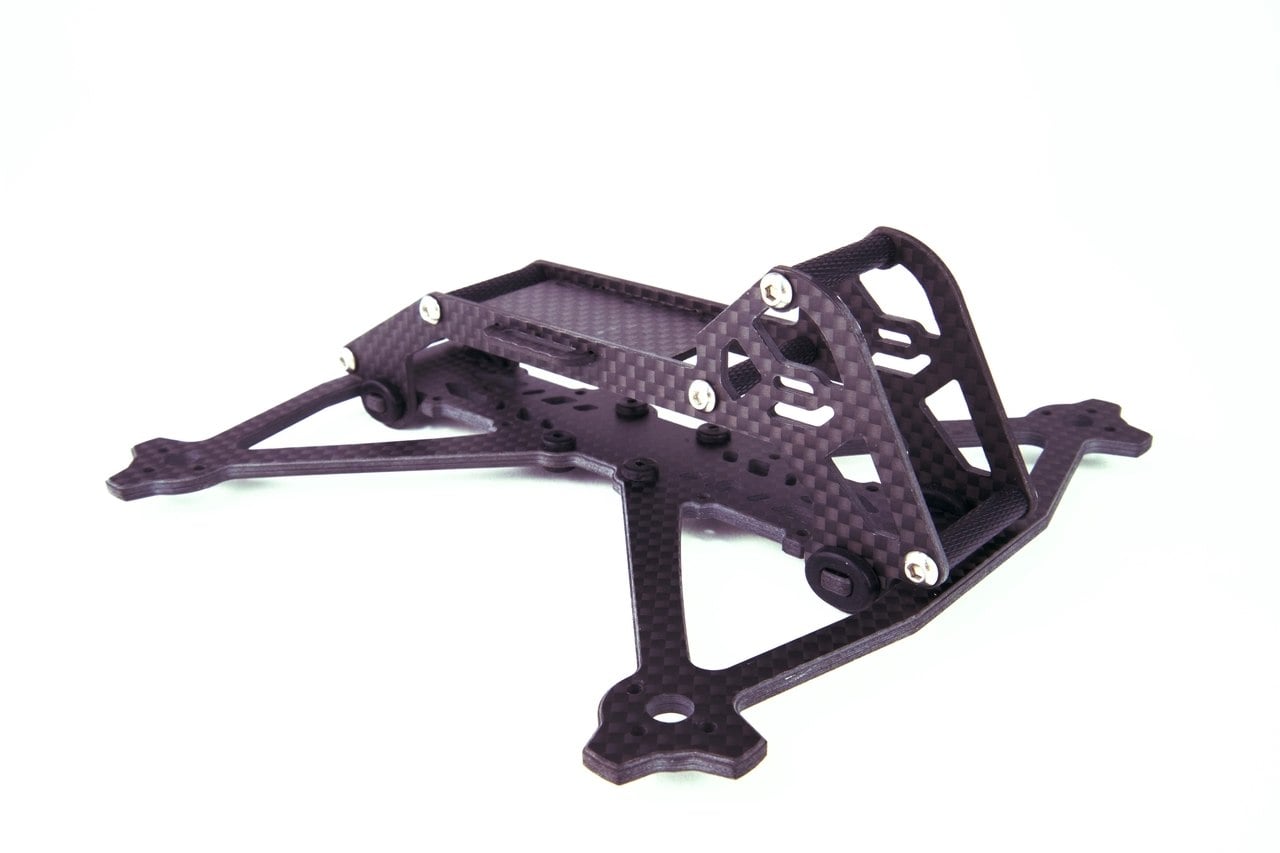

The Acrobrat isn’t just smooth; it’s tough. The 3mm unibody main plate is cut from premium bi-axial Toray carbon fiber, providing a rigid and durable core that can handle hard crashes. The iconic side “cages” not only give the frame its distinctive look but also offer excellent protection for your FPV camera and other electronics. With a stable 163mm wheelbase, it’s the perfect platform for carrying a naked GoPro or other lightweight HD action camera to capture stunning footage.
Key Features:
- Custom Polyurethane Dampeners: Provides exceptional vibration damping for incredibly smooth flight and clean HD video.
- Designed by Ummagawd: Carries the design pedigree of a renowned FPV pilot, ensuring excellent flight characteristics.
- 3mm Unibody Main Plate: Creates a stiff and durable core made from premium Toray carbon fiber.
- Protective Side Cages: Shields your FPV camera and electronics from impact during crashes.
- Optimized for 3″ HD Builds: A stable 163mm wheelbase and robust construction make it ideal for carrying a lightweight HD camera.
- 20x20mm Stack Mount: Compatible with modern, compact flight controllers and ESCs.
Specifications:
- Brand: Ummagawd
- Wheelbase: 163mm
- Main Plate Thickness: 3mm (Unibody)
- Side Plate Thickness: 2mm
- Battery Plate Thickness: 1.5mm
- Material: Bi-axial Toray Carbon Fiber
- Hardware: Stainless Steel

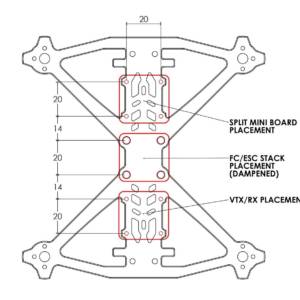

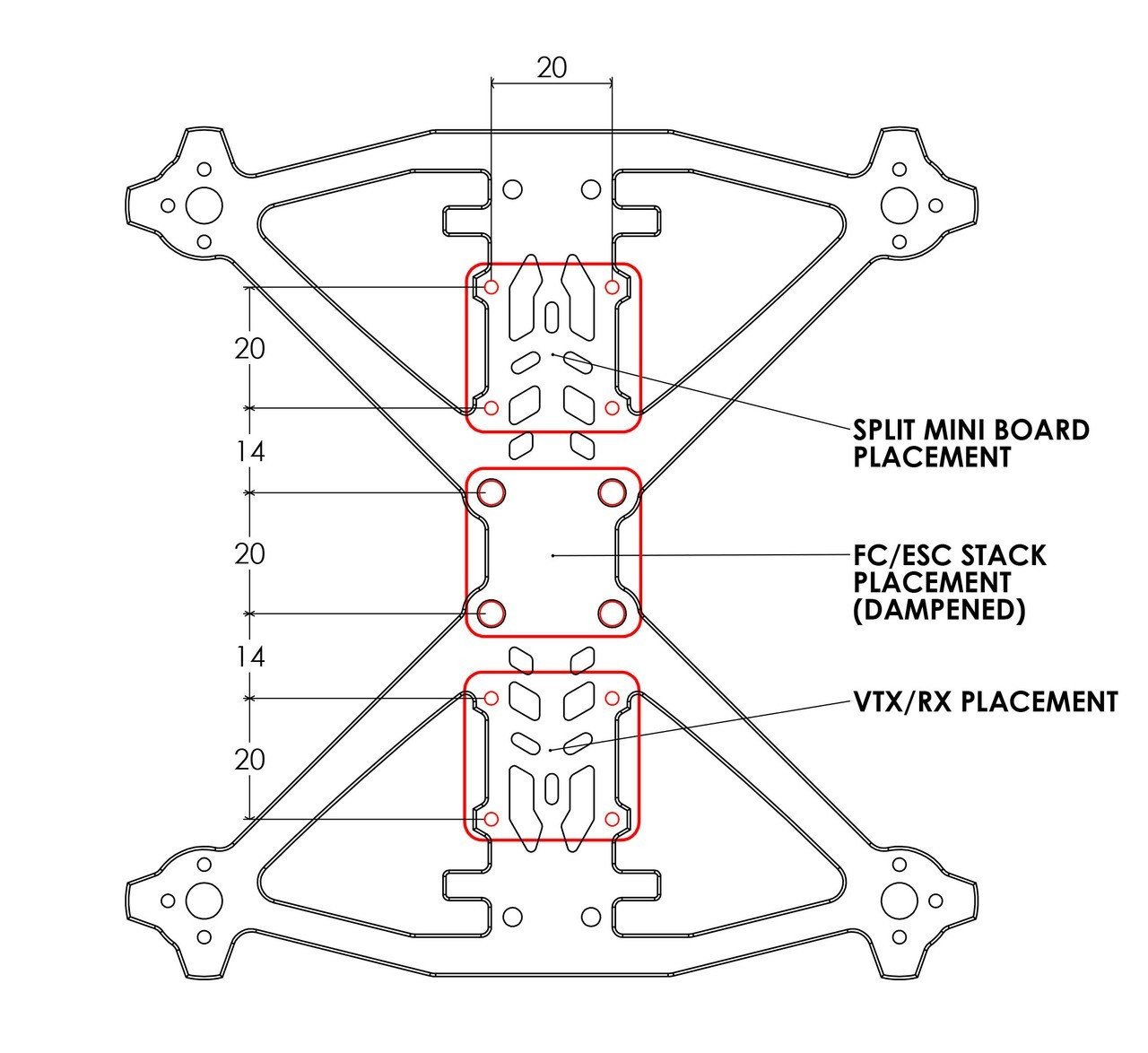

- FC/ESC Mounting: 20x20mm (M3)
- Motor Mounting: 12x12mm (M2)
- Dry Frame Weight: 54g

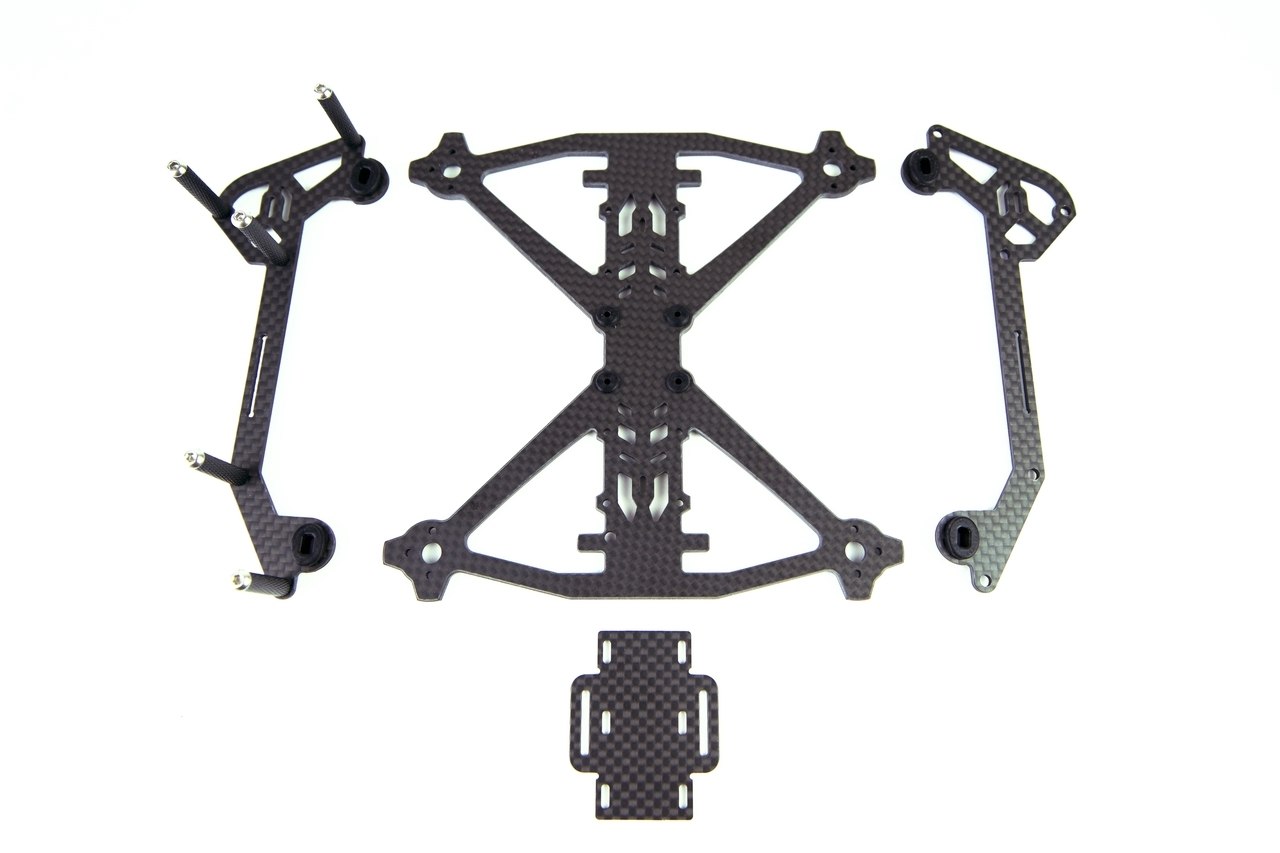

What’s in the Box?

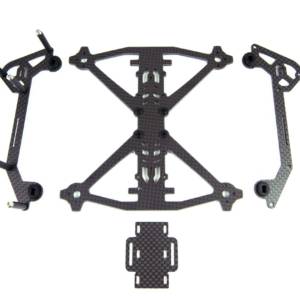

- 1x Ummagawd Acrobrat 3″ Frame Kit
- 1x Set of Custom Polyurethane Dampeners
- 1x Hardware and Standoff Set
- 1x Battery Strap
Check out www.acrobrat.com for a full story of how and why the Acrobrat was designed.
