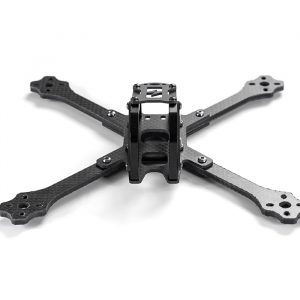

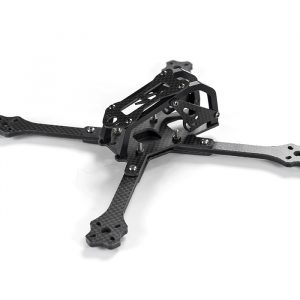

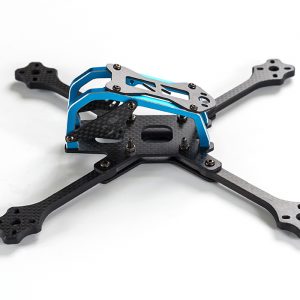

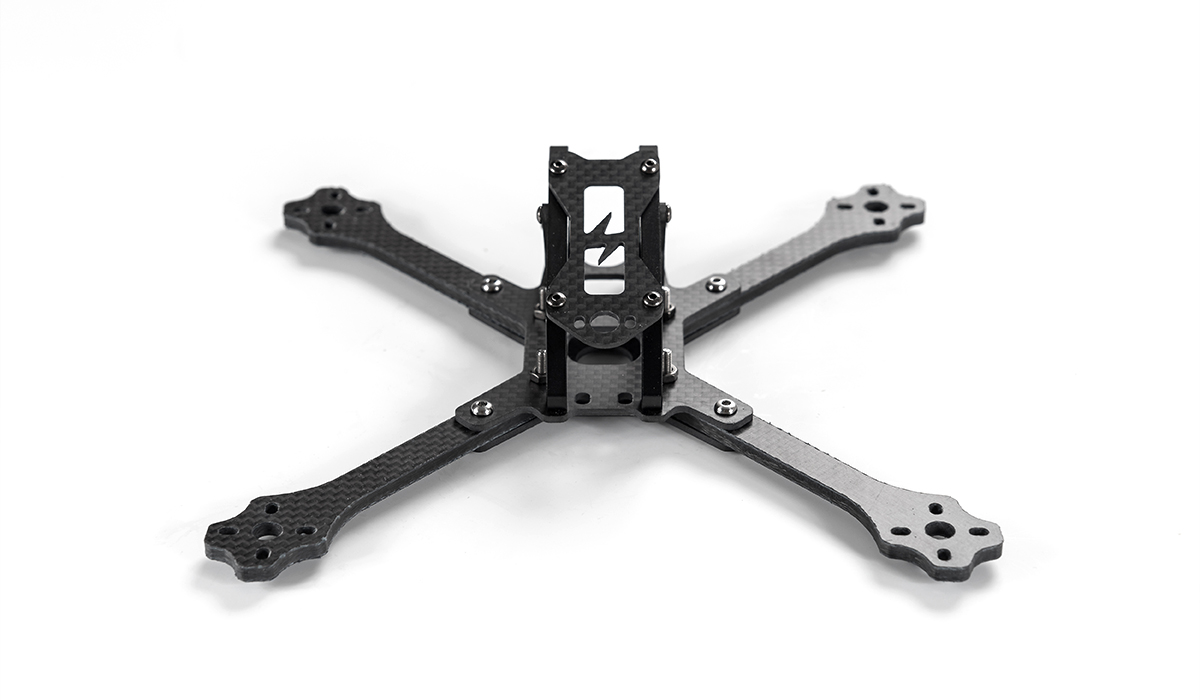

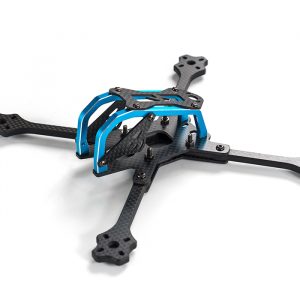

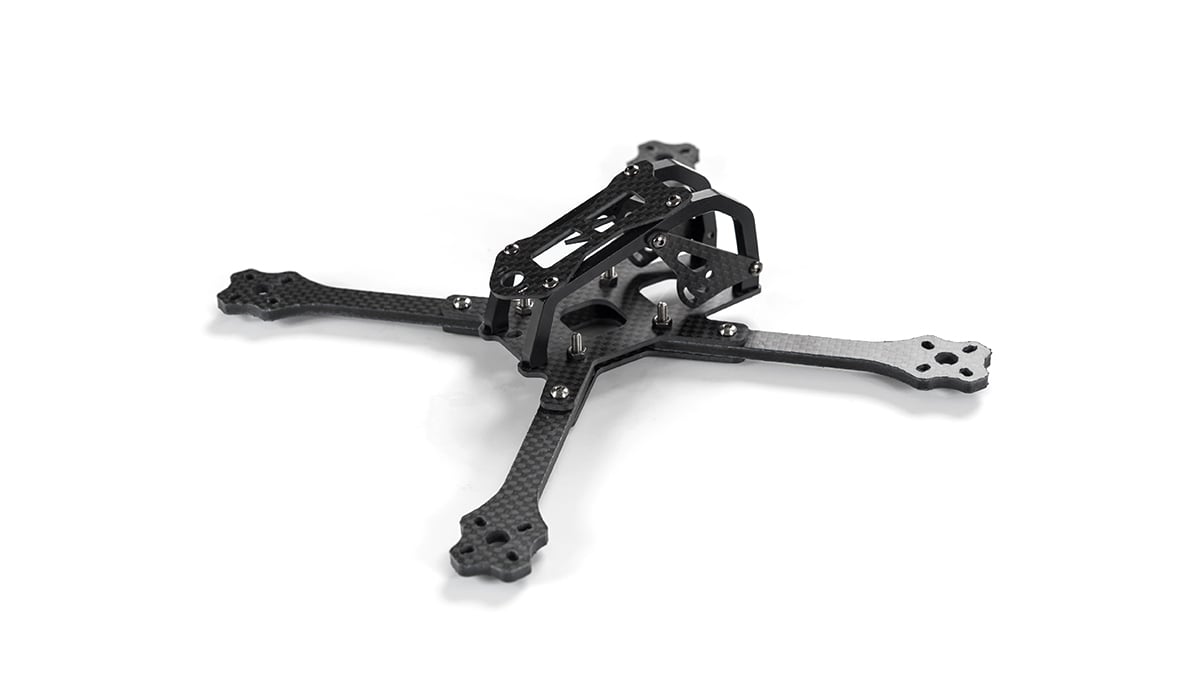

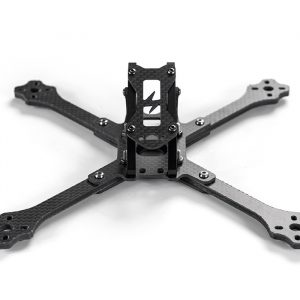

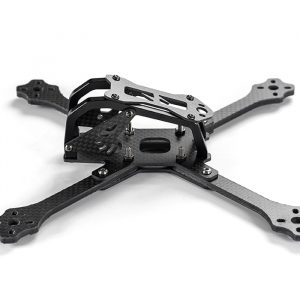

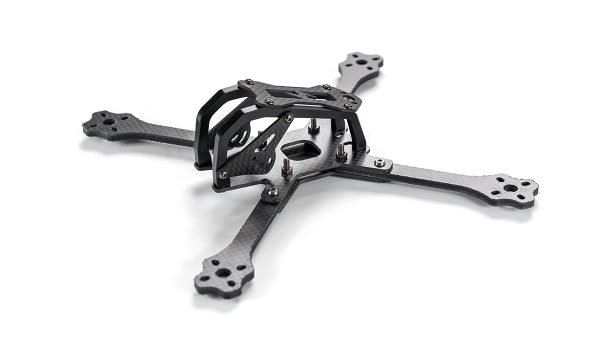

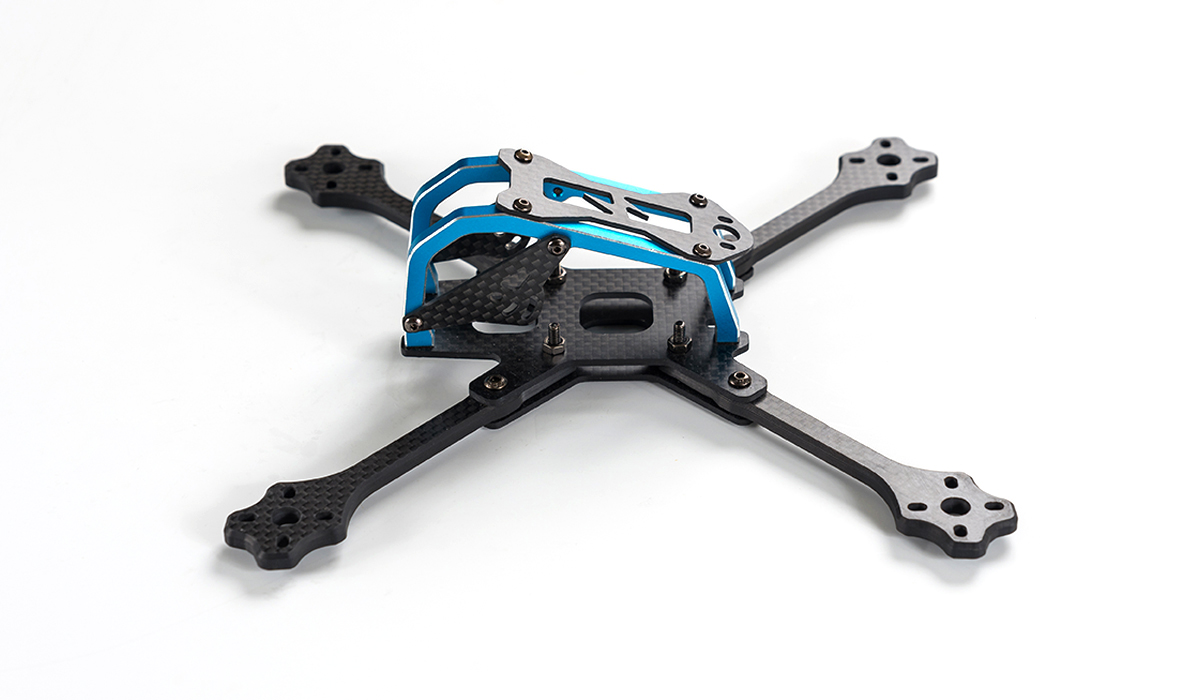

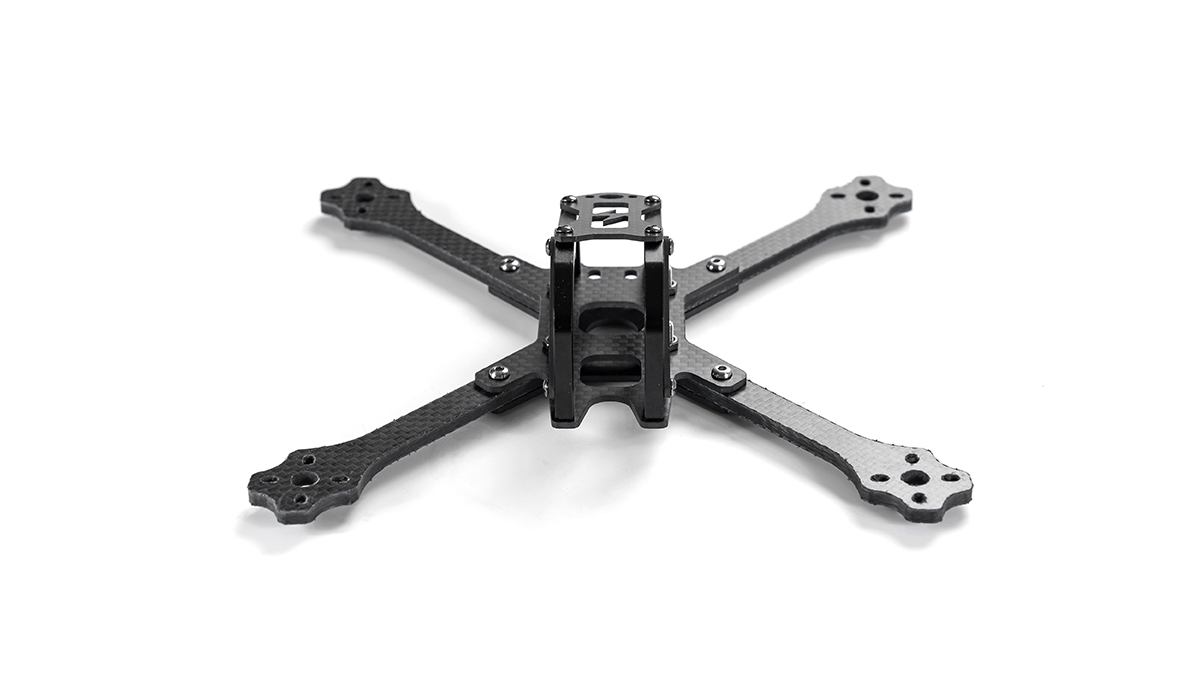

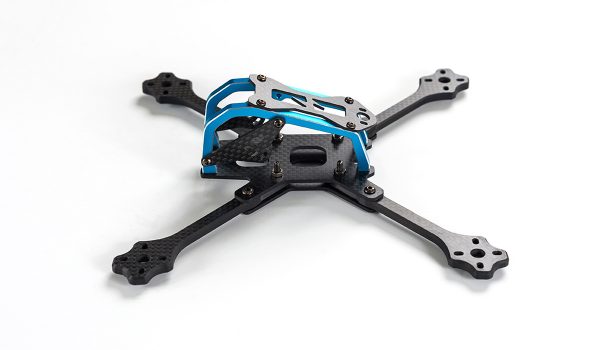

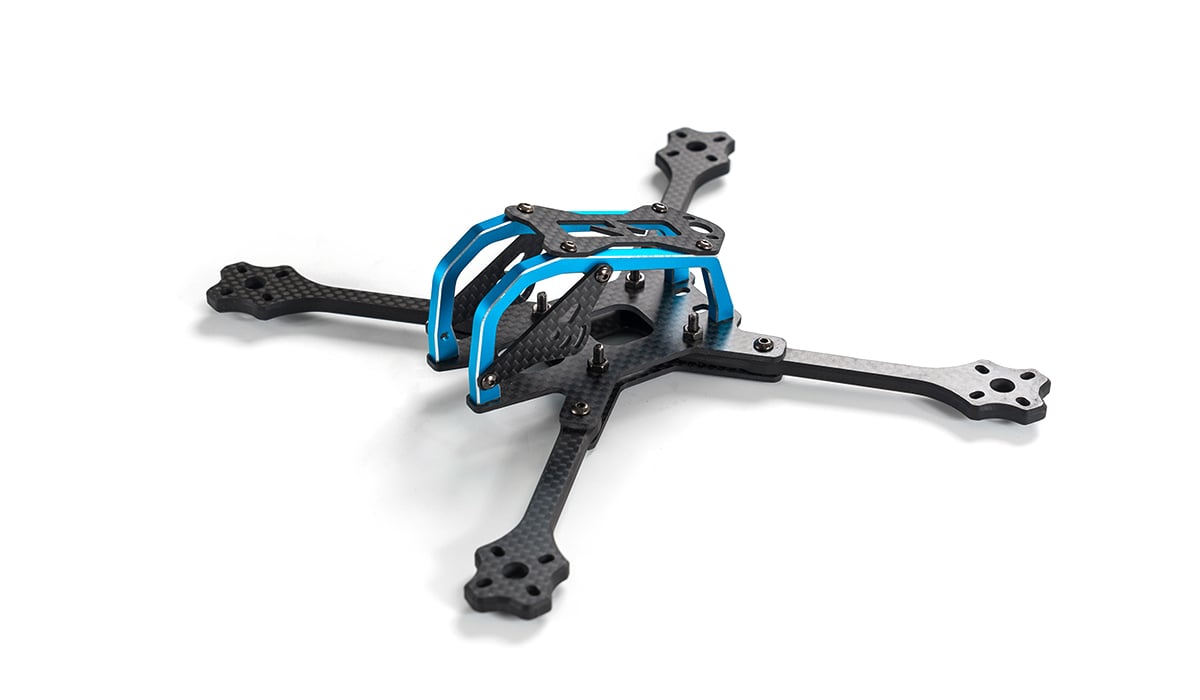

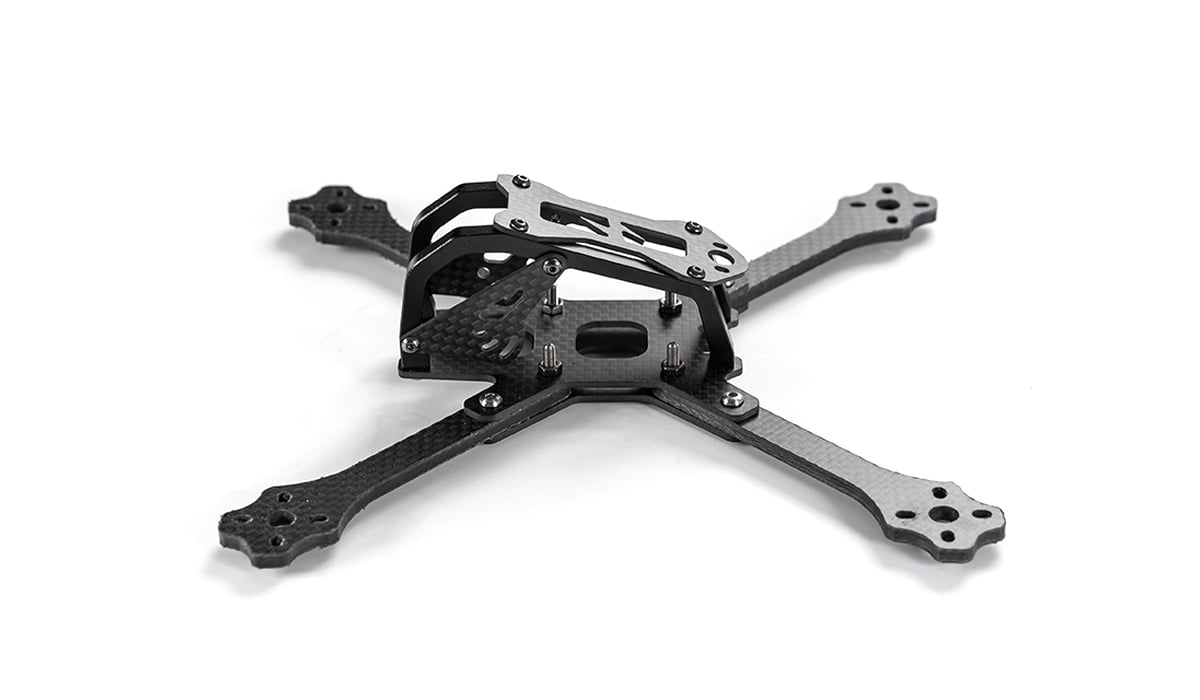

TransTEC Lightning Race 2 StrecH FPV Racing Frame

TransTEC Lightning Race 2 StrecH FPV Racing Frame

Check out all of our TransTEC products!

Build a competitive, high-performance racing machine with the TransTEC Lightning Race 2 Stretch FPV Racing Frame. This frame is engineered specifically for FPV drone racing, featuring a “Stretch X” geometry for superior high-speed handling and stability. Constructed from premium materials and designed for durability, it’s the perfect foundation for your next 5-inch FPV racing drone.

Engineered for the Racetrack The Lightning Race 2’s “Stretch X” configuration (longer from front to back) provides exceptional stability on the pitch axis. This results in smoother, more predictable cornering and reduced prop wash during aggressive maneuvers, giving you a competitive edge on the track. The separate body design with individual 5mm arms also allows for quick and easy repairs in the pits, a crucial feature for any serious FPV drone racer.

Premium, Durable Construction: This FPV drone frame is built to withstand the rigors of racing. It features full 3K carbon fiber plates, robust 5mm thick arms, strong 7075 CNC aluminum standoffs, and high-tensile 12.9 class YFS screws. This combination of quality components ensures your frame is both lightweight and incredibly durable, ready to handle gate clips and tough tumbles.

Key Features:

• Stretch-X Race Geometry: Engineered for high-speed stability and clean, predictable cornering.
• Durable 5mm Arms: Robust, individually replaceable arms provide excellent strength and crash resistance.
• Premium Materials: Full 3K carbon fiber, 7075 CNC aluminum, and 12.9 class YFS screws create a rigid and reliable airframe.
• Includes RGB Light: Comes with a free programmable RGB light to customize your build’s look.
• Easy Maintenance: Quick-swap arms make for fast and easy repairs at the racetrack.

Recommended Parts (Not Included)

• Flight Controller: $30.5\text{x}30.5\text{mm}$ F4/F7 (e.g., Omnibus F4)
• Motor: 2205 – 2306 size ($\sim 2600\text{KV}$)
• ESC: $30\text{A}$ 4-in-1
• Camera: Standard size 28mm (e.g., Runcam Swift or Eagle)
• Propeller: 5-inch (e.g., T5045)
• Battery: 4S $1300-1500\text{mAh}$

Specifications

• Model: TransTEC Lightning Race 2 (Stretch Version)
• Wheelbase: $235\text{mm}$
• Material: Full 3K Carbon Fiber
• Arm Thickness: $5\text{mm}$ (9mm wide)
• Bottom Plate Thickness: $2\text{mm}$
• Top/Side Plate Thickness: $2\text{mm}$
• Standoffs: 7075 CNC Aluminum Alloy
• Screws: 12.9 Class YFS
• Weight: $104\text{g}$
• FC Mounting: $30.5\text{x}30.5\text{mm}$

What’s in the Box?

• 1x TransTEC Lightning Race 2 Stretch Frame Kit
• 1x Programmable RGB Light
• 1x Battery Strap
