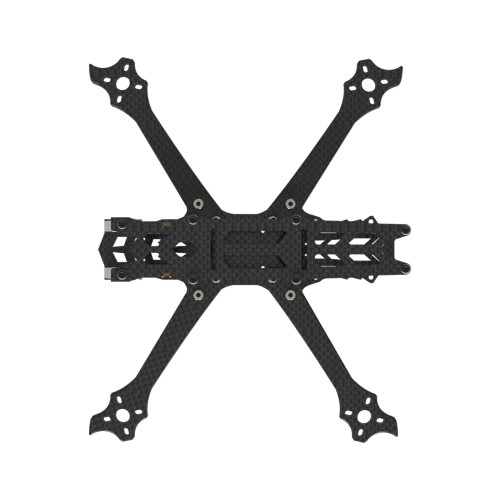

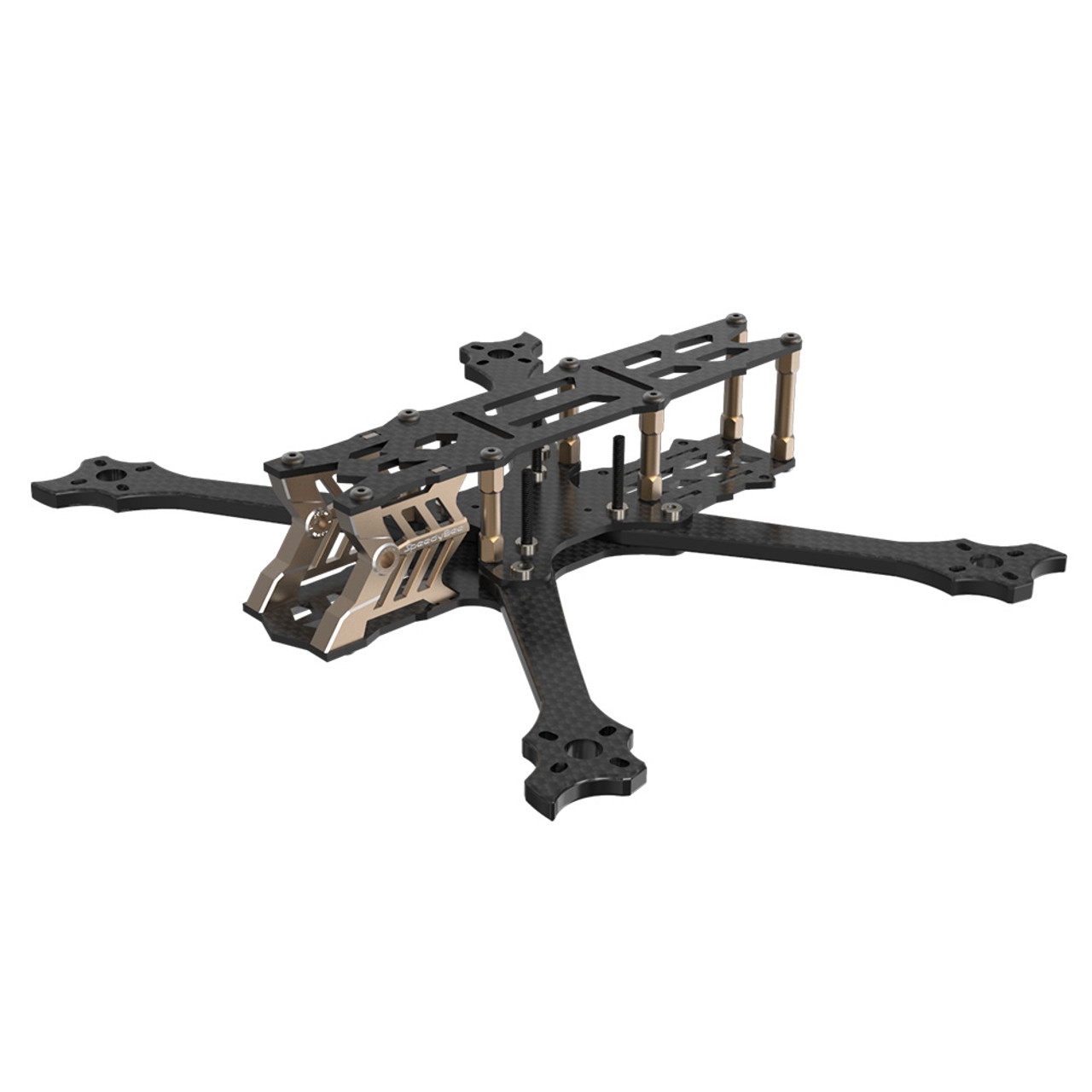

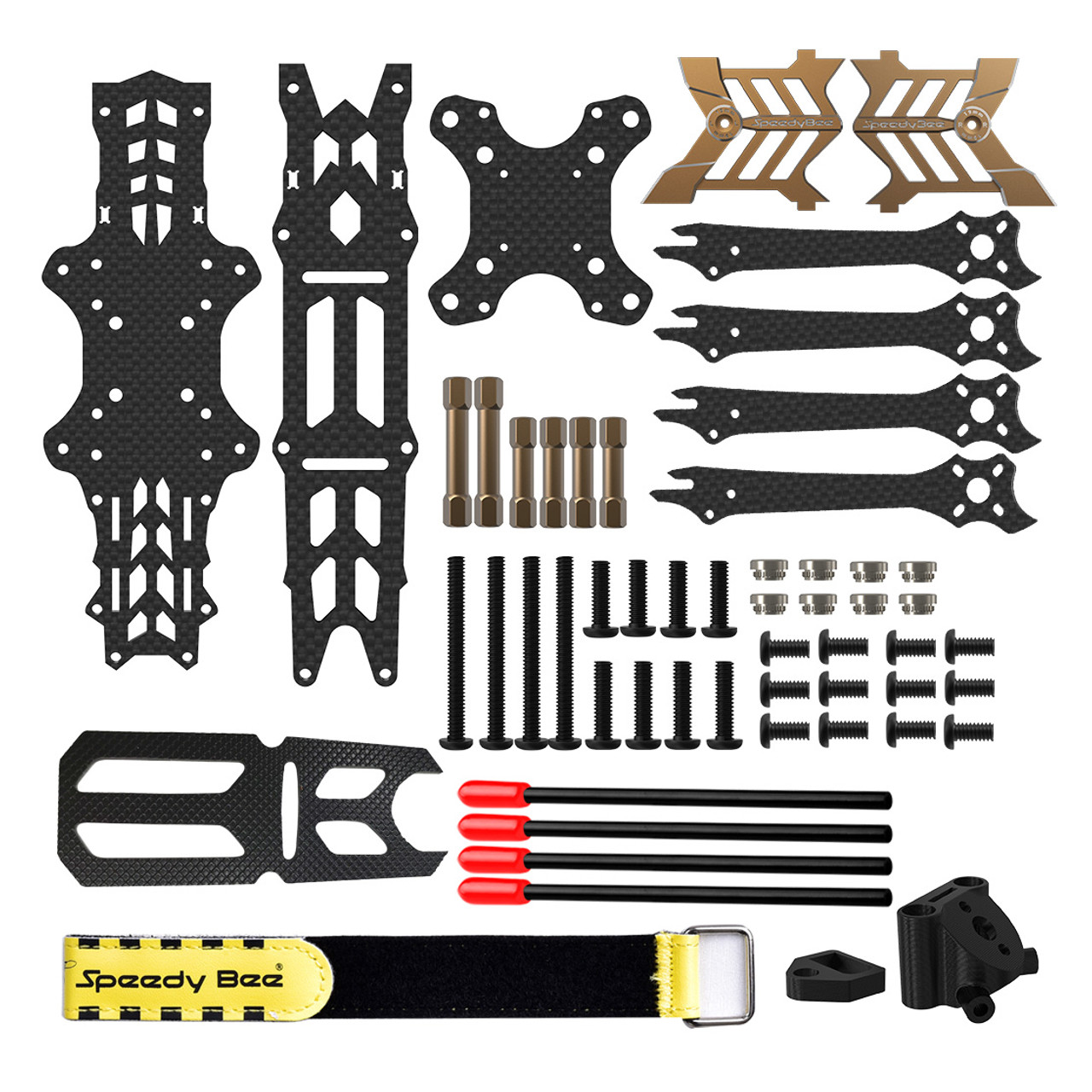

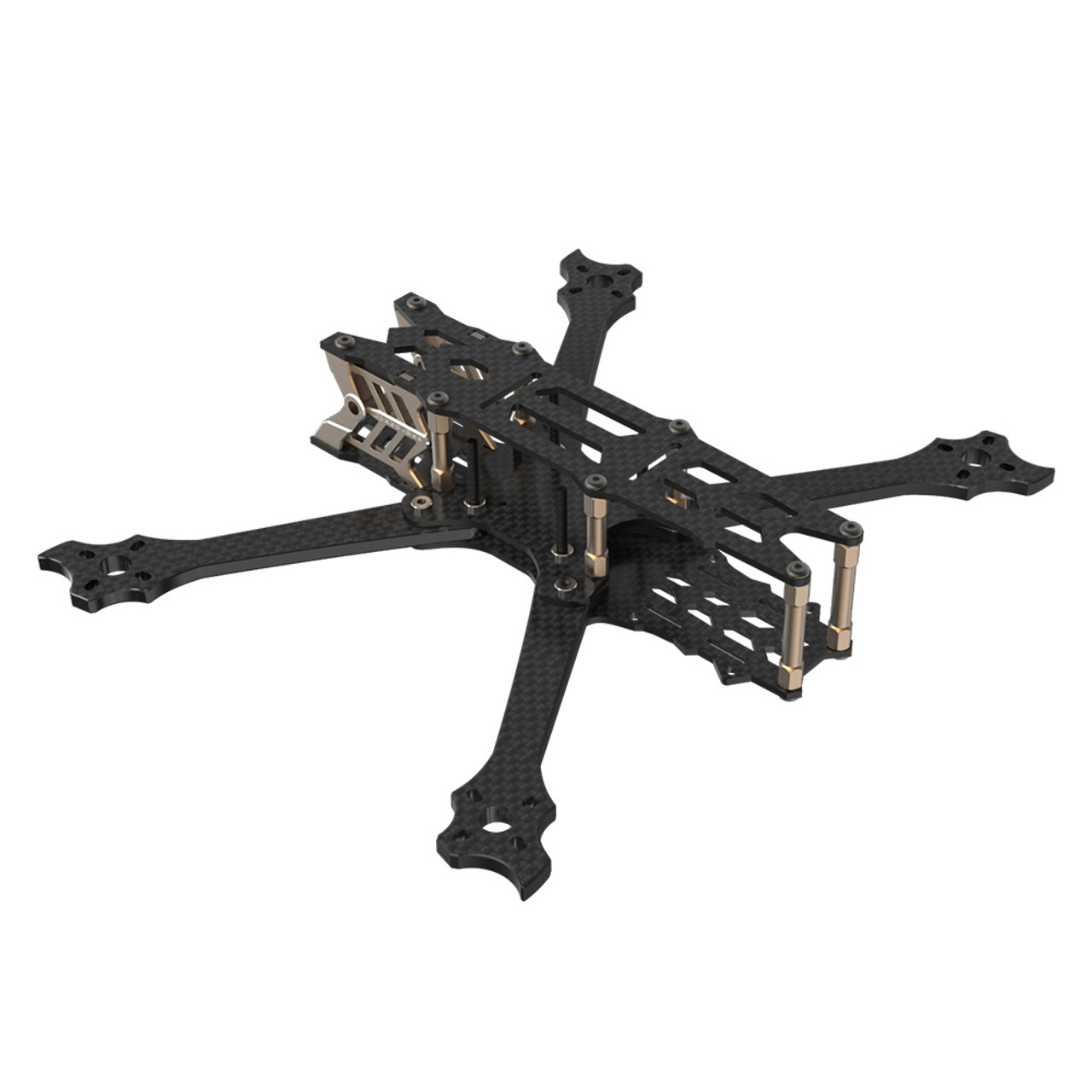

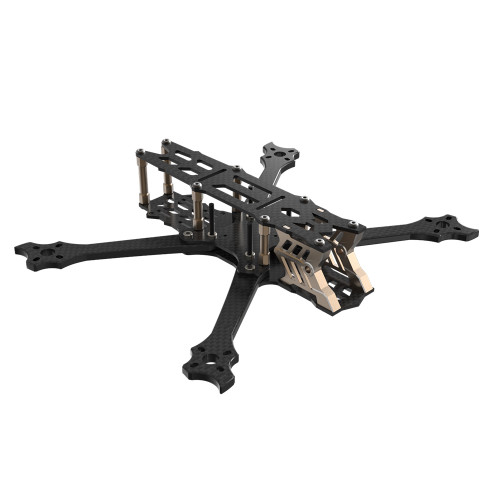

SpeedyBee FS225 V2 – 5 inch Frame
***This is the SpeedyBee FS225 v2, here is the v1 frame if you are interested.
![SpeedyBee FS225 V2 SpeedyBee FS225 V2](https://www.myfpvstore.com/wp-content/uploads/2022/09/img_63164f4695b68.jpg)
![SpeedyBee FS225 V2 SpeedyBee FS225 V2](https://www.myfpvstore.com/wp-content/uploads/2022/09/img_63164f4738cb0.jpg)
![SpeedyBee FS225 V2 SpeedyBee FS225 V2](https://www.myfpvstore.com/wp-content/uploads/2022/09/img_63164f47be50b.jpg)
![SpeedyBee FS225 V2 SpeedyBee FS225 V2](https://www.myfpvstore.com/wp-content/uploads/2022/09/img_63164f4851581.jpg)
![SpeedyBee FS225 V2 SpeedyBee FS225 V2](https://www.myfpvstore.com/wp-content/uploads/2022/09/img_63164f48d6213.jpg)
![SpeedyBee FS225 V2 SpeedyBee FS225 V2](https://www.myfpvstore.com/wp-content/uploads/2022/09/img_63164f4995fa4.jpg)
Specifications
Model | SpeedyBee FS225 V2 |
Wheelbase | 225mm |
Weight | 119g |
Frame Height | 36mm |
Camera fixed width | 19mm/20mm |
Material | Carbon Fiber |
Top plate thickness | 2mm |
Heap bottom plate thickness | 2mm |
Tail bottom plate thickness | 2mm |
Arm thickness | 5mm |
Flight Control fixed Size | 30.5*30.5/20*20mm |
Transmitter fixed size | 30.5*30.5/20*20mm(20*20/Sliding Mounting) |
DJI Transmitter | Extra TPU Printer Needed |
