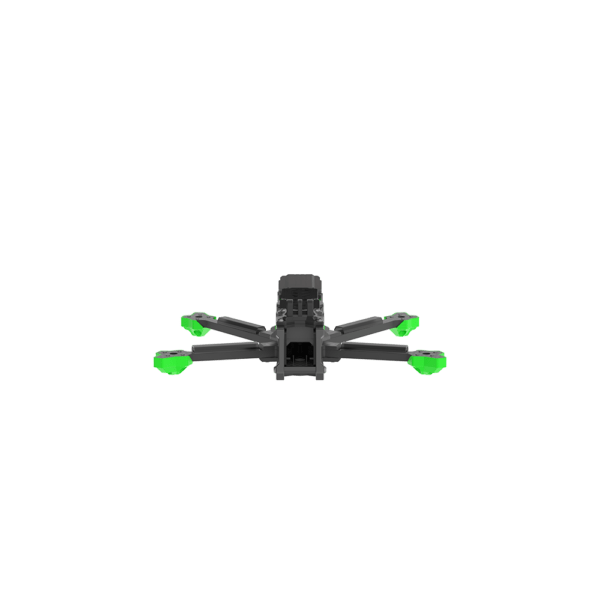

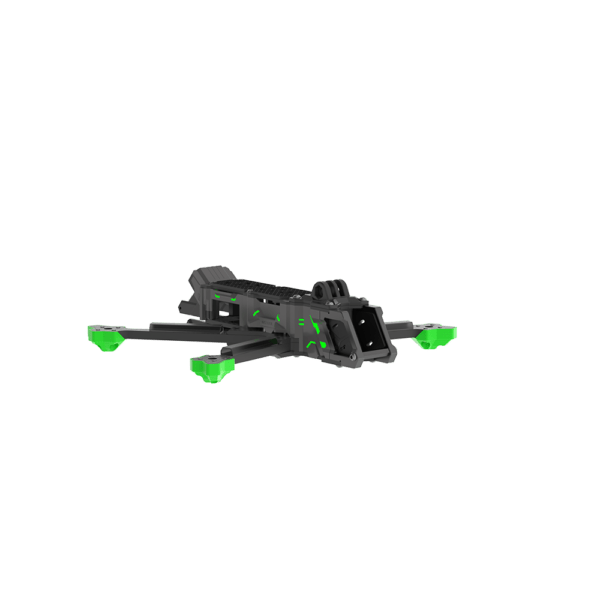

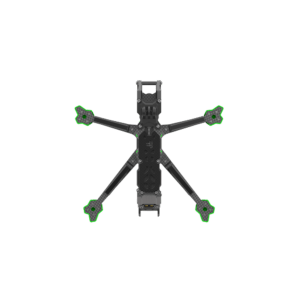

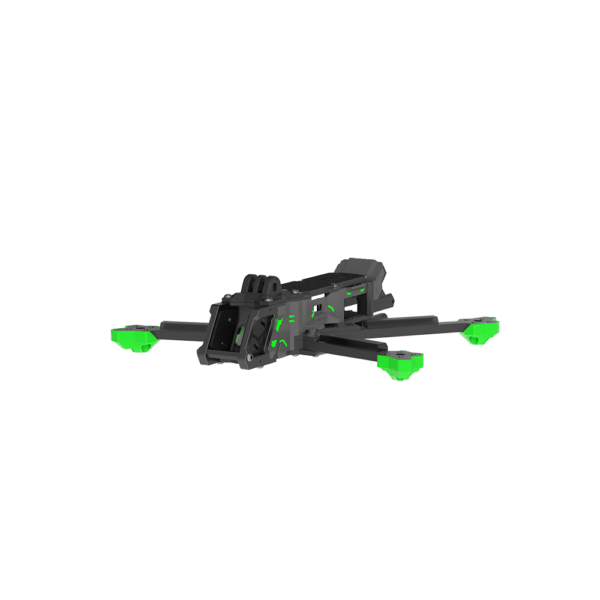

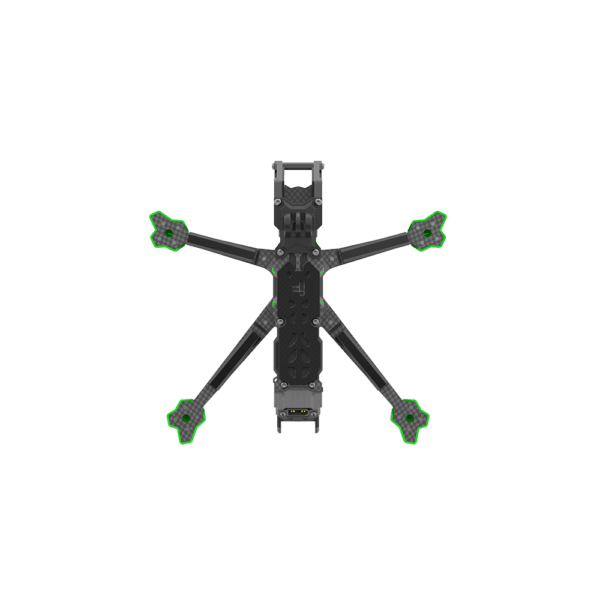

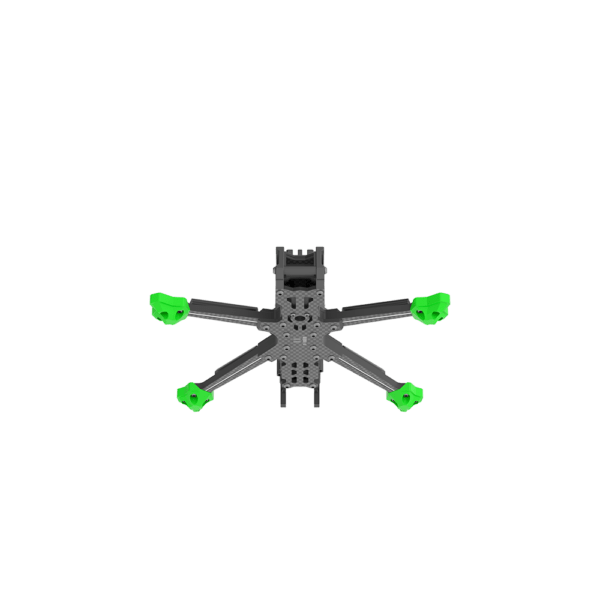

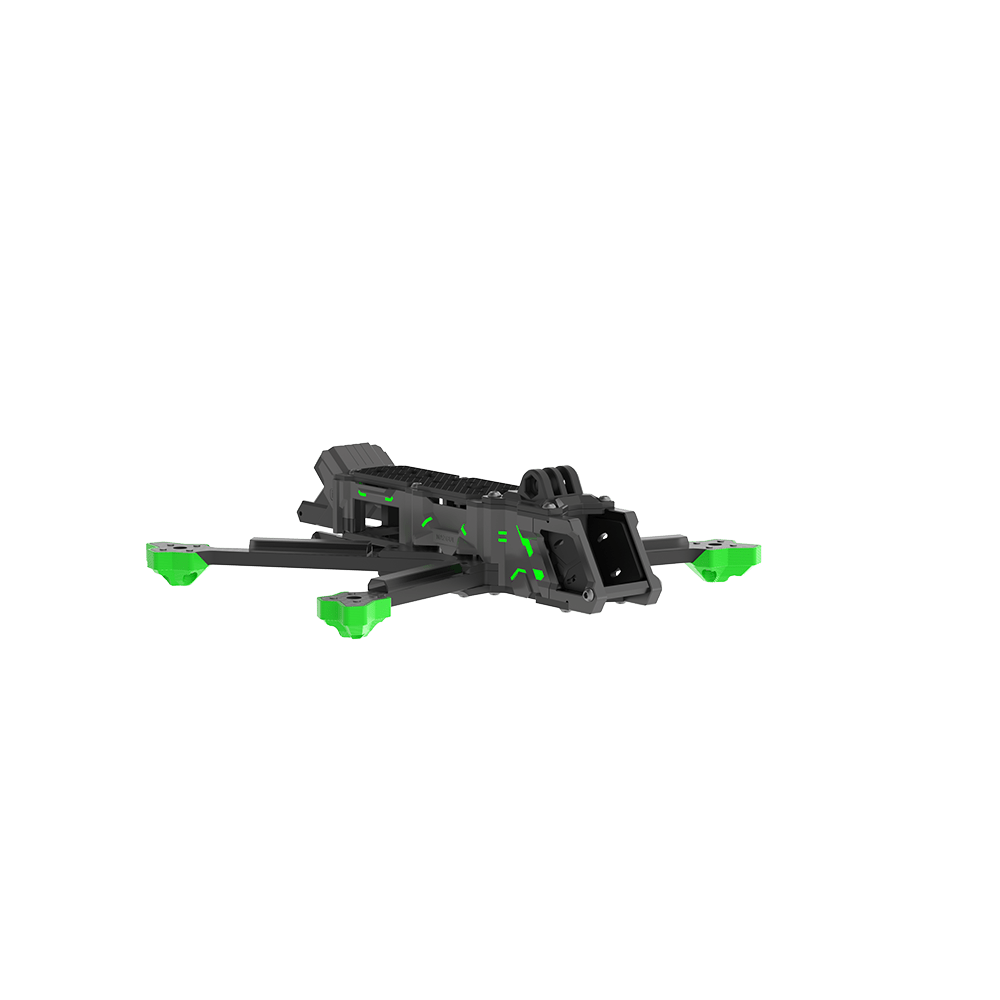

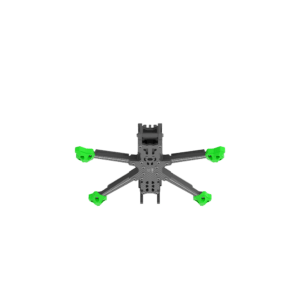

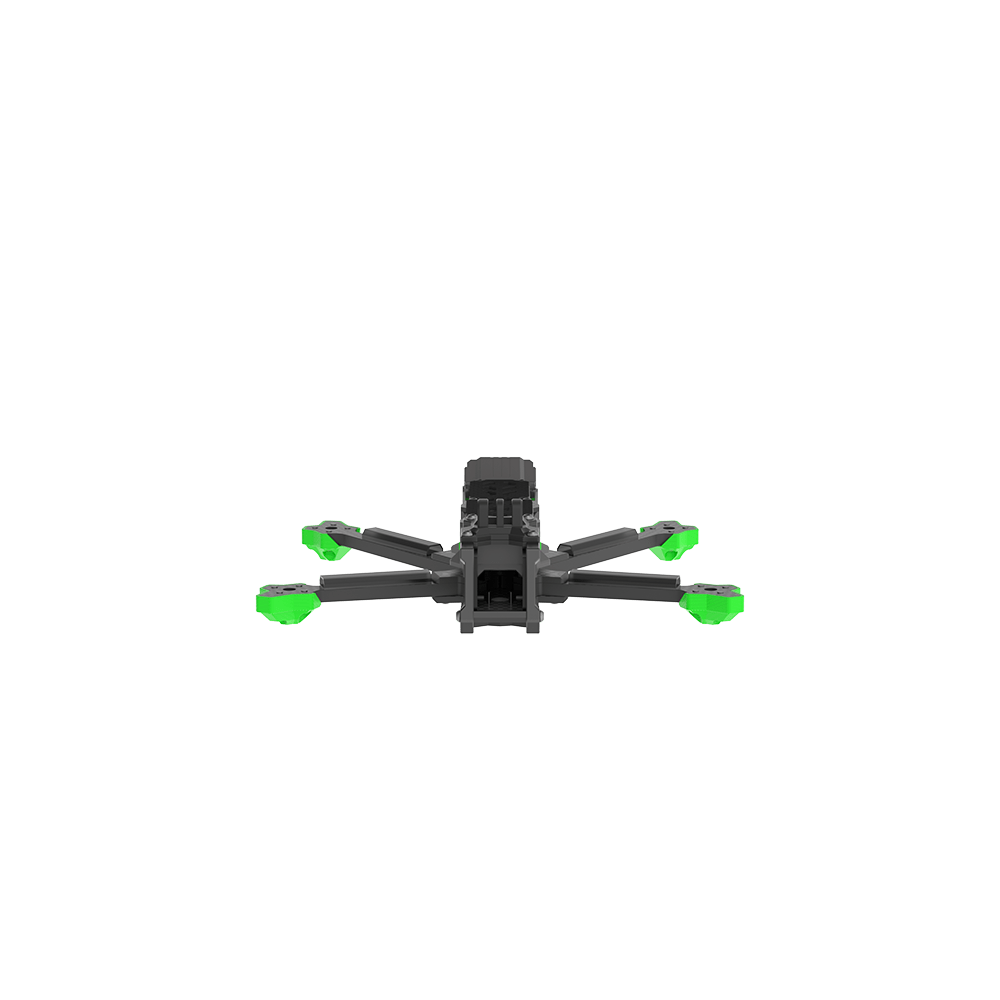

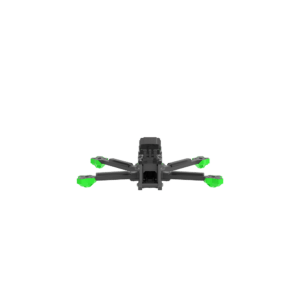

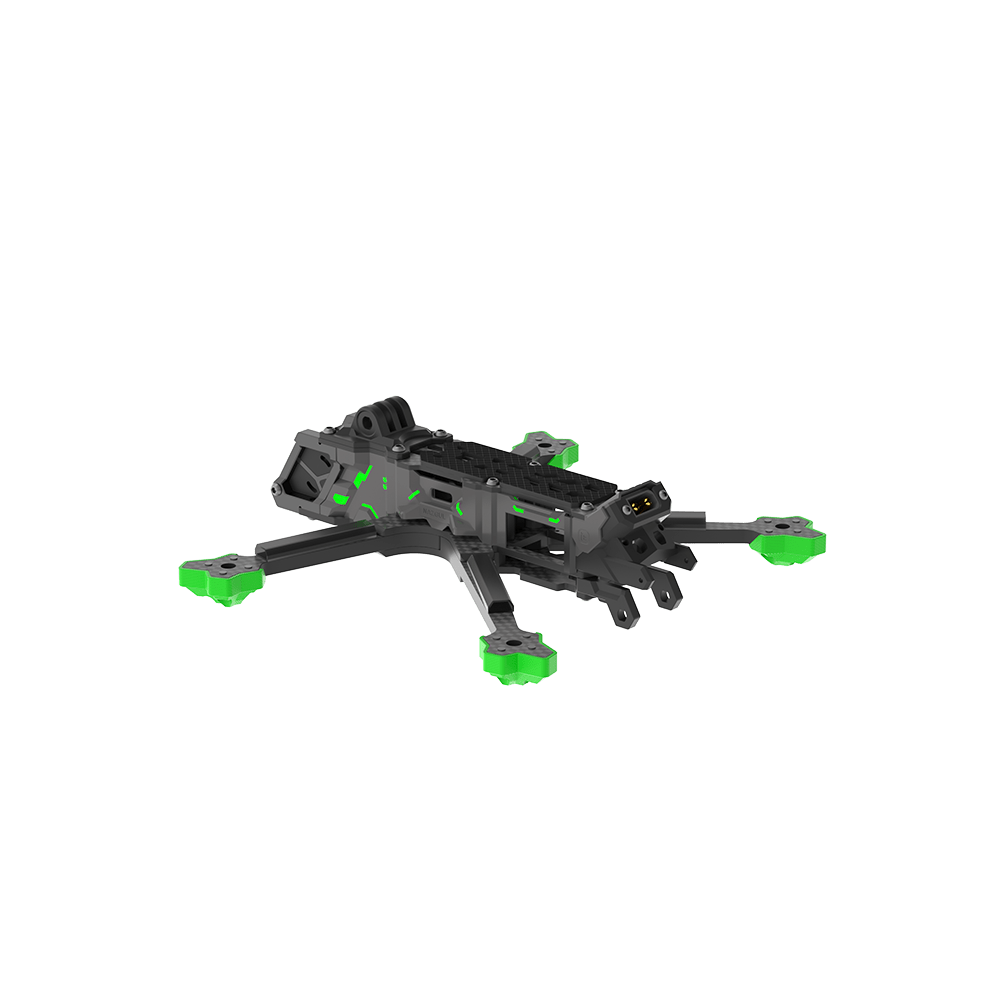

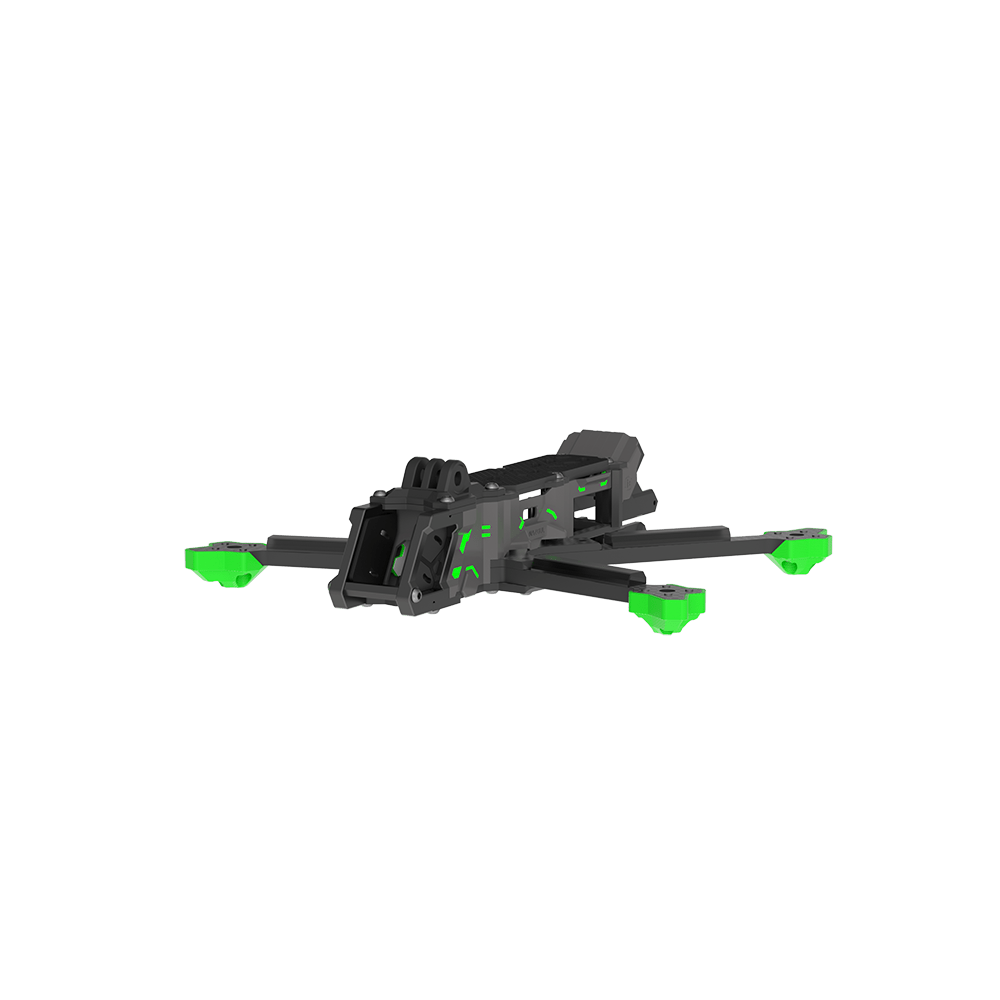

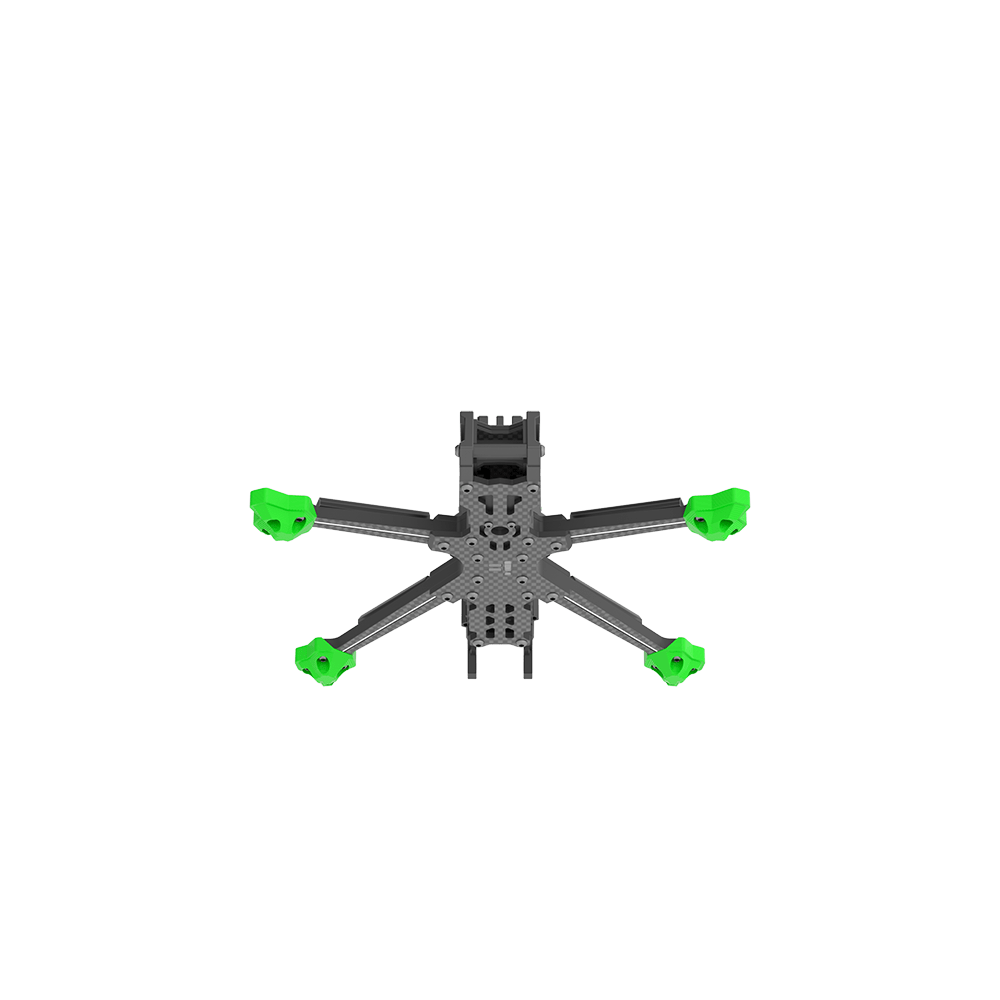

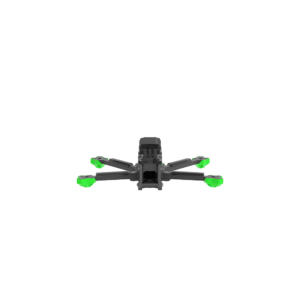

Build a cutting-edge 5-inch cinematic drone with the iFlight Nazgul Evoque F5D V2 O4 Frame Kit. This is the latest evolution of the acclaimed Nazgul Evoque frame, re-engineered with specific upgrades for a perfect, seamless integration with the flagship DJI O4 Pro HD Air Unit. Featuring a robust Deadcat geometry for a “no props in view” experience, maximum protection, and a host of thoughtful upgrades, this is the ultimate platform for your next-generation digital FPV build.

Optimized for the DJI O4 Pro Air Unit. The Evoque F5 V2 O4 edition is purpose-built to be the perfect home for the DJI O4 system. The upgrade includes a new, purpose-built camera mount and redesigned silicone side panels to securely house and protect the O4 Pro camera and VTX module. This thoughtful integration ensures you can leverage the full potential of the high-definition, low-latency O4 system. The frame also remains fully compatible with the older DJI O3 Air Unit, offering future-proof flexibility.

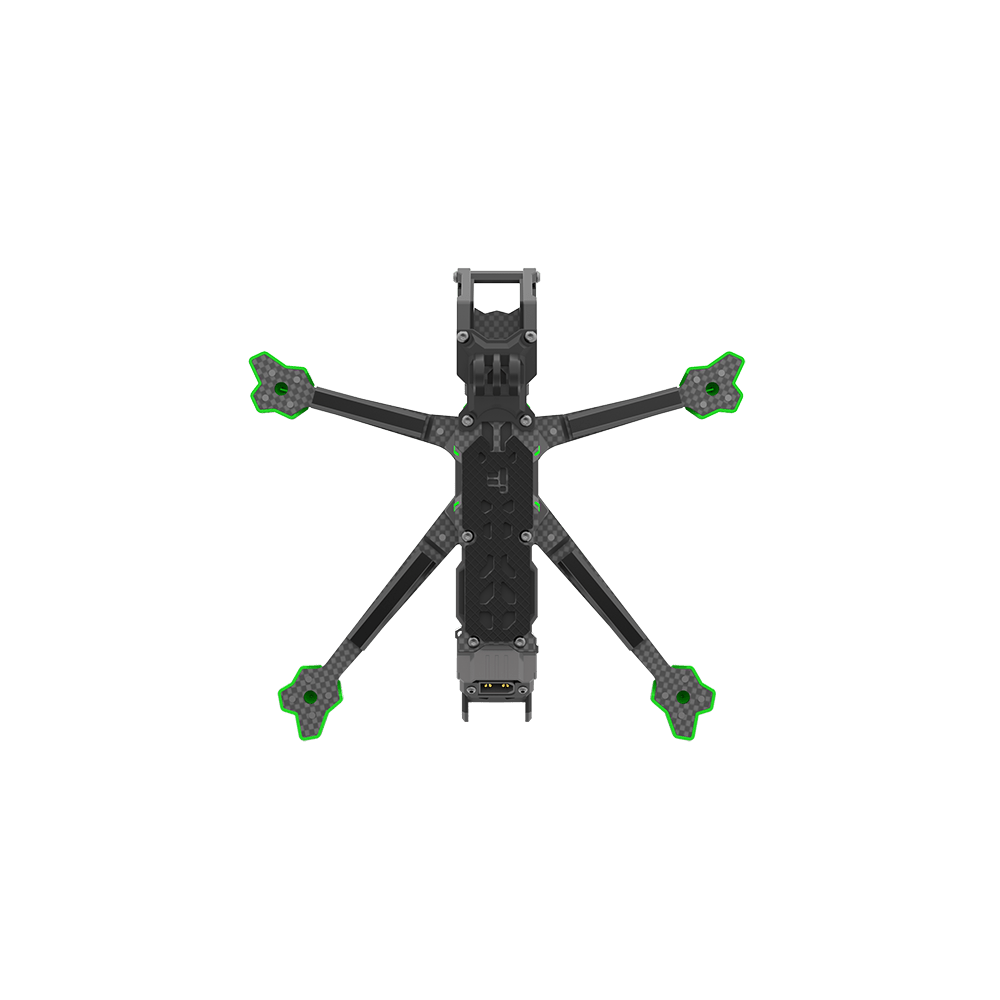

Cinematic Deadcat Design The “DC” or Deadcat geometry pushes the front arms further back and out of the camera’s sight. This guarantees a completely clear, unobstructed view for your FPV and HD cameras, making it the ideal choice for capturing immersive footage without distracting propellers in the shot.

Key Features:

• Upgraded for DJI O4 Pro: Includes a new camera mount and silicone side panels for a perfect fit with the DJI O4 Air Unit Pro.
• Deadcat Geometry: Ensures a “no props in view” experience for clean, professional-looking cinematic and freestyle footage.
• Maximum Protection: Robust 6mm arms, 3mm plates, and a full set of included TPU guards make this frame incredibly durable.
• Versatile Component Mounting: Accommodates $20\text{x}20\text{mm}$ flight stacks and $25.5\text{x}25.5\text{mm}$ VTXs for wide compatibility.
• Comprehensive Kit: Includes all necessary carbon, hardware, a full TPU set, and O4-specific antenna pigtails to complete your build.

Specifications (Deadcat Version)

• Product Name: Evoque F5D V2 O4 Frame Kit
• Frame Wheelbase: $223\text{mm}$
• Frame Dimension (L×W×H): $190\times 136\times 36\text{mm}$
• Arm Thickness: $6\text{mm}$
• Bottom Plate Thickness: $3\text{mm}$
• Top Plate Thickness: $2\text{mm}$
• Upper Plate Thickness: $3\text{mm}$
• FC Mounting: $20\text{x}20\text{mm}$
• Motor Mounting: $16\text{x}16\text{mm}$
• VTX Mounting: $25.5\text{x}25.5\text{mm}$
• Weight: $249\text{g}\pm 5\text{g}$

Packing List

• 1 x Evoque F5 V2 O4 Frame Kit (Deadcat)
• 2x IPEX to RP-SMA Antenna Pigtails
• 1 x Dual Antenna TPU Mount
• 1 x GoPro TPU Base Mount
• 1 x Screw Bag
• 4 x TPU Arm Guards
• 2 x Anti-slip Battery Pads
• 2 x Battery Straps
