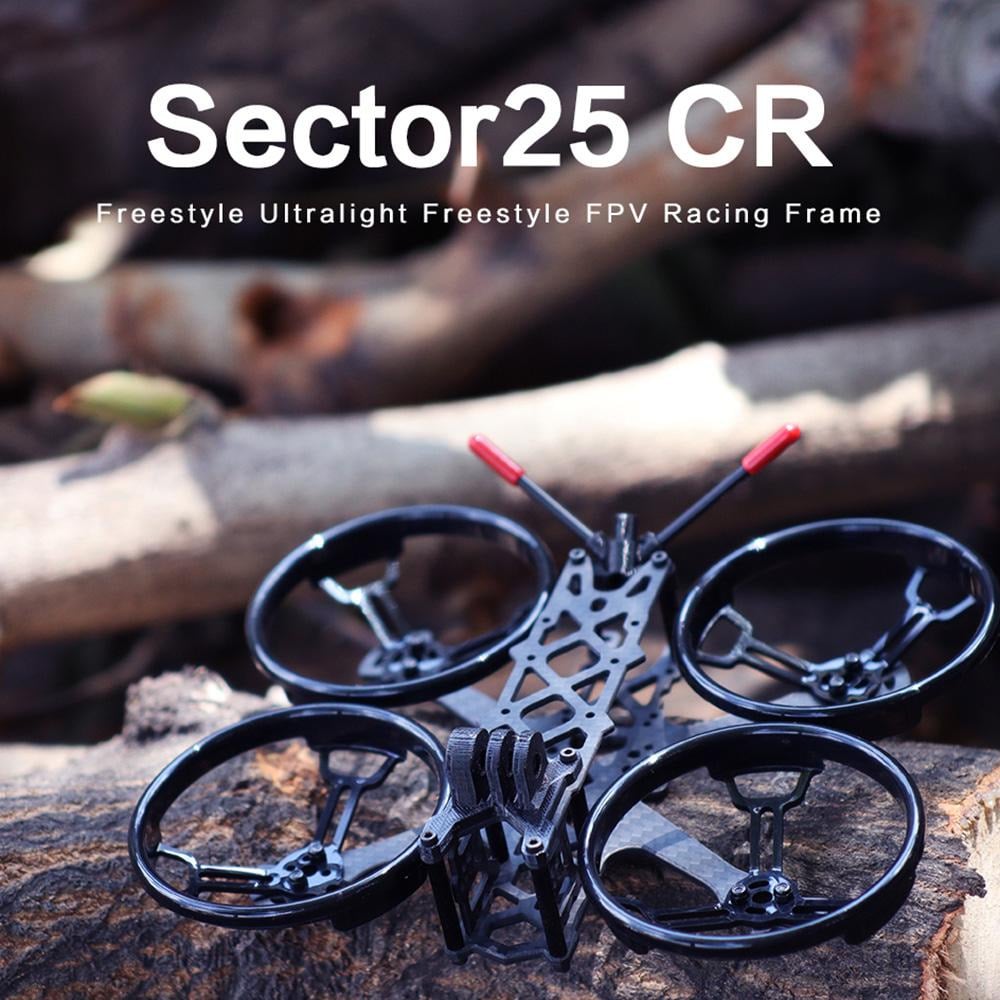

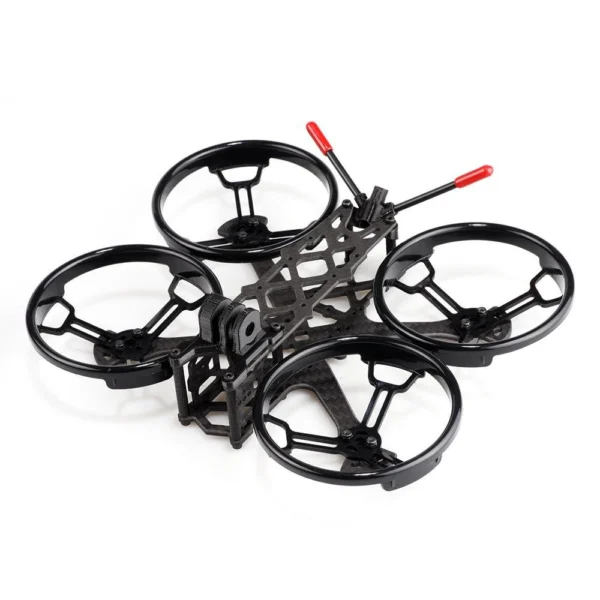

HGLRC Sector25CR 2.5 inches FPV Ultralight Cinewhoop / Freestyle Frame
Check out all of our HGLRC Products!
Features:
*Supports (20×20-25.5×25.5) mounting holes
*Supports both AIO/stack installing at the same time, ultra-lightweight and has a super long flight time.
Material:3K carbon fiber
Type:2.5 inches Frame
Wheelbase:132mm
Size:136 * 116mm
Top plate:2mm
Bottom plate:2.5mm
Space:25mm
FC mounting hole:20x20mm/25.5×25.5mm
Support camera:19*19mm
Weight: 34.5g (Without propeller guards)
Shipping list:
4 x 2.5 Inch Propeller Protective Guard
1x 2mm top plate
1x 2.5mm bottom plate
2x 1.5mm camera side plate
6x M2*25mm black mesh aluminum columns
2x M2*23mm black mesh aluminum columns
1x round head screw M5*20
4x round head screws M3*25
1x round head screw M3*20
4x round head screws M2*20
8x cup head screws M2*7
6x round head screws M2*6
2x round head screws M2*4
1x M5 self-locking nut
5x M3 self-locking nuts
4x M2 self-locking nuts
4x M3*8 shock absorbing balls
4x M2*4 shock absorption columns
2x battery straps 10x150mm
1x battery non-slip pad
1x TPU naked GoPro mount
1x TPU naked GoPro fixing mount
1x TPU antenna base
Recommended parts:(not included)
Flight control:Zeus25/F722 MINI
Motor:14XX/16XX/18XX
ESC:Zeus25A-40A
Camera:19X19mm
Propeller:2.5-3 inches
Battery:4S 450mAh 650mAh
