CORONITA 3″ – Pick Your Color

See all of our BQE Products!

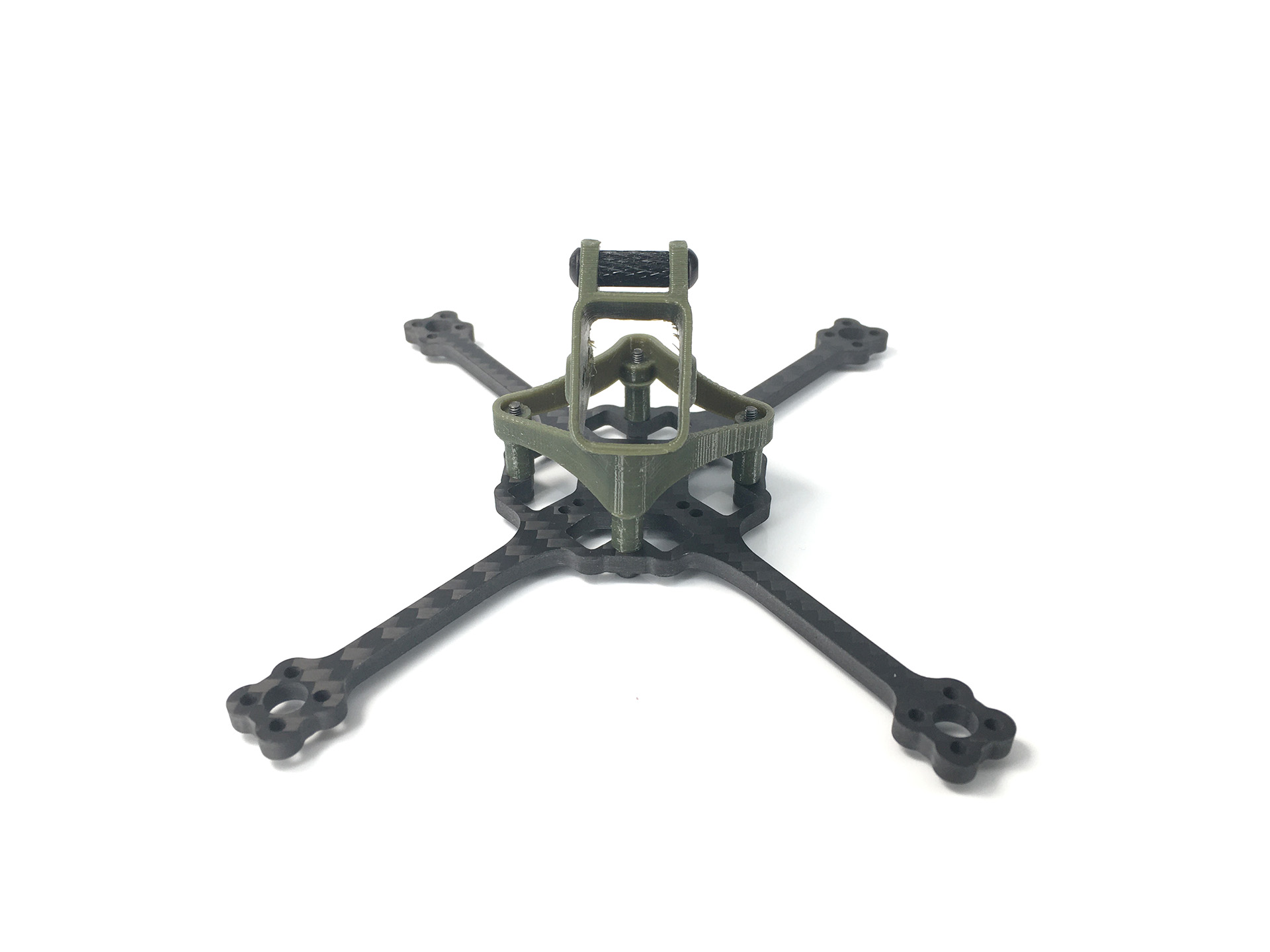

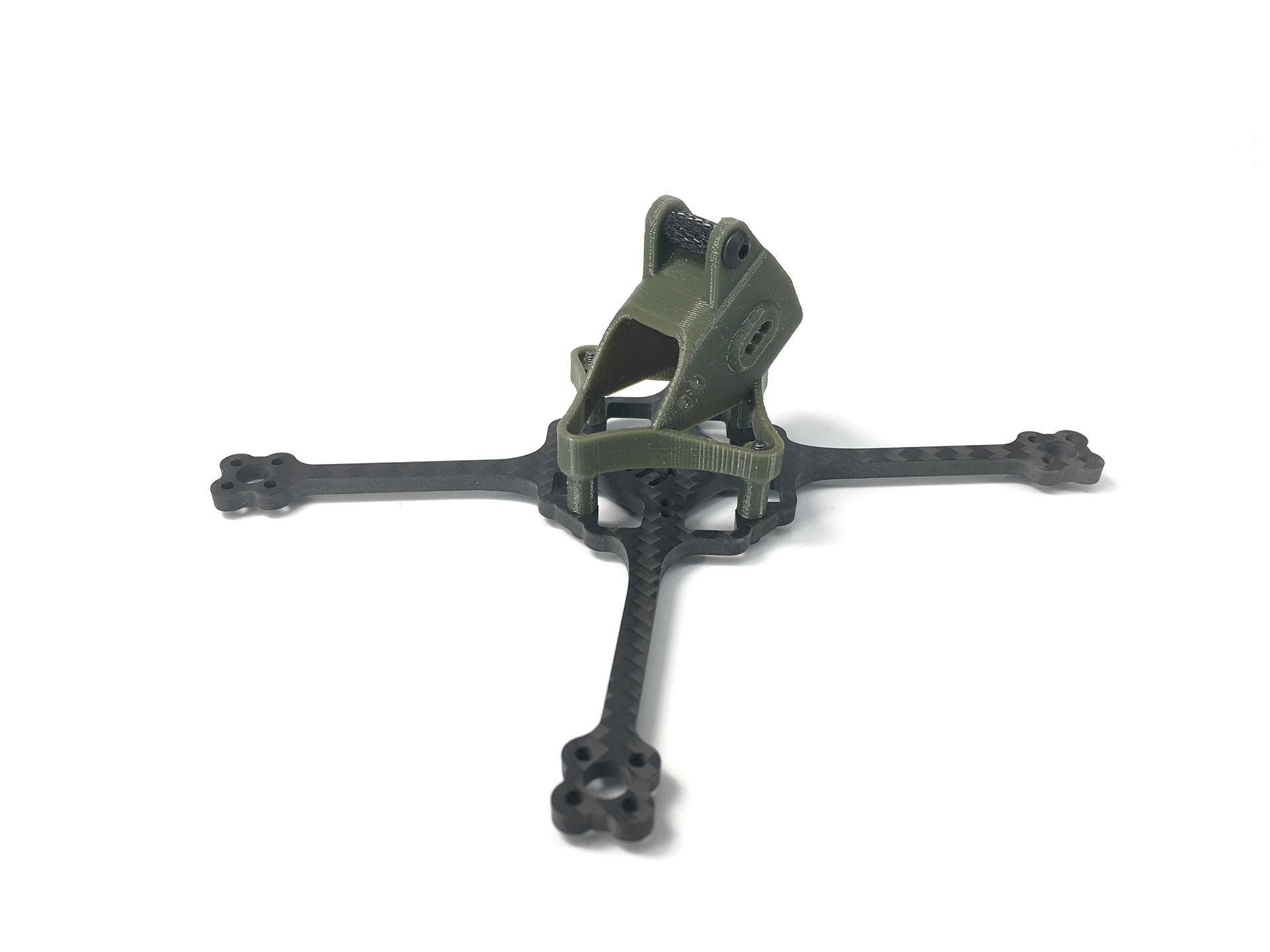

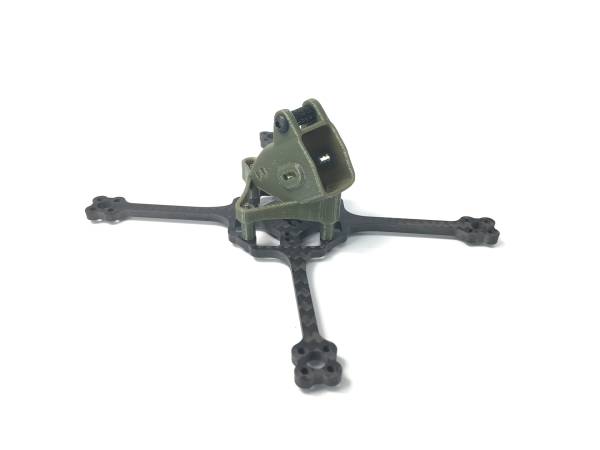

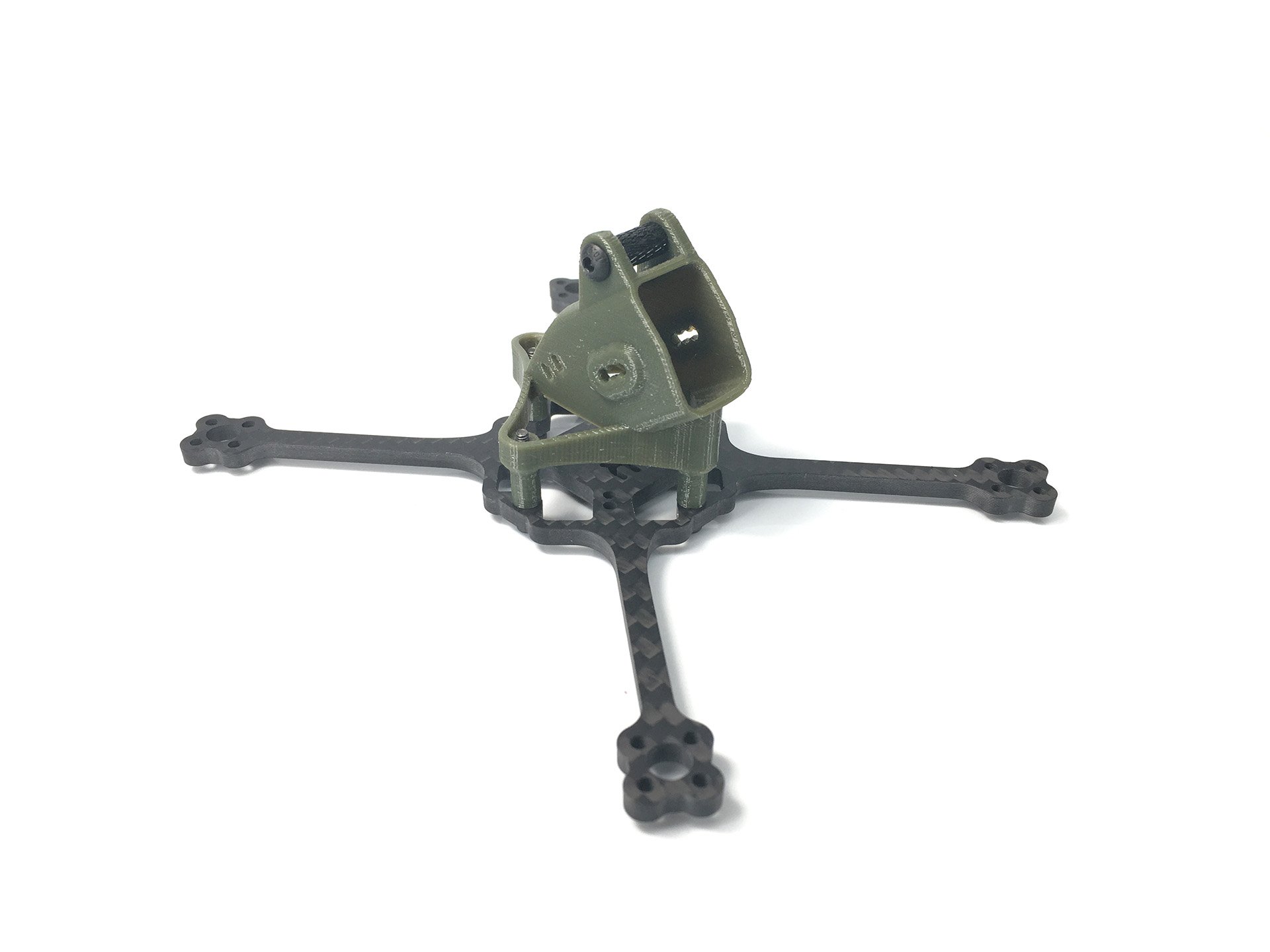

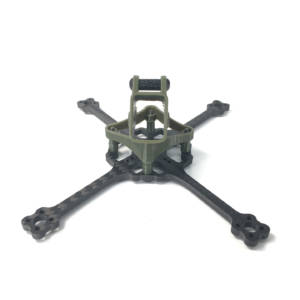

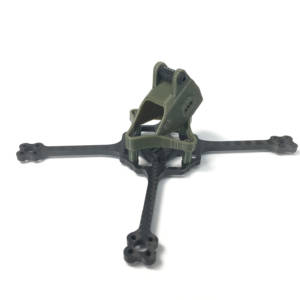

Designed for toothpick-style AIO flight controllers and nano FPV cameras, the BQE Coronita is a lightened, modernized remix of the classic Corona frame. This 3-inch frame is pocket-sized, features a low-drag profile, and is fast as hell. It’s the perfect platform for building an ultralight gate-crusher for garage races or a nimble backyard freestyle machine.

Unmatched Versatility The Coronita is a true chameleon. You can configure the unibody plate to be either a Stretch X for more stability in forward flight, or a Wide X for a more aggressive feel in rolls. It’s sized for up to 3-inch props but also works perfectly with 2.5-inch props. On top of that, it boasts one of the most versatile mounting systems available, with support for $25.5\text{x}25.5\text{mm}$, $20\text{x}20\text{mm}$, AND $16\text{x}16\text{mm}$ electronics stacks, giving you total freedom in your build.

Key Features:

• Ultralight at 8g: The bare carbon weighs only 8 grams, making it an incredibly lightweight and agile platform.
• Configurable Geometry: Can be built as a Stretch-X or a Wide-X to suit your flying preference.
• Universal FC Mounting: Supports $25.5\text{mm}$ AIOs, $20\text{x}20\text{mm}$, and $16\text{x}16\text{mm}$ electronics stacks.
• Premium Carbon: Made from high-quality 3.2mm matte twill carbon fiber for a sleek, durable finish.
• Digital Ready: Compatible with third-party canopies designed for the Caddx Vista, such as those from Droneco.
• Complete Kit: Comes with all necessary hardware and TPU parts, so no extra 3D printing is needed to get flying.

Specifications

• Brand: BQE
• Model: Coronita
• Wheelbase: $\sim 120\text{mm}$
• Material: Matte Twill Carbon Fiber
• Main Plate Thickness: $3.2\text{mm}$
• Propeller Size: Up to 3 inch
• Carbon Weight: $8\text{g}$
• Camera Support: Nano size ($14\text{mm}$)
• Motor Mounting: M2 on $\varphi 9$ circle (for 110x motors)

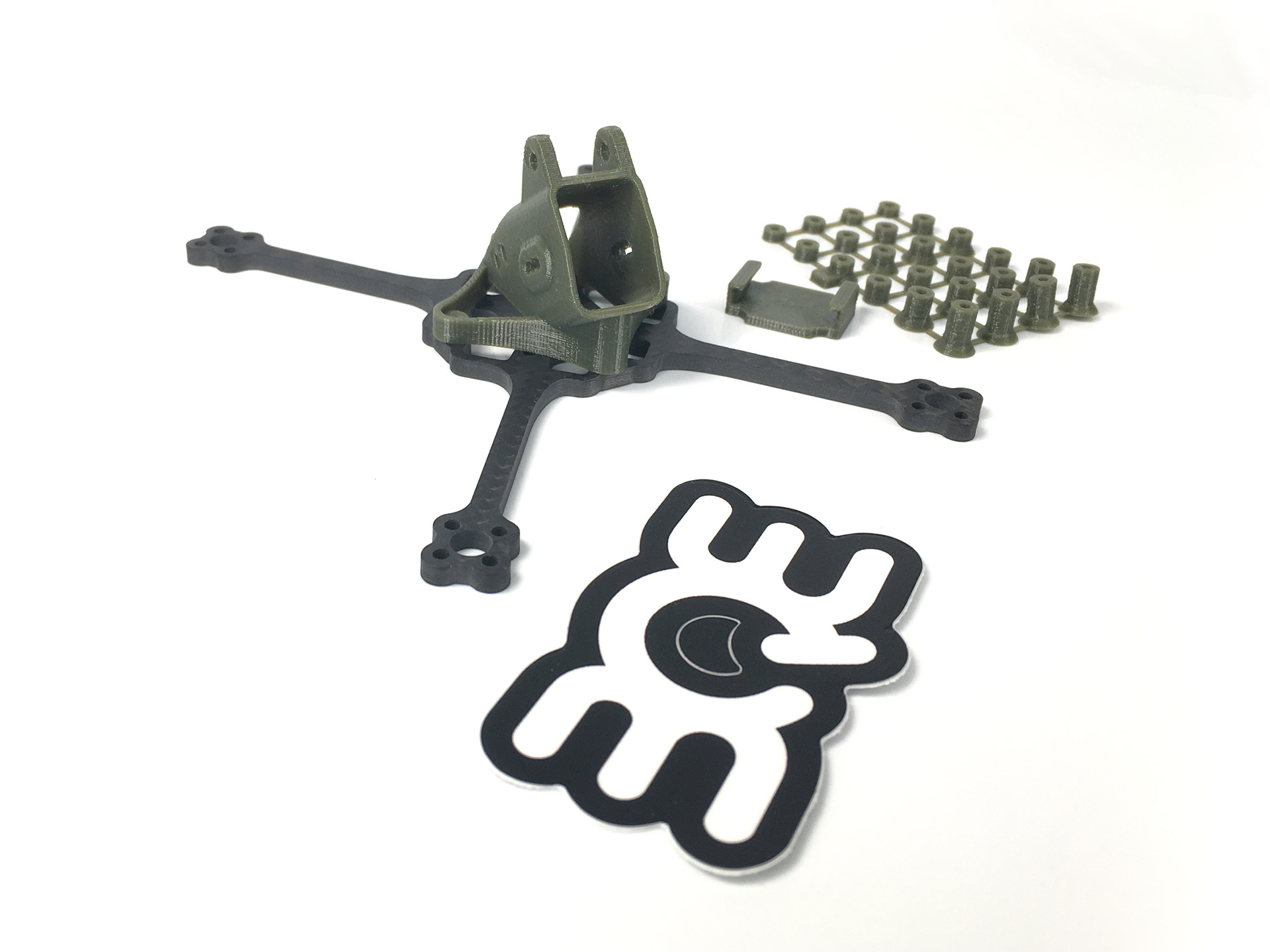

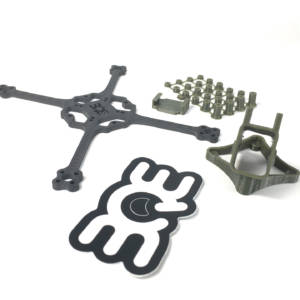

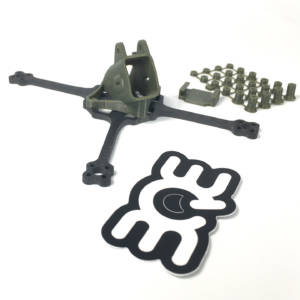

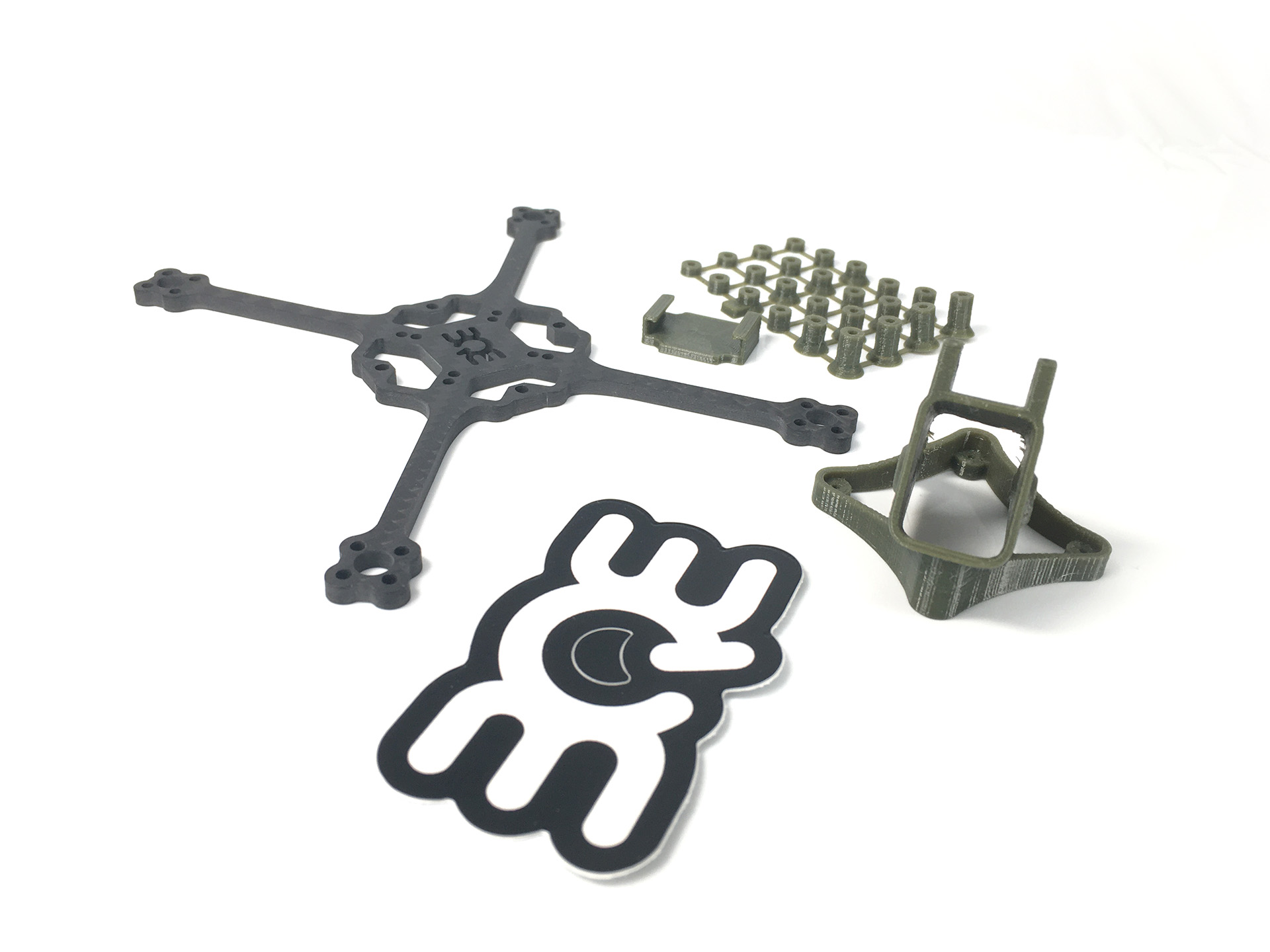

Package includes:

• 1x Carbon Fiber Frame Plate
• 1x TPU Nano Camera Pod (in your selected color)
• 1x TPU Multi-spacer set
• 1x TPU Battery spacer
• 1x Steel M2 Hardware Set ($4\times 20\text{mm}$ + $2\times 4\text{mm}$)
• 1x Pivot Hardware Set ($2\times 8\text{mm}$ + $1\times 10\text{mm}$ aluminum standoffs)
• 1x Sticker
