Build the ultimate ultra-light cinematic rig with the BetaFPV Pavo Pico II Frame. Redesigned from the ground up for the DJI O4 ecosystem, this frame combines a crash-resistant PA12 duct with a revolutionary assembly system that makes building easier than ever. Whether you are flying the standard DJI O4 or the high-end O4 Pro, the Pavo Pico II is the perfect foundation for smooth, 4K sub-100g flying.

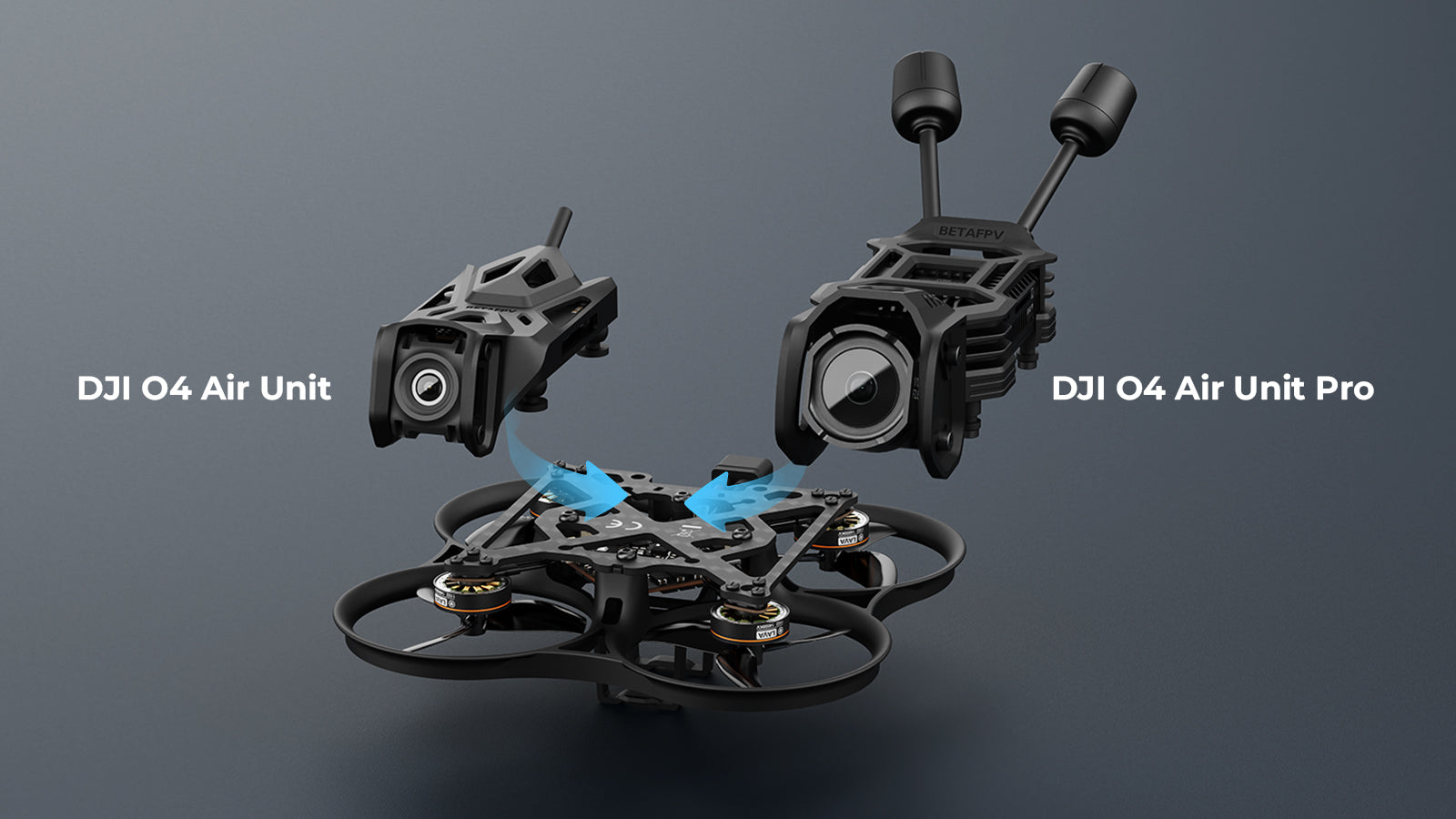

O4 & O4 Pro Ready

Future-proof your fleet. The Pavo Pico II features a newly designed 1.5mm Carbon Fiber Baseplate that seamlessly accommodates both the DJI O4 and DJI O4 Pro Air Units. This gives you the flexibility to choose your video system without changing frames.

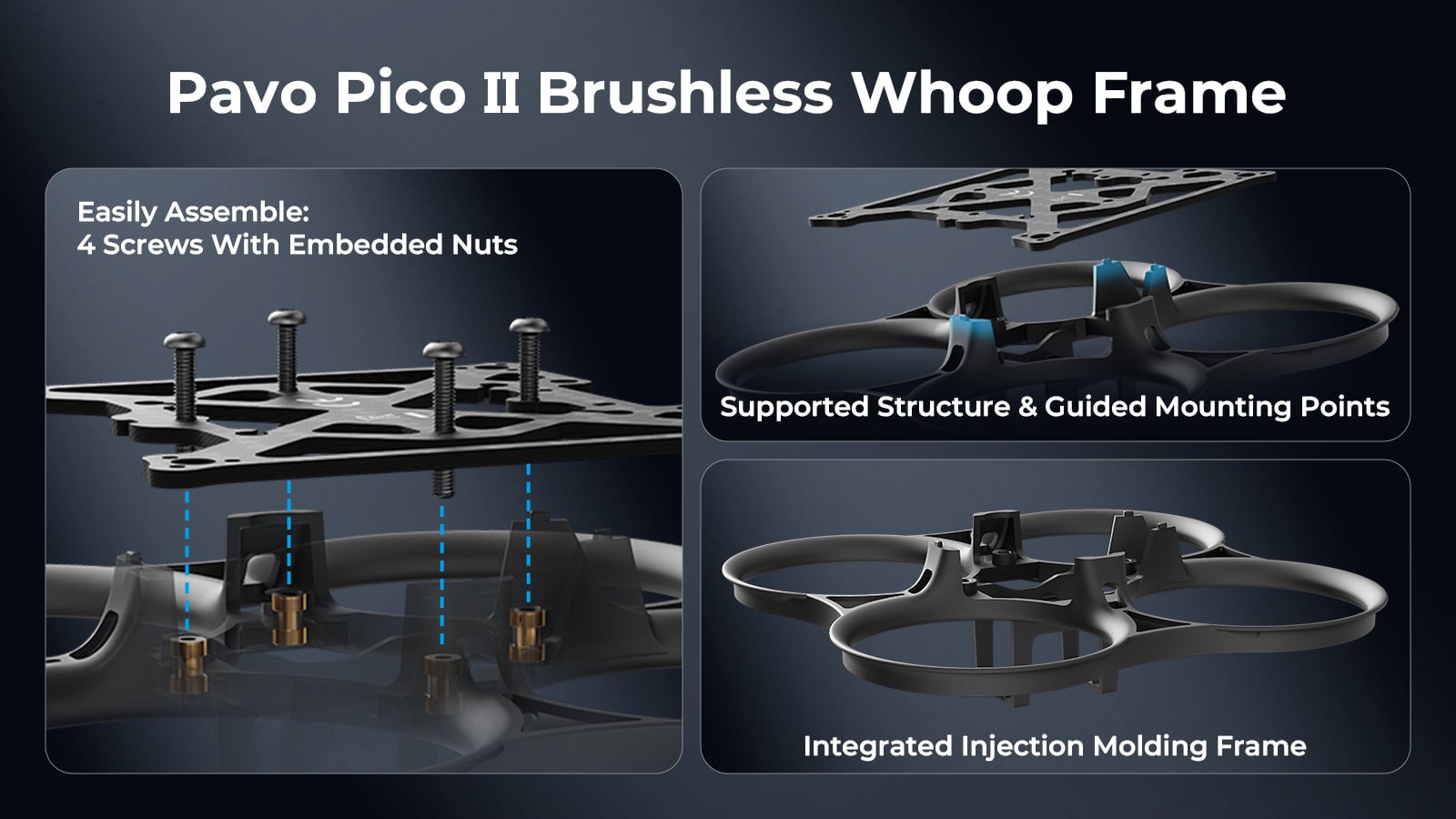

Revolutionary 4-Screw Assembly

Forget about fumbling with tiny nuts and loose screws. The Pavo Pico II utilizes a supported structure with embedded nuts, allowing you to assemble or disassemble the entire frame using just four screws. The guided mounting points ensure perfect alignment every time, resulting in an incredibly rigid platform that flies better and vibrates less.

Jello-Free “Bracket II” System

The included O4 Air Unit Bracket II is engineered for professional cinematography. Unlike rigid mounts, this system uses 4 shock-absorbing balls to isolate the camera from the frame. This effectively eliminates high-frequency vibrations and “jello,” ensuring your O4 footage is buttery smooth right out of the camera.

Key Features:

• O4 Integrated: Fits both the DJI O4 and O4 Pro Air Units perfectly.

• Easy Build: Secure 4-screw assembly with embedded nuts.

• Vibration Damping: Bracket II system eliminates video jello.

• Durable: Injection-molded PA12/PP material withstands crashes.

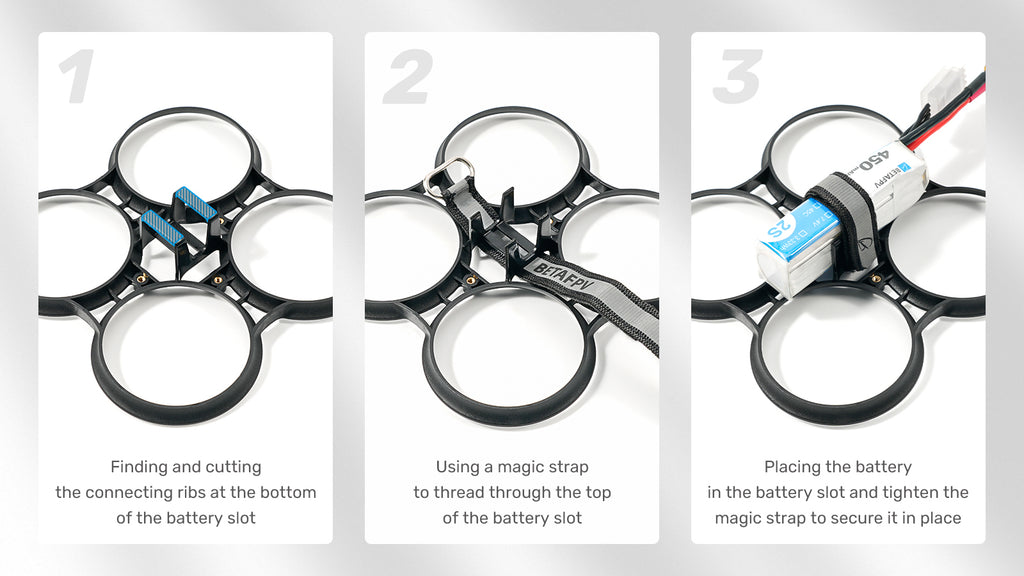

• Customizable: Slots available for battery straps and 3D printed parts.

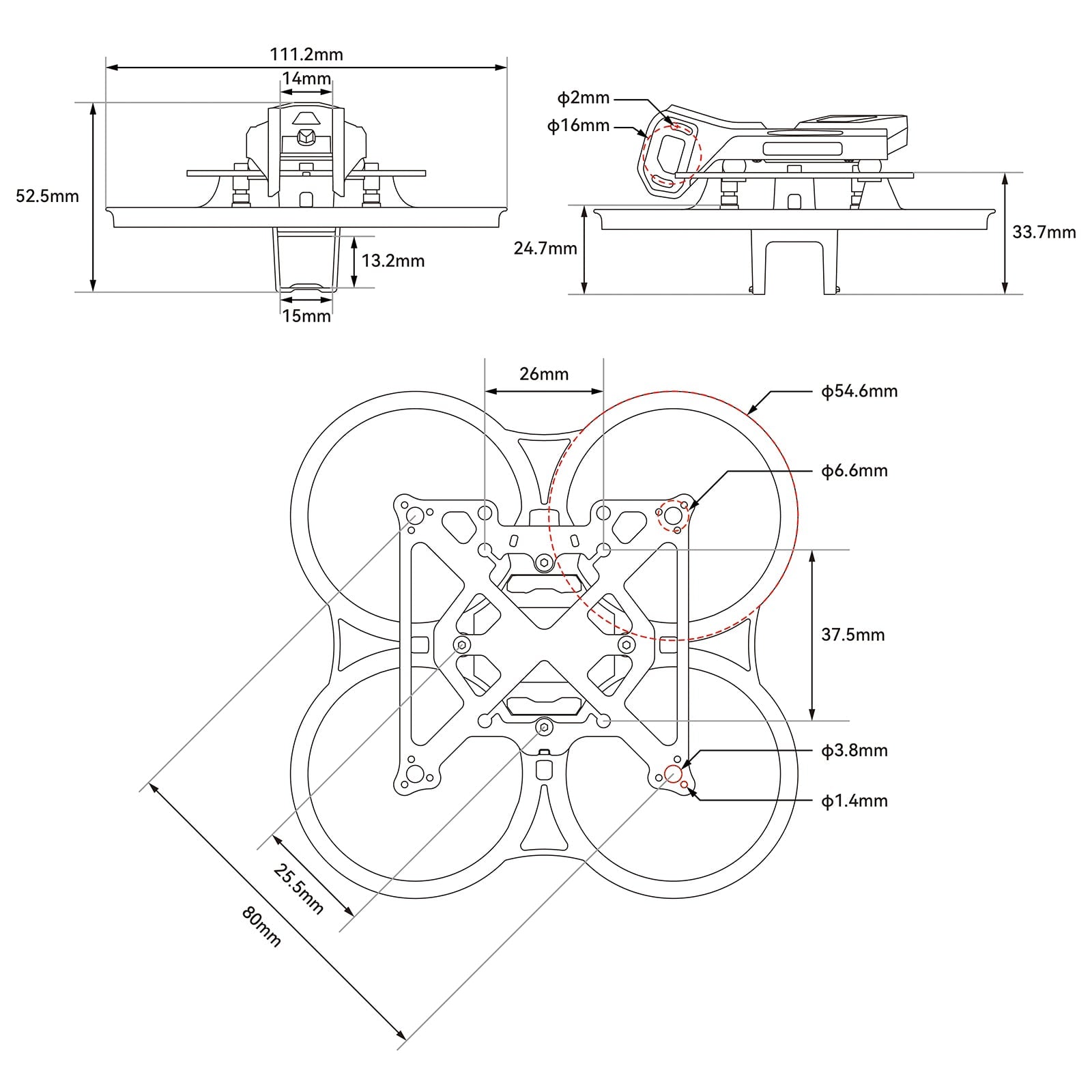

Specifications:

• Model: Pavo Pico II Brushless Whoop Frame

• Wheelbase: 80mm

• Material: PA12 / PP

• Weight: ~19g (Frame + Bracket)

• FC Mounting: 25.5 x 25.5mm (Whoop Pattern)

• Motor Mounting: 3-Hole (M1.4 / 6.6mm circle)

• Battery Slot: 16mm Width

• Carbon Plate Thickness: 1.5mm

Recommended Parts for Build:

• Motors: LAVA 1102 | 14000KV

• Propellers: Gemfan 45mm 3-Blade

• Flight Controller: F4 2-3S 20A AIO (Whoop Layout)

• Battery: LAVA 2S 450mAh or 550mAh

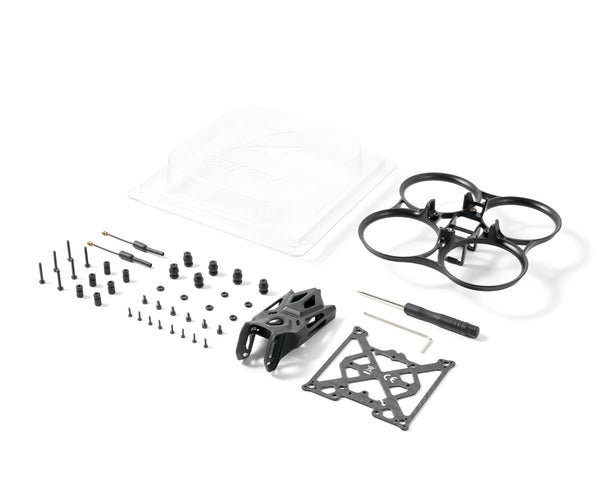

What’s in the Box?

• 1x Pavo Pico II Whoop Duct & Carbon Plate

• 1x O4 Air Unit Bracket II (Top & Bottom Plates)

• 2x 5.8G Antenna Mounts

• 1x Hardware Kit (Screws & Dampers)

• 1x Screwdriver Kit (Phillips & Hex)

• 6x Shock-Absorbing Balls (8mm)
