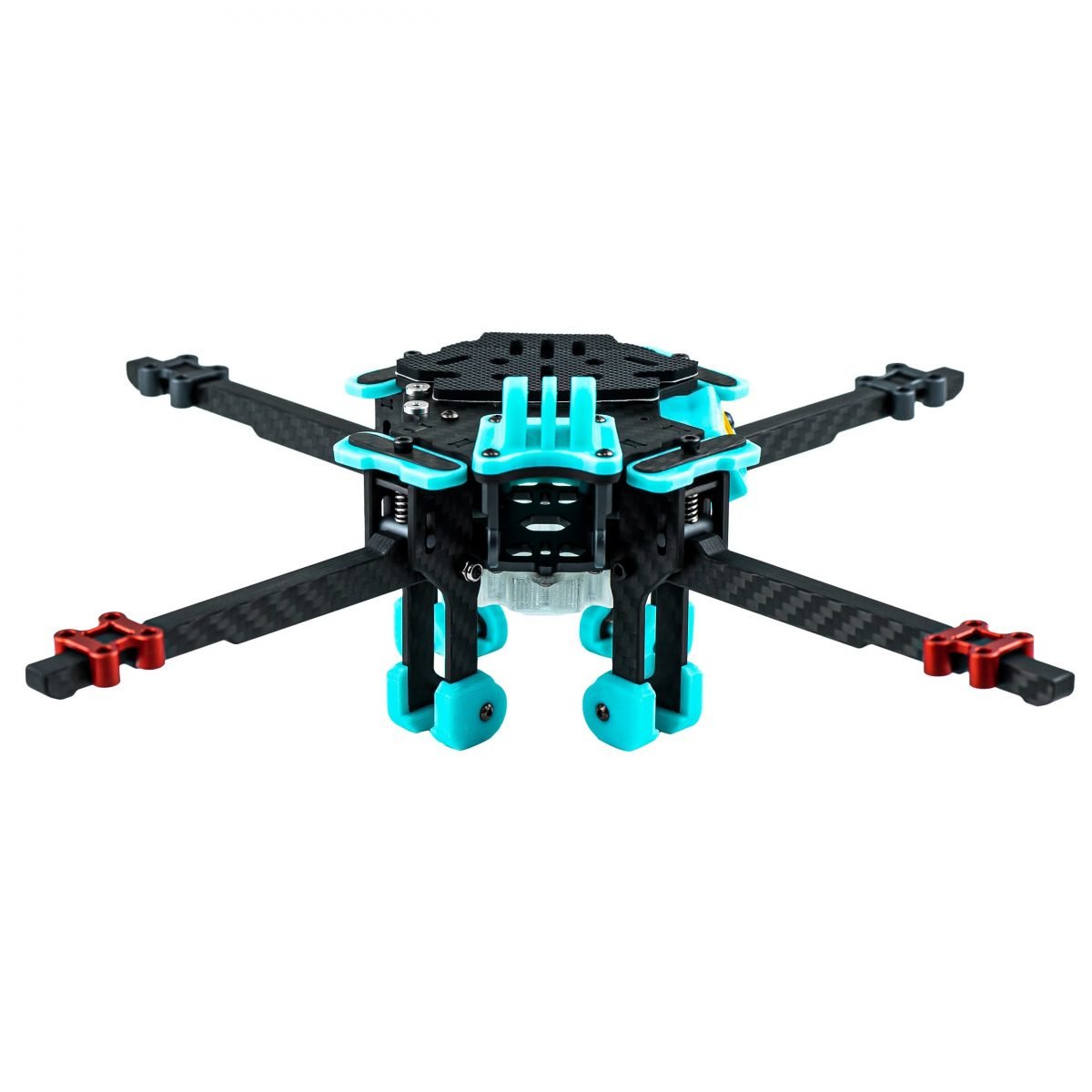

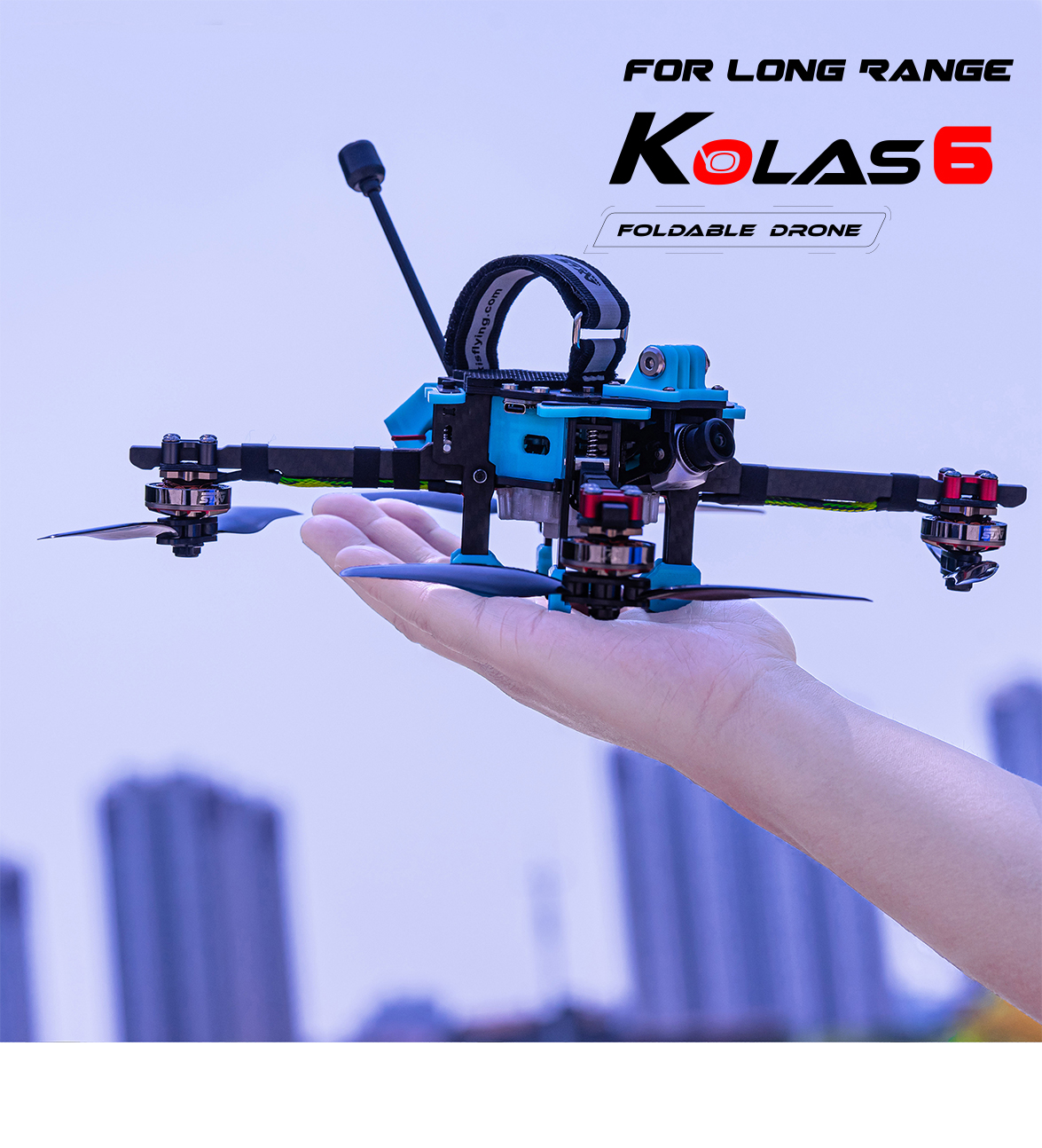

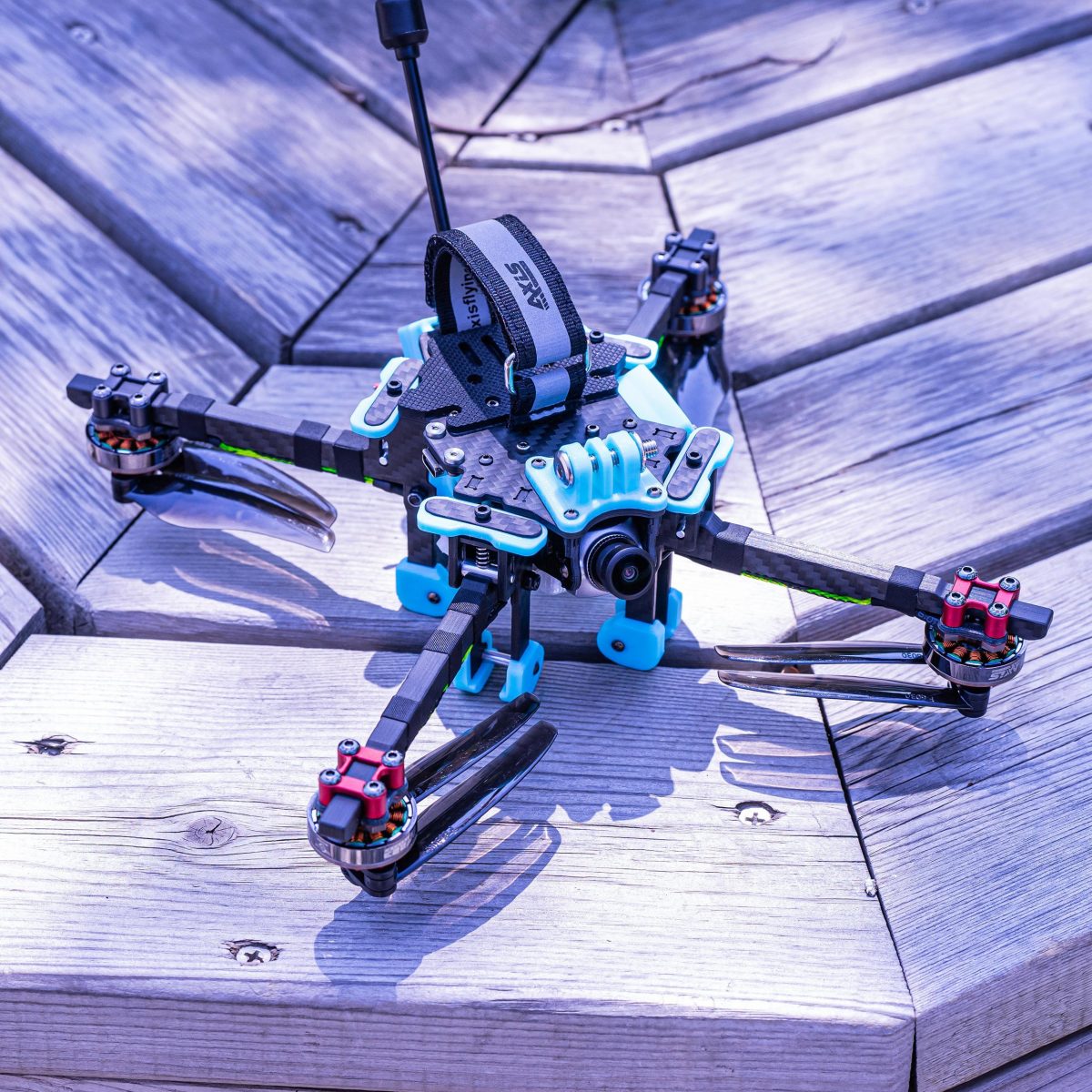

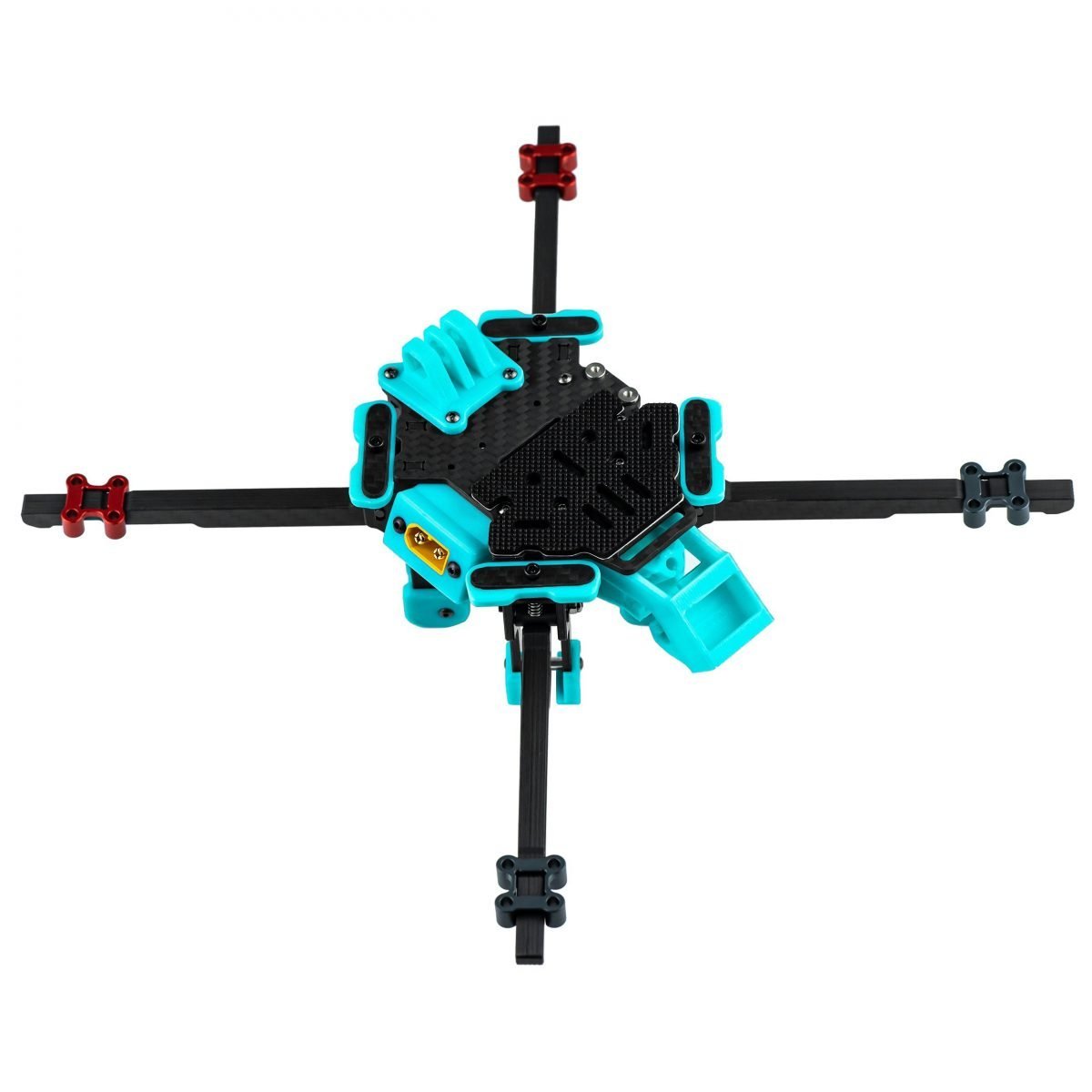

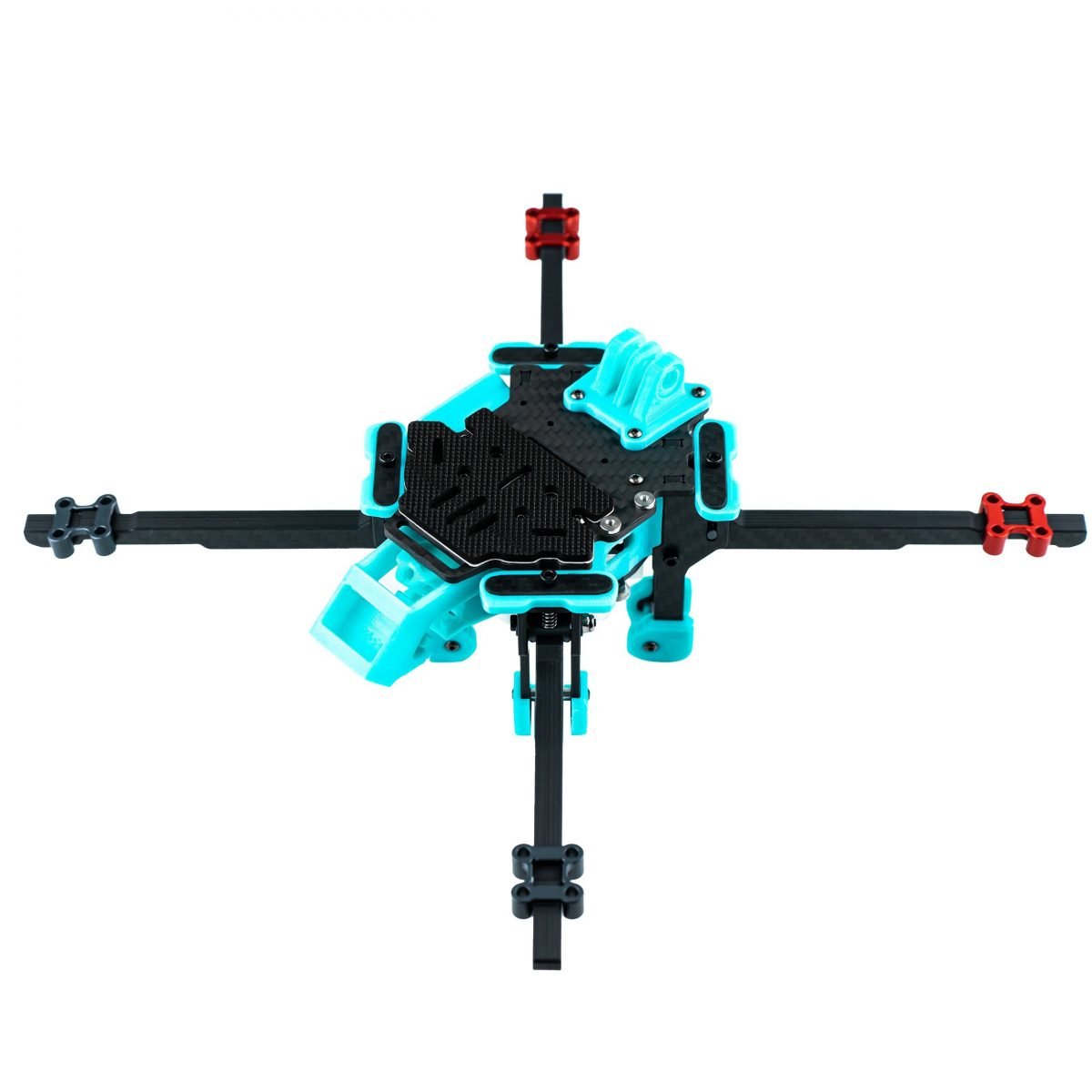

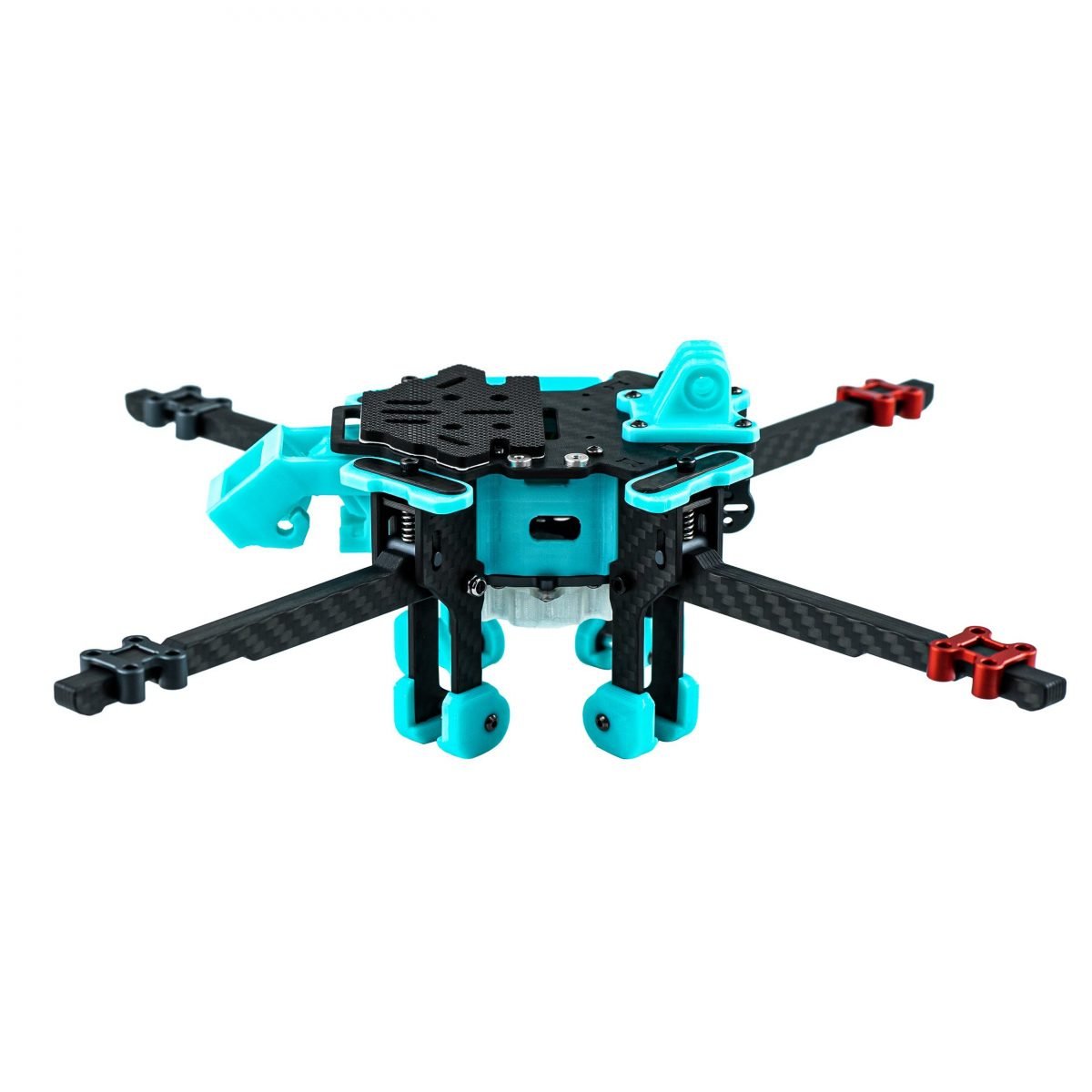

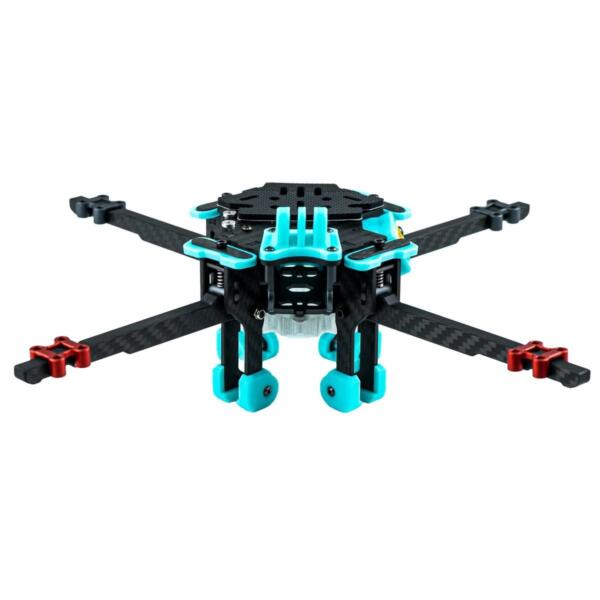

Axisflying KOLAS 6inch Long Range folding Frame Kit
If you’re not looking for a folding frame, check out this AxisFlying Mata6Inch Mid-Range Frame Kit.
-
1. The frame adopts high-strength T700 carbon plate, with 7MM thickness arm and 2.5MM thickness top plate. Customized aluminum design and ingenious structure make it compatible with 19/20MM camera installation.
-

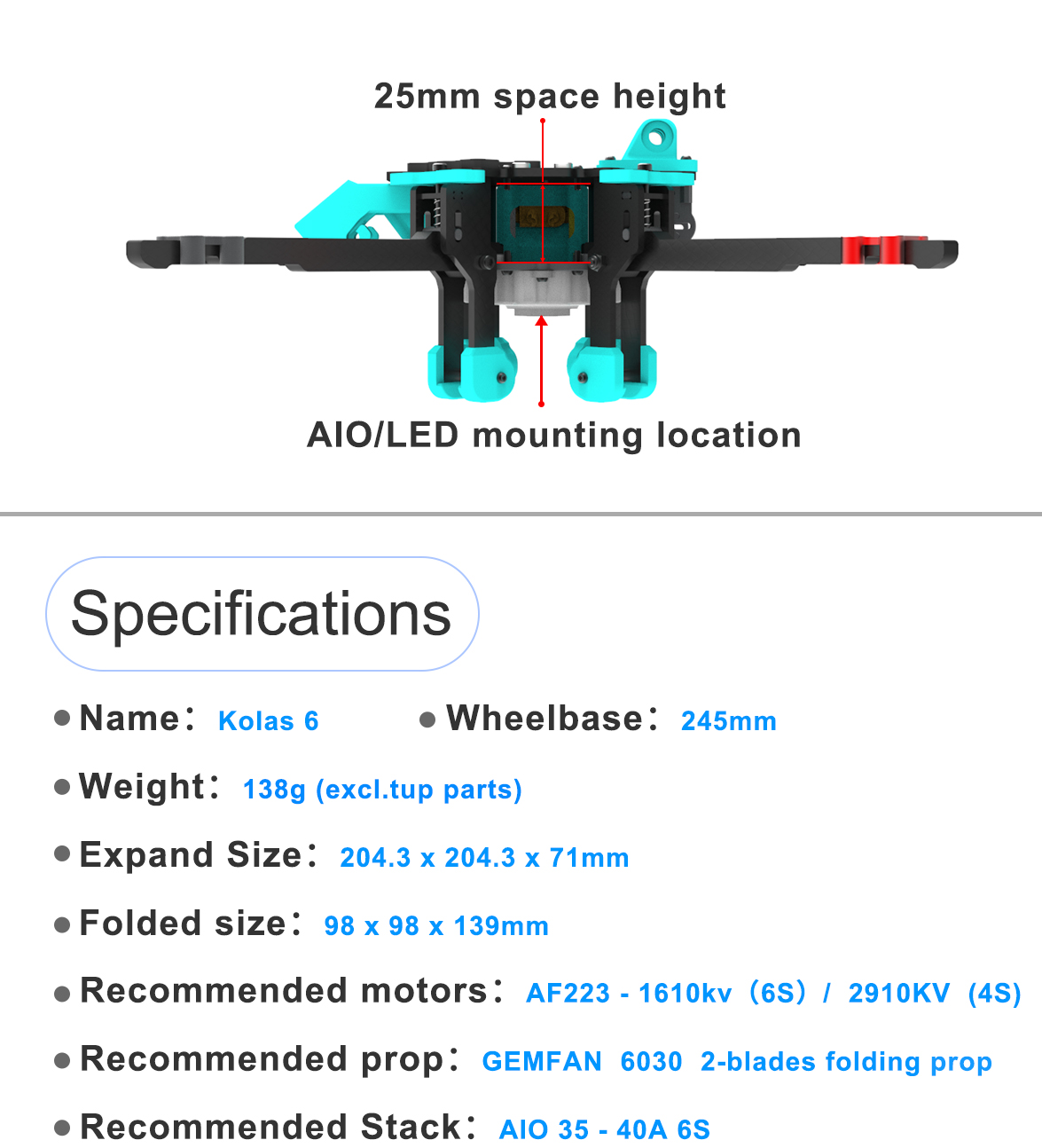

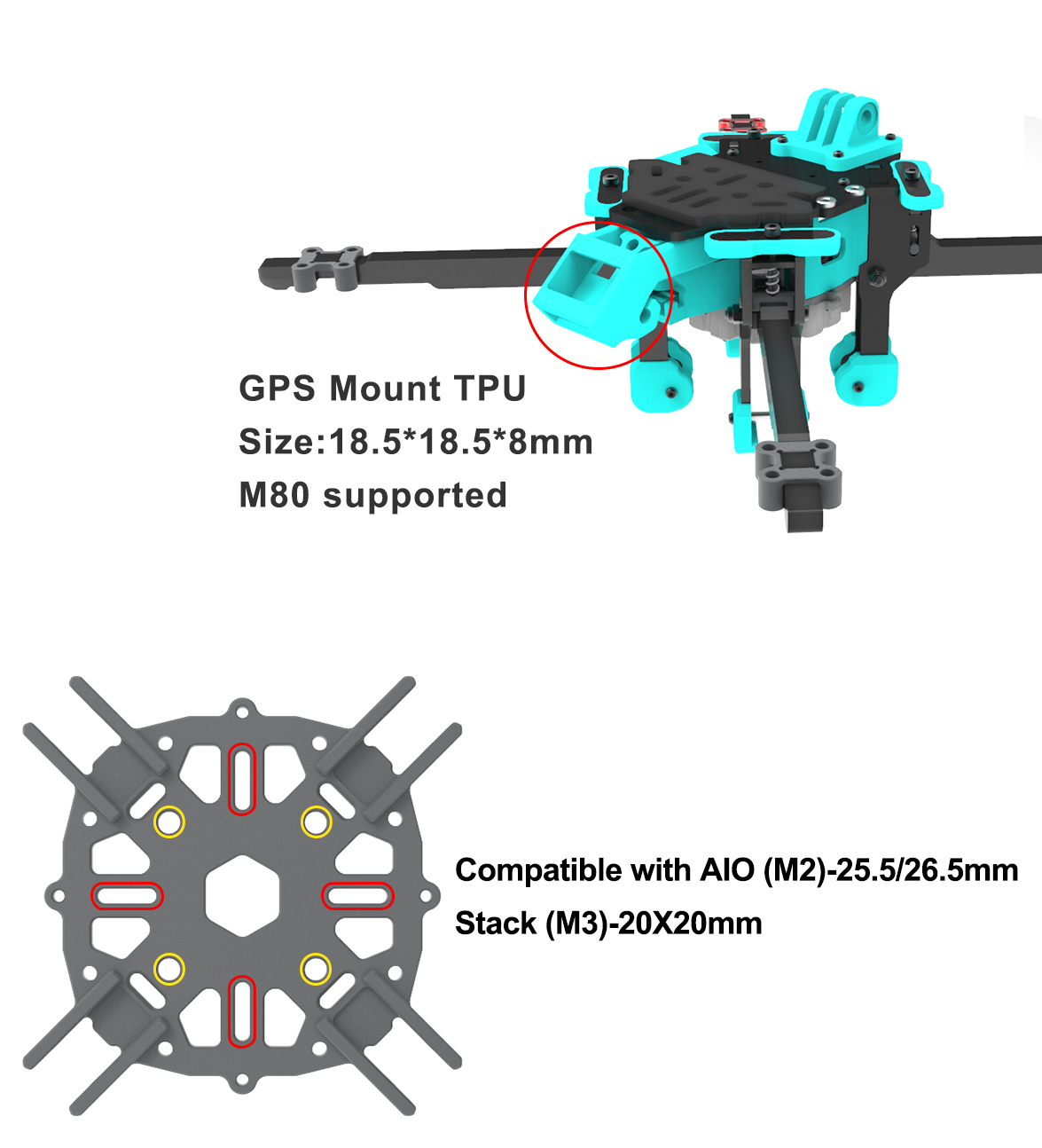

2. Bottom-to-top distance is 25MM, which is compatible with VISTA (not compatible with the air unit). The stack and AIO mounting holes are compatible with 20MM/25MM/26.5MM. We recommend that the AIO be assembled under the aluminum parts for easy disassembly and maintenance
-

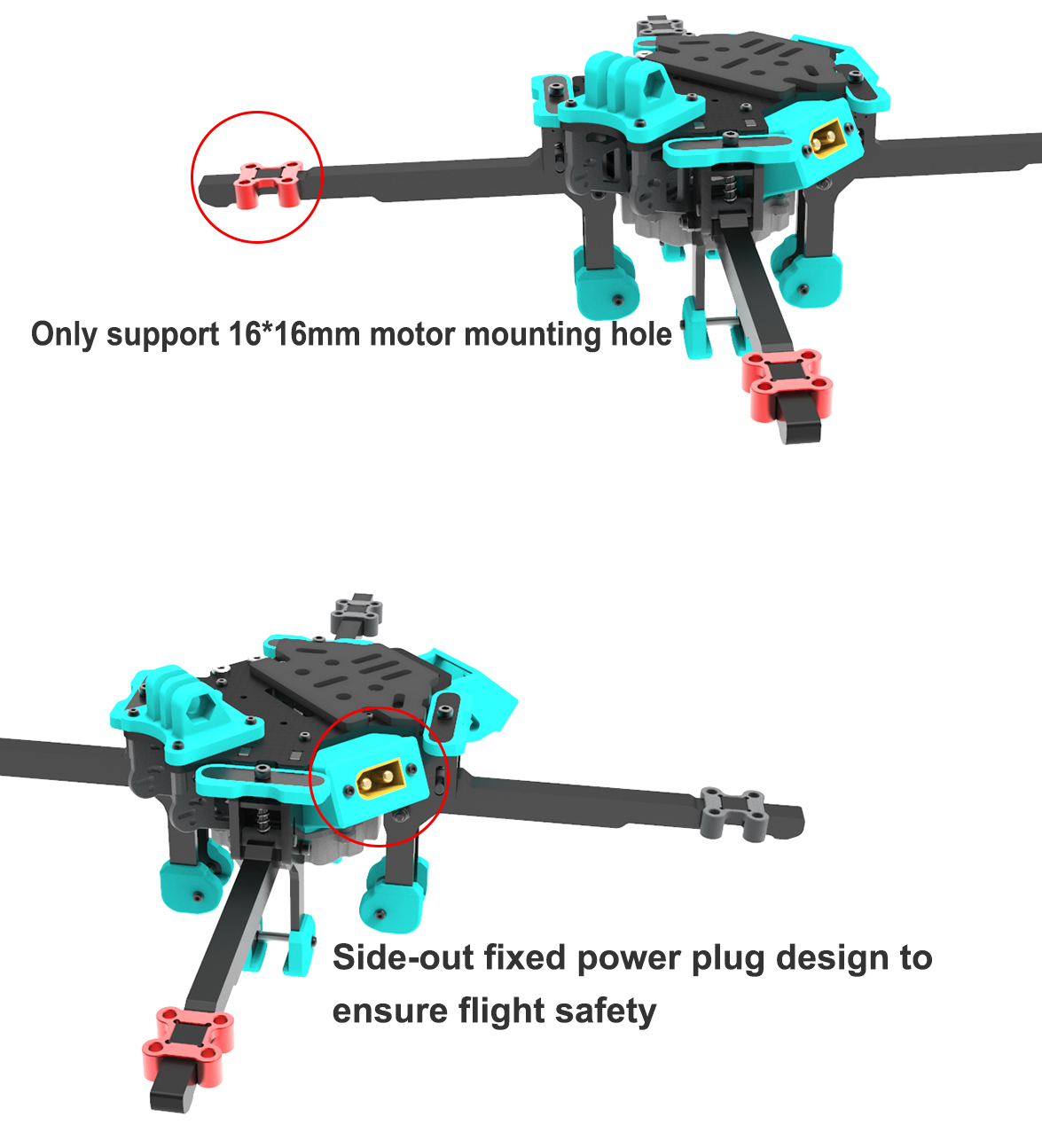

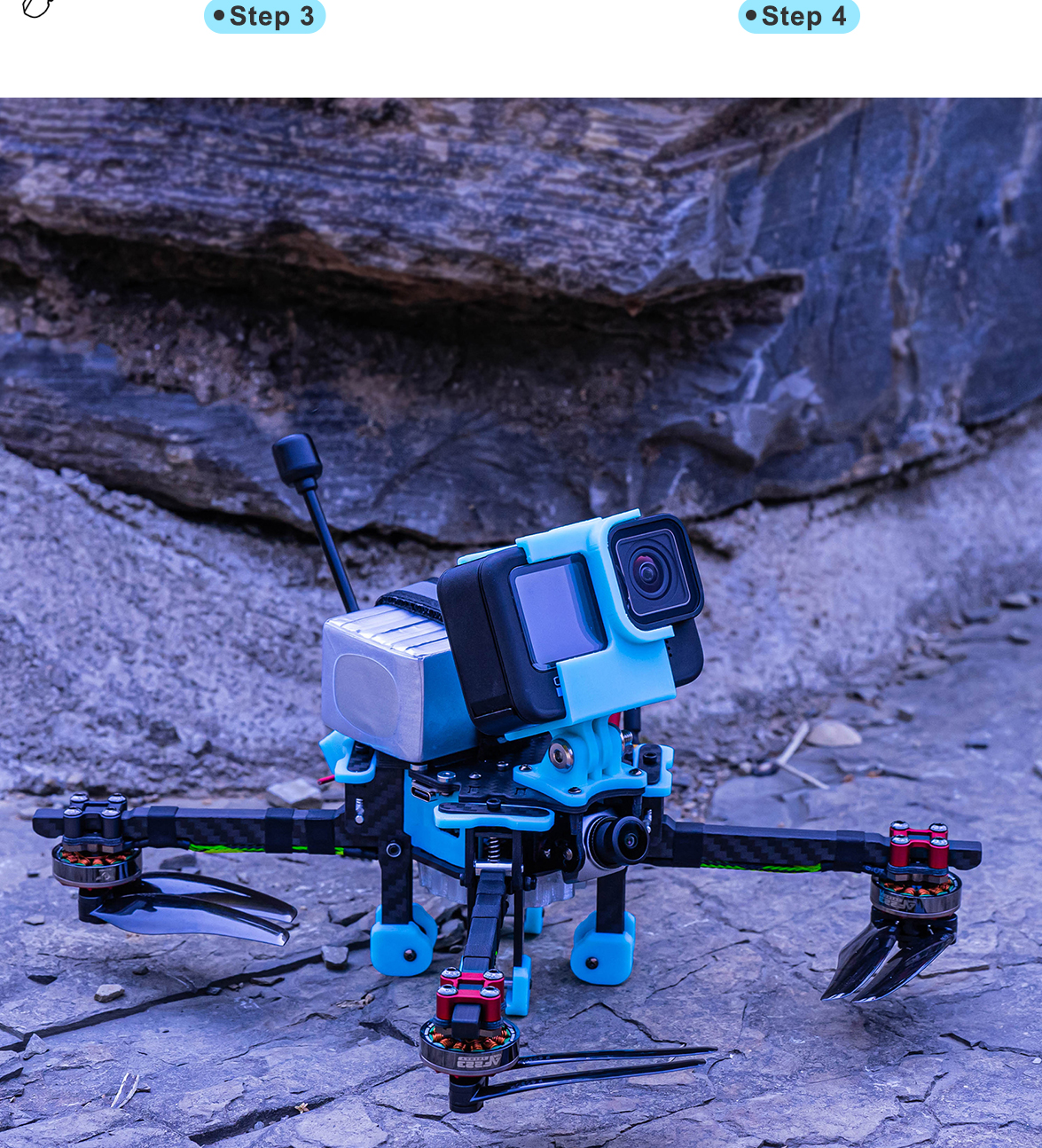

3. To provide high-efficiency power for long range, Kolas6 is equipped with high-performance AIO F722 (ESC40A-6S) as standard and INAV fully supported, AF223-1610KV/2910KV motor matching Gemfan 6030-2 folding prop, carrying GoPro 6, the flight time is about 15 minutes (6S). The motor mounting hole is 16*16MM (12*12MM is not supported), if you want more power, you can choose a regular 5-inch or 6-inch motor
-

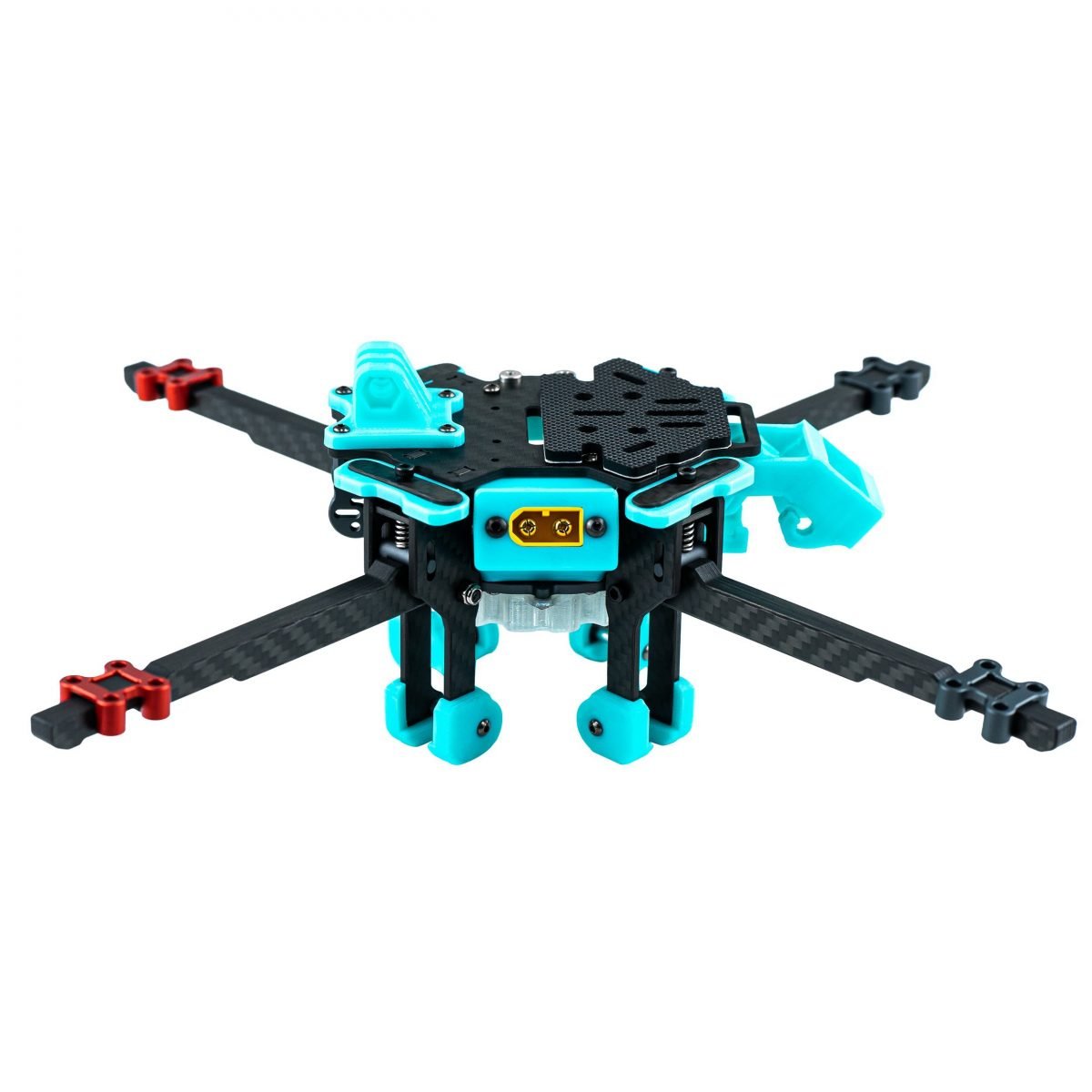

4. The XT60 plug is installed on the left side of the frame in a fixed way to ensure flight safety. The opening design of the 3D print part on the right side is convenient and quick for tuning. Independent receiver compartment to allow for easy assembly and binding. Underslung navigation light, for better visual reference, and easier to identify when flying at night
