SmoothStyle 5inch Freestyle Frame

Get spare parts for the SmoothStyle frame here

When durability and flight performance are not compromised, the result is the SmoothStyle.

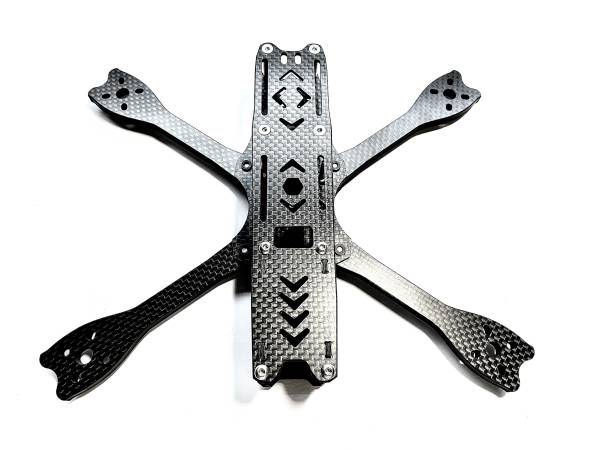

The SmoothStyle frame features a 3mm front lower plate,a 2mm rear lower plate, and a 2mm top plate. These components are securely held together by robust 6mm arms. Let’s face it, at some point, you’re bound to collide with something, and probably with great force. That’s why we need something strong.

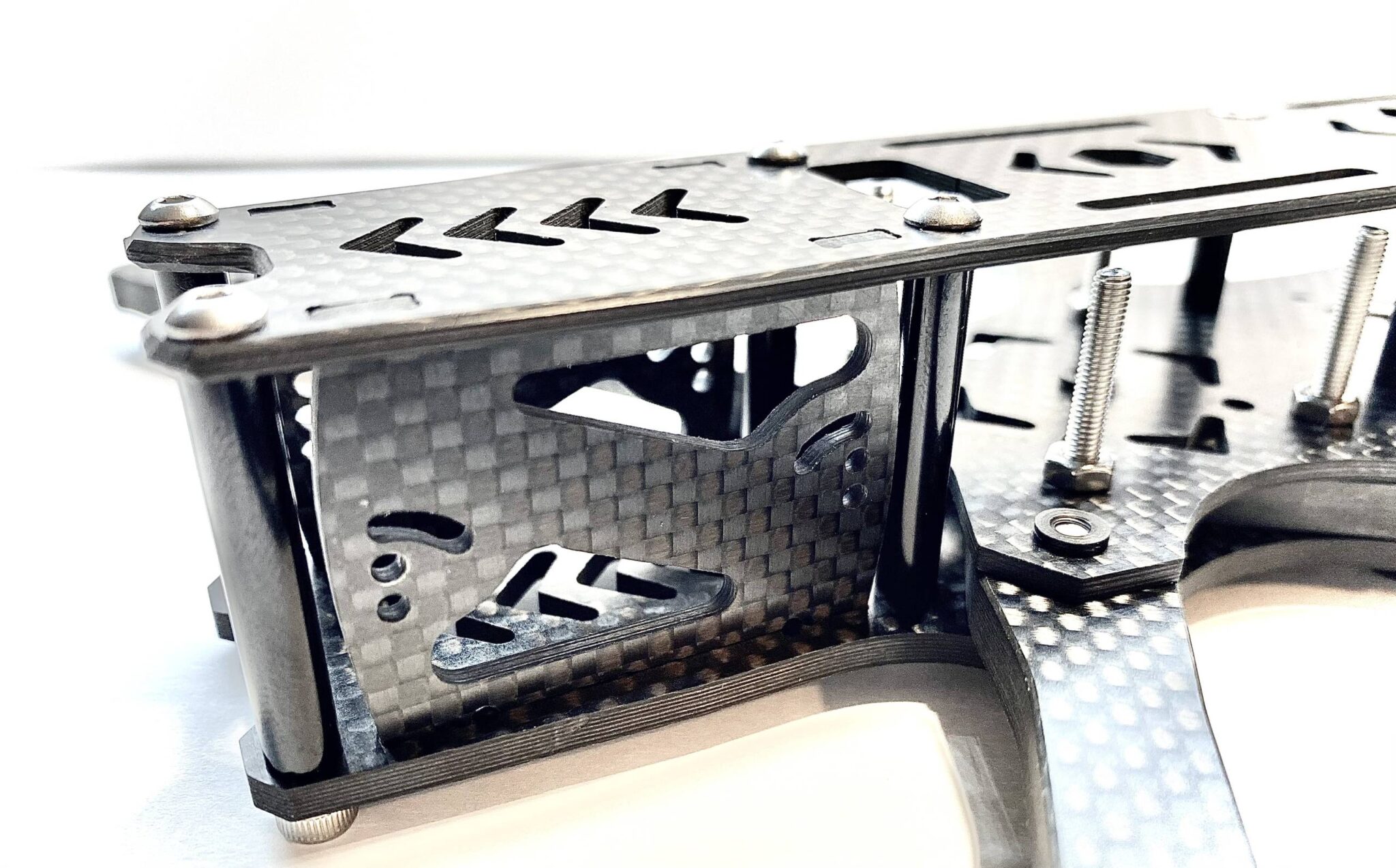

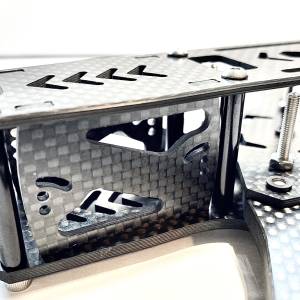

Both the front and rear bays offer ample space. The camera bay area measures 24mm wide from cam plate to cam plate, while the rear bay is 43mm long between the standoffs, 36mm wide from carbon edge to carbon edge, and 20mm high. This design allows accommodation for nearly every video system available.

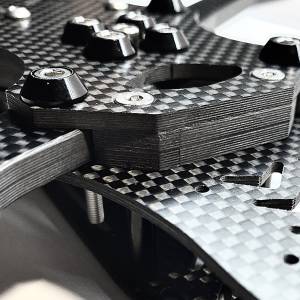

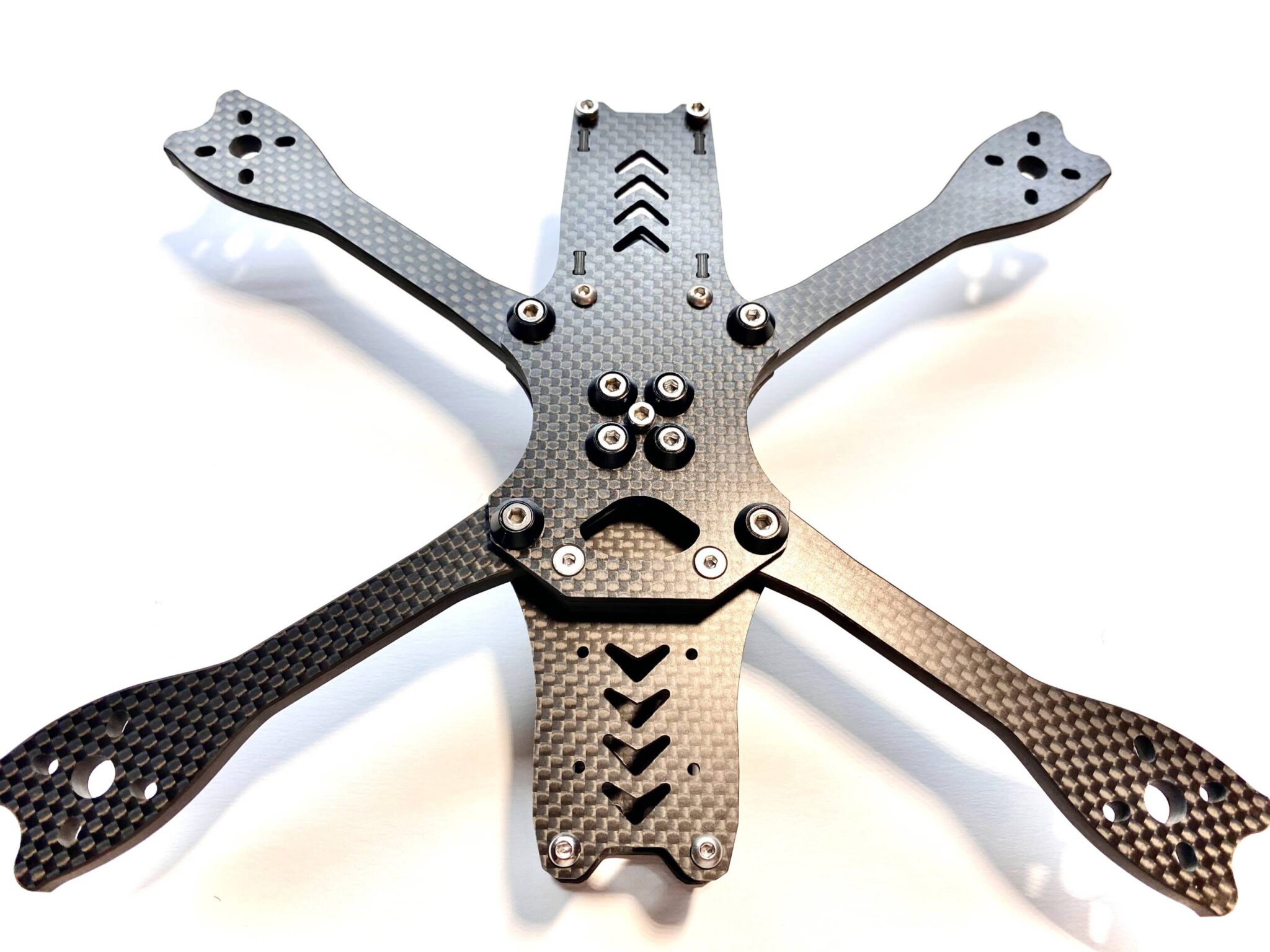

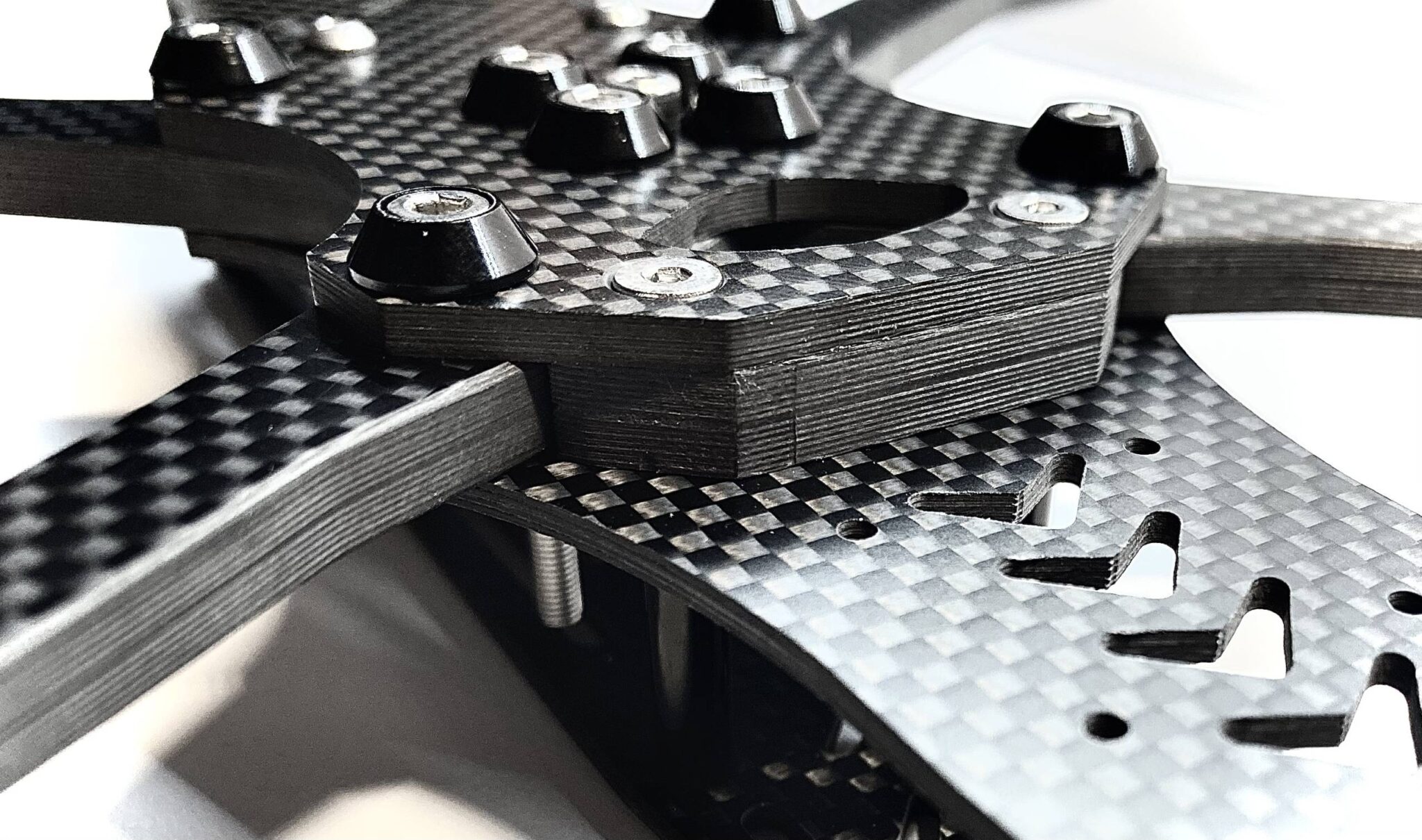

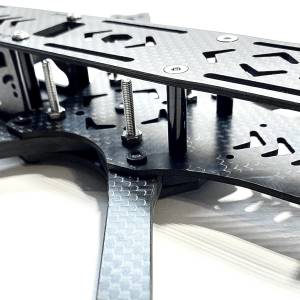

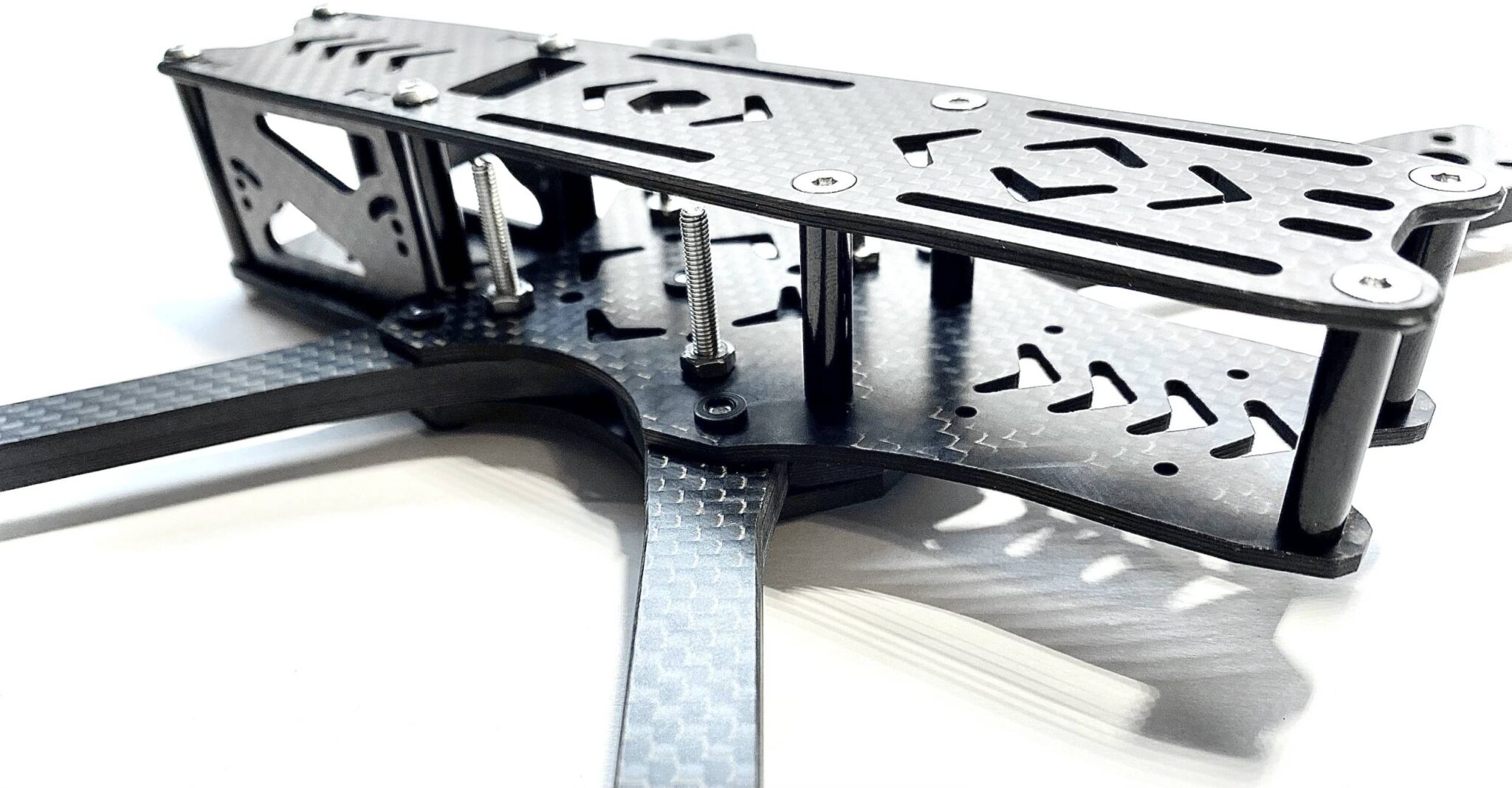

The top plate, which is 2mm thick, features chamfered outer edges to protect the battery straps. Additionally, it includes a 17x10mm hole behind the action cam mounting, which enables the option to run a battery lead through it. The battery mounting area is generously sized, measuring 100mm in length and 37mm in width. The rear top plate screws have been countersunk to ensure a flush battery mounting. Personally, I recommend using a 6s 1100mAh pack, but you can also use a larger pack by positioning it sideways, which still provides an excellent flying experience. Due to the longer rear and the weight of a heavy battery, some frames have experienced rear plate breakage. While some frame designers have attempted to address this by thickening the rear plates or using aluminum, I opted to create a special 6mm support key that fits between the rear upper plate and the front lower plate. This key provides added support to accommodate those chunky batteries and helps absorb the impact of downward forces during crashes.

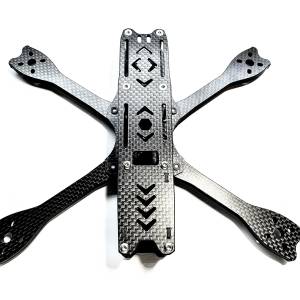

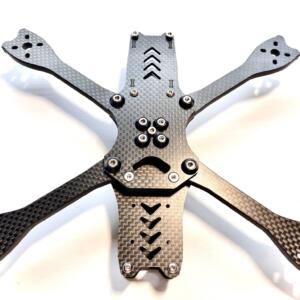

The arms are 6mm thick and allow for the mounting of motors with a bolt pattern of either 16×16 or even up to 19×19. The frame adopts a squished X layout, measuring 226mm from motor to motor, and is compatible with up to 5.1-inch props. The arms are mounted using a two-screw setup, designed in a way that you don’t have to remove the stack screws to replace a single arm (if, by some chance, you break one). There are left front and right rear arms, as well as right front and left rear arms. When assembling the frame, ensure that the press nuts face upward. This arrangement maximizes the contact patch where the arms meet, distributing the shock evenly among the four screws instead of focusing it on just two. The frame also includes eight aluminum cones to spread out the clamping force along the bottom plate, along with a center screw that secures the rear top and rear bottom plates at the center. All in all, it offers an incredibly durable design weighing 153g, while still providing a flight experience like no other.

For flight controller mounting, you have the option of using either the countersunk 20×20 or 30.5×30.5 (30×30) mounting holes, with a height of 20mm. With the stack screws only attached to the rear top plate, it becomes very convenient for servicing.

With that said, I hope you all enjoy the SmoothStyle.

Sincerely, M-Smooth

Features

* Designed for Analog vtx, Caddx Vista, or DJI O3 air unit. HD zero will fit, but it hangs off the edges.

* Props up to a 5.1”

* 3mm Thick bottom front plate

* Rear support key

* Super thick durable arms

* 3k carbon fiber

* Top mount battery

* Squished X layout

* No need to remove flight stack to remove arms



Specs

* Fc mounting holes 20×20 or 30.5×30.5

* Vtx mounting mounts 20×20

* Camera mounting. nano, micro & DJI 03

* Approx weight 153g. Assembled with just hardware, no battery pad.

* Motor mounting 16x16mm up to 19x19mm

* Motor size 22XX-23XX

* 226mm motor to motor

* 4-6s 1100-1500mah

* Top plate thickness 2mm

* Front lower plate thickness 3mm

* Rear lower plate thickness2mm

* Cam plate thickness 2mm

* Rear key thickness 6mm

* Arms thickness 6mm

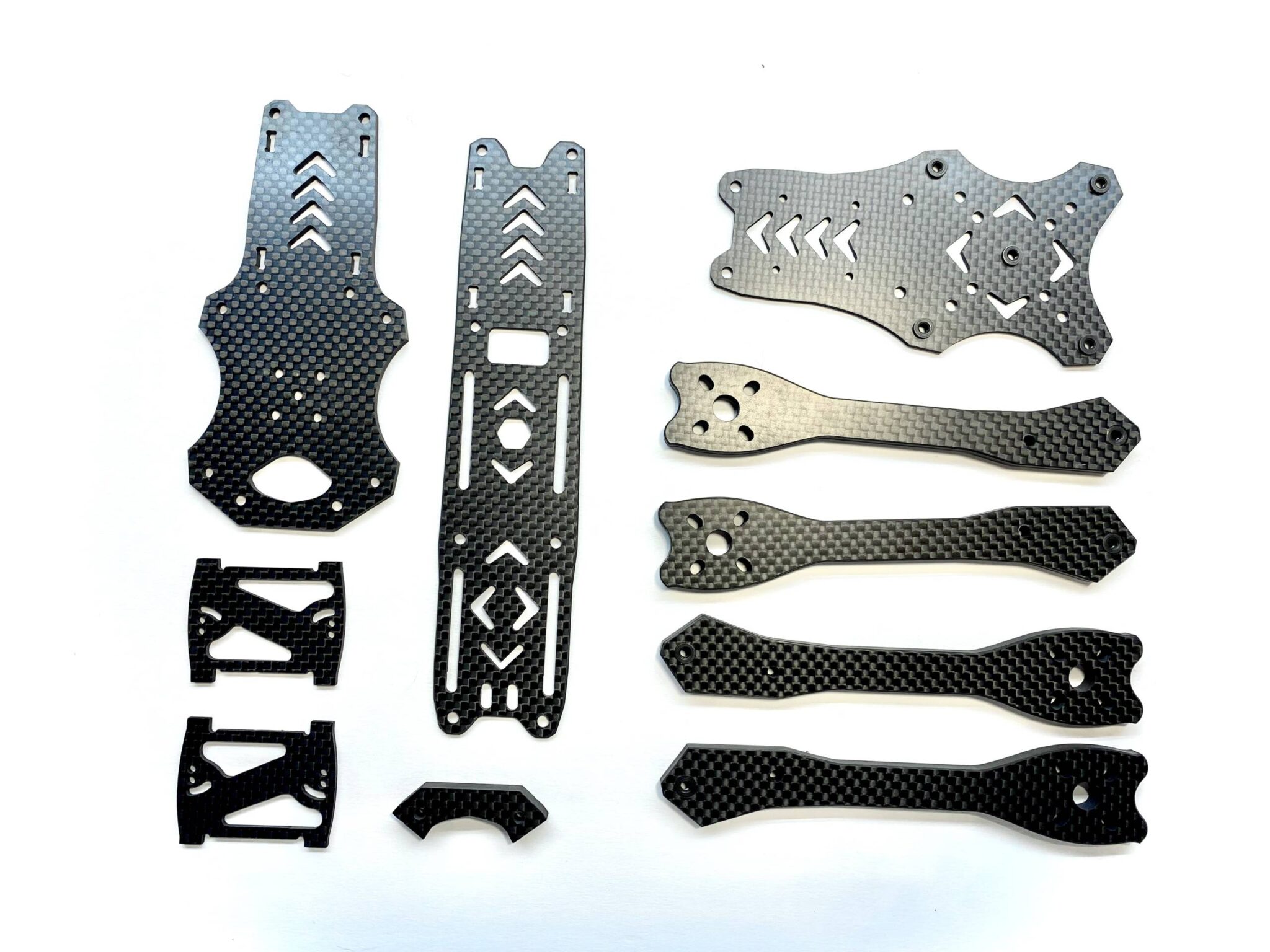

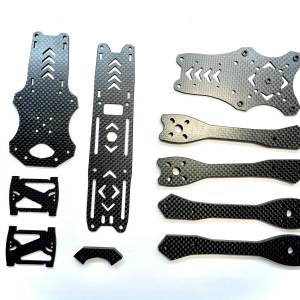

Kit includes

* 1x 2mm top plate

* 1x 3mm Front lower plate

* 1x 2mm Rear lower plate

* 1x 6mm rear support key

* 2x 2x camera plates

* 2x left front,right rear 6mm arms

* 2x right front, left rear 6mm arms



Hardware

* 4x 28mm standoffs

* 4x 20mm standoffs

* 8x M3 aluminum cone washers

* 4x M3X5mm flat head screws

* 8x M3X5mm button head screws

* 22x M3X8mm socket head screws

* 5x M3X12mm socket head screws

* 4x M3x20mm flat top screws

* 4x M3 nuts

* 2x M3x14mm flat head screws



Accessories

* 1x Battery pad

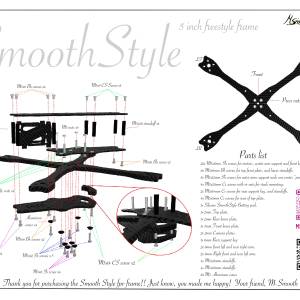

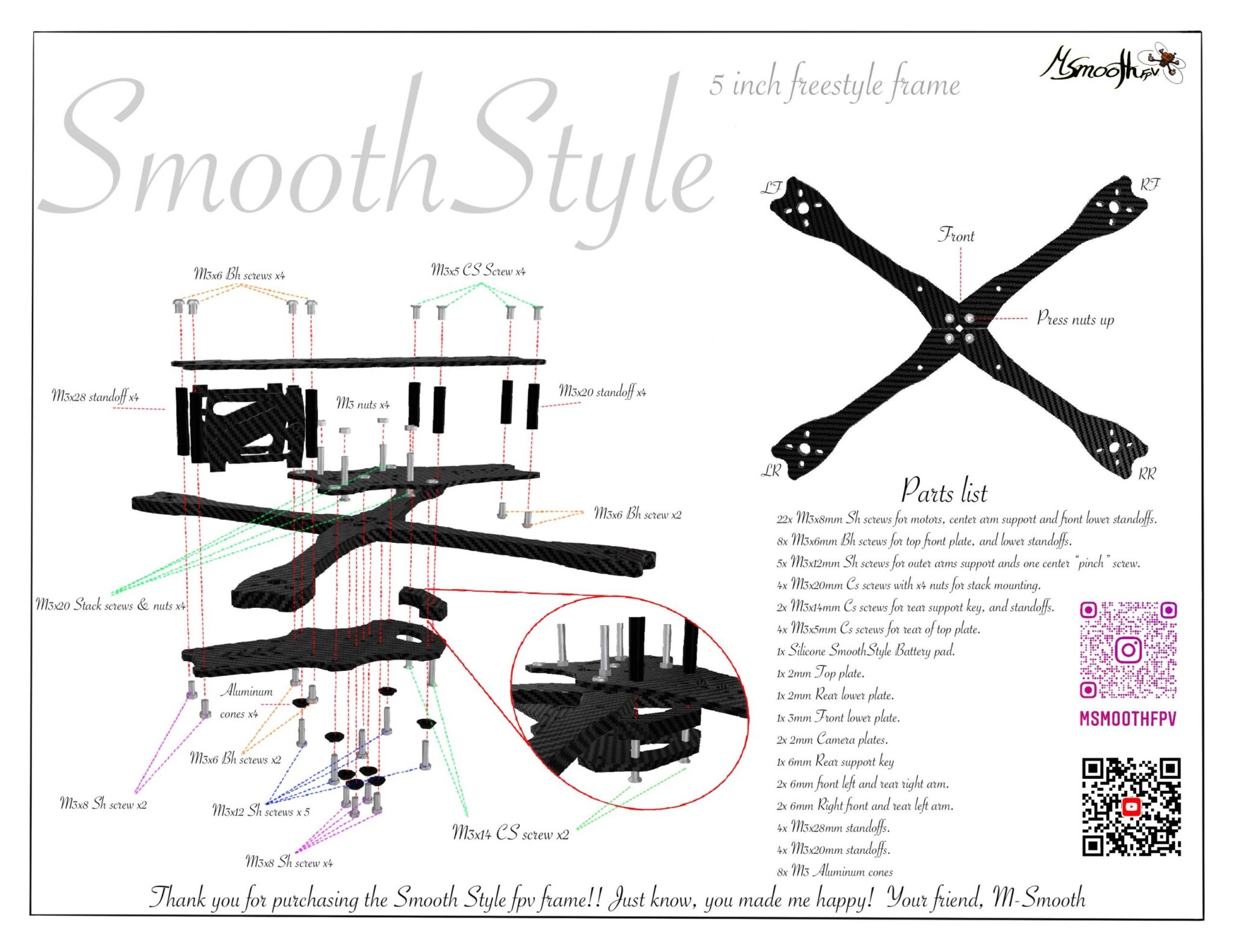

* 1x Build sheet
