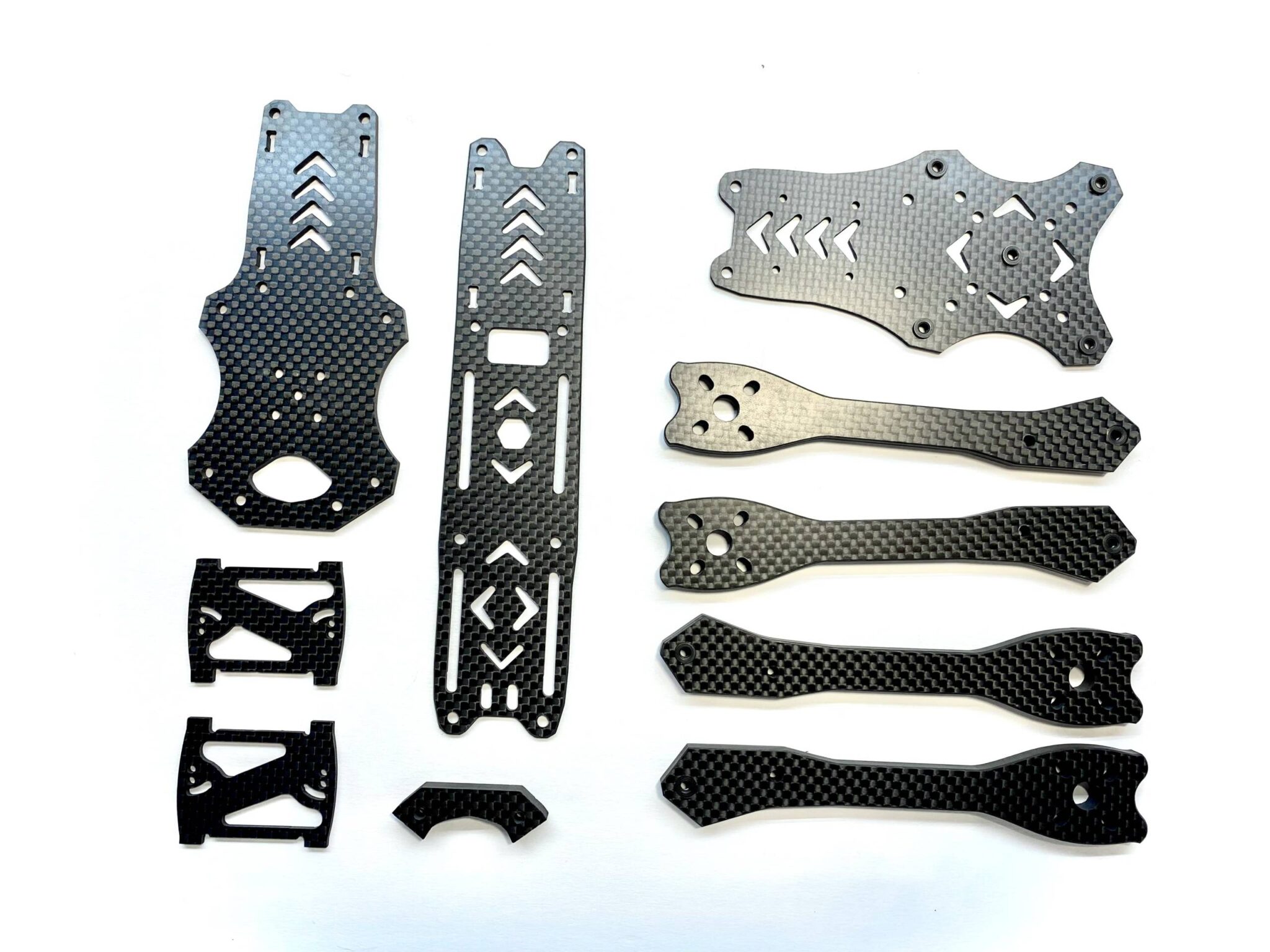

SmoothStyle 5inch Spare Parts

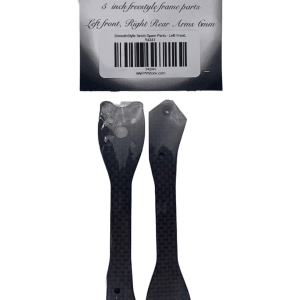

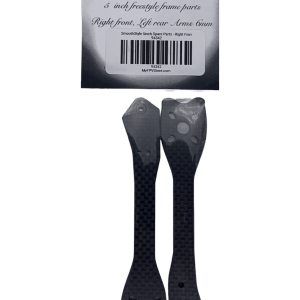

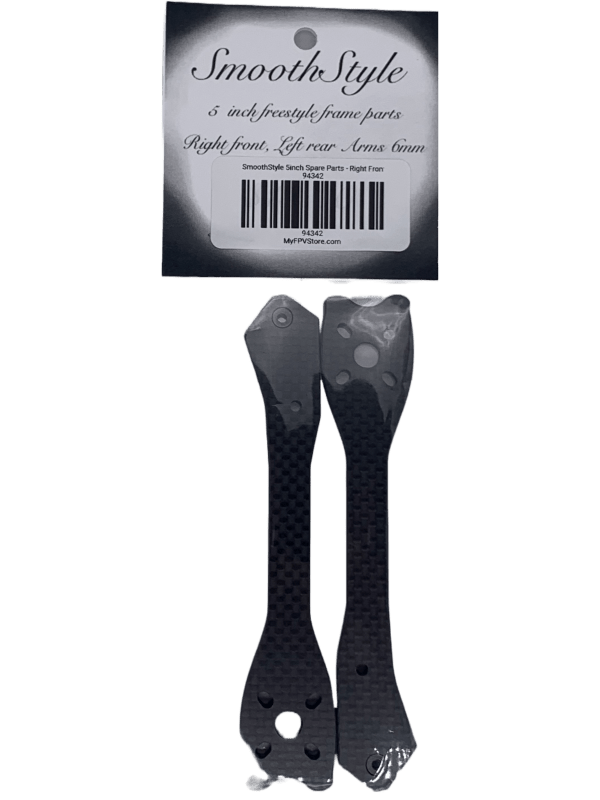

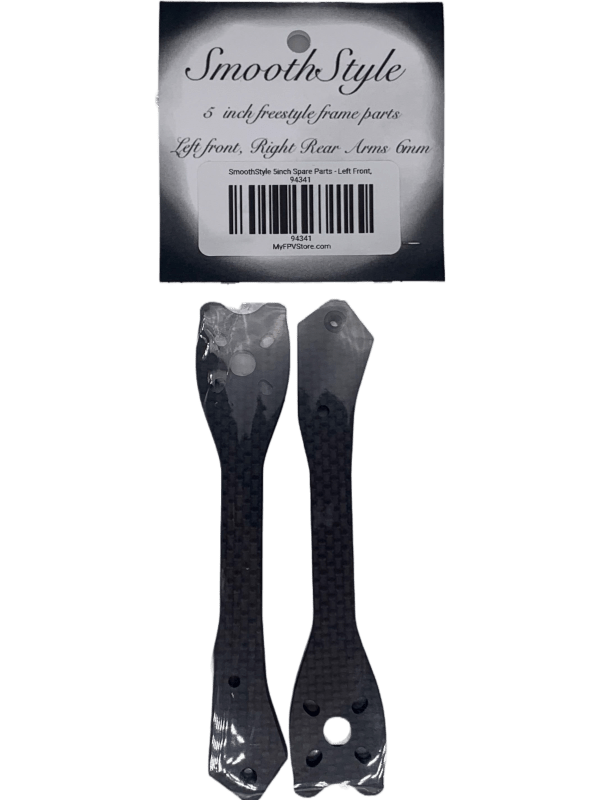

Replacement Arms

• Material: Carbon fiber
• Arm Thickness: 6mm
• Motor Bolt Pattern: 16×16 or up to 19×19
• Prop Compatibility: Up to 5.1 inches
• Arm Mounting: Two-screw setup, allowing individual arm replacement without removing stack screws
• Press Nut Orientation: Ensure press nuts face upward during assembly for optimal shock distribution

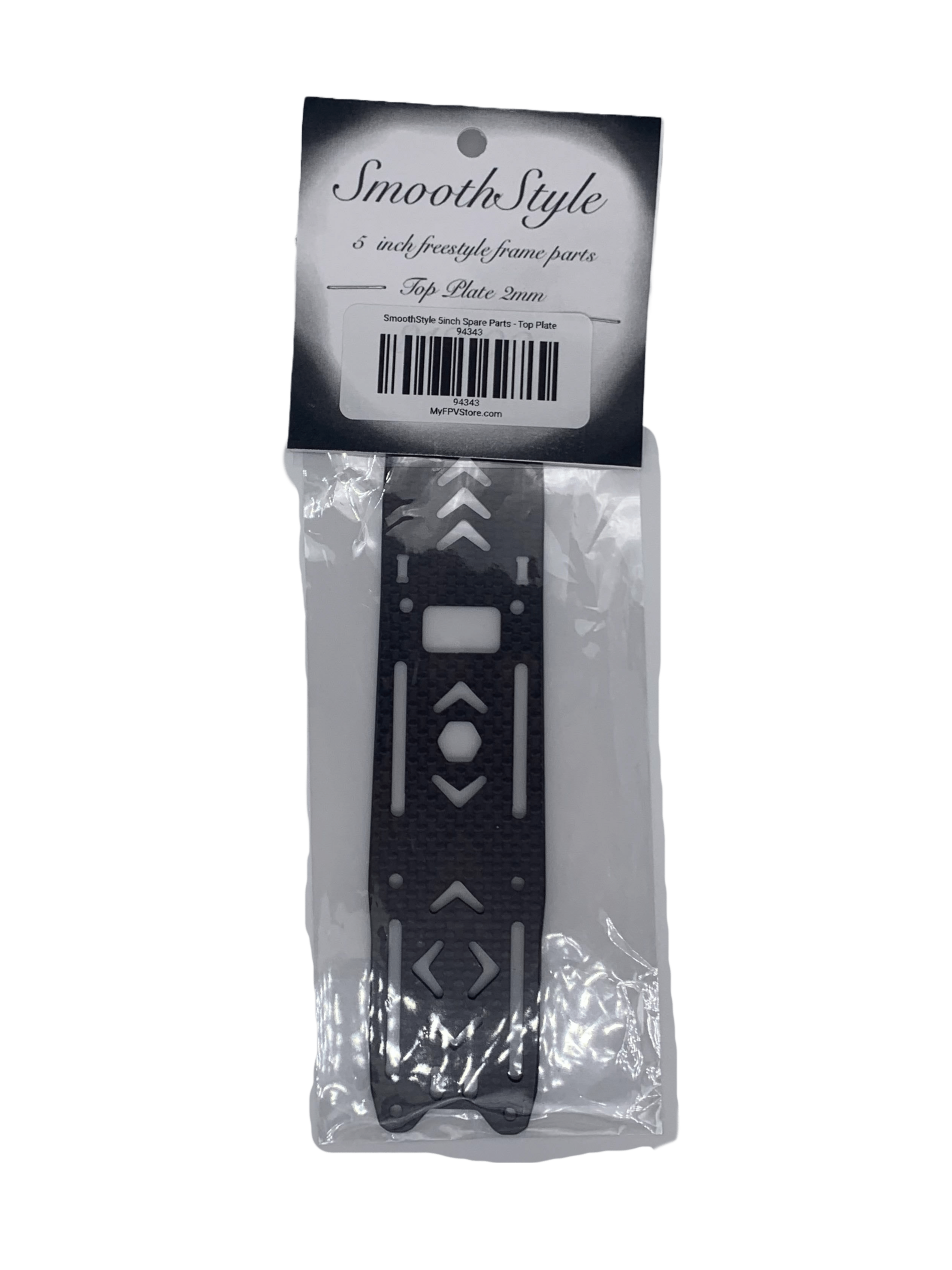

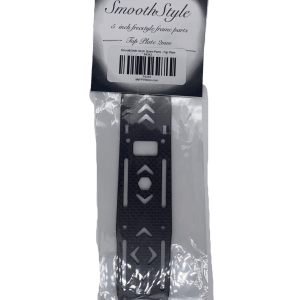

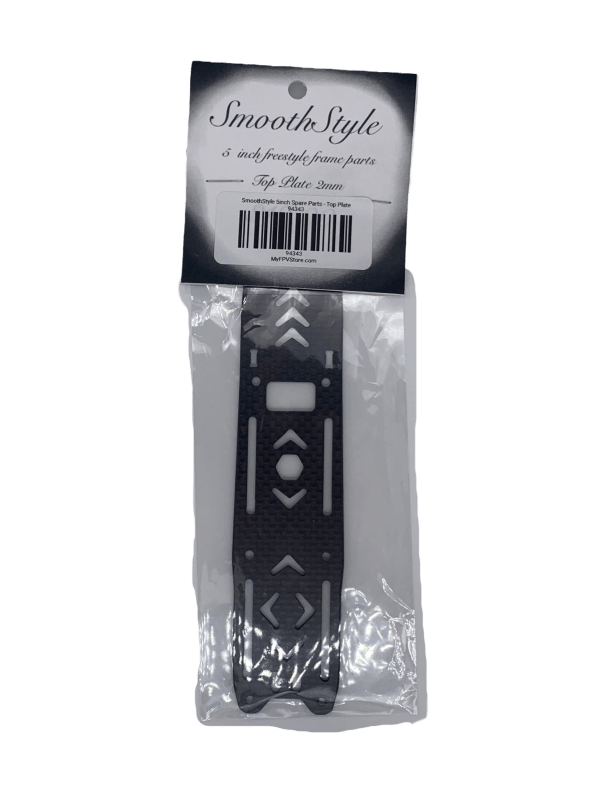

Top Plate

• Material: Carbon fiber
• Plate Thickness: 2mm
• Outer Edge: Chamfered edges for battery strap protection
• Action Cam Hole: 17x10mm hole behind the action cam mounting for battery lead routing
• Battery Mounting Area: 100mm in length, 37mm in width
• Battery Recommendations: Recommended to use a 6s 1100mAh pack, but larger packs can be positioned sideways for an excellent flying experience
• Rear Top Plate Screws: Countersunk for flush battery mounting

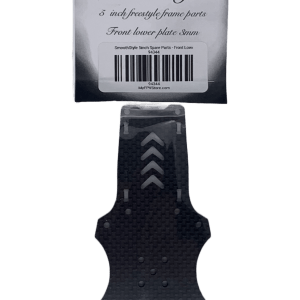

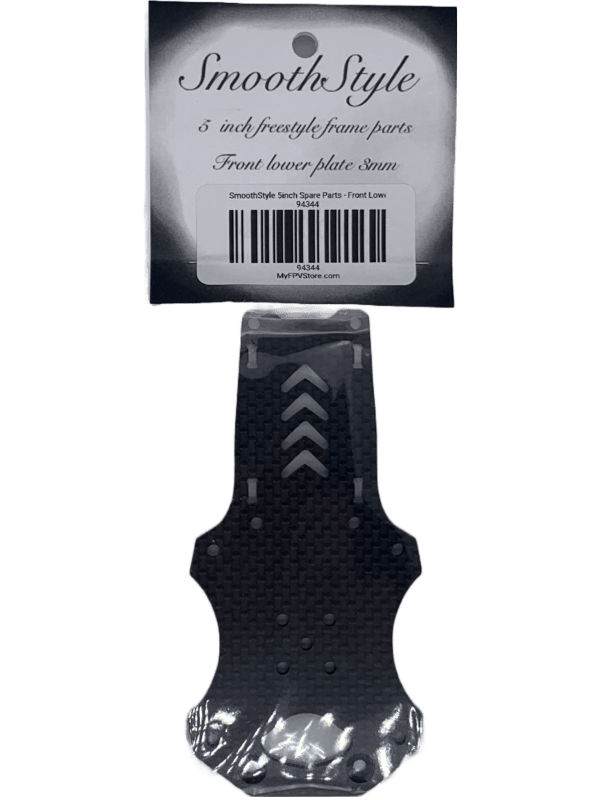

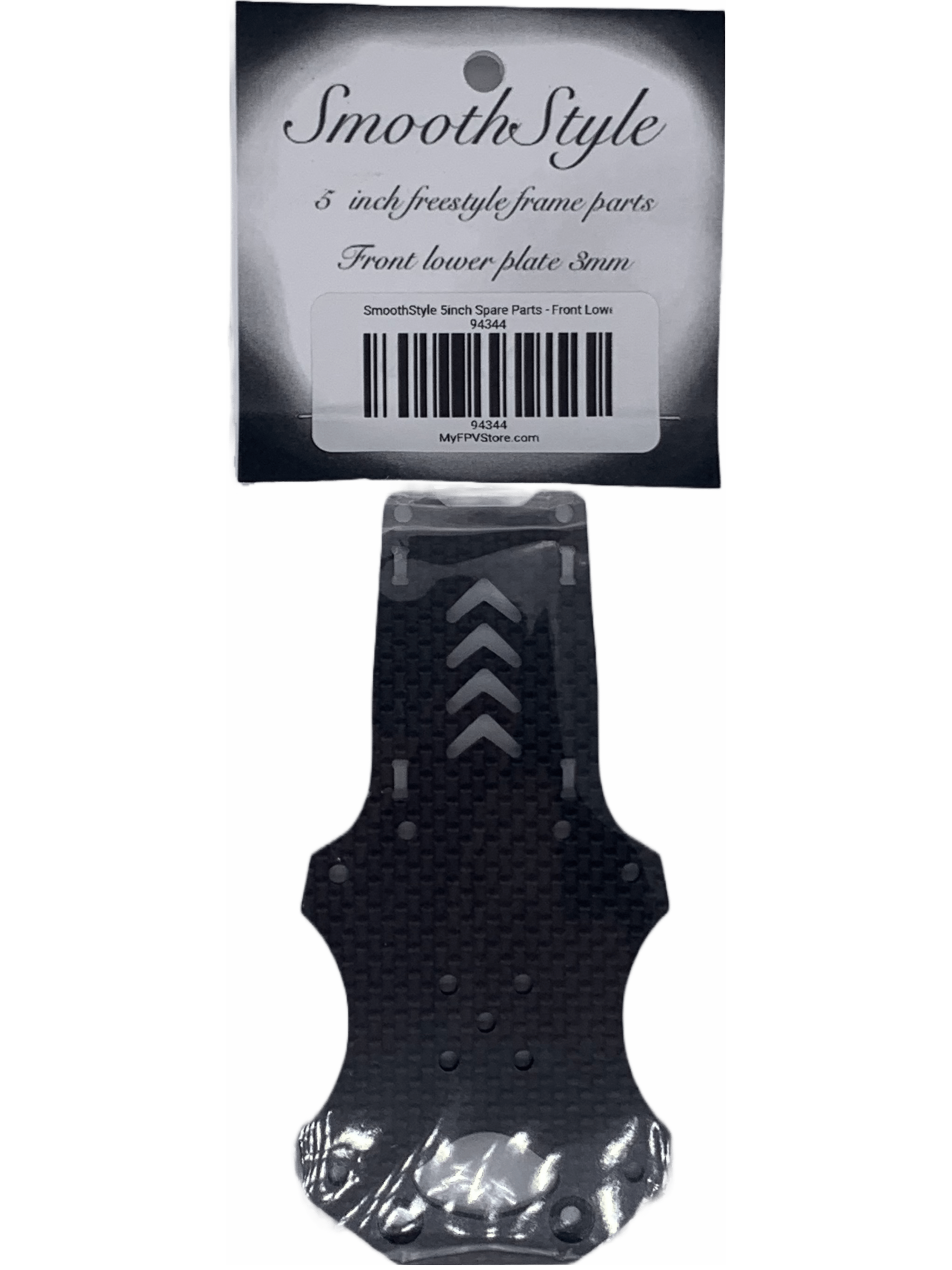

Front Lower Plate

• Material: Carbon fiber
• Thickness: 3mm
• Bay Area: 24mm wide from cam plate to cam plate

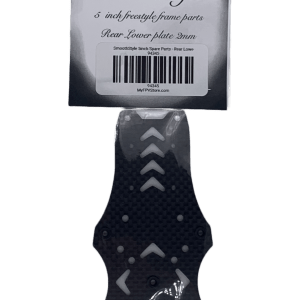

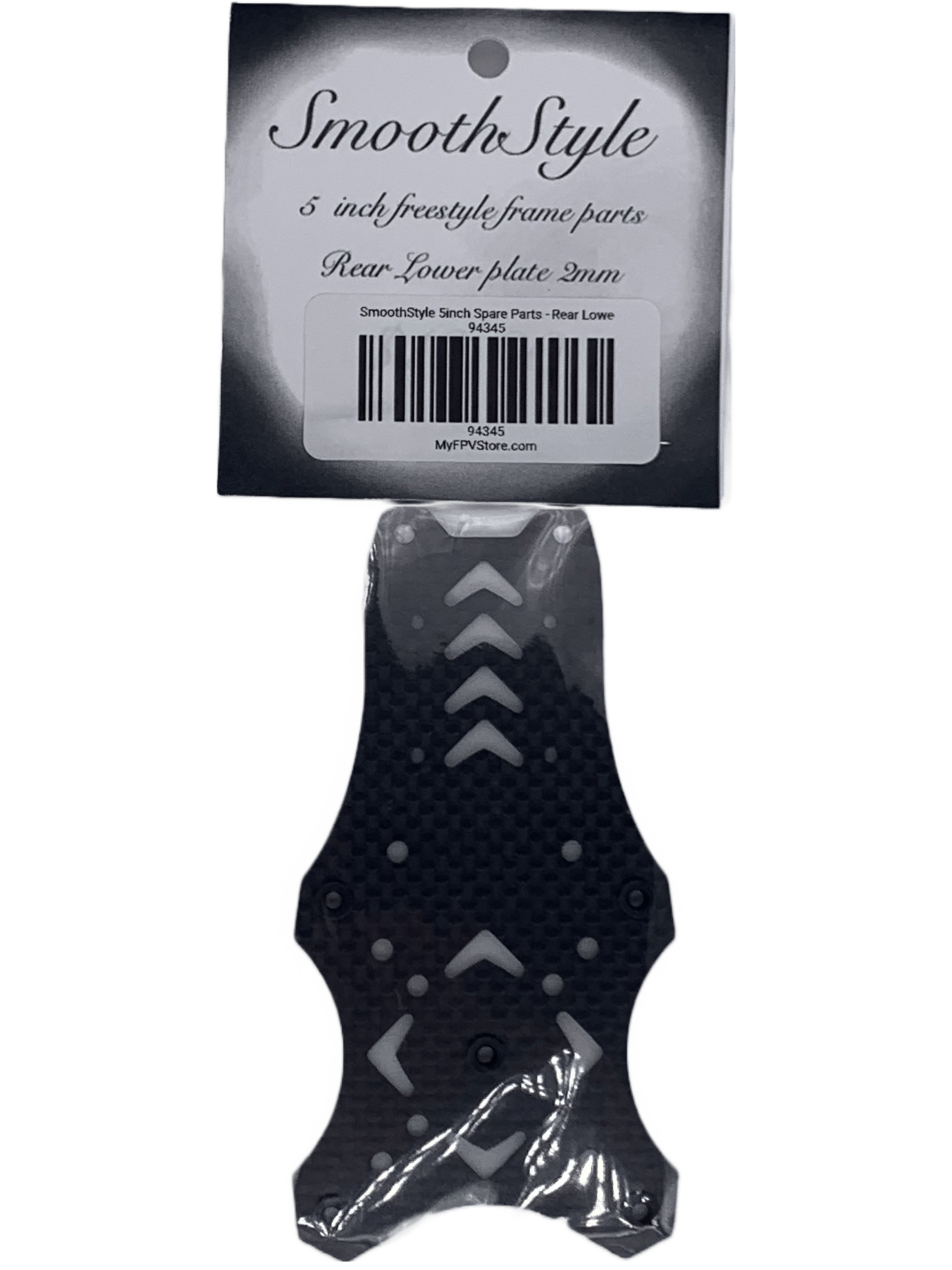

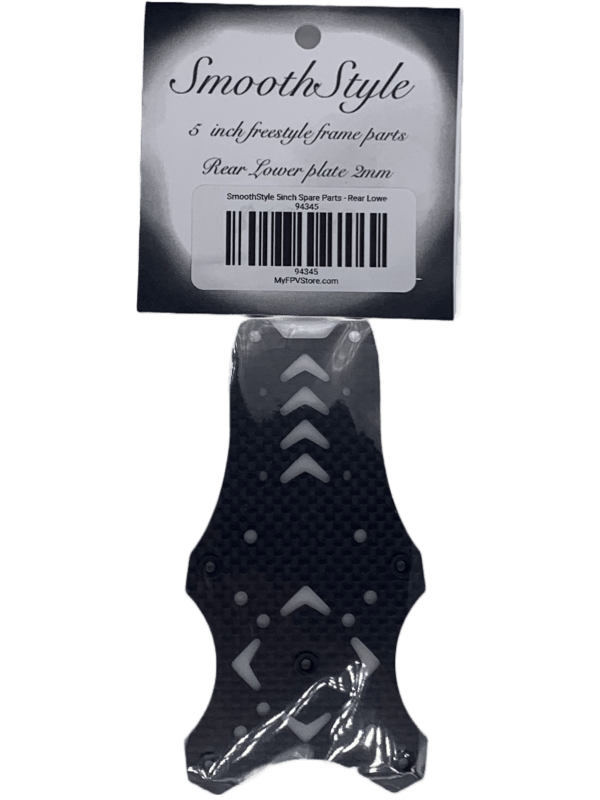

Rear Lower Plate

• Material: Carbon fiber
• Thickness: 2mm
• Flight Controller Mounting: Supports either countersunk 20×20 or 30.5×30.5 (30×30) mounting holes, with a height of 20mm

Battery Pad

• Custom Engraved SmoothStyle Print
• Super Sticky Multi-layer Silicone Pad

Hardware

•  4x 28mm standoffs
•  4x 20mm standoffs
•  8x M3 aluminum cone washers
•  4x M3X5mm flat head screws
•  8x M3X5mm button head screws
•  22x M3X8mm socket head screws
•  5x M3X12mm socket head screws
•  4x M3x20mm flat top screws
•  4x M3 nuts
•  2x M3x14mm flat head screws
