RAGING DRONER 5R FRAME (no canopy) – Standard Arms 5″ Frame

Catalyst Machineworks Raging Droner 5R Frame – 5″ (No Canopy)

Sometimes a Massive Droner isn’t enough. Hard to believe right? When the “need” arises don’t leave them hanging. Pull out your Raging Droner 5R and put them in their place. We are hard at work creating the next big revolution in 5″ race spec frames. We took the successful design elements from our three most popular frames (Massive Droner, Merica, and Smooth Operator), and rolled the best parts of each into one amazing machine.

Specs:

• 75 grams (standard kit w/ hardware – no canopy)
• 81 grams (hybrid kit w/ hardware – no canopy)
• Carbon Fiber: Twill Weave 3K Matte
• CF arm thickness: 5mm (standard kit)
• CF arm thickness: 5mm and 6mm (hybrid kit)
• CF arm front brace thickness: 4mm
• CF cage plate thickness: 2mm
• Frame Size: 203mm (standard kit)
• Frame Size: 222mm (hybrid kit)
• Camera Angle Range: 0 – 90 degrees
• Motors supported: 22xx, 23xx, 24xx or similar
• Lipos supported: 3s, 4s, 5s, 6s
• Lipo mounting position: Bottom
• Prop Size: 5 inch
• Fastener Material: Aircraft Grade 7075, allow steel, black plastic
• Accepted ESC: (30.5mm x 30.5mm or micro 20mm x 20mm)
• Motor pad mounting holes: M3 screws on 16mm or 19mm mounting circles
• Supported FPV Cameras: Micro Camera
• Uses the same arms as the Merica!
• Uses the same optional rear arm brace as the Merica Stretch 5″ (standard kit)
• Uses the same optional rear arm brace as the Merica Stretch 6″ (hybrid kit)
• Optional Turtle mode canopy w/fin (sold separately)

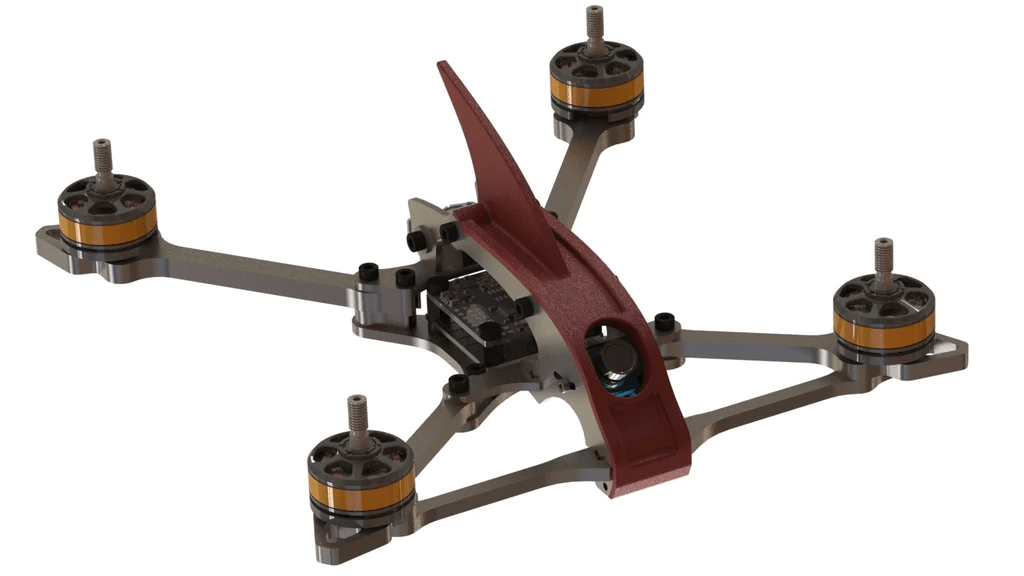

• Optional HD camera canopy (sold separately)
• Optional GoPro Mount (sold separately)
• Optional Session Mount (sold separately)
• For track racing with the Hybrid version of the frame adding a rear brace is strongly suggested
