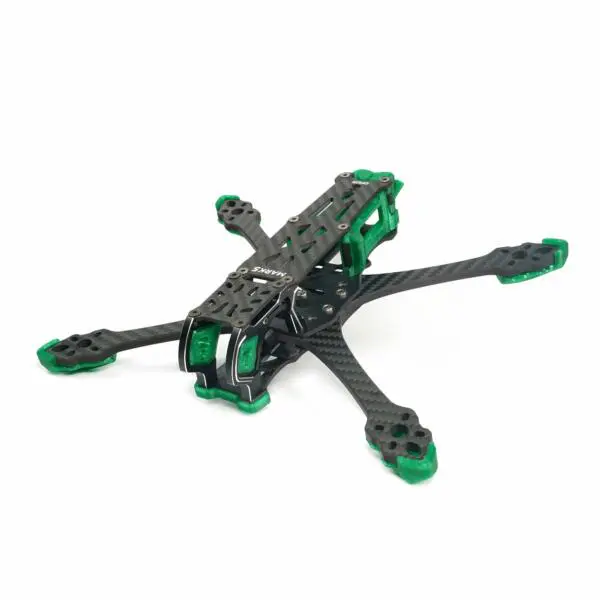

GEPRC MARK5 O3 Pro- Squashed X Green

Check out all of our GEPRC Products!

Build the ultimate cinematic and freestyle FPV drone with the GEPRC MARK5 O3 Pro Frame Kit. This version is specifically engineered around the DJI O3 Air Unit, featuring a “Squashed X” or “Deadcat” geometry to provide a flawless, prop-free view. The “Pro” kit comes packed with a comprehensive set of accessories and premium drone parts, all finished in a stunning Emerald Green, making it the perfect foundation for a top-tier FPV drone kit.

Purpose-Built for the DJI O3 Air Unit

The MARK5 O3 Pro has been redesigned to perfectly accommodate the DJI O3 system. It features upgraded, durable 7075-T6 aluminum alloy side plates to protect the O3 camera. A custom-designed TPU mount with an air inlet cooling port ensures the O3 VTX module receives adequate heat dissipation, maintaining stable performance during demanding flights.

Flawless Prop-Free Footage

The Squashed X frame geometry is the top choice for videographers. This design pushes the front arms further back, guaranteeing that the propellers are kept completely out of the O3 camera’s wide 155° field of view. This allows you to capture clean, immersive, and professional-looking footage without the distraction of spinning props.

The “Pro” Builder’s Kit

This Pro Edition comes loaded with a full suite of accessories to enhance your build. Unlike the standard version, the Pro kit includes valuable 3D printed parts like a front protector, motor shock pads, a buzzer holder, and multiple HD camera mounts (GoPro & Naked GoPro). It’s a complete package designed for a premium building experience.

Engineered for Durability & Smooth Flight

Designed for freestyle, the MARK5 O3 Pro is built to last. It features robust 5mm arms and a unique frame shock absorption design that creates a safer and more stable environment for your electronics. The independent capacitor and buzzer cabin further reduces vibrations and electrical noise for a clean and reliable FPV drone.

Specifications (Squashed X Pro Version)

• Brand: GEPRC
• Model: MARK5 O3 Pro (GEP-MK5D O3)
• Wheelbase: 230mm
• Frame Style: Squashed X / Deadcat
• Arm Thickness: 5mm
• FC Mounting: 30.5mm x 30.5mm
• Camera Mounting Space: 20mm
• Propeller Size: 5 inch
• Weight: 197.0g

What’s in the Box? (Pro Edition)

• Frame Components:
  • 1x Full Set of Carbon Fiber Plates & Arms
  • 1x Camera Aluminum Part
  • 1x Full Screw Set
• 3D Printed Parts:
  • 1x Front Protector
  • 4x Motor Shock Pads
  • 1x Buzzer Holder
  • 1x VTX Antenna Mount & 1x TBS Antenna Mount
  • 1x GP Camera Mount & 1x Naked GP8 Base
  • 1x Camera Vibration Reduction Mount
  • 1x O3 VTX Mount
• Accessories:
  • Full set of FC shock absorbing balls, motor hubs, battery straps, non-slip mats, landing pads, EVA camera bases, 3M tape, screwdrivers, M8 wrench, and antenna tubes.
