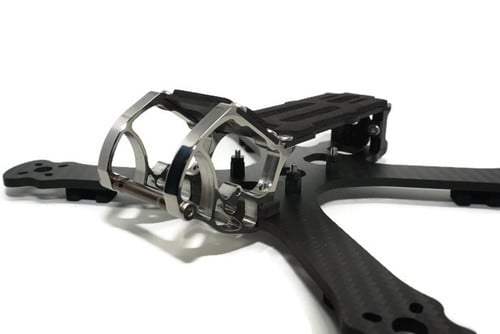

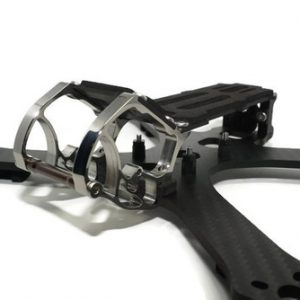

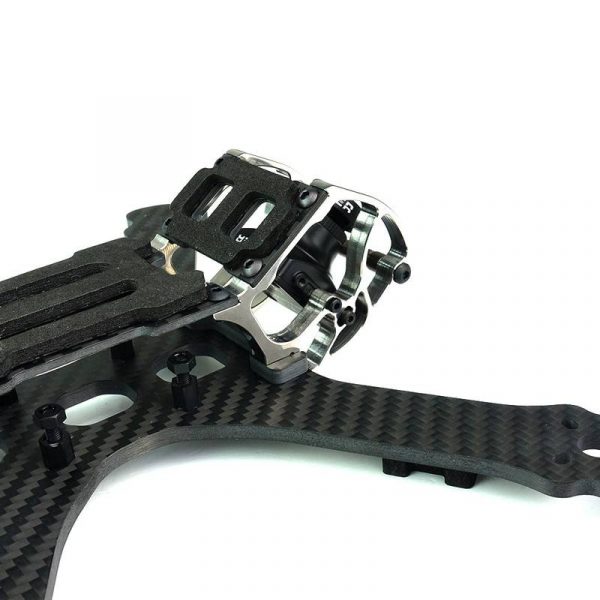

Armattan Chameleon TI 5″ Frame
See all of our Armattan products!
The Chameleon Ti 5 is the evolution of the all-time favorite Chameleon released back in 2016. Better materials are used and many lessons learned with the Chameleon are revised in this new, state of the art design. This is one of the best frames of all time we think! Armattan always brings their A-game when it comes to making excellent frames to build your quad on.
- Improved carbon fiber – The same material that debuted with the Rooster.
- Lighter, easier to build
- Incredibly tough Titanium front end
- Fewer total bolts, and no more M2 bolts. ALL M3
- Better VTX mounting provisions
- Better anchoring provisions for 3D-printed parts
Included
Titanium:
2x Camera-cage braces
Hardware:
5x 4mm button-head M3 bolts
8x 6mm button-head M3 bolts
6x 10mm button-head M3 bolts
3x 12mm button-head M3 12.9 grade steel bolts
5x 16mm button-head M3 bolts
6x 8mm M2 cup-head (camera) bolts6x 8mm M2 cup-head (camera) bolts
Aluminum:
1x 28.6 Front standoff (silver)
2x Rear standoffs (black)
Nylon:
5x 6mm standoffs
5x nuts
Carbon Fiber:
1x 2mm Top (LiPo) plate
1x 1.5mm HD Cam plate
1x 2mm Rear VTX plates (Standard and TBS)
1x 4mm Main plate 5 inch
1x 4mm Shim plate
Other:
1x Lipo strap
1x LiPo foam pad
1x HD camera foam pad
4x Dog-bone landing pads
1x Molded rubber SMA grommet (included with standard VTX plate)
3x Molded rubber antenna tube mounts (included with standard VTX plate)
As with the other frames in Armattan’s FPV lineup, the Chameleon TI 5 is covered by Armattan’s lifetime warranty.
