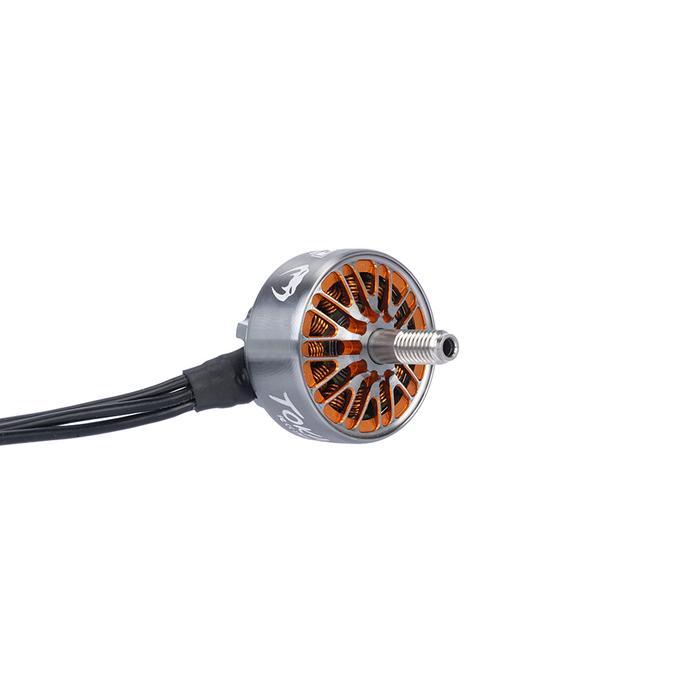

MAMBA TOKA 2207.5 FPV Racing Motor

Check out all of our Diatone Products!

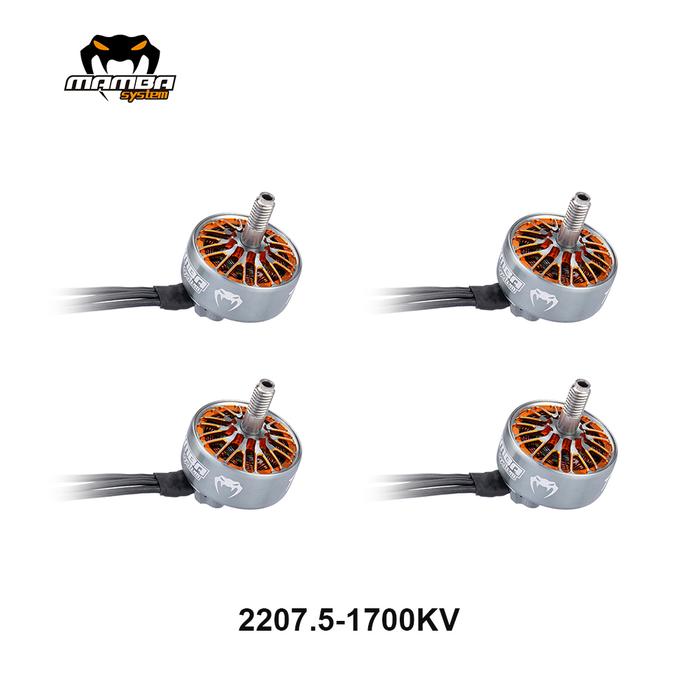

Specifications:

Model:2207.5
KV:1700
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter: M5
Installation hole position :16×16mm，M3
Prop: 5inch~6inch
Bearing： 4*9*4
Shaft Diameter:4mm
Lead Wire Size：24AWG ×190mm
Slots/poles:12N14P
Magnet Wire: Class H，220℃ Enameled Wire
Stator Diamter：22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 38.5A
Maximum Power: 924W

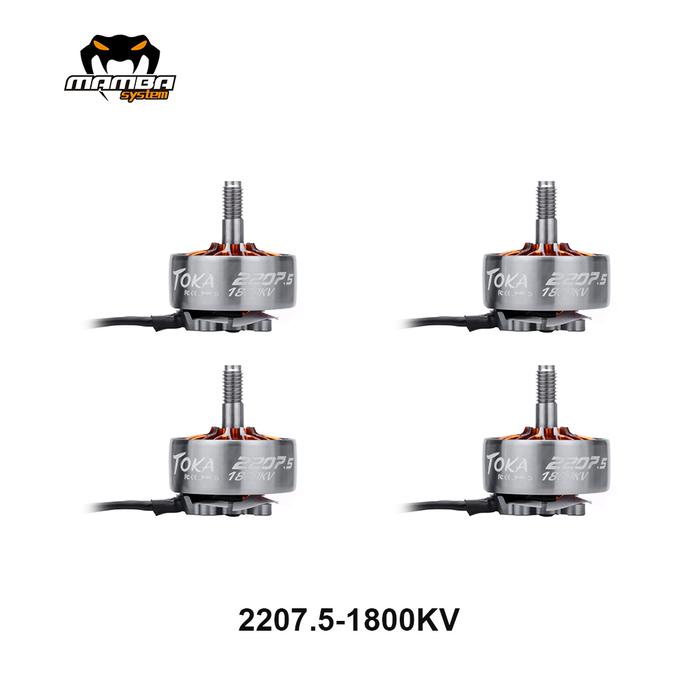

Model:2207.5
KV:1800
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter:M5
Installation hole position :16×16mm，M3
Prop: 5inch~6inch
轴承尺寸 Bearing： 4*9*4
Shaft Diameter:4mm
Lead Wire Size：24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H，220℃ Enameled Wire
Stator Diamter：22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 42.1A
Maximum Power: 1011W

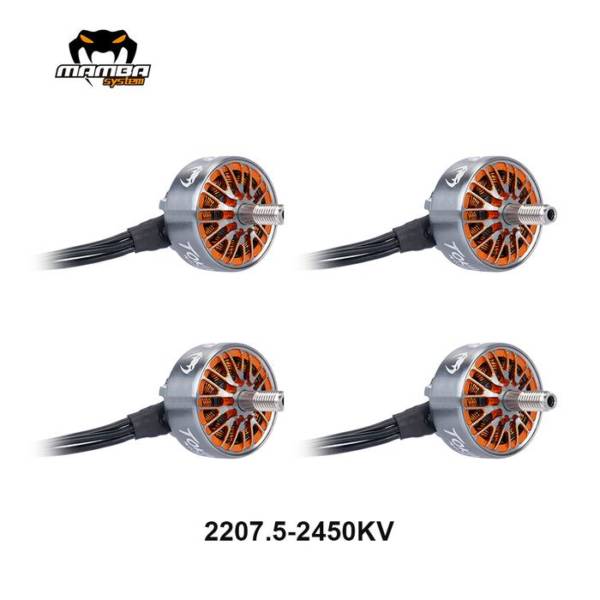

Model:2207.5
KV:2450
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter:M5

Installation hole position :16×16mm，M3
Prop: 5inch~6inch
Bearing： 4*9*4
Shaft Diameter:4mm
Lead Wire Size：24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H，220℃ Enameled Wire
Stator Diamter：22mm
Stator Height:7.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 44.1A
Maximum Power: 706W
