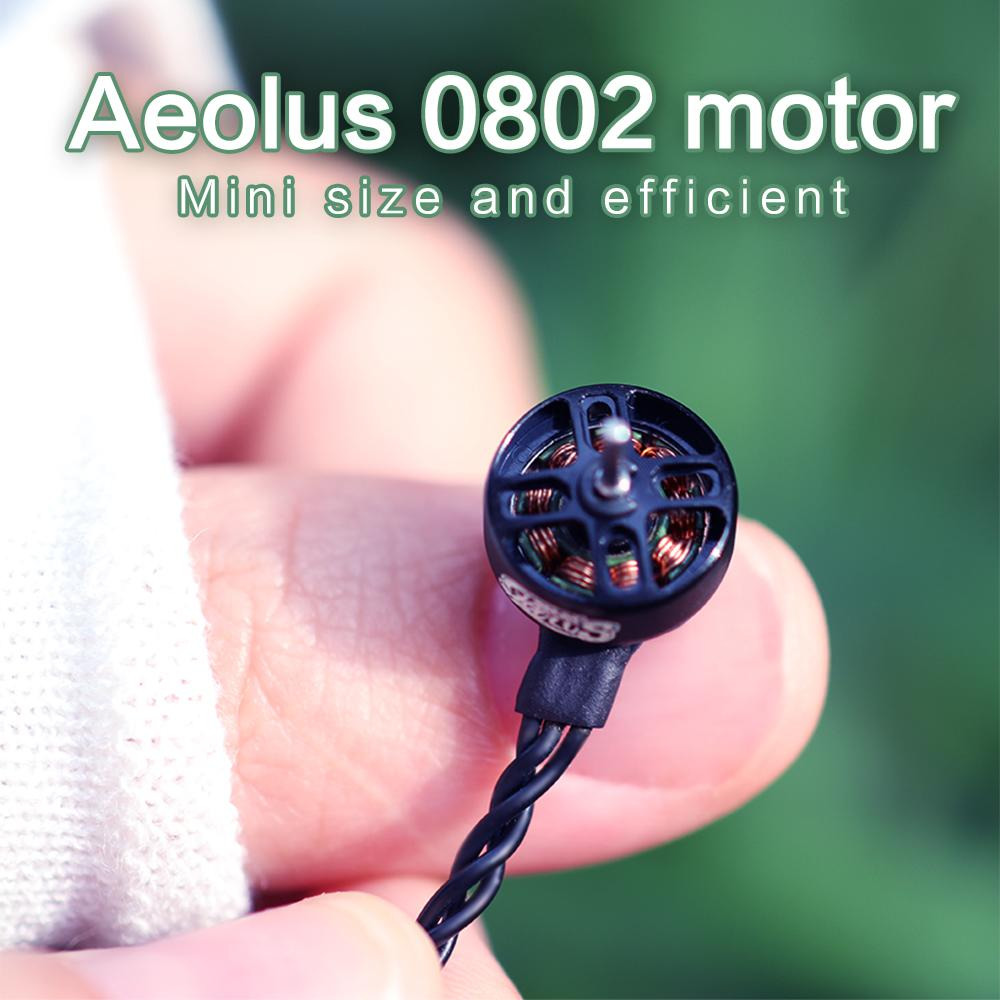

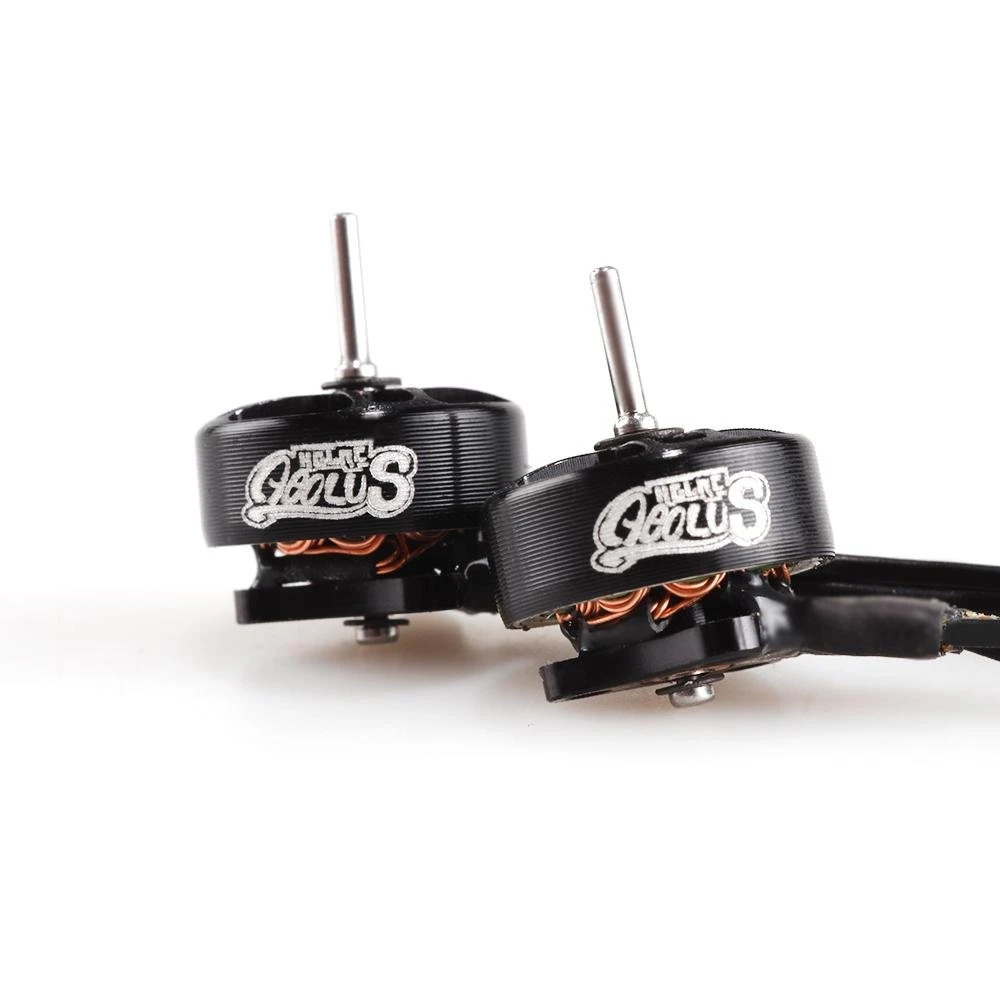

HGLRC AEOLUS 0802 17000KV / 22000KV / 25000KV Brushless Motor

Check out all of our HGLRC Products!

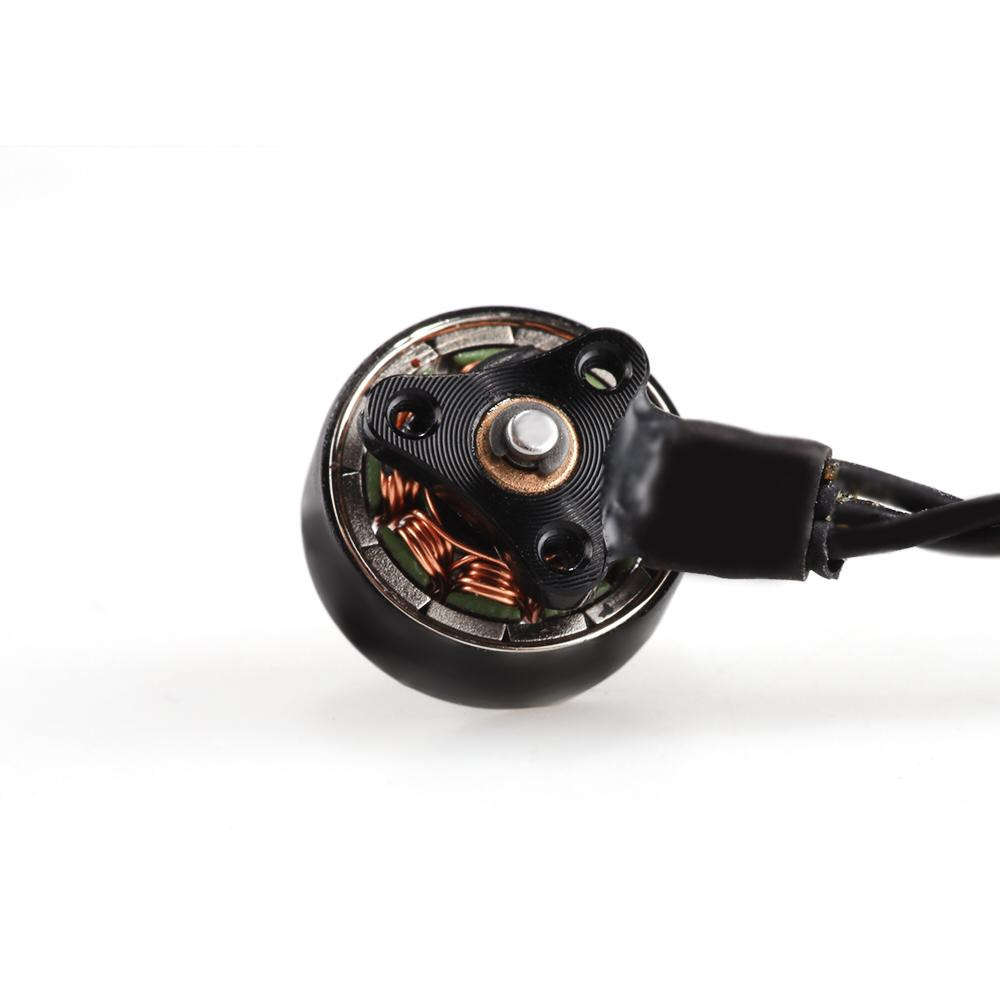

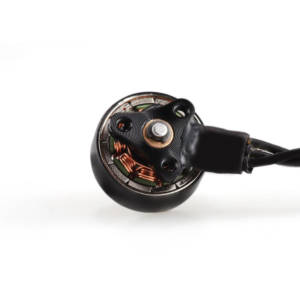

It uses tile-shaped magnets and high-precision CNC shells, with high efficiency, good dynamic balance, and low heat generation.

The HGLRC Aeolus 0802 Brushless Motor is a replacement motor for the Petrel 65-75mm Whoop FPV racing drone

HGLRC Aeolus 0802 17000KV Brushless Motor
Motor:17000KV
Configuration:9N12P
Shaft Diameter: 1.0mm
Motor Dimension:Φ11.2mm x 7.6mm
Mounting hole:Φ6.6*1.4mm

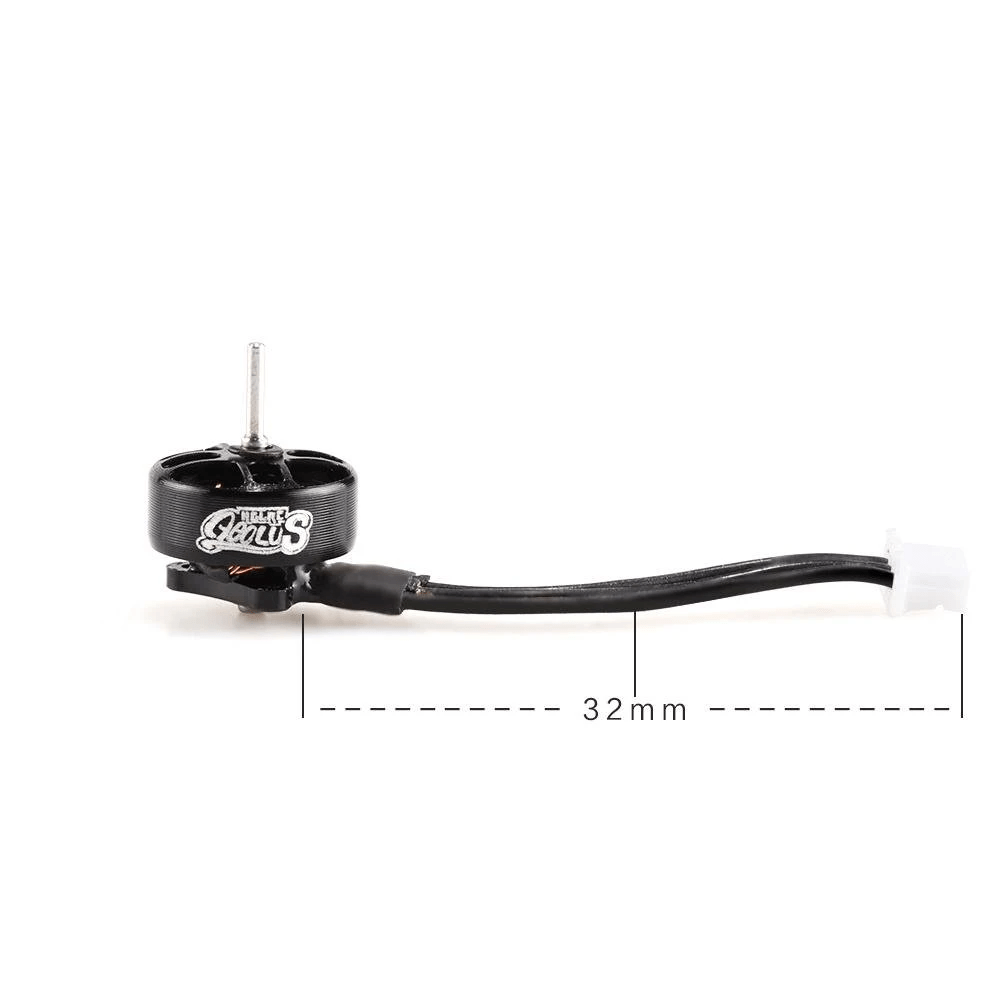

Wire length(include connector): 30mm
No.of Cells(Lipo):4.20-8.20V(1S-2S)
ESC:5-12A
Recommended Prop(inch):1-1.6Inch

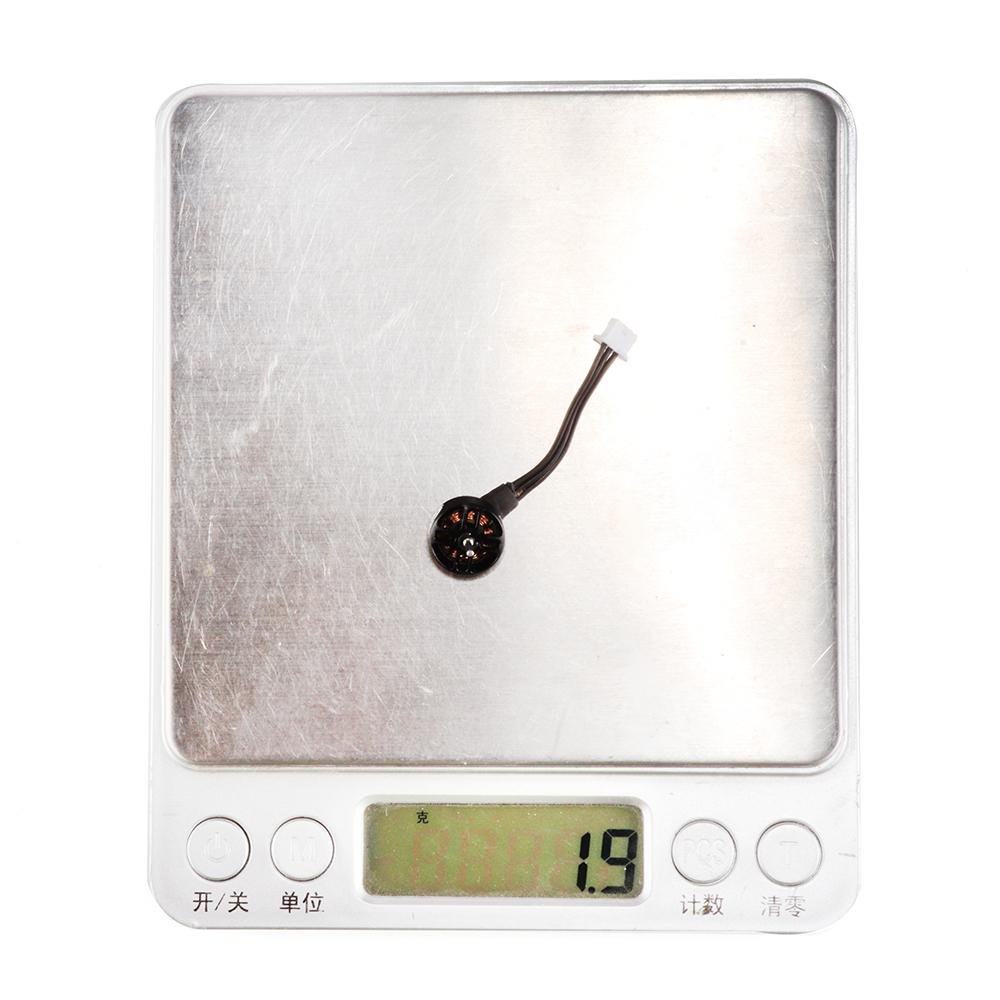

Weight:1.9g

HGLRC AEOLUS 0802 22000KV Brushless Motor
Motor:22000KV
Configuration:9N12P
Shaft Diameter:1.0mm
Motor Dimension:Φ11.2mm x 7.6mm
Mounting hole:Φ6.6*1.4mm
Wire length(include connector):30mm
No.of Cells(Lipo):4.20V(1S)
ESC:5A
Recommended Prop(inch):1-1.6Inch
Weight:1.9g

HGLRC AEOLUS 0802 25000KV Brushless Motor
Motor:25000KV
Configuration:9N12P
Shaft Diameter:1.0mm
Motor Dimension:Φ11.2mm x 7.6mm
Mounting hole:Φ6.6*1.4mm
Wire length(include connector):30mm
No.of Cells(Lipo):4.20V(1S)
ESC:5A
Recommended Prop(inch):1-1.6Inch
Weight:1.9g
